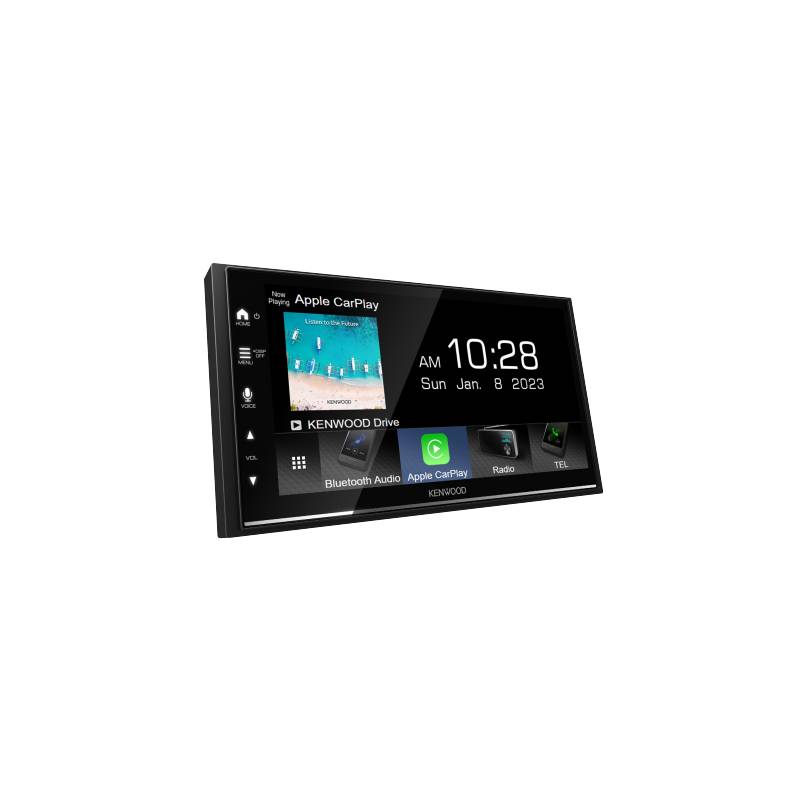

Kenwood DMX8709S Double DIN 6.8” Digital Multimedia Receiver with Capacitive Touch Panel, Apple CarPlay, Android Auto, and USB Mirroring for Android
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

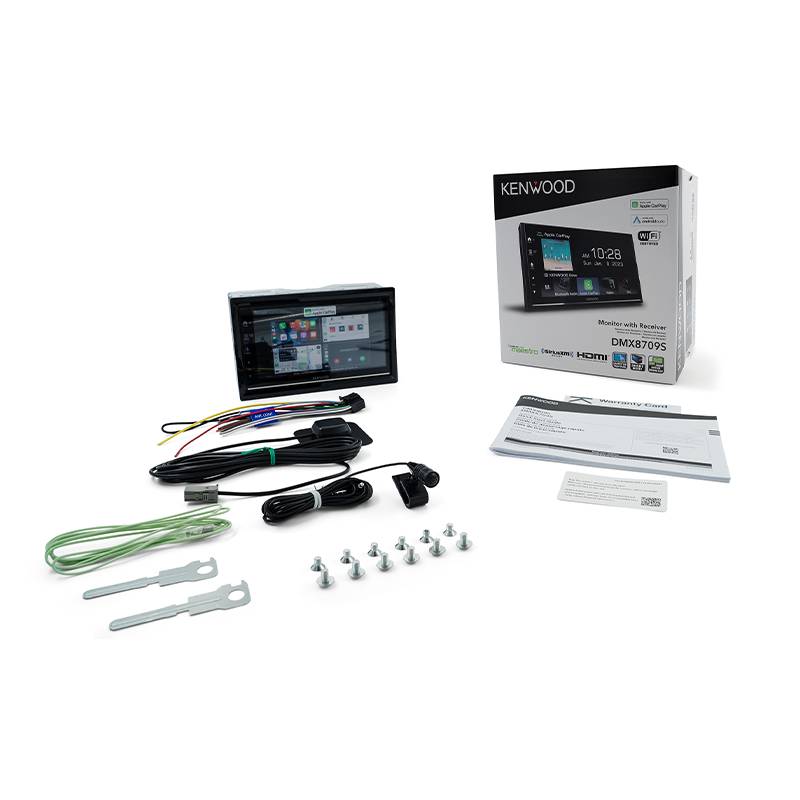

What's Inside?

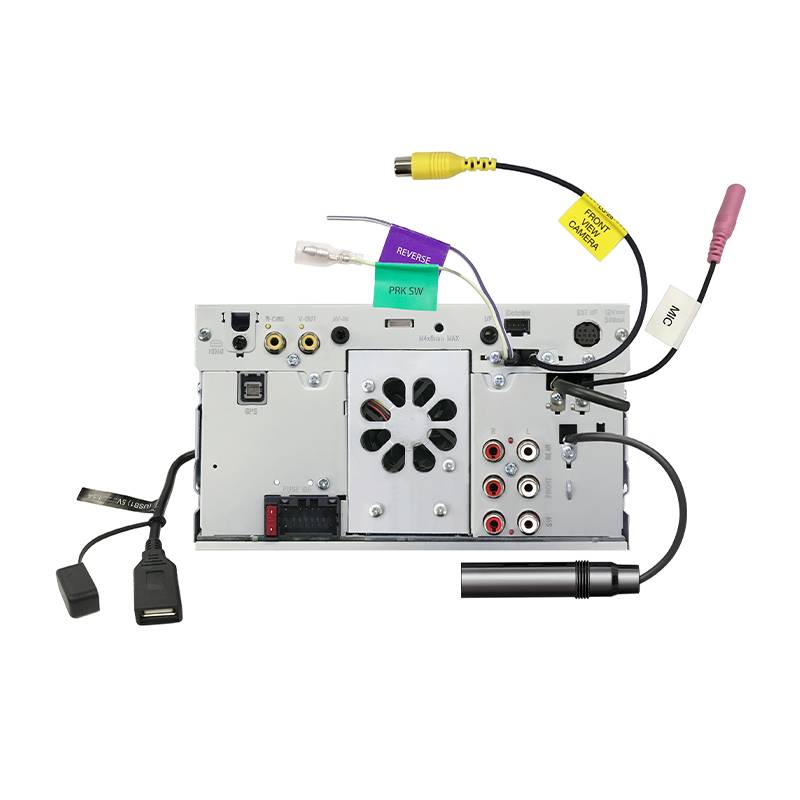

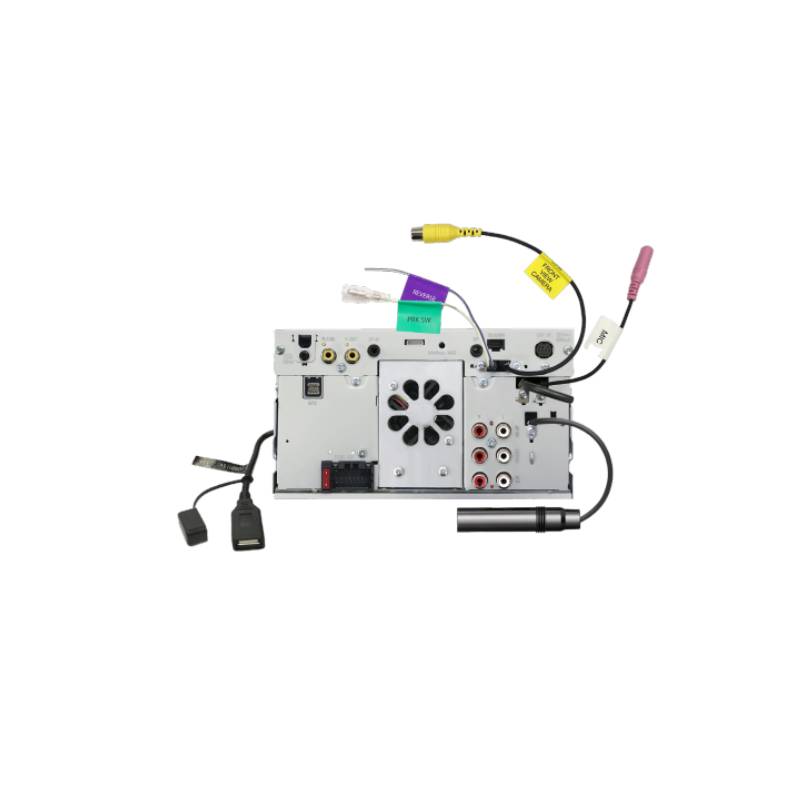

- •Digital multimedia receiver w/ fixed 6.75" touchscreen monitor (10A fuse)
- •Sleeve (attached)
- •Trim ring
- •Wiring harness
- •6.5' Parking brake wire (light green)
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- •GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- •Self-adhesive pad
- •(2) Radio removal tools
- •(6) Pan-head ISO-mount screws (M5x8mm)
- •(6) Flat-head ISO-mount screws (M5x8mm)
- •Quick Start Guide
- •Owner's Manual

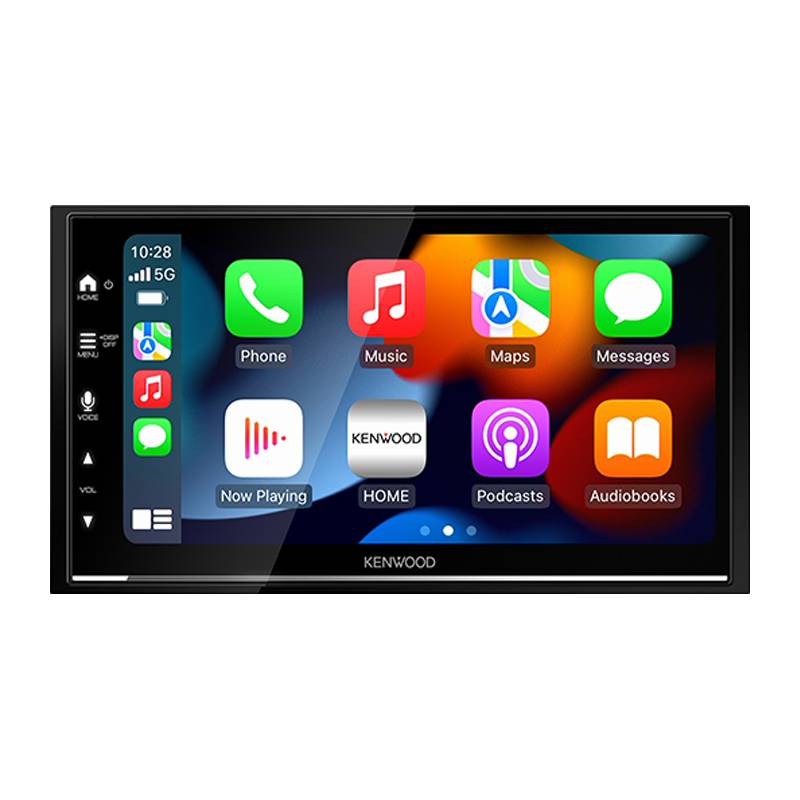

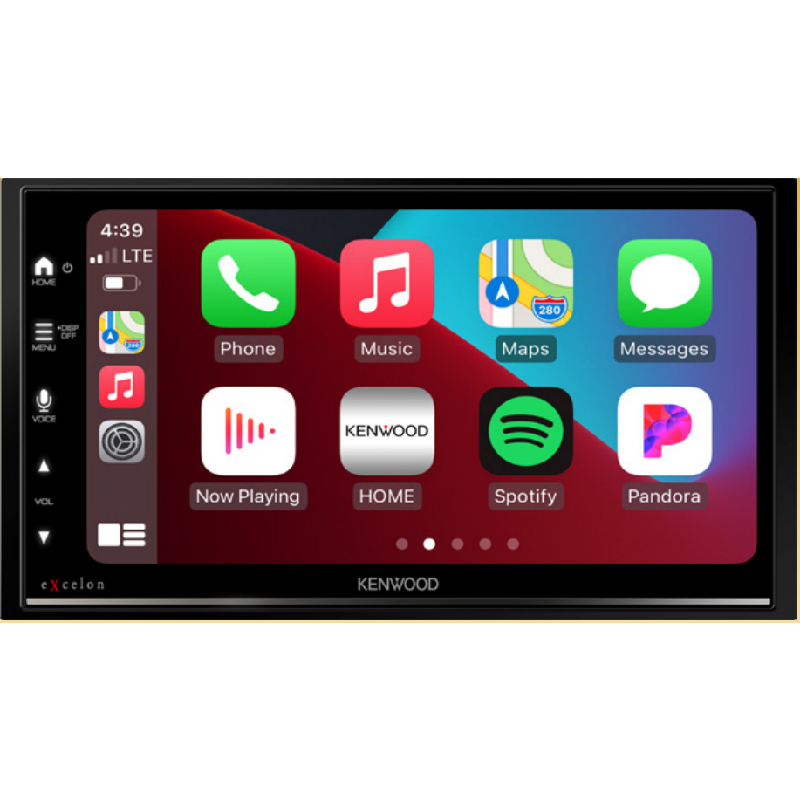

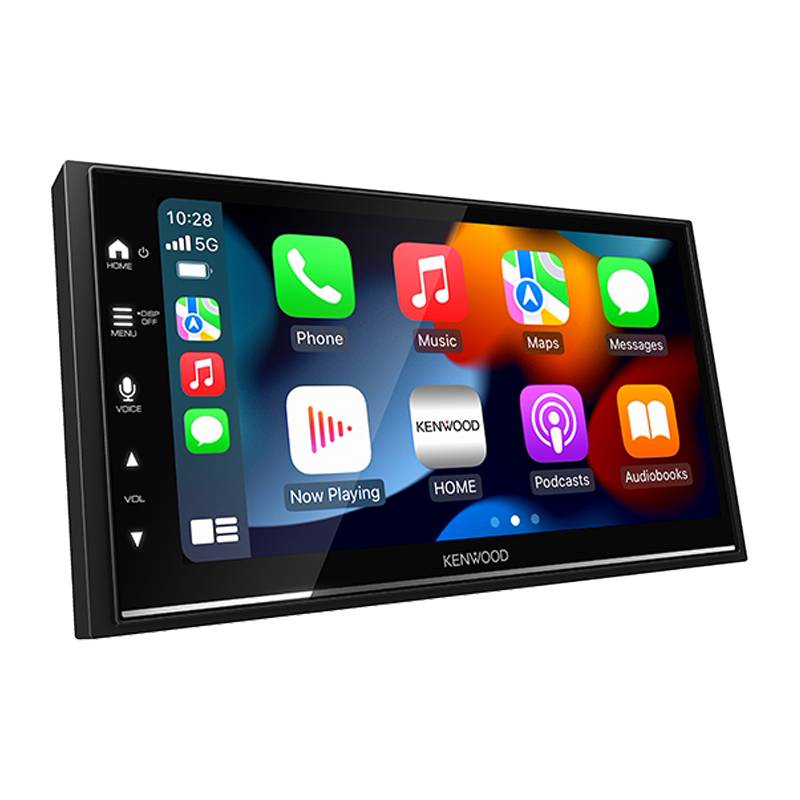

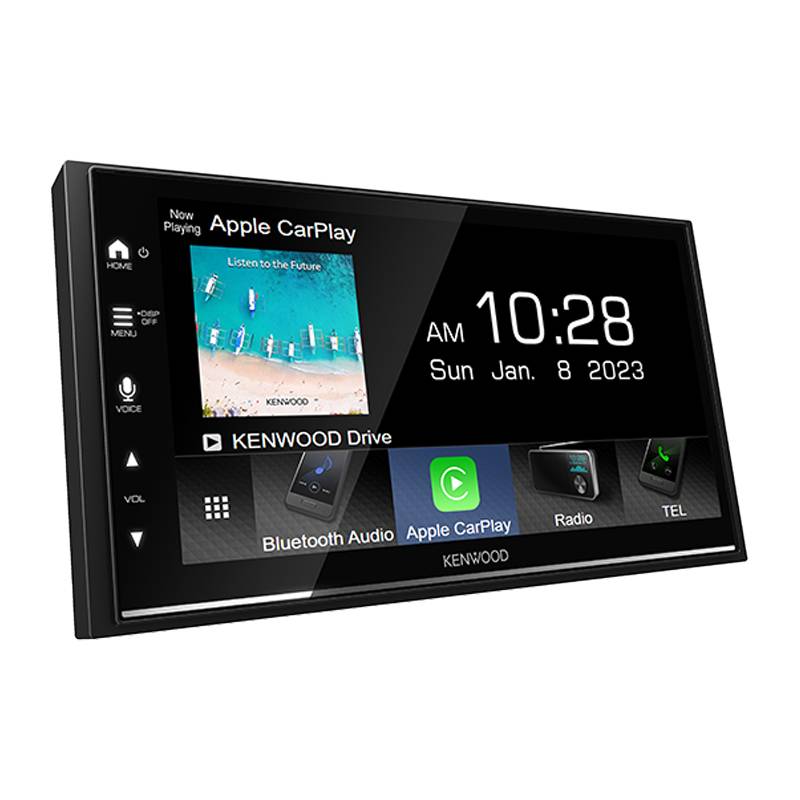

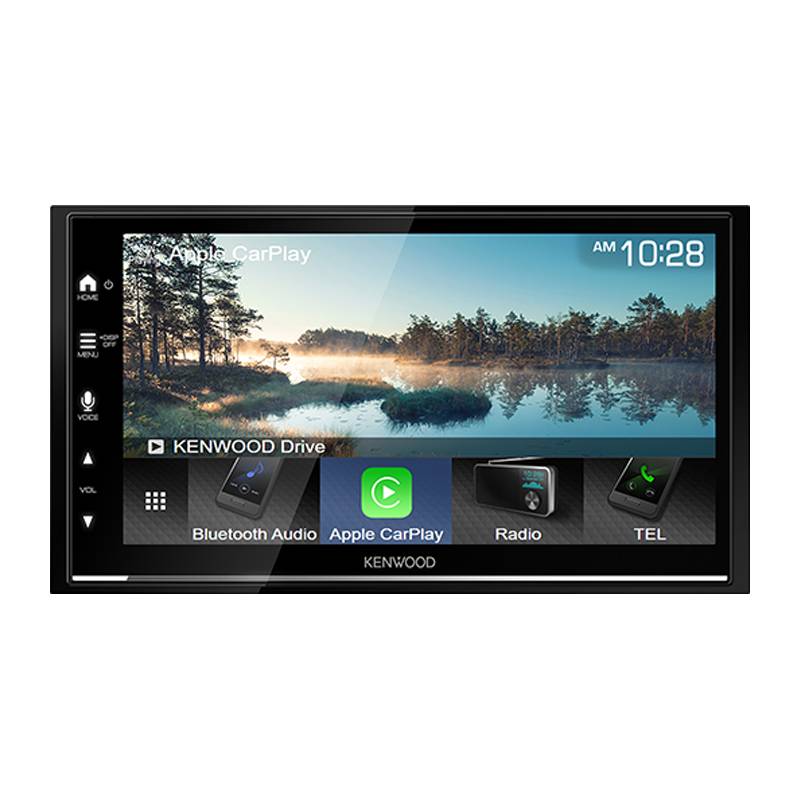

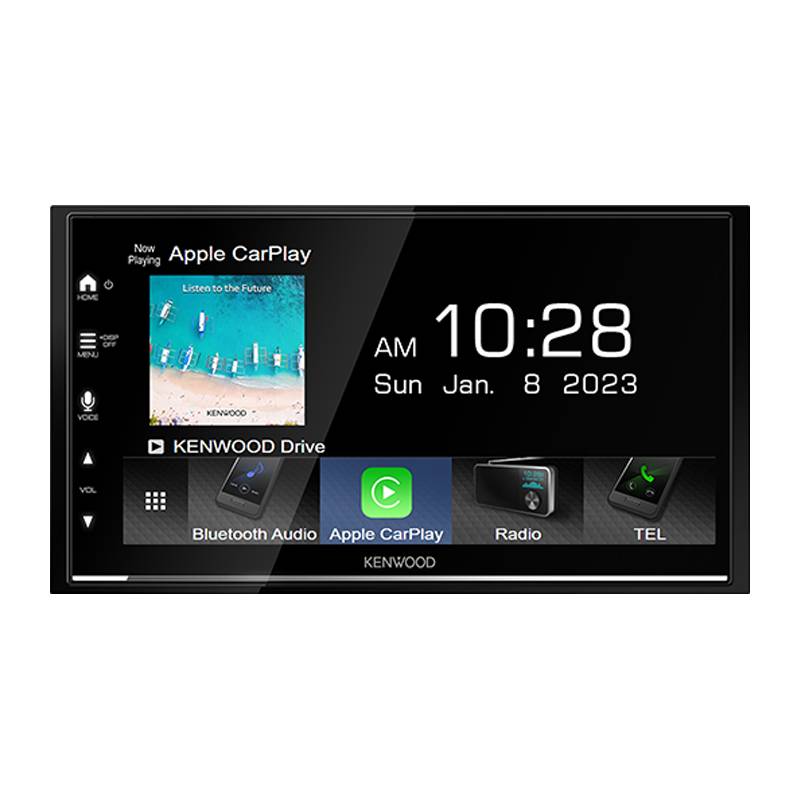

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

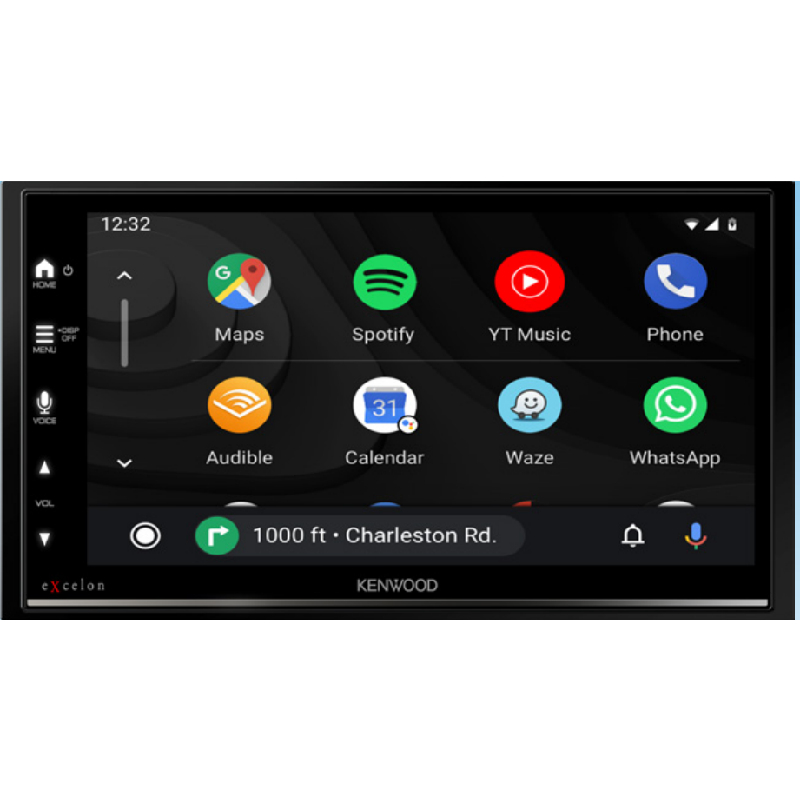

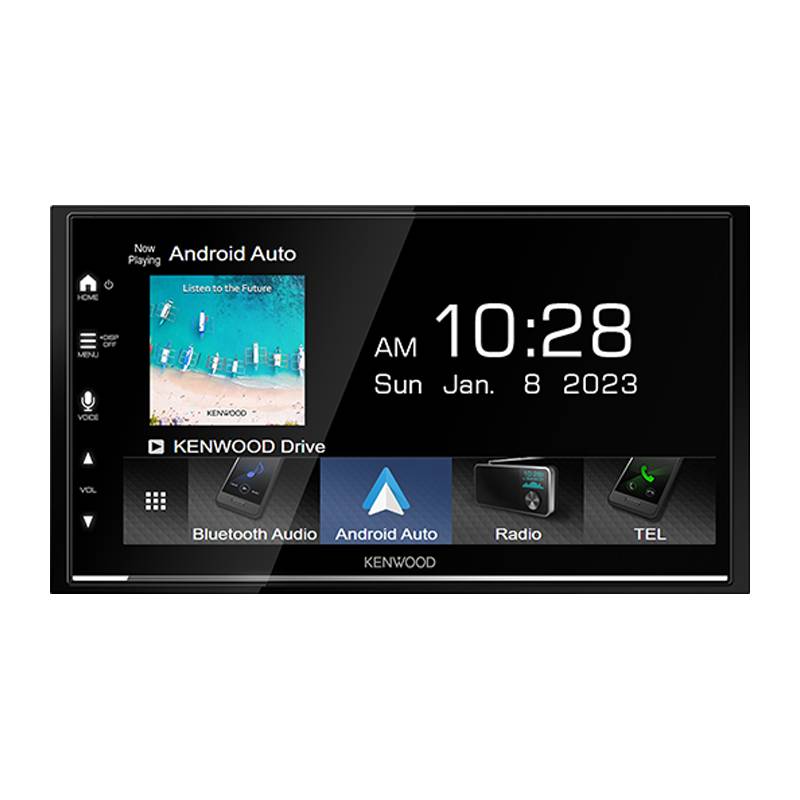

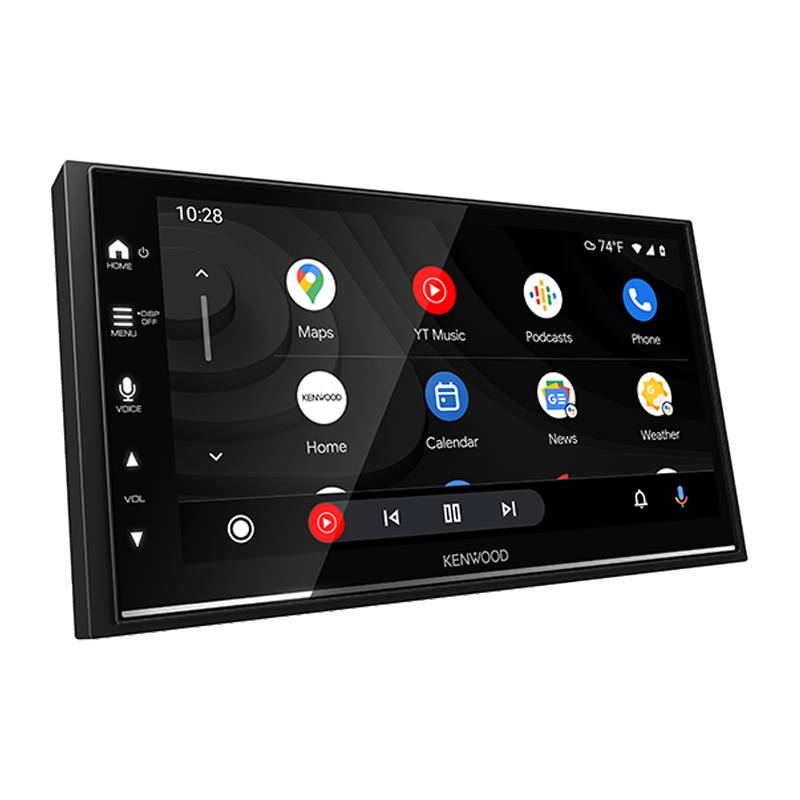

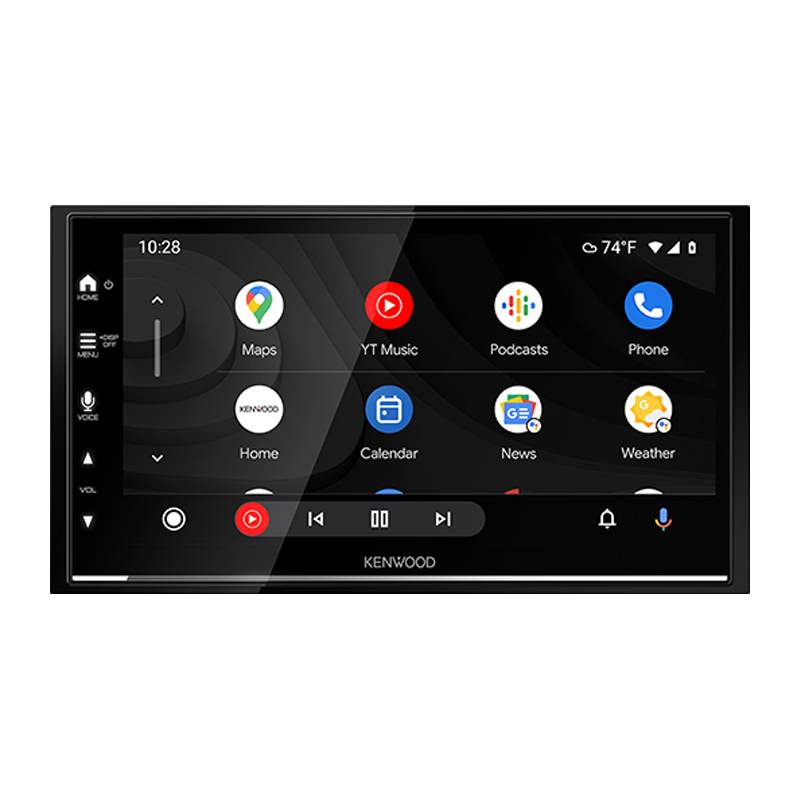

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required). - To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.
High-end Features
A premium multimedia receiver with high-end features at a budget-friendly price tag, the Kenwood DMX8709S is a car stereo you can rely on to give you an excellent entertainment experience without breaking the bank.The Kenwood DMX8709S is compatible with Apple CarPlay and Android Auto, so you can do tasks such as checking out messages, taking and making calls, asking for directions, listening to voicemails, and many more using voice commands.
Receiver and Check Your Engine's Performance Data

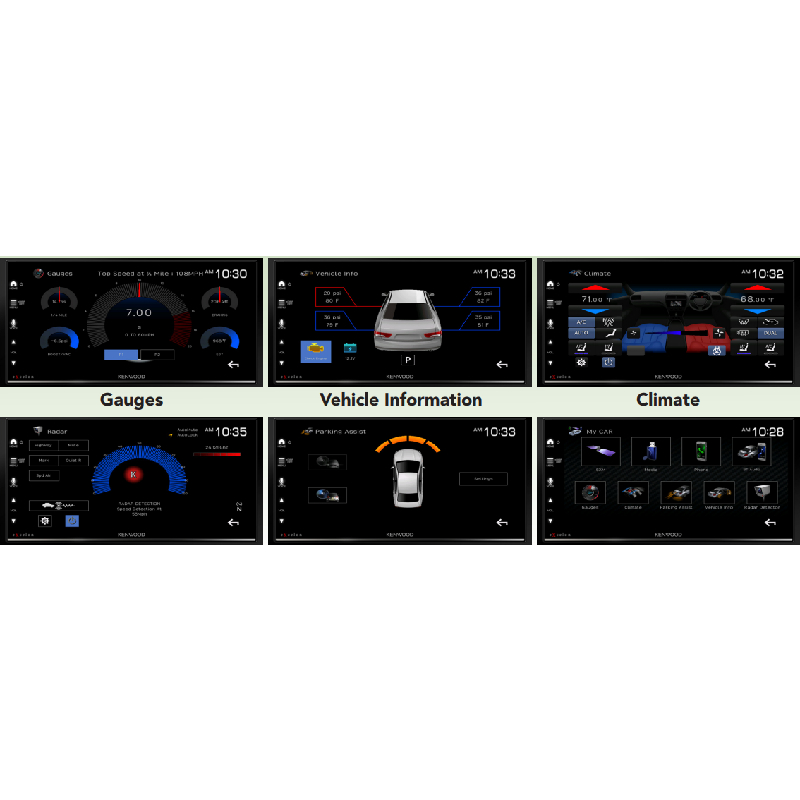

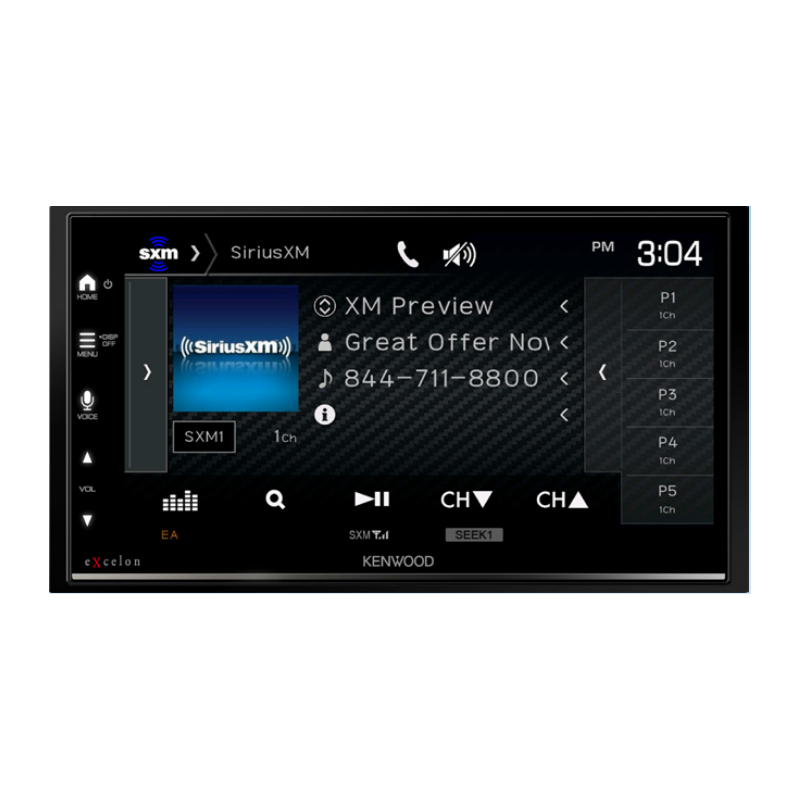

Aside from its AM/FM tuner, the Kenwood DMX8709S is also compatible with a SiriusXM radio tuner, so you won't miss out on your favorite shows while on the road. You can mirror your phone to the receiver's huge 6.75-inch touchscreen display for a better viewing experience. It is also compatible with iDatalink's Maestro Module, which allows you to retain all the vehicle's factory features after upgrading with the receiver and check your engine's performance data with the receiver's display.
Built-in Six-channel Amplifier
The Kenwood DMX8709S has a built-in six-channel amplifier that can deliver a power output of 22 Watts RMS per channel. It also has a 13-band graphic EQ to shape the amp's audio quality and a three-way crossover to direct signal flow while serving as a protection for your speakers from blowing off.It has Bluetooth connectivity as well, allowing you to stream music wirelessly and answer phone calls hands-free.
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes

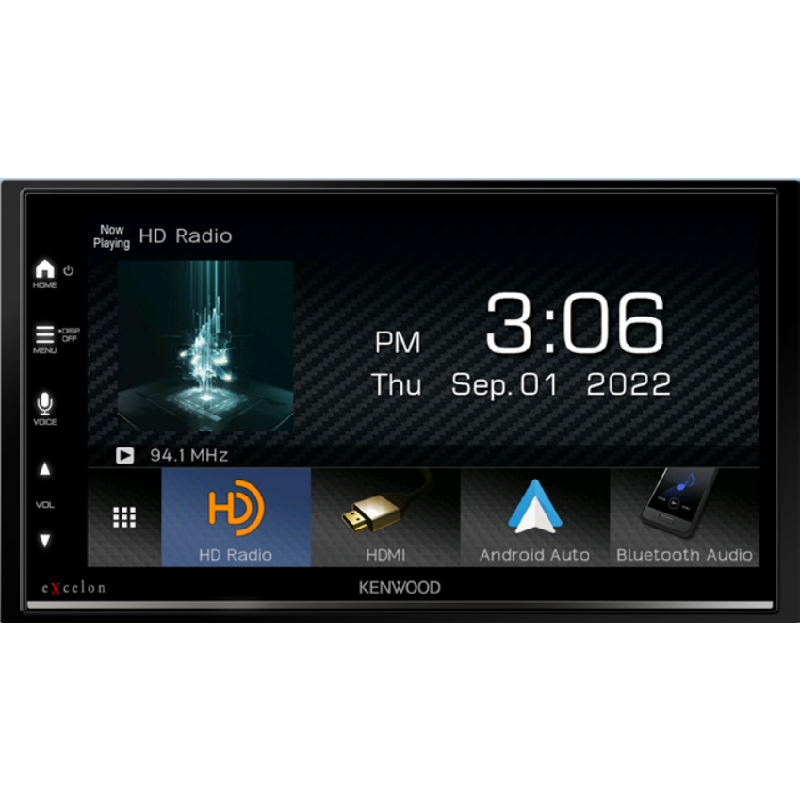

- HD Radio : Yes
- Front USB Input : 1
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- Capacitive Touch Panel: Clear glass display with swipe functionality that provides superior picture and touch panel control.

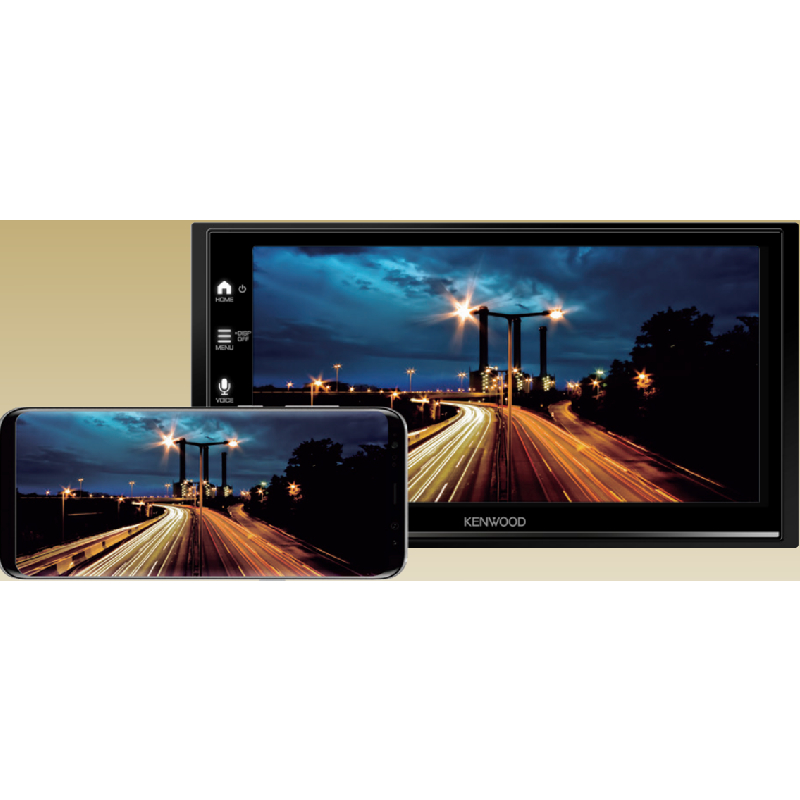

- Android USB Mirroring: Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.

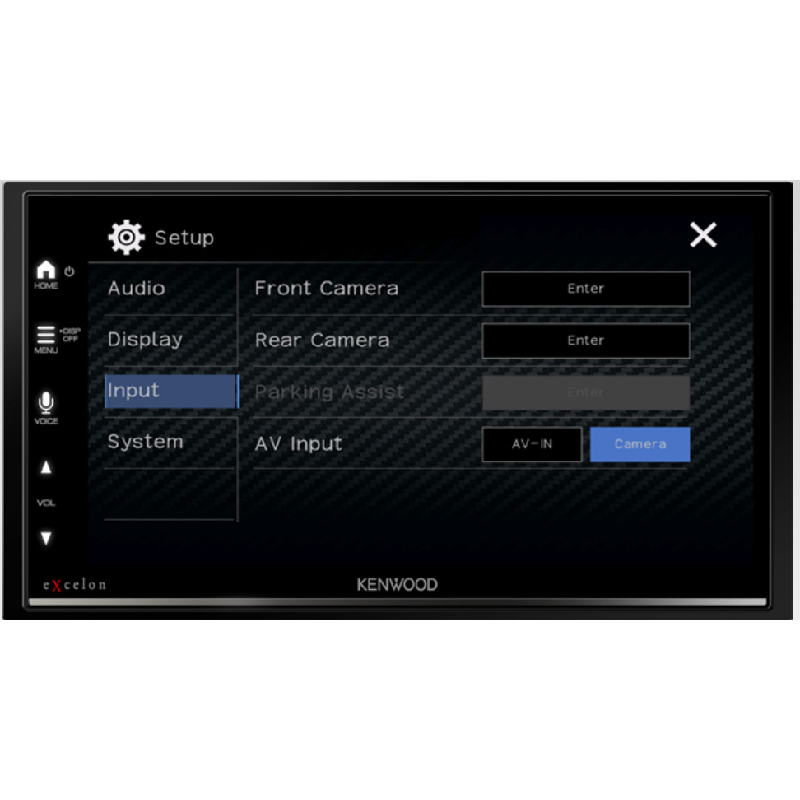

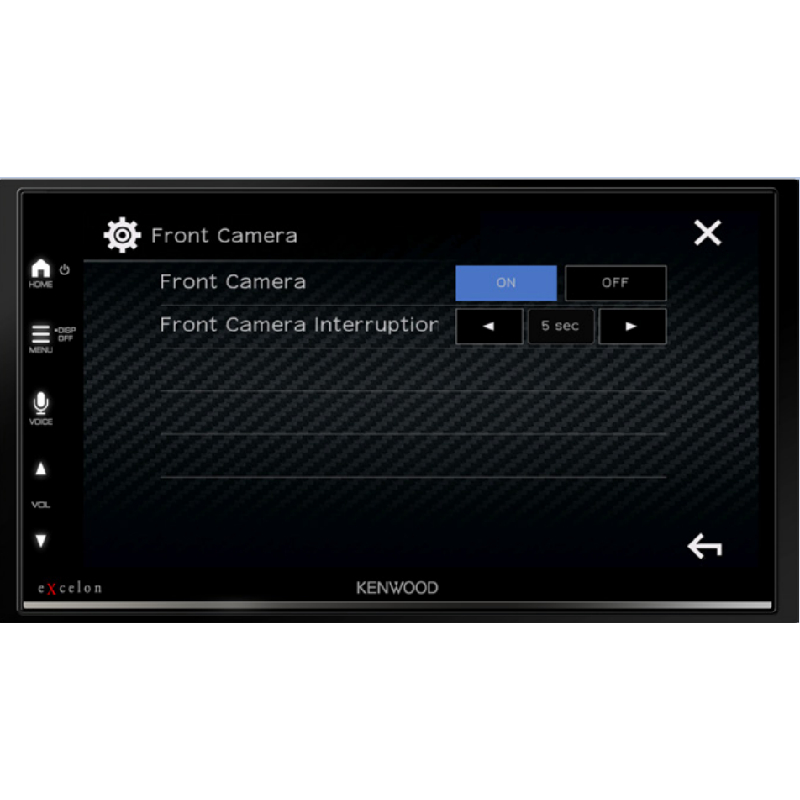

- 3 Camera Inputs: Optional camera connection method for up to 3 cameras in various configurations.
- Parking Guidelines: Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
- Music Mix: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
- Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
- Drive EQ: Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
- Variable Color Illumination: Bright variable color LEDs can be adjusted to match any color dash lighting.
- Short Chassis: With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Specifications:
- AUX Input Mini: (rear)

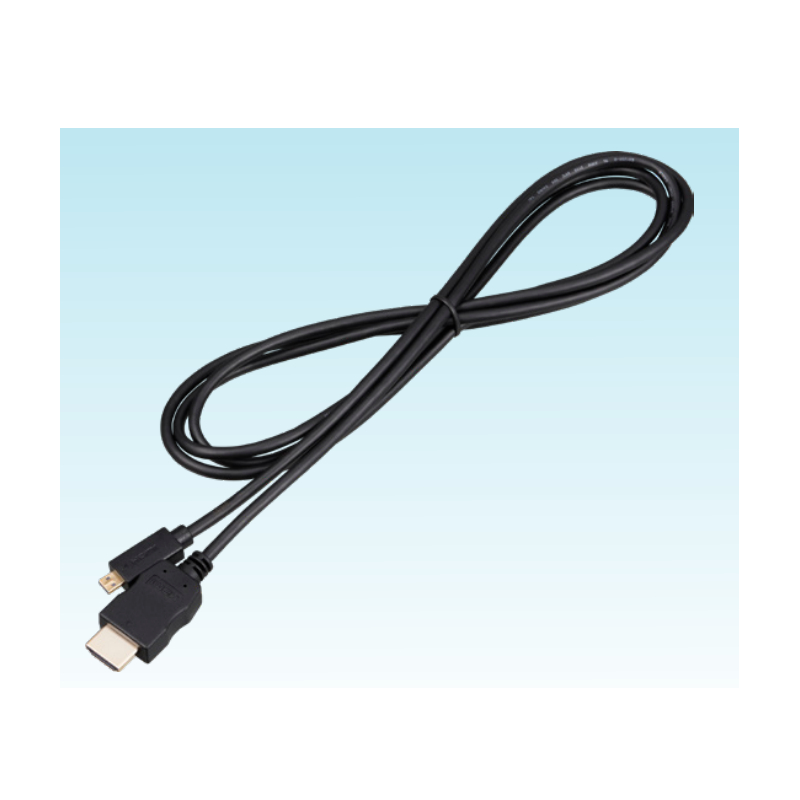

- Audio/video Input: HDMI (rear), Mini (rear)
- USB Input: Rear
- USB Port Power: 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay only
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB Memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 2.0
- HD Radio: No
- Navigation: Optional
- Full size: No
- Nano: No
- Touch: No
- iPhone: 6S and newer
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz

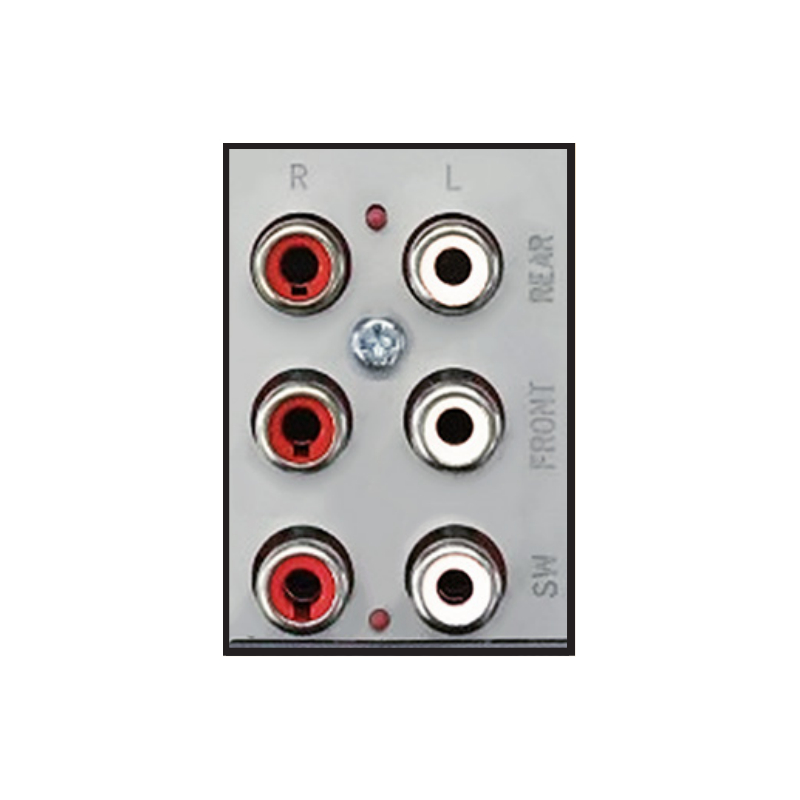

- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Preamp Voltage: 4 volts
- Screen Size: 6.75
- Screen Type: Swipeable (Capacitive)
- Key Button Color: Variable
- EQ Bands: 13

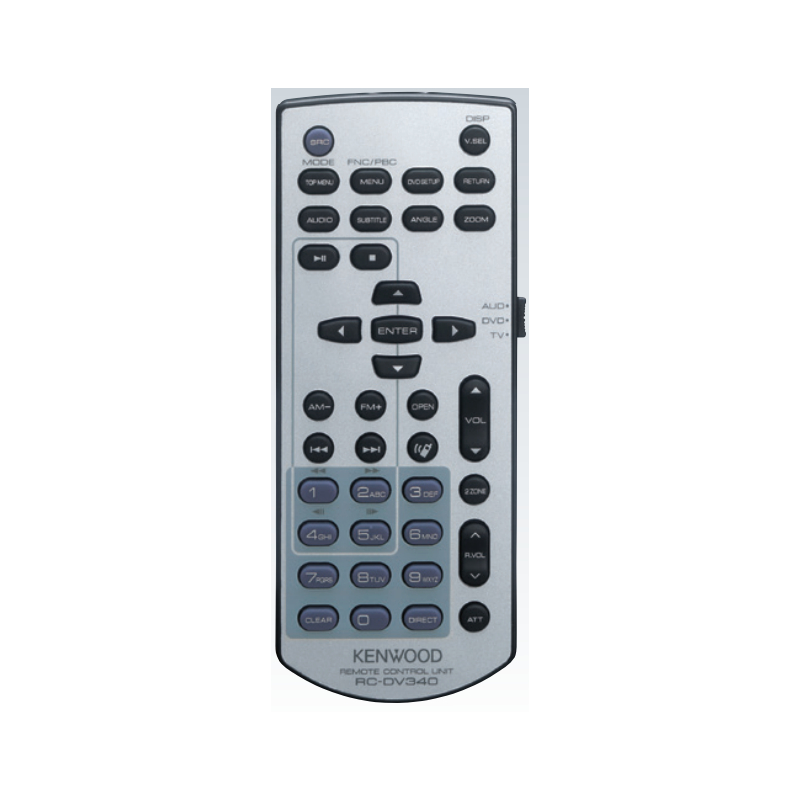

- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- FM Sensitivity: 7.2 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3,WMA,AAC,FLAC,WAV
- High-res Playback: WAV/FLAC (24-bit/192kHz)
- UPC: 0019048234919
- Weight: 4
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
