Rockford Fosgate M1-65 M1 Series 6.5" 75W RMS 4 Ohms 2-way Coaxial Marine Speakers
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 2-way marine speakers
- • (2) 11" LED power harnesses with 4-pin Deutsch connectors on one end
- • (12) 1-1/4" Stainless steel Allen head screws
- • (2) 3mm Allen head bits
- • (1) 3.5mm Drill bit
- • (1) Rockford Fosgate contact information
- • (1) Instruction manual (English/ French/ Spanish/ German/ Italian)
- • (1) User's Manual
Built-In Illumination
The Rockford Fosgate M1-65 is a 6.5-inch marine-grade coaxial speaker designed to deliver high-quality audio performance in marine environments. It is part of Rockford Fosgate's M1 series, known for its durability and exceptional sound reproduction on boats, yachts, and other watercraft. Built with a rugged and weather-resistant design, the M1-65 is precisely engineered to withstand the harsh conditions of the marine environment.
Element Ready
Its UV-resistant polypropylene cone and Santoprene surround ensure longevity and provide accurate and detailed sound reproduction, even outdoors. Equipped with a 1-inch balanced dome tweeter, the M1-65 delivers a clear and crisp high-frequency response, allowing for a dynamic and well-balanced sound experience. The integrated crossover network ensures seamless integration between the woofer and tweeter for optimal performance.
Corrosion-resistant Stainless Steel Grille
The M1-65 features a corrosion-resistant stainless steel grille, protecting it while maintaining an attractive appearance. Its sealed motor design and integrated 6dB/octave crossover network provide reliable performance and durability in marine applications.
If you want to upgrade your marine audio system with high-quality and reliable speakers, the Rockford Fosgate M1-65 is an excellent choice. With their marine-grade construction and impressive sound reproduction, these coaxial speakers will enhance your boating experience with clear and enjoyable audio.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 38-22000 Hz
- Peak Power Handling : 300 Watts
- Color : White
- RMS Power Handling : 75 Watts
Features:
- Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1-65 speakers are durable in the difficult marine environment.
- Tweeters: The 1" balanced dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material. The tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.

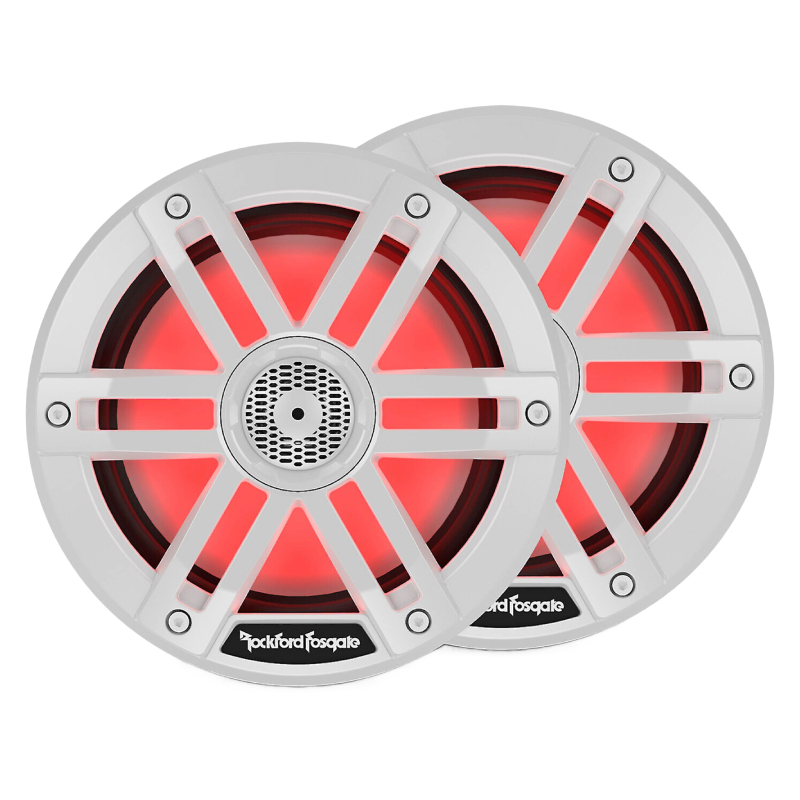

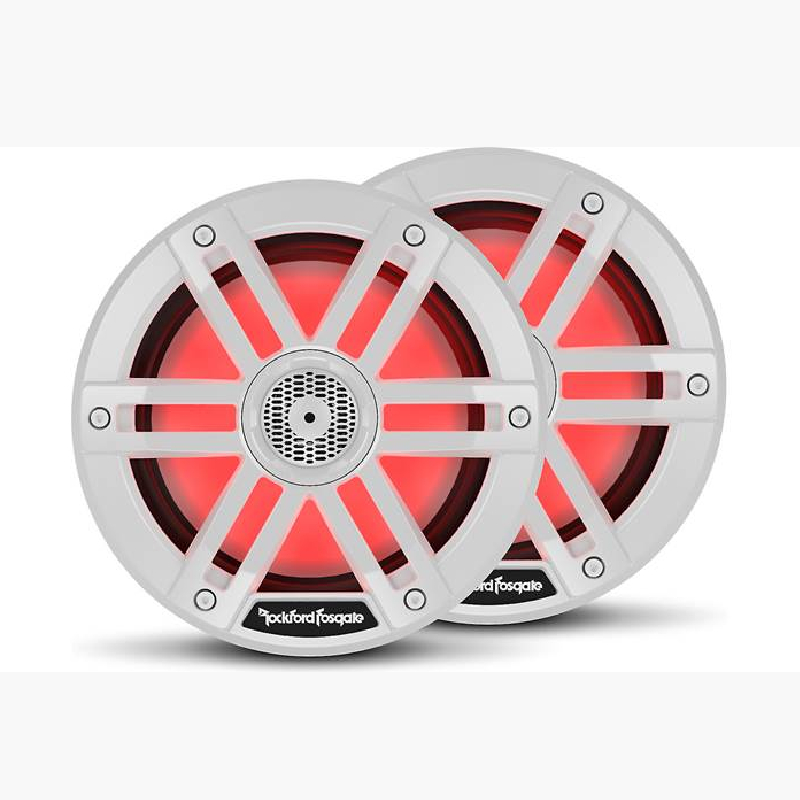

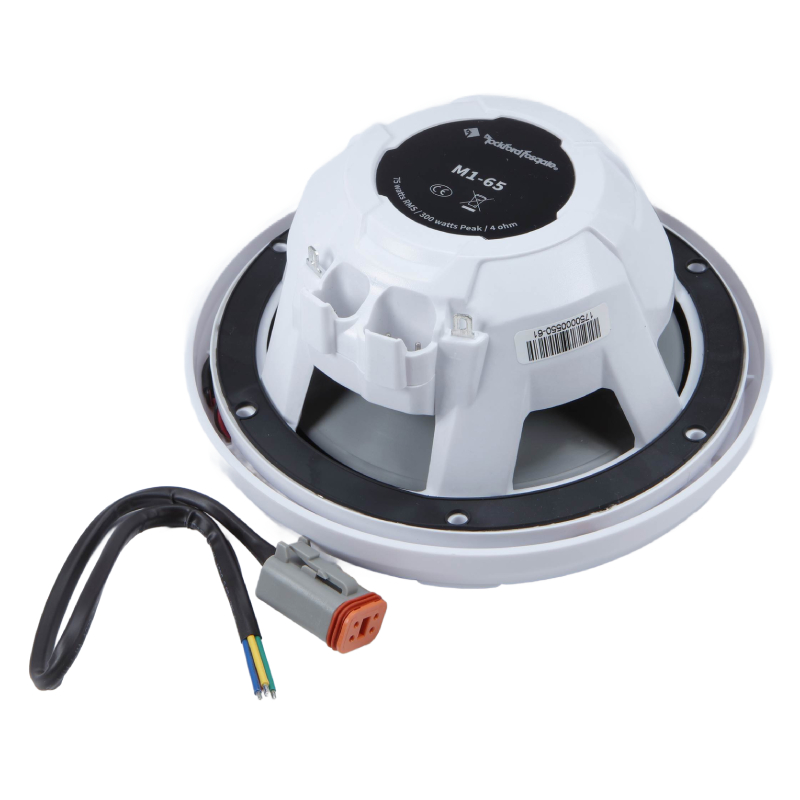

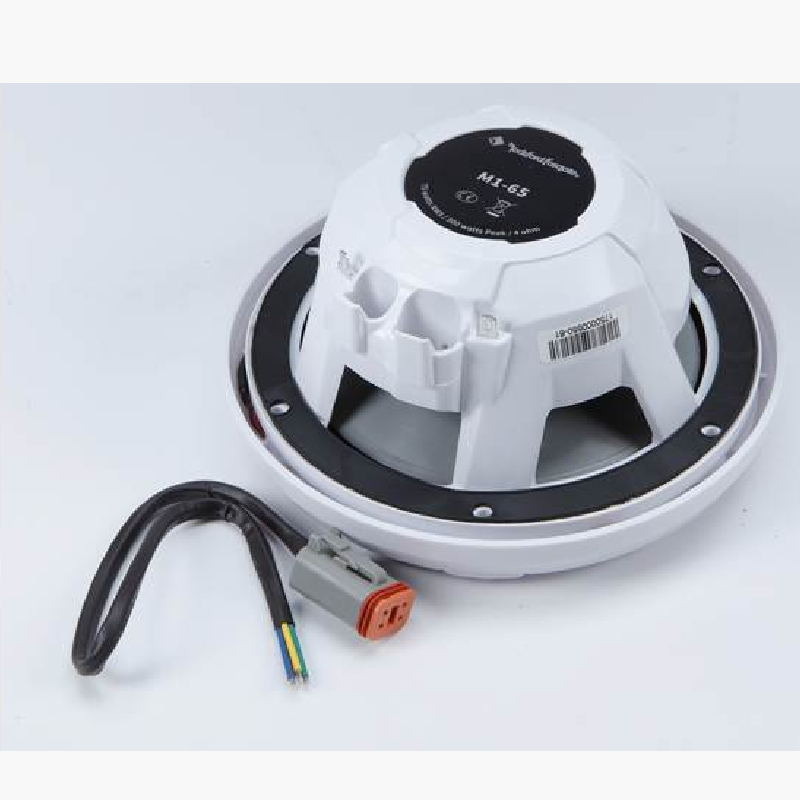

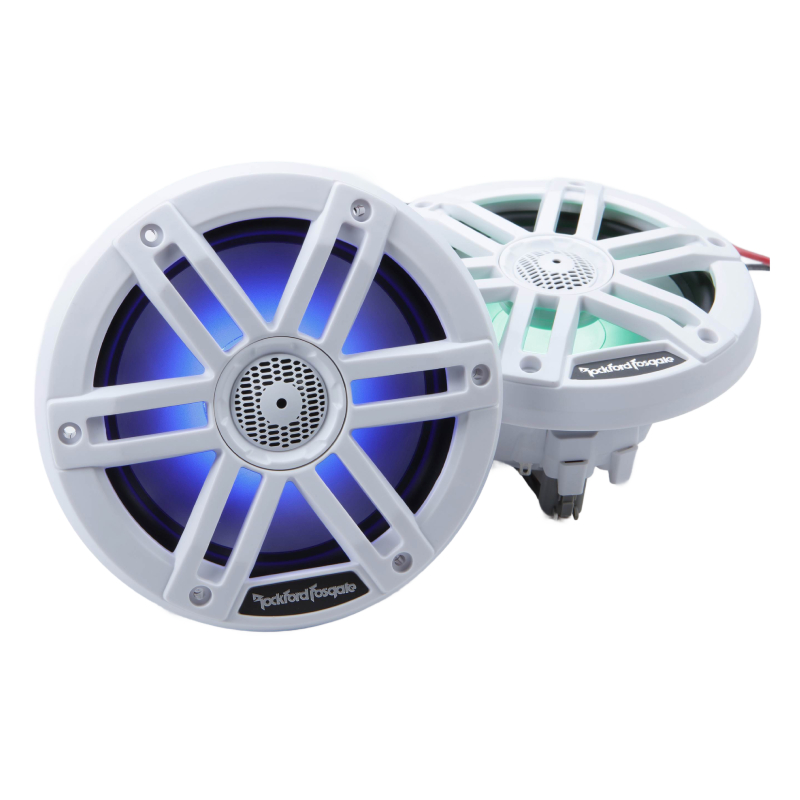

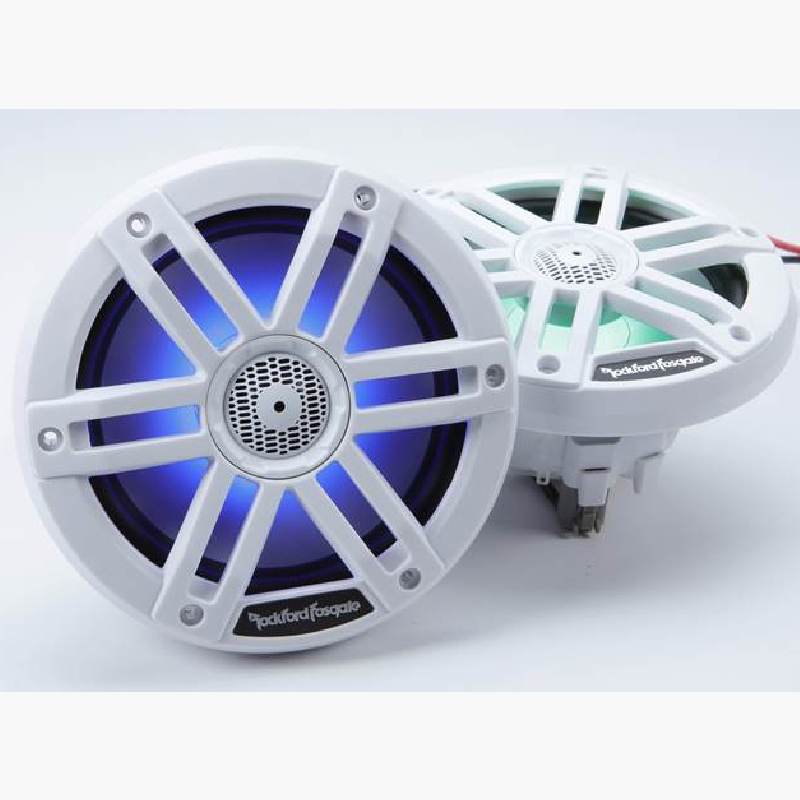

- LEDs: There are red, green, and blue LEDs in the back of the tweeter casing, to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on and a 1-amp fuse should be added in-line (fuse not included). The LEDs can also be controlled using Rockford Fosgate's LED Controller (item number 575PMXRGB, sold separately). Two LED power wire harnesses are included with 4-pin waterproof Deutsch DT Series connectors that plug into the speaker frames.
- Speaker Terminals: In addition to standard male quick slide terminals, each speaker also has 2-pin waterproof Deutsch terminals. Speaker wire harnesses with 2-pin waterproof Deutsch DT Series connectors are not included.
- ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover has a 6 dB/octave slope.
- VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
- Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
- Stainless Steel: The mounting hardware is stainless steel to resist corrosion.
Specifications:
- Midrange Size (Nominal Diameter): 6.5"
- Power Handling (RMS)
- 75 Watts RMS
- 300 Watts Peak
- Speaker Type: 2-way Coax
- Nominal Impedance (Ohms): 4-Ohms
- Midrange Mounting Depth: 2.49" (63.18 mm)
- Tweeter Size: 1" (25.4 mm)
- Crossover: High Pass: 6dB/Octave
- Sensitivity (dB @ 1W/1M): 90
- Sensitivity (dB @ 2.83V/1M): 92
- Frequency Response (Hz): 38 Hz - 22 kHz
- Mounting Hardware: Stainless Steel
- Grille/Trim Ring Included: Yes
- Shipping Weight: 4.75 Lbs. (2.16 Kg.)
- Optically clear UV stable RGB Lighting Encapsulation
- Multiplexed RGB Input
- 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
- Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- Sealed motor design
- Zinc Nickel-plated Marine grade brass connection terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Proprietary Dual Function Input Terminals
- Integrated Deutsch RGB and Speaker receptacles
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- 6dB/Octave crossover network
- Fully sealed integrated concealed crossover (ICC) network
- 2-Year Warranty
- UPC: 780687353698
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
