Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

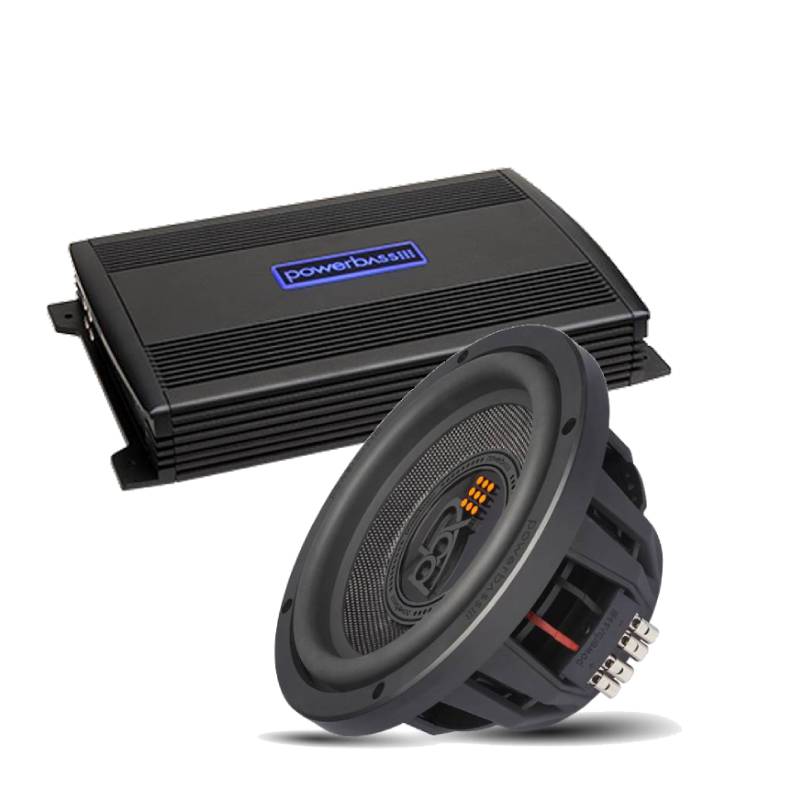

PowerBass ASA3-400.1-Bundle includes PowerBass ASA3-400.1 ASA-Series Class A/B Monoblock Amplifier + PowerBass 2XL-1040D 2XL Series 10" Dual 4 Ohms Voice Coil Subwoofer Bass Package
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • PowerBass ASA3-400.1
- • PowerBass 2XL-1040D
ASA3-400.1 ASA-Series 400W x 1 @2Ohms, 800W Max Power Class A/B Monoblock Amplifier
Unleash Your Car's Sonic Potential
The POWERBASS ASA3-400.1 is a car audio amplifier that can provide 400 watts of continuous power to a 2-ohm load, with a maximum peak power output of 800 watts. It's a Class A/B monoblock amplifier designed for improving the audio quality and bass output in a car audio system. Please note that it's essential to match the amplifier's specifications to your speakers and subwoofers for optimal performance and to ensure they can handle the power being delivered by the amplifier.
2XL-1040D 2XL Series 10" 400W RMS (800W Peak Power Handling) Dual 4 Ohms Voice Coil Subwoofer
Experience Ground-Shaking Bass
This subwoofer is intended to reproduce low-frequency sounds in a car audio system, providing a deep and powerful bass experience. To install and use it effectively, you'll need to ensure it is paired with an appropriate amplifier and enclosure (e.g., a sealed or ported box) that matches its specifications. The specific wiring configuration (series or parallel) of the dual voice coils can also impact the final impedance presented to the amplifier, which should be considered when setting up your car audio system.

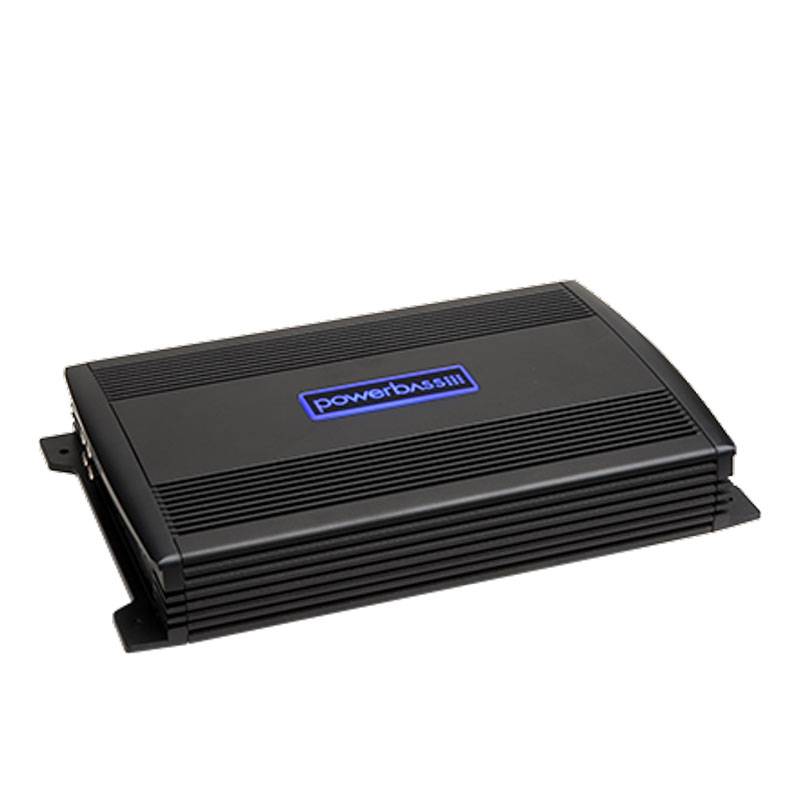

ASA3-400.1 ASA-Series 400W x 1 @2Ohms, 800W Max Power Class A/B Monoblock Amplifier
Features:
- 400 Watt High Efficiency Class A/B Design
- 2-OHM Stable Mono Block Amplifier
- PWM MOSFET Power Supply
- Low Level RCA Input/Low Level RCA Pass Through Output
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Variable 12dB Bass Boost EQ
- Variable Gain Control
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
- Switchable Logo Back Lighting
Specifications:
- Peak Power: 800 watts
- Power Supply: Unregulated PWM
- Inputs: RCA Input/RCA Pass-Through Output
- Dimensions (in Inches): 13.7" x 8.3" x 2.3"
- Channels (mono): 1
- 4-ohm Power: 200 watts x 1
- 4-ohm Mono Power: N/A
- 2-ohm Power: 400 watts x 1
- 1-ohm Mono Power: N/A
- Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
- Variable Subsonic Freq: N/A
- Equalization Boost/Cut: 0 - 18 dB @ 45 Hz
- Subwoofer EQ Frequency: 45 Hz
- Variable Subwoofer EQ: 0 - 18 dB
- Low-Pass Crossover Freq: 40 Hz - 250 Hz
- High-Pass Crossover Freq: N/A
- Crossover Slope: 12 dB
- Input Sensitivity: 0.25 V - 6.0 V
- S/N Ratio: >94 dB
- Strapped Output Power @ 2ohms: N/A
- Output Power (14.4 V) @ 4 ohm: 200 watts x 1
- Output Power (14.4 V) @ 2 ohm: 400 watts x 1
- Output Power (14.4 V) @ 1 ohm: N/A
- Frequency Response: 20 Hz - 22 kHz

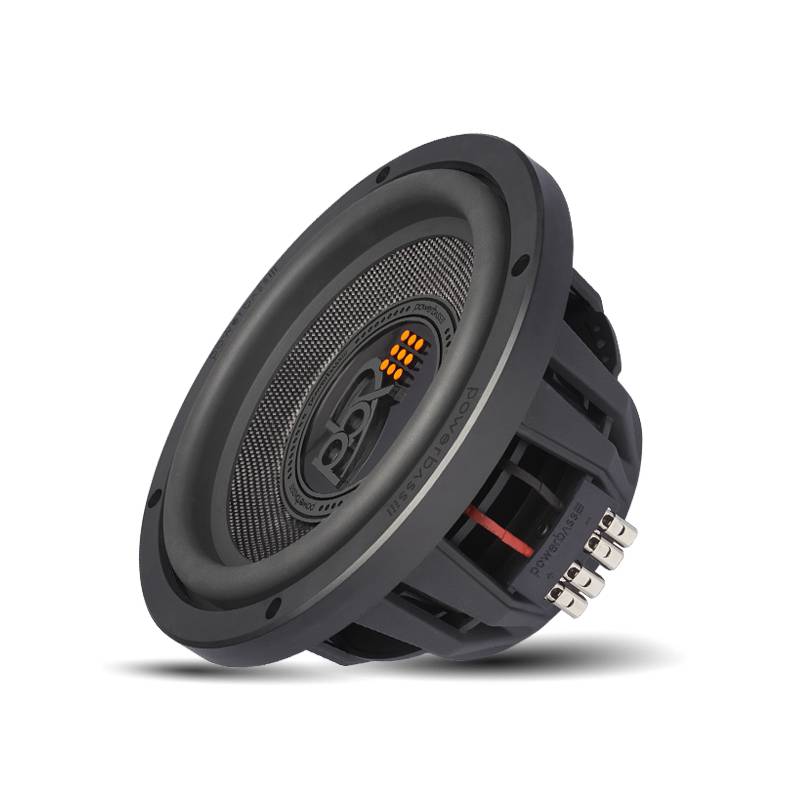

2XL-1040D 2XL Series 10" 400W RMS (800W Peak Power Handling) Dual 4 Ohms Voice Coil Subwoofer
Features:
- New PBX logo dust cap
- 10" Dual 4-Ohm Subwoofer
- 400 watt RMS/800 Watts Max
- Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
- Nitrile Butadiene Rubber (NBR) Surround
- 2.5" Vented BKSV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Cast Aluminum Basket
- XTRA XTRA Large Double Stacked Motor Structures
- Square Spring Loaded Nickel Plated Input Terminals
- Optimally Designed for Small Sealed Enclosures
- Compact Design
Specifications:
- Subwoofer Frequency Range: 35 Hz - 500 Hz
- Inputs: Dual Coil
- Fs: 30.4 Hz
- Cutout Diameter: 9.0"
- BL: 11.32
- Nominal Impedance: Dual 4-ohm
- Voice Coil Size: 2.5 in
- Material: Woven Glass Fiber and Kraft Paper
- Magnet Size: 80 oz
- Sensitivity (1W / 1M): 85.1 dB
- Motor Structure: 80 oz
- Mounting Depth: 4.75 in
- Xmax: 11.5
- Spl: 85.16
- No: 0.15%
- Qts: 0.42
- Qes: 0.45
- Qms: 6.42
- Mms: 201.33 g
- Cms: 135 uM/N
- Vas: 25.47 Ltr
- SD: 343.05
- Test Impedance: 1.52-ohm
- VC Impedance: 4-ohm + 4-ohm
- Size: 10 in
- Sensitivity: 85 dB
- Frequency Response: 35 Hz -500 Hz
- Voice Coil Size: 2.5 in
- Power Handling (RMS/Peak): 400 / 800 watts
- UPC: 798418840836
- Weight: 16
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
