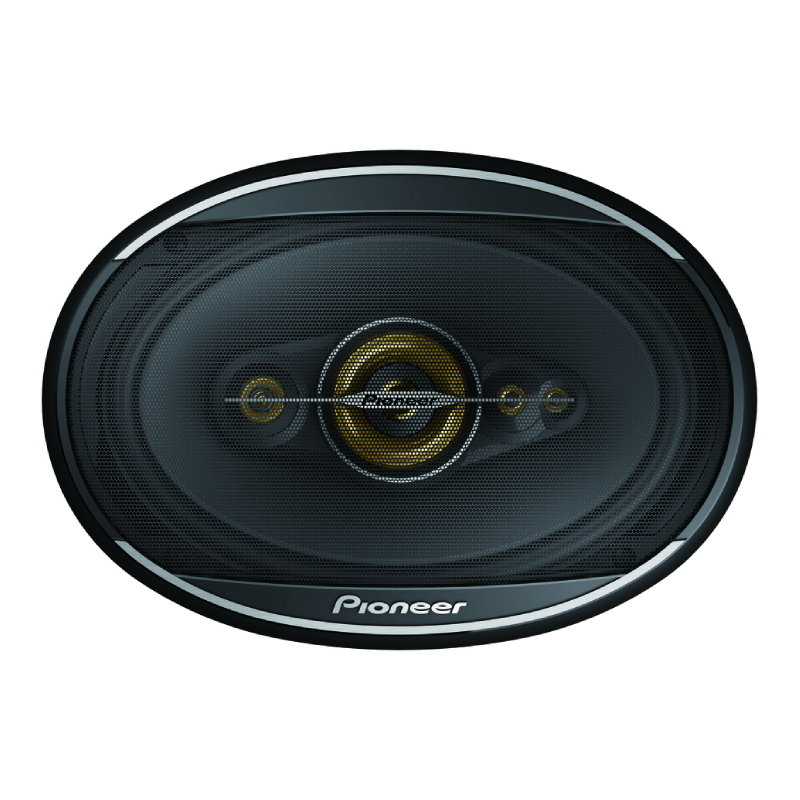

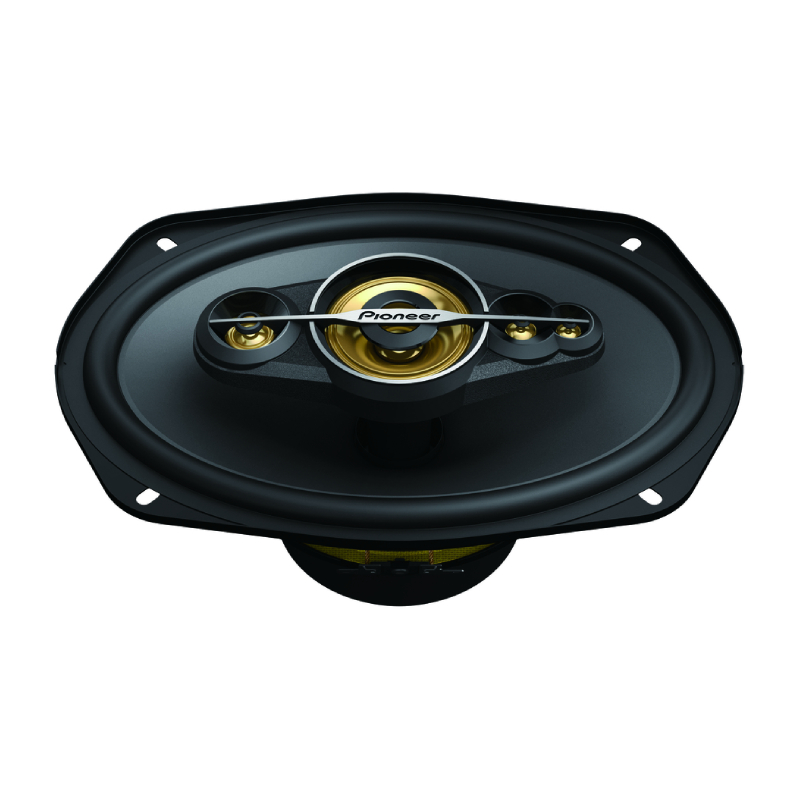

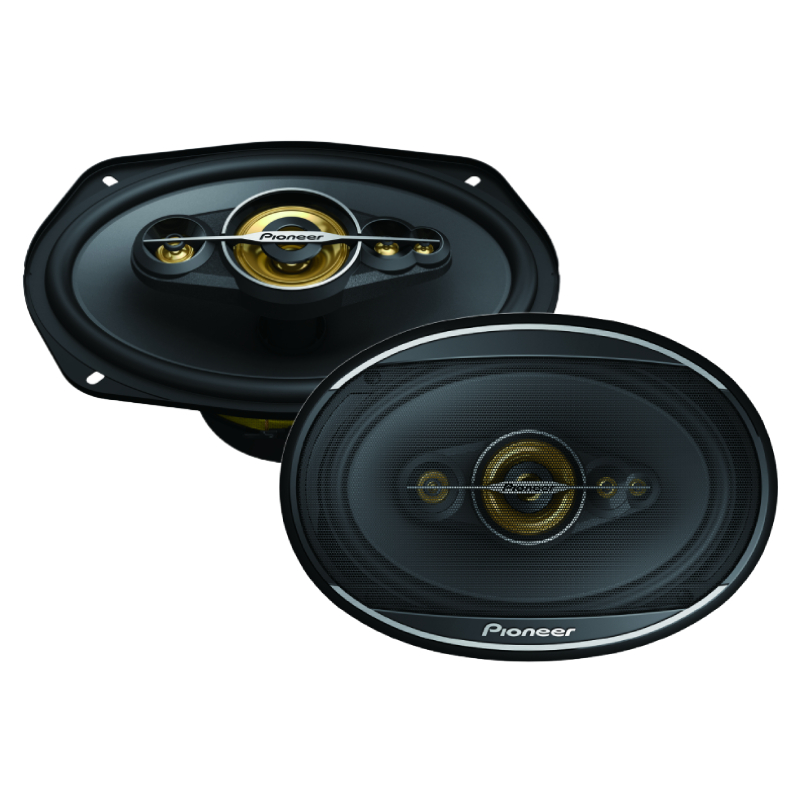

- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 29-33000 Hz
- Peak Power Handling : 700 Watts
- Design : 5 Way
- Woofer Composition : Carbon and mica reinforced IMPP
- Tweeter Composition : Triple Polyethylene terephthalate (PET) dome tweeter
- RMS Power Handling : 120 Watts
Features:
- 700 Watts Max Power (120 Watts Nominal)
- 18mm Tweeter, 11mm Super Tweeter, and 9mm Super Tweeter
- 2-1/4" polyetherimide (PEI) film cone midrange
- 6x9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Specifications:
- System Type: 5-way Coaxial
- Sound Pressure Level (Sensitivity): 92 dB (+- 1.5dB)
- Frequency Range: 29 Hz to 33k Hz
- Continuous Power Handling (RMS): 120 Watts
- Maximum Peak Power Handling: 700 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6x9"
- Woofer Cone Material: Carbon and mica reinforced IMPP
- Woofer Surround Material: Elastic polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 15.2 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil wire: Copper
- Woofer Mounting Depth: 3-3/8" (Deep basket)
- Tweeter Type: Triple Polyethylene terephthalate (PET) dome tweeter
- Tweeter Diameter: 9 mm (Super), 11 mm, and 18 mm
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509565
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
