Clif Designs :: CDQ3X :: $199.00

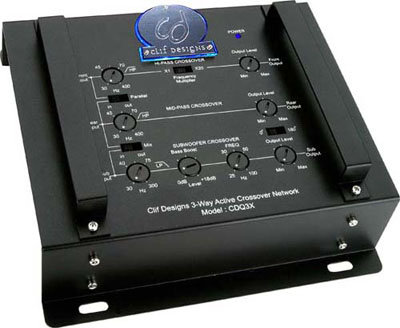

Clif Designs CDQ3X

Item# 15094

3-Way Electronic Active Crossover with Subwoofer Control

Sorry, this product is no longer available.

  • Frequency Response: 10 Hz - 30 kHz
  • Ground Loop Isolation Circuit
  • Front and Rear High Pass Frequency Adjustment
  • Front and Rear Output Level Control
  • Subwoofer Low Pass Frequency Adjustment
  • Subwoofer Bass Boost With Bass Frequency
  • Subwoofer Output Level Control
  • Remote Subwoofer Level Control
  • Remote Turn on Circuit
  • Power on LED with illuminated Clif Designs logo
  • Gold Plated Input/Output RCA Connectors
  • 200mV-2V Input Sensitivity
  • S/N Ration: >100dB
  • THD <0.01%
  • Subwoofer (Low-Pass)
  • Input Mix Switch (In, Out)
  • 30-300Hz Variable Frequency Control
  • 0-18dB Variable Bass Boost
  • 25-100 Hz Variable Bass Boost Frequency
  • Selectable 0 / 180Degree Phase Control
  • Independent Input Gain Control
  • Mid- Range (Mid-Pass)
  • 32-400 Hz Variable High Pass Crossover
  • Input Mix Switch (In, Out)
  • Independent Input Gain Control
  • Front & Rear High Pass
  • 32Hz - 400 Hz Variable Crossover
  • X1 or X20 Frequency Multiplier
  • Independent Input Gain Control
  • Dimensions: 7.55"L x 6.37"W x 1.81"H
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   Joe chapman From atlanta ga
i have just installed it. it works pretty good. nice display with the blue background.
