Soundstream :: PCA1000D :: $299.00

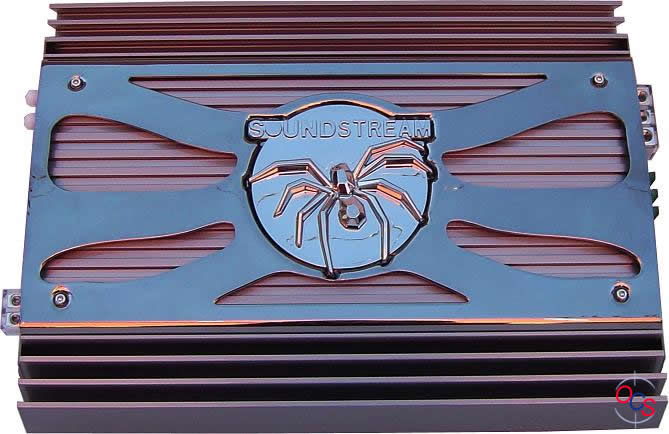

Soundstream PCA1000D

Item# 15527

Monoblock Class D Amplifier


Sorry, this product is no longer available.
  • Monoblock Picasso Series Amplifier
  • Peak Power Output: 2000 watts approx.
  • RMS Power Ratings:
    • 500 Watts x 1 Channel @ 4 Ohms
    • 800 Watts x 1 Channel @ 2 Ohms
    • 1000 Watts x 1 Channel @ 1 Ohm
  • Min. Impedance Unbridged: 1 ohm
  • THD @ Rated RMS Power: 0.5%
  • Speaker Level Inputs: No
  • Amp Preamp Outputs: 1 Pair
  • Built-in Crossover: LP (50 - 150 Hz), Subsonic (15 - 40 Hz)
  • Bass Boost: 0 - 18 dB
  • Signal-to-Noise Ratio: 80 dB
  • Fan Cooled: No
  • Fuse Rating: 30A x 3
  • TST (Twin Stack Technology): Allows 2 Amps to Drive One Voice Coil!
  • High Quality FR-4 Circuit Board
  • Class D Circuitry
  • Continuously Variable Low-Pass Crossover: 50 - 150 Hz (24 dB/Oct.)
  • Continuously Variable Subsonic Filter: 15 - 40 Hz (24 dB/Oct.)
  • Variable Subwoofer Equalizer: 0 - 18 dB
  • Phase Control: 0° / 180°
  • Frequency Response: 5 - 250 Hz
  • Adjustable Input Sensitivity: 0.5 - 4V
  • Damping Factor: >200
  • Fully Regulated MOSFET Power Supply
  • PWM Circuitry
  • Platinum Power and Ground Connectors
  • Accepts up to 16VDC Power Input
  • Wire Bass Remote Included
  • Dimensions: 12-3/4" L x 9-1/2" W x 2-1/2" H
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   NS From Chicag, IL
This amp is great, i upgraded from an orion 2ch amp and was very satisfied, i have it pushing on 12L7 @2ohms, and it is loud!! i run the amp pretty hard and it never gets hot, i got it about 7months ago and been great so far! def rec for spl

   brad From peoria, IL
great amp i have it running two soundstream reference 12's @ 1ohm and it puts out clean power gets a little warm but never shuts off and very effecient my lights dont dim unless system is turned up to the max
