- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Remote Control : Yes
- Detachable Face : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- Changer Control : Yes
- DIN : 1
- Preamp Voltage : 5 volts
- Bluetooth : No
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes

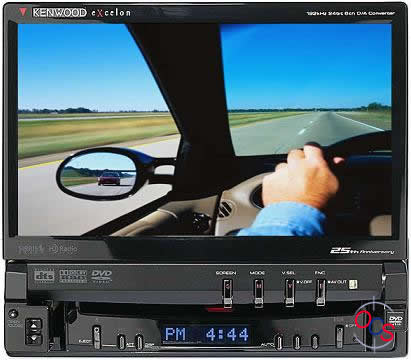

- 7.0 inch Wide Colour TFT Active Matrix Display
- Number of Pixel: 336,960 pixels
- Screen Size: W154.1mm x H87.0mm
- New Full-automatic "Z-action"Open/Close Mechanism
- Motorized Tilt Angle Adjust (8 Step)
- Motorized Back and Forth Display Position Adjust (4 Position)
- Interactive Touch Panel Control with New Smooth GUI
- Multifunction Key Operation
- Audio Easy Control Mode
- External Hard-key Operation (When Monitor Closed)
- Partial Detachable TDF Panel with DSI & Security Code
- Mini Display = 5 x 7 Dot Matrix LCD (Blue/Green/Red)
- Selectable Key Illumination (Green/Red)
- New Amplifier Control System with '04 PS Amplifiers
EQ(Bass/Treble/Q Factor/Gain Control)
Voltage/Current/Temperature/Fan Speed Display
- Advanced B.M.S.(Bass Management System) with '02 PS Amplifiers
- Wired remote out for original mounted streering wheel remote control
- 2-way Telephone/Navigation Mute
- Digital Clock (24H)
- All-in-one Hide-away Box ( 5.1ch DSP/ TV Tuner/Receiver) Supplied
- Diversity TV Antenna (Window Type) Supplied
- Remote Control Unit Supplied
TV Features:
- TV Tuner (PAL/ SECAM)
- 12 TV Station Presets
- Auto Memory Entry
- SNPS (Station Name Presets)
AV Features:
- Maximum Output Power : 50W x 4 + 47W x 1 (for optional Center Channel)
- 4 Gold Plated Preouts with 5V Pre-output Level (Front/ Rear/ Centre/ Subwoofer)
- 1 RCA AV Output (PAL or NTSC according to the source)
- 2 RCA AV Inputs (PAL/NTSC Automatic Selection)
- Video 2 Input Signal Automatic Detection Mode (Normal/ AUTO/ Rear View Camera)
- Rear View Camera Connection Ready (AV Input-2 only)
- RGB Input for optionel Navigation System KNA-DV3200
- Dolby Digital/ dts/ MPEG/ Linear PCM Decode
- Dolby Pro Logic II (for 2ch Source to 5.1ch surround)
- SFC/ 4 Band Parametric EQ/ Digital X'over/Digital Time Alignment
- Sound Management System (Type of Car & Speaker Size for Each Channel Selectable)
- Dolby Digital DRC (Dynamic Range Control : Wide/ Normal/ Midnight)
- SPF (Speaker Protect Filter) Operation
- Dual Zone Source & Volume Control
- Attenuator(-20dB) with Smooth Volume Return
CD Features:
- WMA (Windows Media Audio) Decoder
- MP3 Decoder with ID-3 Tag Display
- CD Text Ready
- CD-R/CD-RW Compatible
- Direct Access with Remote
- Random/Repeat/Scan Play
DVD Features:
- DVD Video & DVD Audio Compatible Player
- DVD +- R/RW Compatible (Video Format Only)
- VCD Compatible
Changer Features:
- Dual Disc Changer Control Capability (CH1/CH2 & AUX)
- DNPS (Disc Name Presets) with Compatible CD Changers
- DNPP (Disc Name Preset Play) by Remote
- CD Text Ready with Compatible CD Changers
- Direct Access with Remote
- Random/Repeat/Scan Play (Disc/Track)
DSP Features:
- 4 Band parametric equalizer
- Band1 frequency: 60/80/100/120/160/200/250 Hz
- Band2 frequency: 315/400/500/630/800/1000 Hz
- Band3 frequency: 1.25k/1.6k/2k/2.5k/3.15k/4kHz
- Band4 frequency: 5k/6.3k/8k/10k/12.5k/16k
- Gain -9dB, -7, -5, -2, -1, 0,1,2,3,5,7,9
- Q control: 0.25/0.5/1.0/2.0
- High pass filter frequency: 60/70/80/90/100/120/150Hz Slope: 12/18/24 dB
- Low pass filter frequency: 60/70/80/90/100/120/150Hz Slope: 12/18/24 dB
- Channel level: +/-10 dB
Tuner Features:
- FM/MW/LW 24 Station Presets (18FM, 6MW & LW)
- RDS with Radio Text
- K3i Clear Reception Tuner Circuit
- AME (Automatic Memory Entry)
- Up/Down Seek Tuning
- Local Seek
- FM Stereo/Mono Selector
- DAB reception with optional unit KTC-9090DAB
- UPC:
- Weight: 0
