Two 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
Owner's Manual
Two 2-way speakers
8 Self-tapping screws (4mm x 25mm)
Two 11" plastic zip ties
Product Highlights:
sensitivity: 88 dB
frequency response: 30-32,000 Hz
Aramid/basalt fiber composite woofer with rubber surround
peak power handling: 260 watts
top-mount depth: 2-3/4"

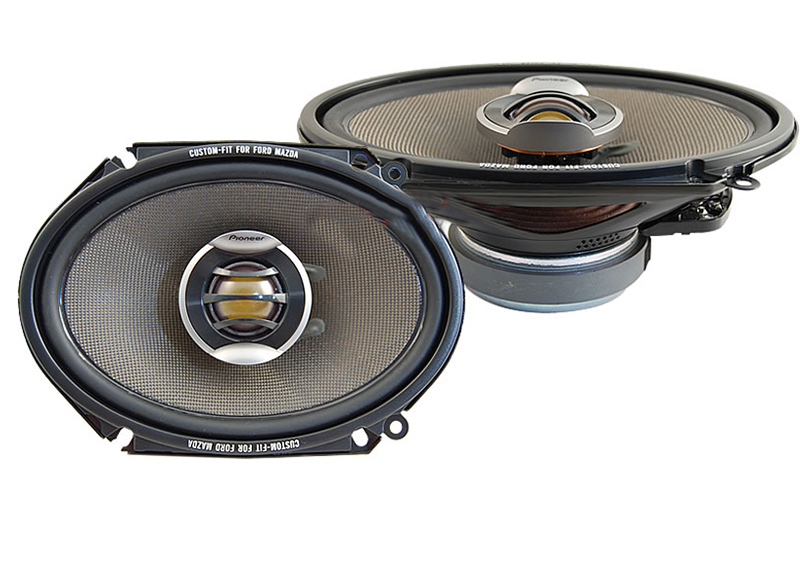

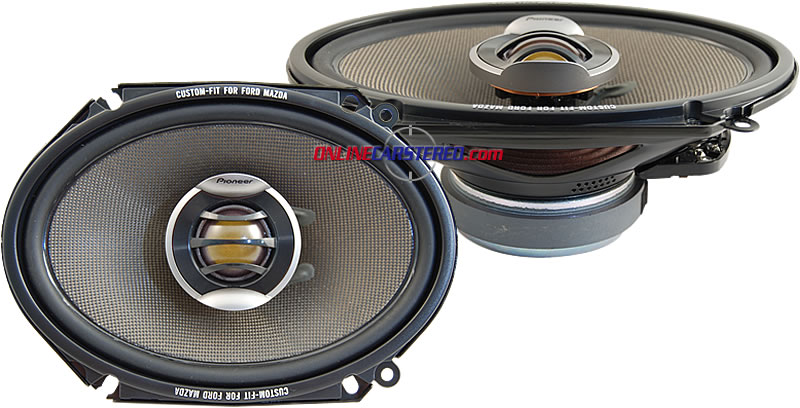

2-way car speakers for 6"x8" locations (pair)
1-1/8" soft dome tweeter
extra-thick stamped steel frame reduces resonance
recommended power range: 2-60 watts RMS
Diameter : 6x8 Inch
Sensitivity : 88 dB
Impedance : 4 Ohm
Frequency Response : 30-32000 Hz
RMS Power Range : 60 Watts
Peak Power Handling : 260 Watts
Design : 2 Way
Top Mount Depth : 2 5/8 Inches
Bottom Mount Depth : 3 Inches
Woofer Composition : IMPP
Tweeter Composition : PEI

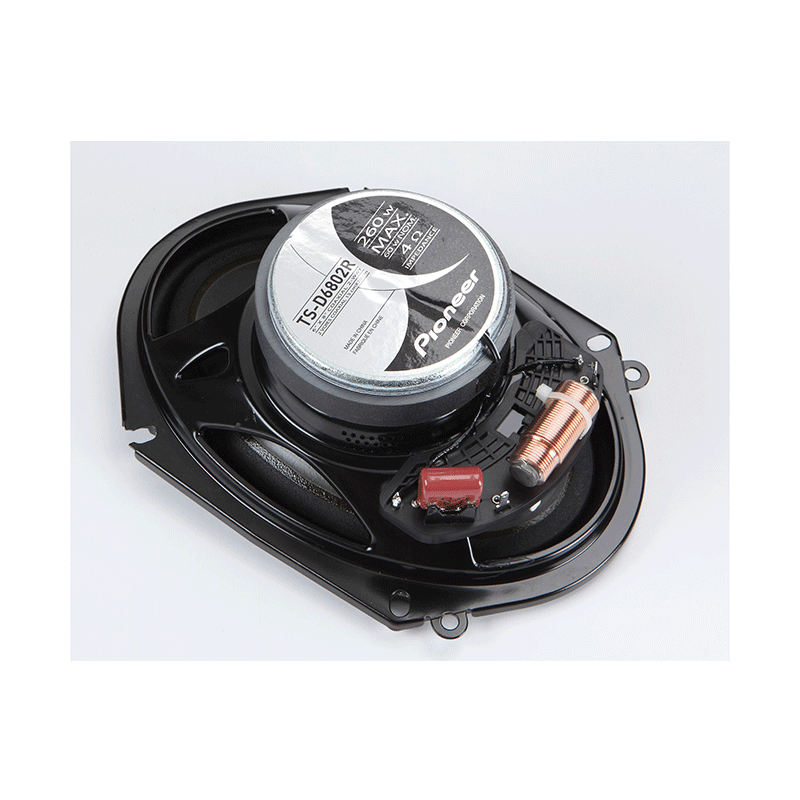

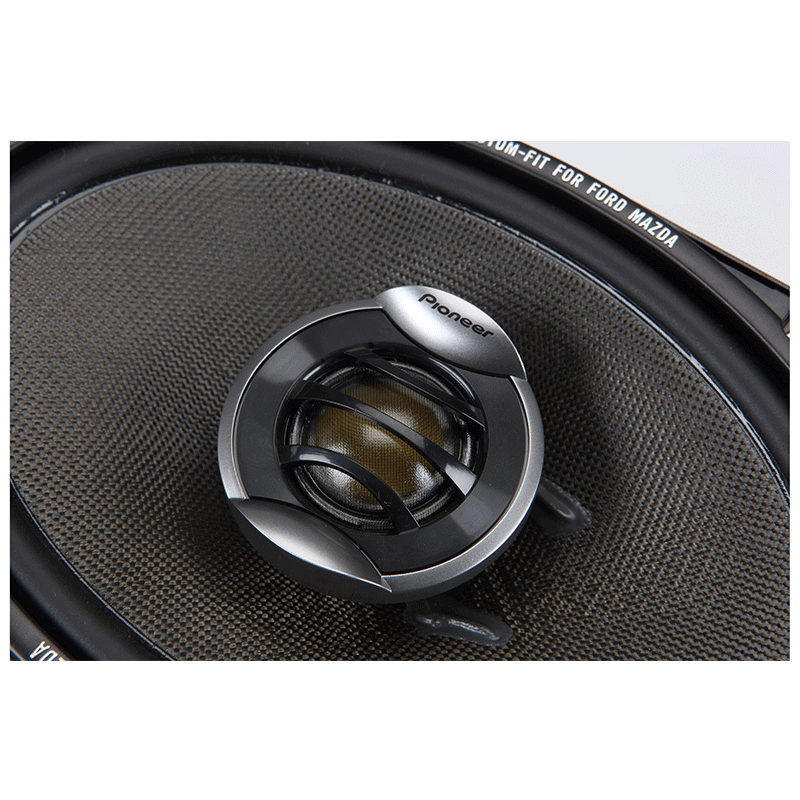

Pioneer D-Series speakers are available in 2-way component packages or 2-way coaxial designs in multiple sizes that fit most vehicles. The woofers have dual-layer IMX (Injection Molded Matrix) Aramid/Basalt fiber composite cones. The Basalt fiber is made from natural rock and is interwoven with aramid fiber. This Aramid/Basalt fiber surface layer material is very rigid and maintains an accurate, detailed music reproduction. The 1-1/8" Soft Dome Tweeters, each speaker has a 1-1/8" soft dome tweeter with magnetic fluid and a 0.4 ounce Neodymium magnet. The tweeters are encased in a specially-designed anti-resonant sealed rear chamber. The waveguides in front of the tweeters provide wide sound dispersion. Also, built-in 2-Way Crossovers: A 12 dB/octave high-pass filter and 6 dB/octave low-pass filter are attached to each speaker to improve the transition from mid to high frequency. Audiophile-grade capacitors and inductors are used.
Specifications
Peak Power Handling (Watts):260
Woofer Surround:Butyl Rubber
Tweeter Design:1-1/8" Soft Dome
Top-mount Depth (Inches):2 5/8
Frequency Response:30 - 32k Hz
Woofer Composition:IMX Basalt/Aramid fiber
Sensitivity:88 dB at 1 watt
RMS Power Range (Watts):2-60
Impedance (Ohms):4
Bottom-mount Depth (Inches):3
Design:2-way
Tweeter Composition---
UPC: 012562881850
Weight: 36
Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties. What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
These are the BEST speakers I've ever had. I have four in my 08 MAzda3 sedan, I have them in my doors and the doors are all lined w/Dynamat plus there's a Pioneer 4CH AMP pushing my babies,I bought these to replace some Alpine speakers, these blow Alpine out of the water.They are clear and loud, plus they have great bass, alomost sounds like I have subs in the doors. Great buy. You'd be dumb not to buy these.
I replaced Infinity speakers with these Pioneers and there was a massive improvement in bottom end. I have Kicker 350.4 amp running to these and an very happy with them. Israel from Los Angeles was correct, you almost dont need subwoofers with these speakers unless you play alot of electronic or bass heavy music. They play rock and metal well, as does country too!
