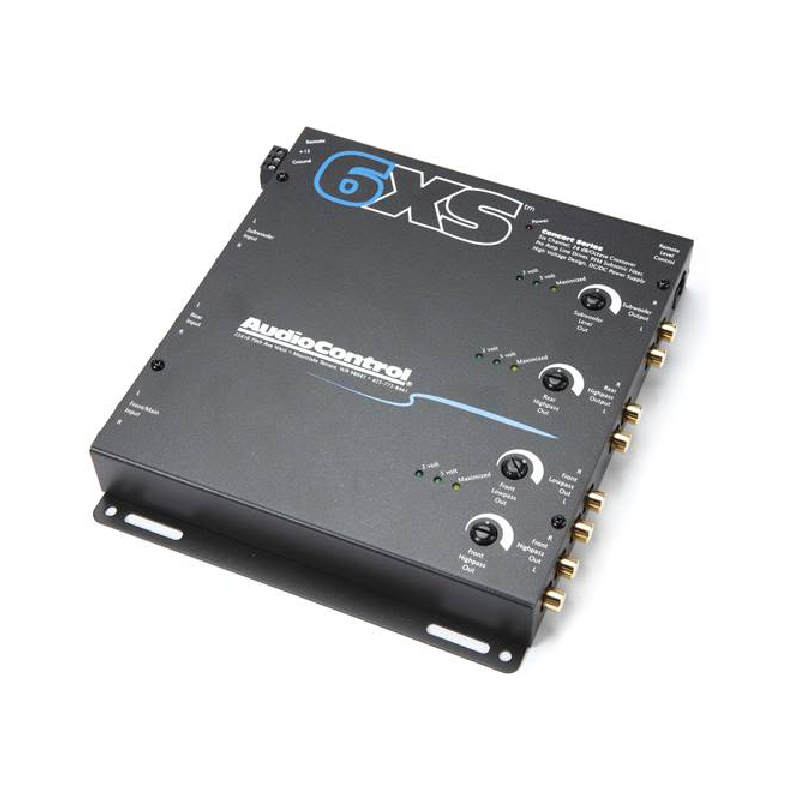

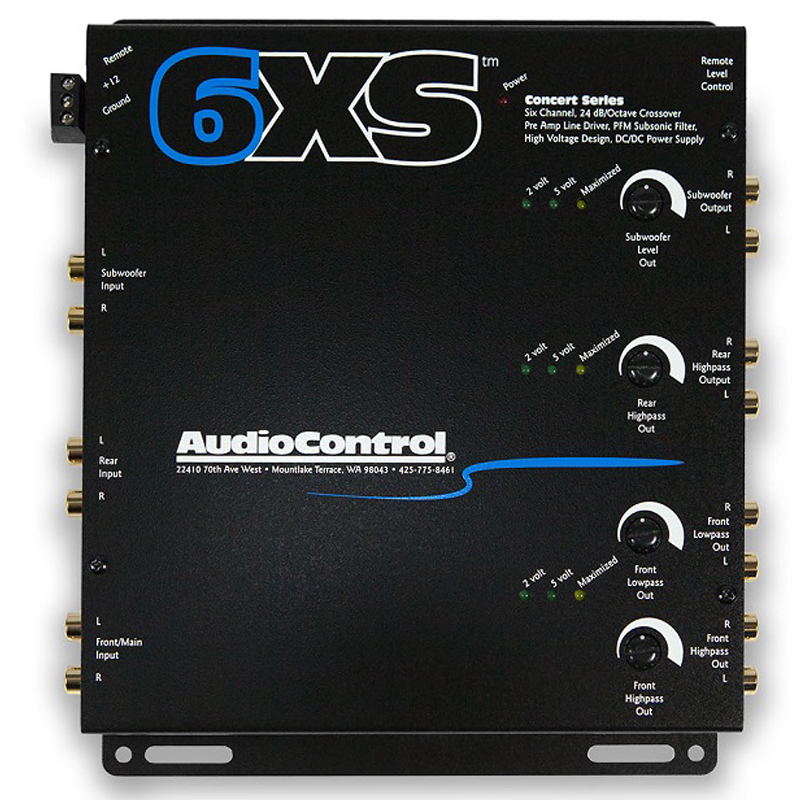

AudioControl 6-Channel Electronic Crossover with Subwoofer Level Control
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 6XS
- • Power Connector
- • Manual
- • Warranty
Bass Management with the Programmable Frequency Match (PFM)
The 6XS does it all. Sharp 24dB/octave Linkwitz-Riley alignment crossover with remote level control for the bass. Automode™ input switching automatically configures the 6XS for two, four or six channels of input with up to eight channels of output. Includes bass management with the Programmable Frequency Match (PFM) circuit and a high tech PWM power supply for maximum voltage in all conditions.
6XS CROSSOVER Features
The 6XS CROSSOVER is a 6-Channel Electronic Crossover with Subwoofer Level Control. The 6XS CROSSOVER offers 2, 4 or 6 channel inputs. Auto Mode inputs also come standard on the Crossover. The Crossover has a 24dB/octave Linkwitz-Riley crossover type. The Crossover also includes an adjustable Subsonic Filter for speaker control and amplifier protection. It also includes output level controls for more adjustability A 13 volt peak preamp line driver provides a smooth performance. The Switchable ground isolation makes the 6-Channel Electronic Crossover very adjustable. It has a Dash Mount ACR-3 level control included. The Dash Mount ACR-3 level control allows the user to adjust subwoofer and bass levels. The Crossover comes with front high pass, front bandpass, rear high pass, and subwoofer outputs. The Crossover has 1 Preamp Input. The Crossover has 1 Preamp Output. It has a Maximum Input Level of 9.5 Vrms. It has a Maximum Output Level of 7.5 Vrms. The Total Harmonic Distortion is 0.005%. The Frequency Response registers 15 Hz - 20k Hz. It has a Signal to Noise ratio of 115dB at full output. The Crossover has a Current Draw of 150mA. The 6XS CROSSOVER has a 18dB Crossover type. The Crossover Frequency is 90Hz from factory which is user programmable. The Current Draw is 150mA. The recommended Fuse Rating is 1A. The dimensions are as follows: 5.5″W x 4.65″D x 1.15″H It has a weight of 2.0 lbs.
- Low Frequency Response : 10 Hz
- High Frequency Response : 100000 Hz
- Frequency Response : 10-100000 Hz
- Crossover Type : Linkwitz-Riley
Features:
- Six Channels in – Eight Channels Out
- State-Variable, 24dB per Octave, 2-way Active Crossover
- Audiophile Crossover Performance
- Output Level Controls
- High Voltage Outputs
- Low Impedance Line Driver
- Remote Subwoofer Level Control
- PFM Subsonic Filter
- Bass Output Control
Specifications:
- Preamp Inputs: 3 (6 channels)
- Input Gain: 12dB (front/rear), 18dB (sub)
- Input Impedance: 20kΩ
- Preamp Outputs: 4 (8 channels)
- Maximum Output Level: 9.5Vrms / 13V peak
- Output Impedance: 150Ω
- Total Harmonic Distortion: 0.005%
- Frequency Response: 10Hz-100kHz ±1dB
- Signal to Noise: 110dB
- Crossover Type: 24dB/octave Linkwitz-Riley
- Crossover Frequency: 90 Hz from factory (user programmable)
- Remote In
- Power Supply: High Headroom PWM
- Current Draw: 400mA
- Recommended Fuse Rating: 2A
- Dimensions: 7.25″W x 7.7″D x 1.25″H
- UPC: 855814005846
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
