JL Audio :: ZR800-CW :: $229.99

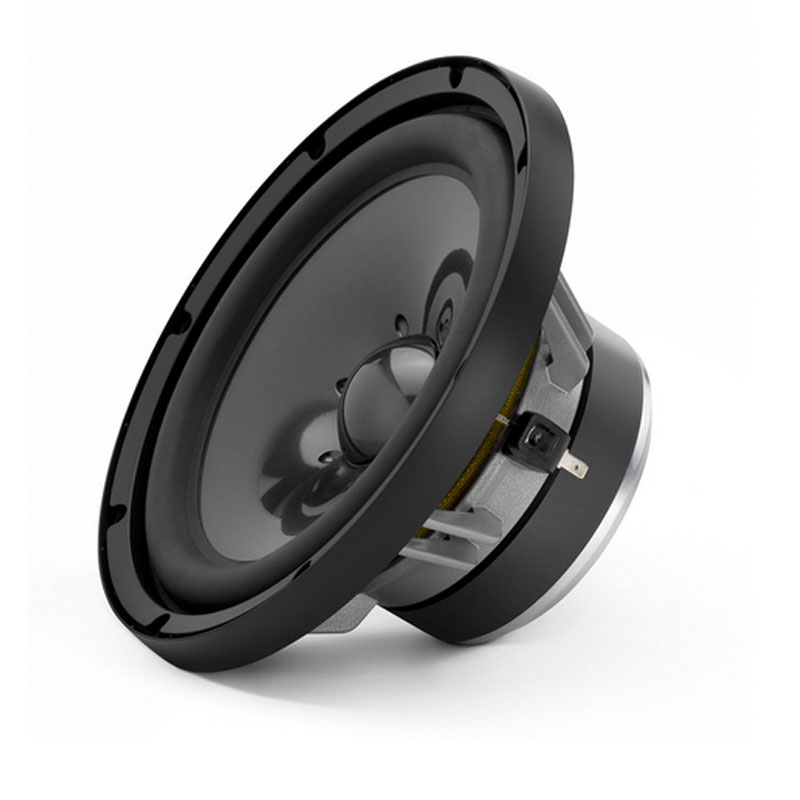

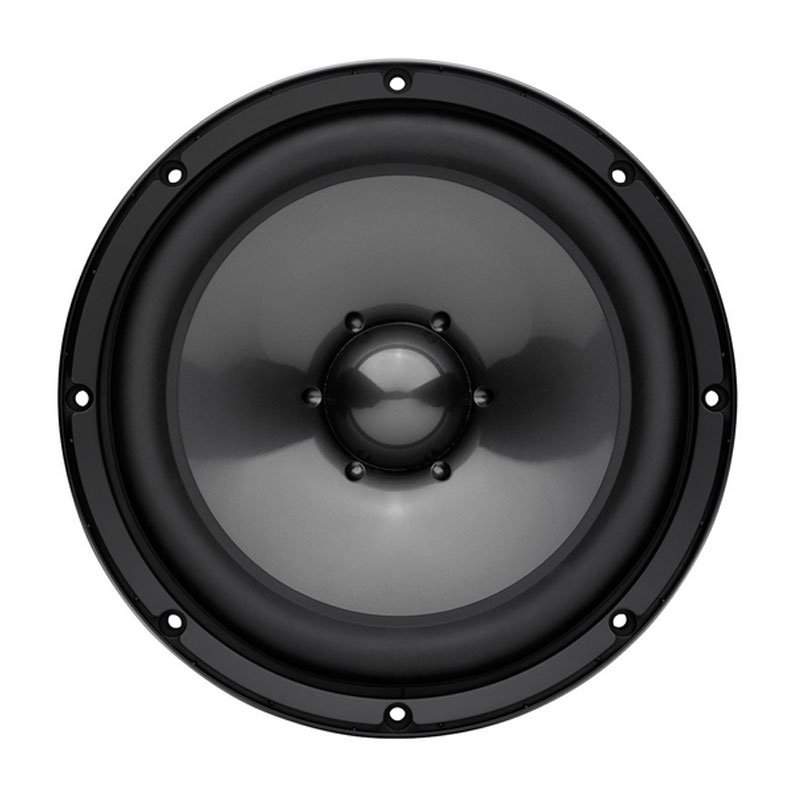

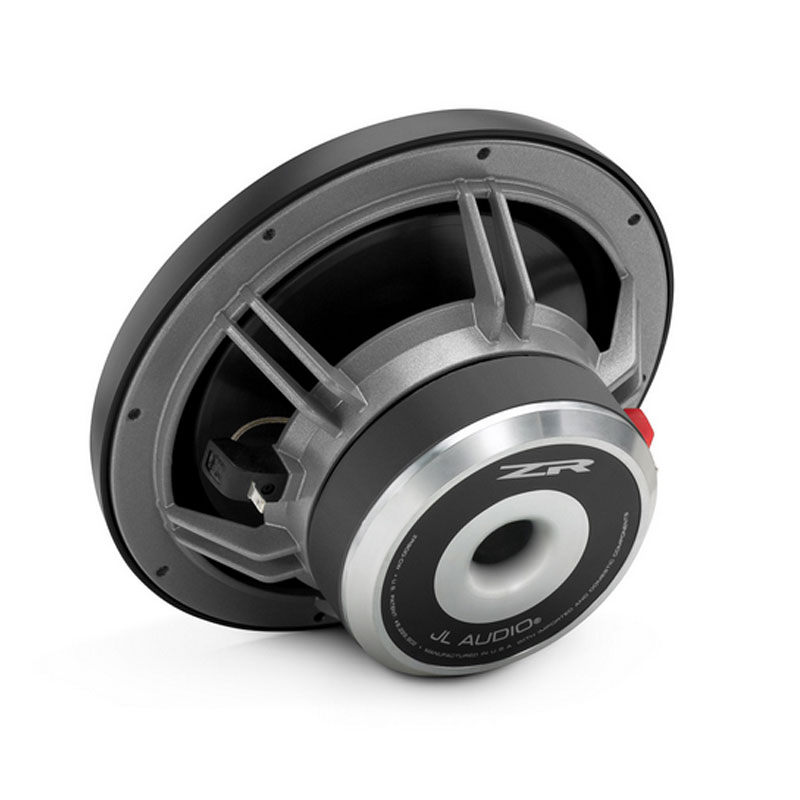

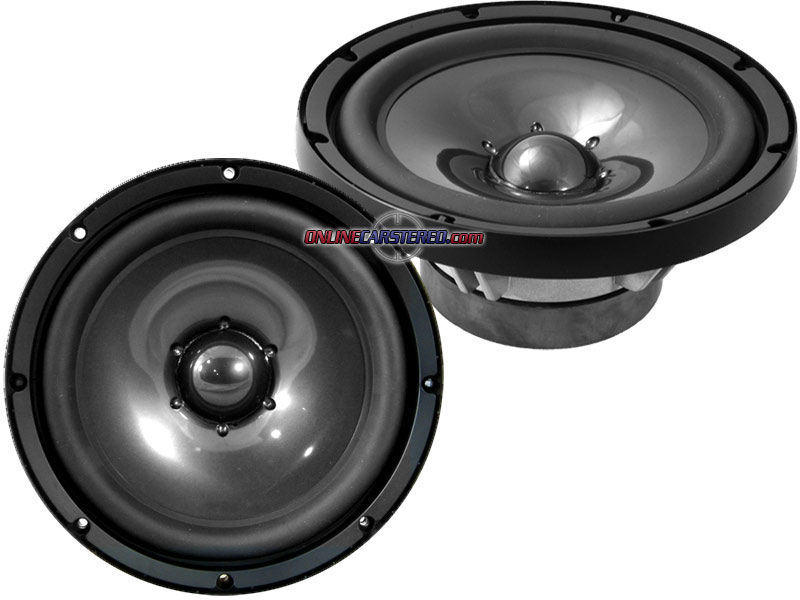

JL Audio ZR800-CW

Item# 20556

8" Component Midbass Woofer 225W Peak Power

Sorry, this product is no longer available.

What other people bought after viewing this product.

What other people bought after viewing this product.

Our reference quality ZR component speakers are made for those seeking the highest possible levels of audio performance and are the pinnacle of the JL Audio component speaker lineup. The ZR800-CW is a supremely powerful, dedicated mid-bass driver designed for infinite-baffle or door-mounted custom installations.

This potent driver benefits from JL Audio's vast woofer design experience and advanced modeling systems and is capable of operating down into the sub-bass range, if needed. Upper frequency response extends comfortably to 1 kHz. The long linear excursion design keeps distortion low while unleashing the full dynamics of the most powerful listening material. A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed "ZR" logo. When nothing but the best will do, choose ZR. Sonic character: Accurate and detailed

General Features:

  • Power Handling:
  • Peak: 225 watts
  • RMS: 125 watts
  • Recommended Power Range: 50 - 125 watts RMS each
  • Top-mount Depth: 3.39"
  • Cutout Dimensions: 7.125"
  • 4 ohms impedance
  • Frequency Response: 50 - 500 Hz ± 3
  • Sensitivity: 87.0 dB
  • Black Steel Mesh Grille with JL Audio Logo Included
  • Mineral-filled polypropylene woofer
  • Santoprene Surround
  • Cast Aluminum Woofer Baskets
  • DMA Optimized Motor
  • Ferrite Magnet
  • 1.75" Voice Coil, on Kapton Former
  • JL Audio's patented Elevated Frame Cooling design
  • Dr. Kurt Muller & Co. symmetrical-roll, hybrid-weave spiders
  • Dr. Kurt Muller & Co. cone and suspension
  • Black steel mesh grille is included

Product Highlights:

  • 8" 4-ohm component woofer
  • mineral-filled polypropylene cone with Santoprene surround
  • cast aluminum basket with Elevated Frame Cooling
  • mesh grille included
  • power handling: 75-150 watts RMS (225 watts peak power)
  • frequency response: 50-500 Hz
  • sensitivity: 87 dB
  • top-mount depth: 3-3/8"
  • sealed box volume: 0.75 cubic feet
  • ported box volume: 1.125 cubic feet
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • UPC: 699440911238
  • Weight: 8
  • Sku: 91123
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   K . D. Jones From Alabama
Great product! Have 4 on these along with other C3 components. Kinda on the expensive side, but JL does make good products.
