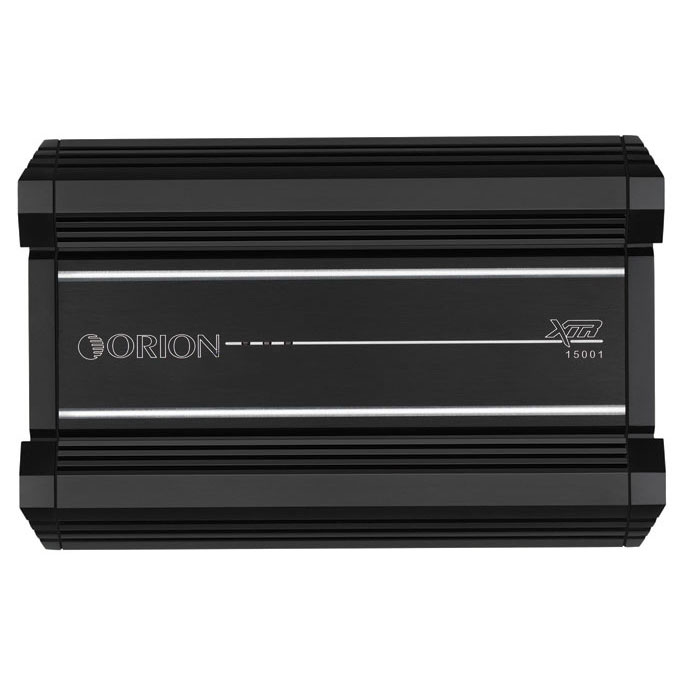

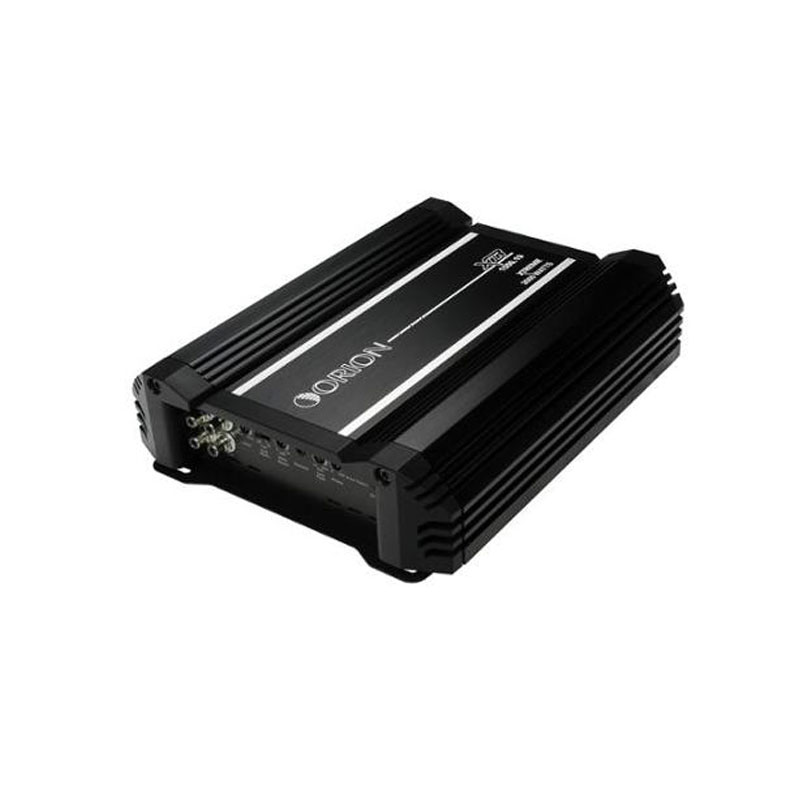

Universal XTR Series 1 Ohm Class D Mono 3000W Amplifier by Orion®. The new XTR Amplifier line offers more models than before to adjust to the requirements of the installer. The XTR series innovates by offering the best power in their Class D Mono Subwoofer Amplifier series.
General Features:
- RMS Power Rating 4 ohms: 600 watts x 1 chan
- RMS Power Rating 2 ohms: 975 watts x 1 chan
- RMS Power Rating 1 ohm: 1500 watts x 1 chan
- Max power output: 6000 watts x 1 chan.
- Powerful MOSFET power supply
- Wired remote bass level control included
- Power, protection, and thermal LED power indicators
- Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
- Efficient Class-D amplifier circuitry
- Single-channel monoblock operation
- 1 Pair of preamp RCA outputs
- Protection against speaker shorts, overcurrent, DC offset, under-voltage, over-voltage, and reverse polarity

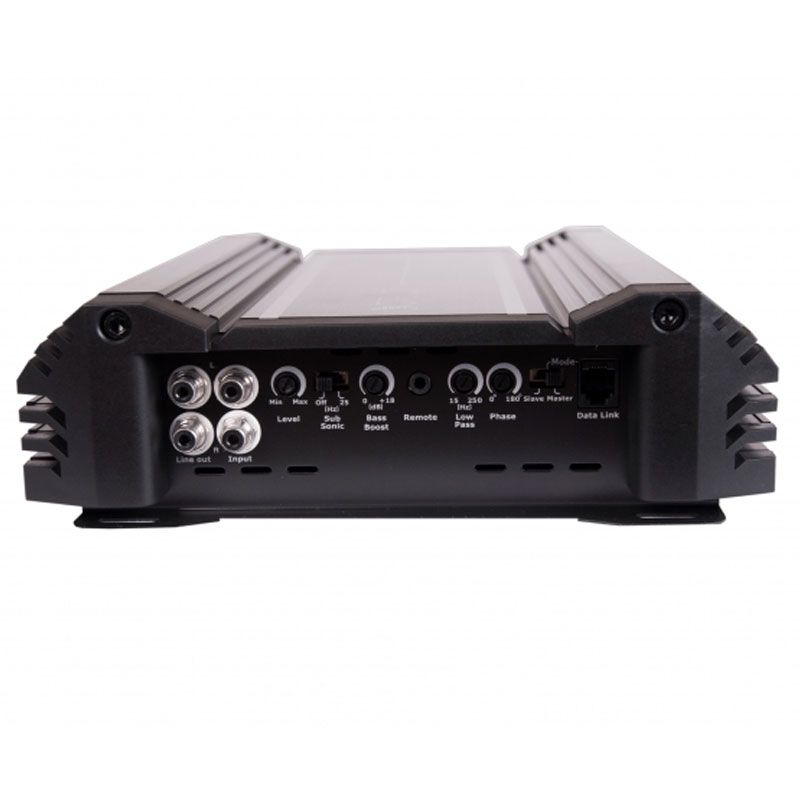

- Input sensitivity selection switch (200mV - 8V)
- Heavy duty aluminum alloy heatsink for extreme heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Variable low-pass filter (30-250 Hz, 24 dB/octave)
- Subsonic Filter (12 dB at 24 Hz)
- CEA-2006 compliant amplifier
- Frequency response: 20-300 Hz
- Dimensions: 9-1/4"D x 11-1/2"W x 2-1/2"H
- Product Highlights:
- Class D mono block
- 6000 Watts Max
- 3000 Watts Nominal
- 1 x 600 @ 4ohm
- 1 x 975 @ 2ohm
- 1 x 1500 @ 1 ohm

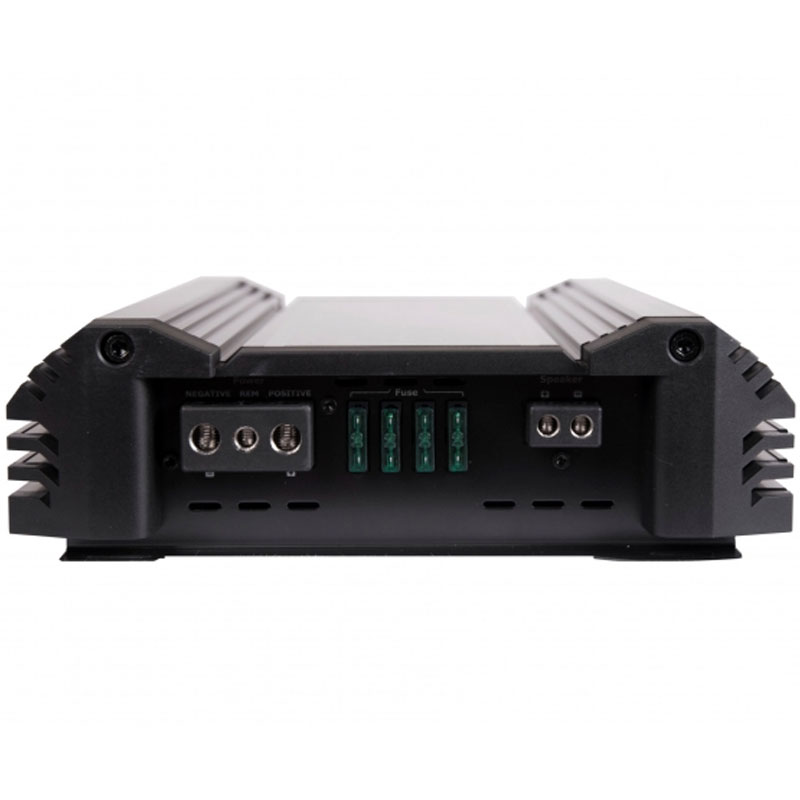

- Fuses: 4 x 30A
- Dimensions: 9-1/4" x 2-1/2" x 11-1/2"
- Weight: 15
- Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
Do you own this product? Write a review
|
Mike McCabe From Gilbert Az
|
| I use to be in the car audio biz big time when orion, fosgate and mtx and more where all down the street in tempe, Az back n the day and I wasn't too impressed until orion came back and they came back hard with my all time fav from orion the Xtr line-up so bought the xtr 5-1/4" & 6-1/2" component sets powered by the xtr 600.4 amp and bought the xtr 1500D to power a pair of xtr 12"s and all I can say is WOW!! orion is def back in the game with quality and performance to spare.. i can run em hard and they still take it.. so glad the new owners went back to the roots and did a modern style interpretation of the original orion xtr series.. cant go wrong with orion's xtr's if u want clean while still giving u loud love the 1500D amp pushes my 2 xtr12"s with ease |
|
|
Woody From California
|
| I couldn't believe the sound quality and power I was getting for such a great price. I have it hooked up to one 12" power acoustik mofo with dual 2 ohm voice coils in a ported box. That setup is in the hatch of my ford focus. The bass is crazy! Not only that but this amp controls the sub very well and blew me away with the quality. I just had a diamond audio D6 amp 1500.1 go bad on me a couple of weeks ago and the Orion was my choice to replace it. As far as a bass amp, the Orion is the better choice. Sorry Diamond audio, your amps don't compare. One last thing, the sales department for Online Car Stereo was very awesome to work with. They took great care of me! |
|
|
robby From charlotte nc
|
i have this bad boy pushing 4 kicker cvr's all dual 2's droped down to 1 ohm in my 99 f-150 i have each one in its own single ported boy and man it gives you that punch bass that takes your breath away love this amp but you have to run 2 batteries and i also have a cap but any way this amp is a beast |
|
