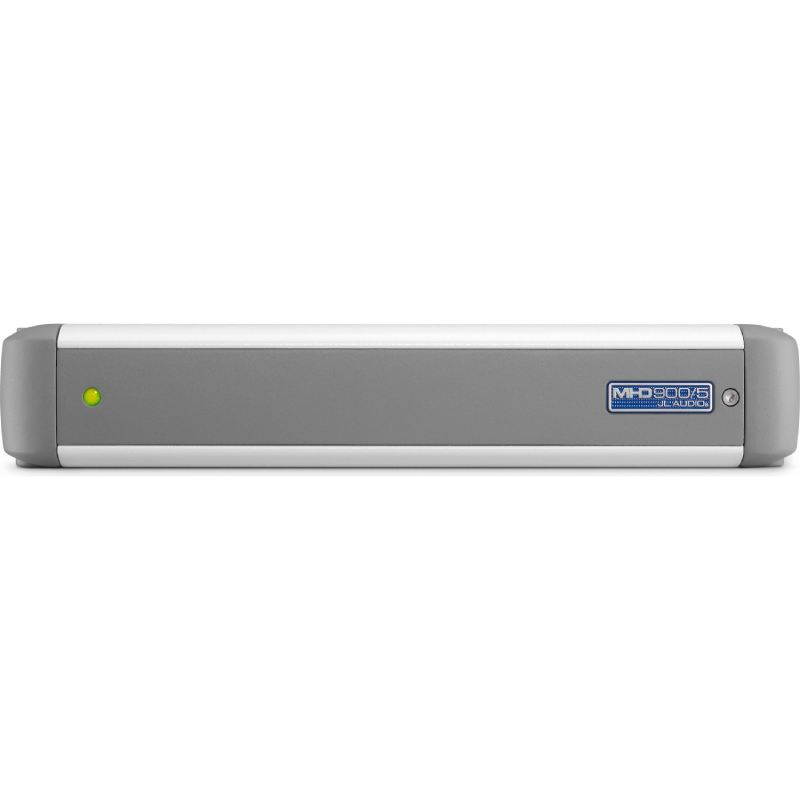

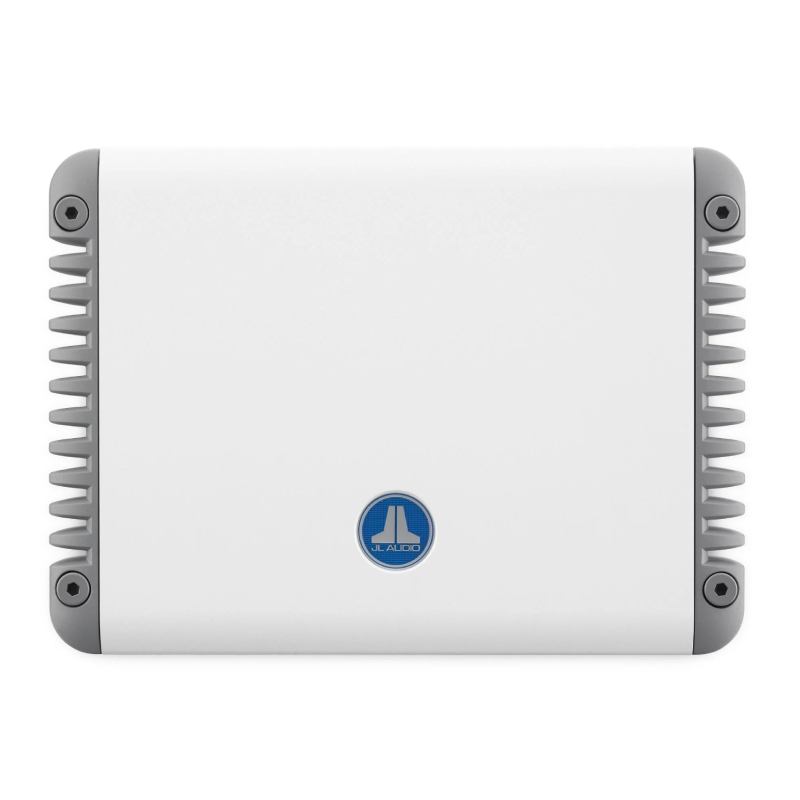

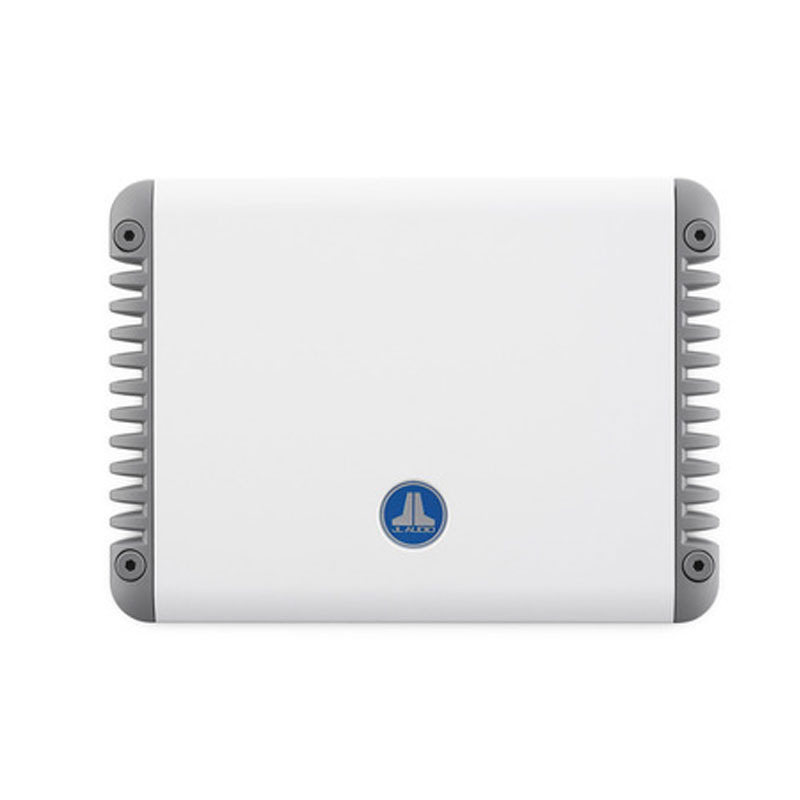

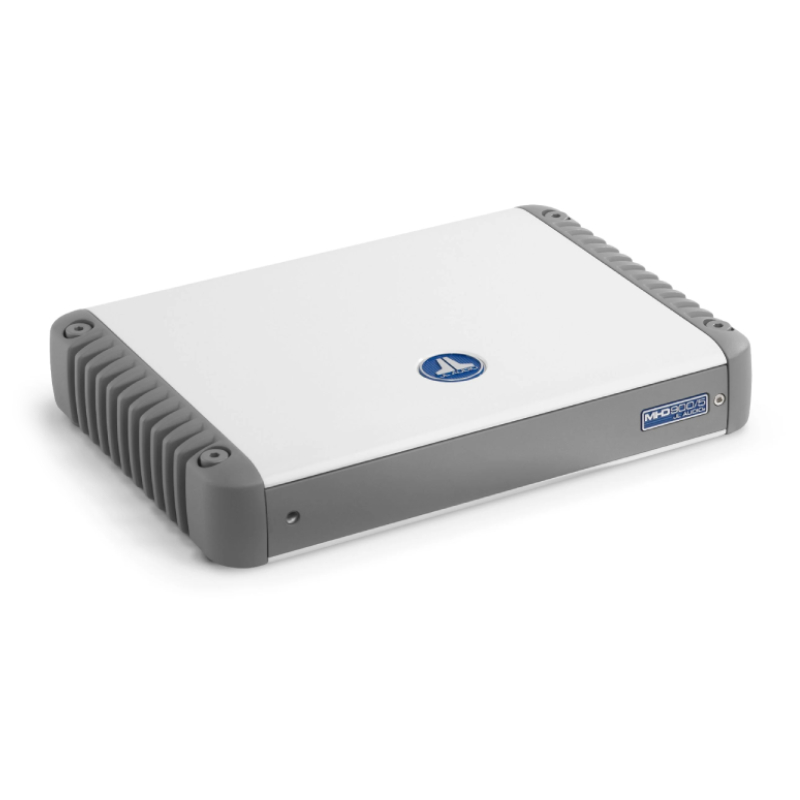

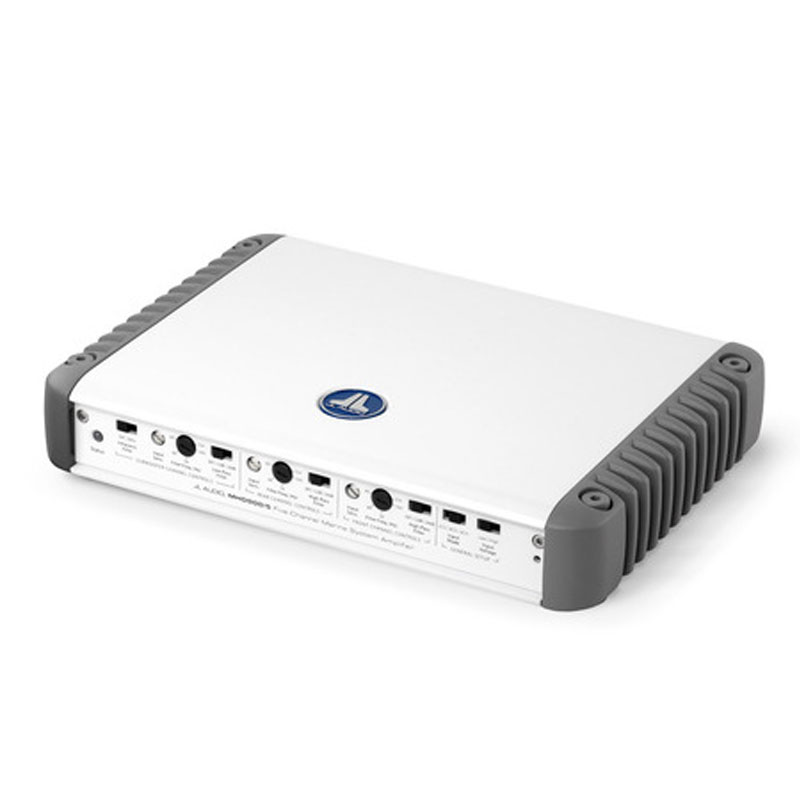

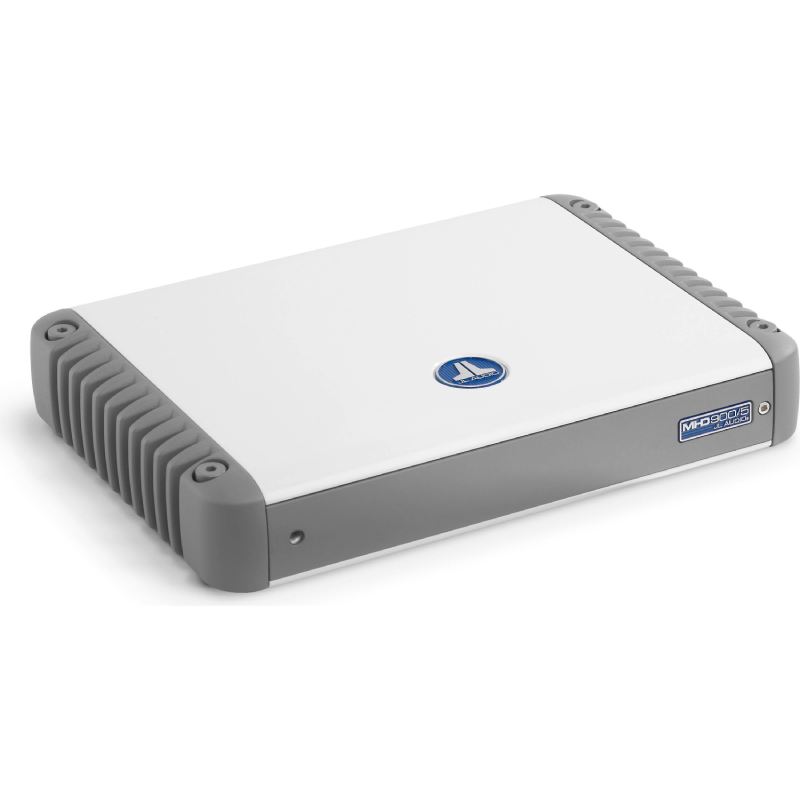

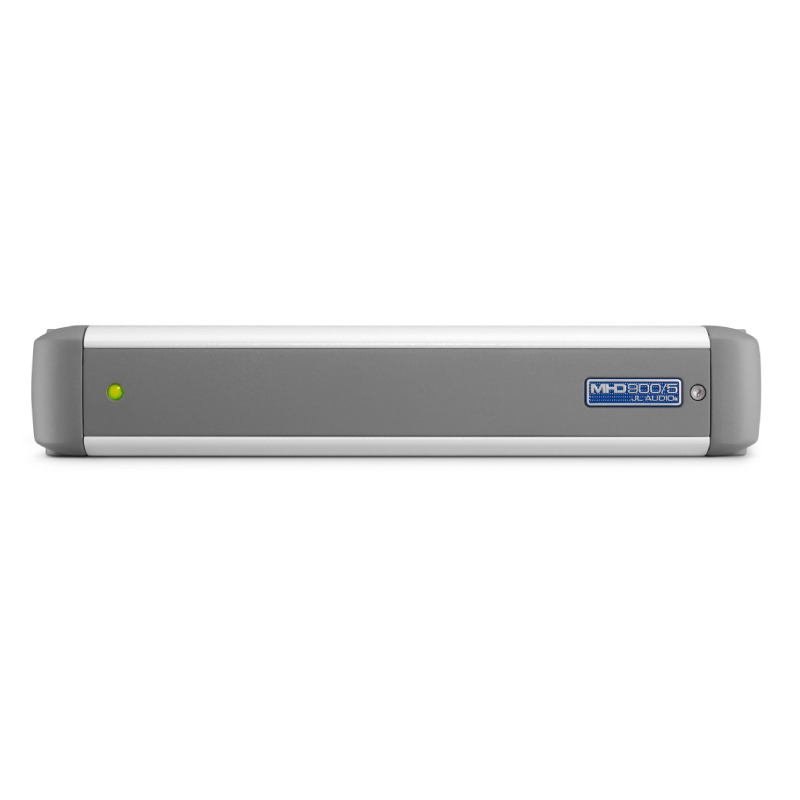

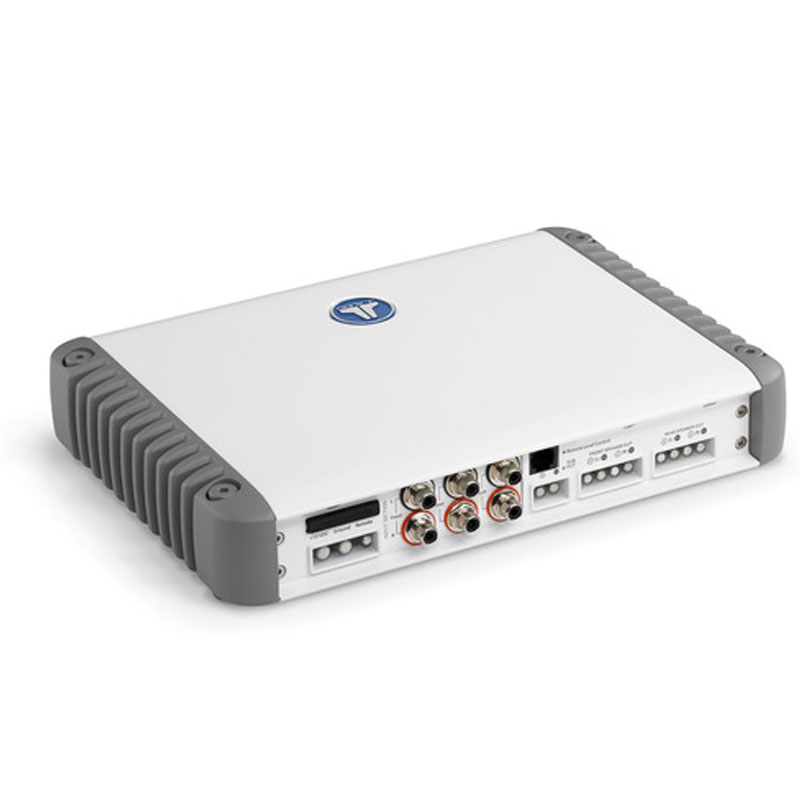

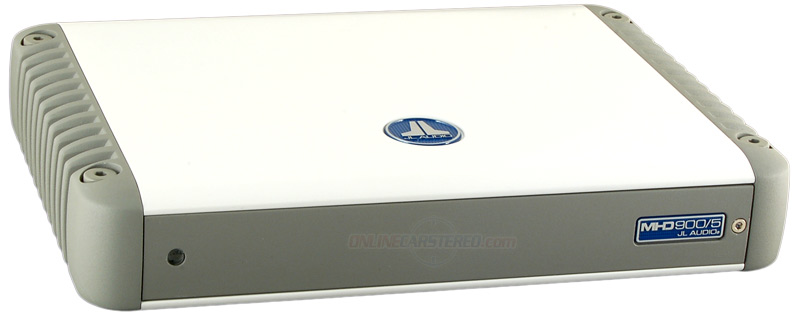

JL Audio MHD900/5 Item# 22306
900W 5-Channel Class-D HD Series Marine System Amplifier
JL Audio :: MHD900/5 :: $779.00
MSRP: $1,199.00
Regular Price: $999.00
You Save: $420.00 (35%)
Our Price: $779.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

Power Output
  • System Channels
    • 100 watts RMS x 4 @ 4 ohms
    • 75 watts RMS x 4 @ 1.5-3 ohms
    • 150 watts RMS x 2 [bridged] @ 3-6 ohms
  • Mono Channel
    • 500 watts RMS x 1 @ 1.5-4 ohms
General Features
  • Five-Channel Class D System Amplifier
  • Single Cycle Control
  • Differential-Balanced Input Topology: Three Stereo Pairs (Front, Rear and Sub)

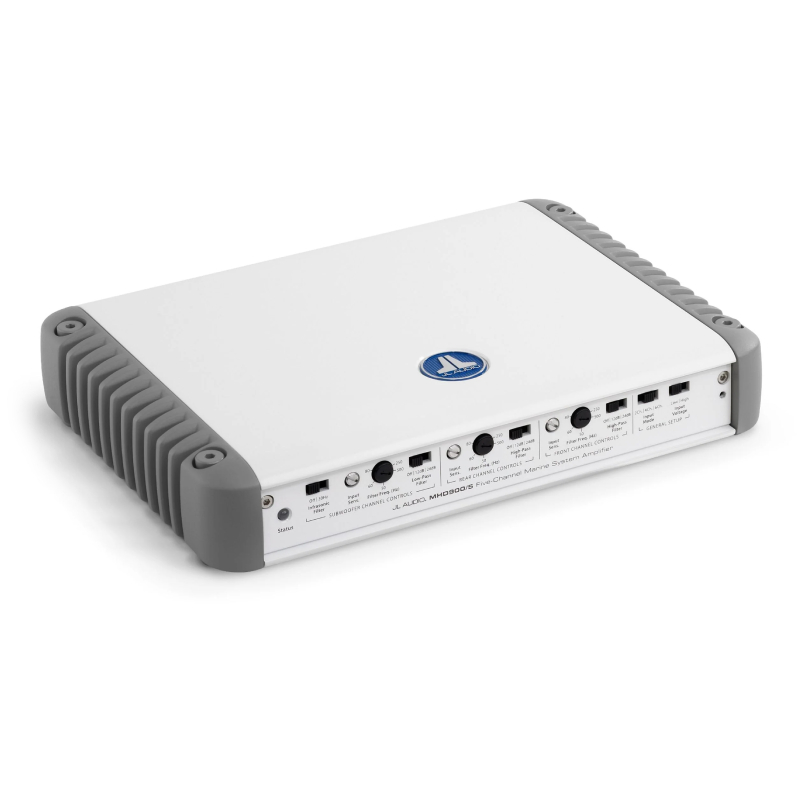

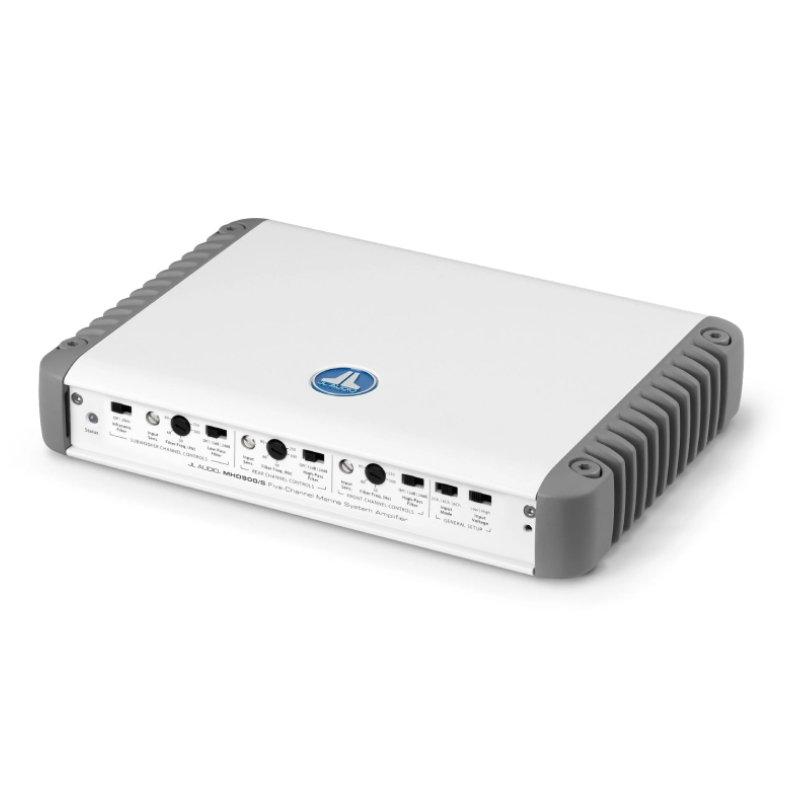

  • Front Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) HP or LP
  • Rear Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) HP or LP
  • Subwoofer Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) LP
  • Preamp Output: 2-channel (pass through or tracking LP)
  • Bass EQ: Variable boost up to +15dB and Remote Bass Option
  • Infrasonic Filter: Defeatable 24dB/octave at 30 Hz
  • Left Minus Right / Right Minus Left Ambience Circuit: Ambient effect for rear channels

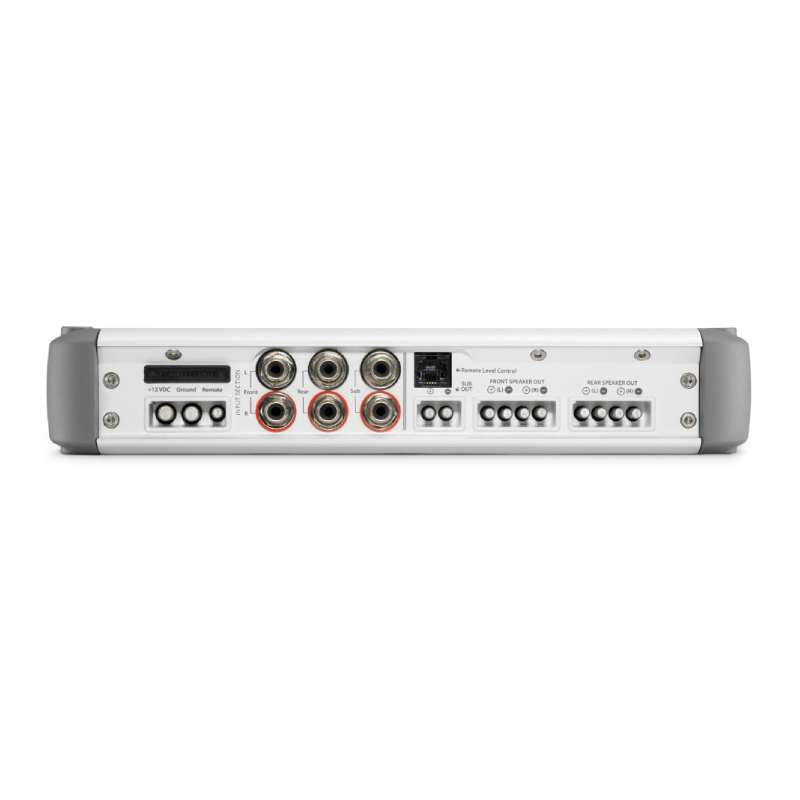

  • Front and rear speaker output connections: Accept up to 12 AWG wire
  • +12V and Ground connections: Accept up to 4 AWG wire
General Specifications
  • THD at Rated Power: <0.03% @ 4Ohm (front and rear ch.)
  • <0.05% @ 5 ohm (subwoofer ch.)
  • S/N Ratio (Front & Rear Channels): >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio (Subwoofer Channel): >95 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Frequency Response (Front and Rear Channels): 12 Hz - 28 kHz (+0, -1dB)
  • Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1dB)
  • Damping Factor (Front and Rear Channels): >400 @ 4Ohm per ch. / 50 Hz
  • >200 @ 2Ohm per ch. / 50 Hz
  • Damping Factor (Subwoofer Channel): >800 @ 4Ohm / 50 Hz
  • >400 @ 2Ohm / 50 Hz
  • Input Range: Switchable from 200mV - 2V RMS (Low) to 800mV - 8V RMS (High)
  • Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in. 273 mm x 211 mm x 49 mm (Width Measurement Includes Plugs)
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
