What's Included:
- Product Information Inside Box
- Owner's Manual
- One 12" Round dual 4-ohm voice coil woofer
- Owner's manual
- sealed box volume: 1.0 - 4.6 cu. ft.
- cast aluminum basket
- maximum power handling: 750 watts RMS (1500 peak)
- frequency response: 20-500 Hz
- sensitivity: 87.1 dB
- 12" subwoofer with dual 4-ohm voice coils
- one-piece SoloKon™ cone
- ribbed Santoprene rubber surround
- top-mount depth: 6-11/16"
- ported box volume: 1.75 - 2.25 cu. ft.
- Diameter : 12 Inch
- Sensitivity : 87.1 dB
- Impedance : 4 Ohm
- Frequency Response : 18-500 Hz
- RMS Power Range : 750 Watts
- Peak Power Handling : 1500 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.0 - 4.6 Cubic ft.
- Suggested Ported Box Volume : 1.75 - 2.25 Cubic ft.

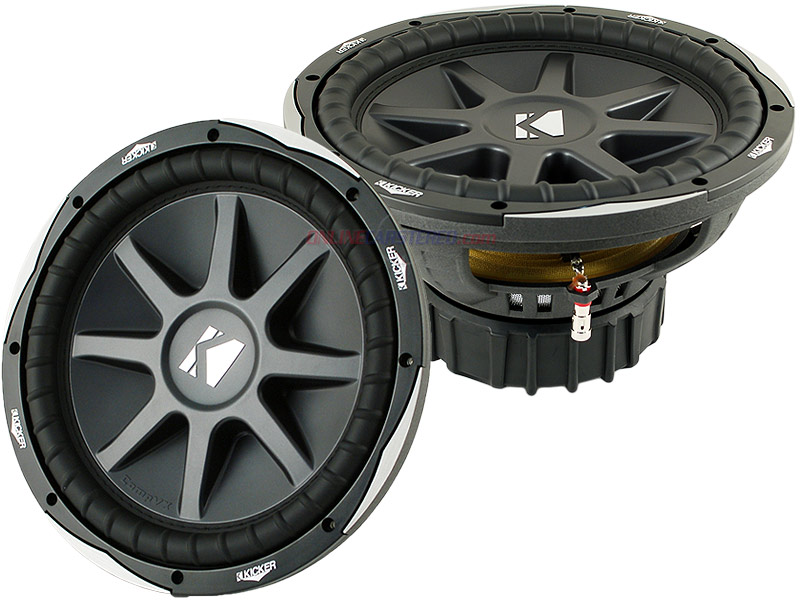

The CompVX 12-Inch Subwoofer is a 4Ω dual voice coil design, making it easy to get most out of your amp. The CompVX's® basket is cast aluminum with motor-cooling perimeter venting and spring-loaded terminals that can accept up to 10-gauge wire, so when you run hundreds of watts to this sub, it gives you loud, distortion-free bass. The CompVX 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power.
| Specifications |
| Surround Material |
Santoprene |
| Frequency Response |
20 - 500 Hz |
| Sensitivity |
87.1 dB at 1 watt |
| Cutout Diameter or Length (inches) |
11 1/16 |
| Xmax (millimeters) |
15.4 |
| Peak Power Handling (Watts) |
1500 |
| RMS Power Range (Watts) |
100-750 |
| Free-Air |
No |
| Top Mount Depth (inches) |
6 11/16 |
| Vas (liters) |
57.82 |
| Dual Voice Coil |
Yes |
| sealed box volume: |
1.0 - 4.6 cu. ft. |
| Size |
12 -inch |
| Impedance |
4 ohms |
| Cone Material |
SoloKon |
| Fs (Hz) |
28.5 |
| Qts |
0.381 |
| ported box volume: |
1.75 - 2.25 cu. ft. |
- UPC: 713034049784
- Weight: 22.64
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
I have one of these in the back of my extended cab ford ranger. I normally don't like kicker products but this thing hits really hard in a 2.25 ported box, with an old school punch 600.1 amp. Minus the really low bass, this sub is very impressive.
-
I really recommend these subs. I have 2 wired at 1 ohm in an ext silverado. I got Hifonics 1600 pushing them and they rattle the roof!!!! I busted my sealed box twice but now I have a ported one! Great buy!
-
I got one of these for my wife's Mazda 3 hatch, with the kicker 750x1 D class amp.Holy Shit! at less than half gain it wants to blow the doors off. This sub will not disappoint.
-
Have 1 of these so far (with 1 of my old cvr's) hooked up to a Hifonics BXI 1206D at 1 ohm in a ground shaker slot ported box and it pounds hard and has some clean hitting lows. plan on getting another one after i upgrade my highs. great buy/combination
-
Have one CVX hooked up in my 350z Nissan with a ZX750.1 Kicker mono channel. I highly recommend this sub. The low's hit ridiculously. The CVX is by far worth the money and you will recieve great satisfaction from it!
-
I have two of these in a sealed box with a hifionics brz2100.1d at one ohm and a Rockford fosgate 360 line driver and they sound amazing, and hit really hard. Only have the amp a quarter way up. I highly recommend them.
-
got two these at 1ohm on a d class hifonics 1500 watt amp in my nissan maxima. these subs hit so hard my sunroof sounds like a machine gun when i turn em up. completely satisfied had two kenwood twelves and blew em to hell and back, great subs worth every penny used to think kicker was all hype true believer these days!!!!!!!
-
I have two of these in a small custom sealed box by JD probox running off a hifonics Brutus elite 1700.1 yellow top in the back. They hit pretty hard in my Cadillac but I think I'm gonna go with 2 more lol totally satisfied with the cvxs
