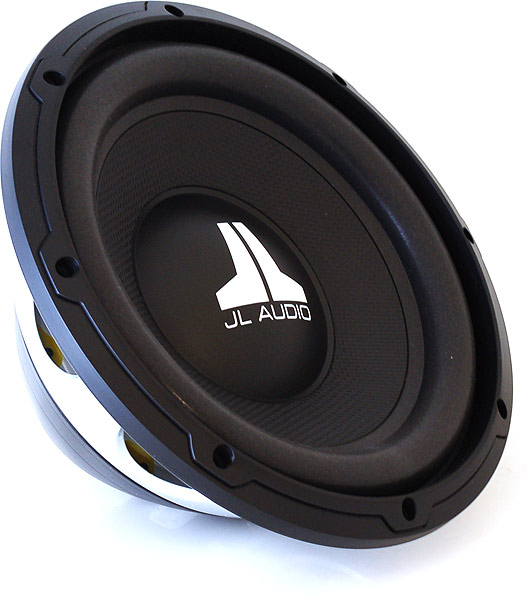

JL Audio  12WX-4

12" 250W RMS 4-Ohm SVC WX Series Car Subwoofer Driver

Item #25137

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Available alternative products:


Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 87 dB
  • Impedance : 4 Ohm
  • Frequency Response : 25-250 Hz

FEATURES


General Features

  • Power range: 50W-250W RMS
  • Polypropylene cone with foam surround
  • Frequency response: 25-250 Hz
  • Sensitivity: 87.17 dB
  • Sealed box volume: 1.375 cubic feet

General Specifications

  • Free Air Resonance (Fs): 27.43 Hz
  • Electrical "Q" (Qes): 0.596
  • Mechanical "Q" (Qms): 9.970
  • Total Speaker "Q" (Qts): 0.562
  • Equivalent Compliance (Vas): 3.337 cu. ft. / 94.49 liters
  • One-Way, Linear Excursion (Xmax)*: 0.375 in. / 9.5 mm
  • Reference Efficiency (no): 0.314%
  • Efficiency (1W/1m)**: 87.17 dB SPL
  • Effective Piston Area (Sd): 76.950 sq. in. / 0.0496 sq. m.
  • DC Resistance (Re): 3.51 ohm
  • Nominal Impedance (Znom): 4 ohm
  • Thermal Power Handling (Pt): 200W
  • Driver Displacement: 0.048 cu. ft. / 1.36 liters
  • UPC:
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
