Item# 25231
AudioControl LC7I - $124.95
Please roll over the image to zoom in. Click on the image to see larger image.

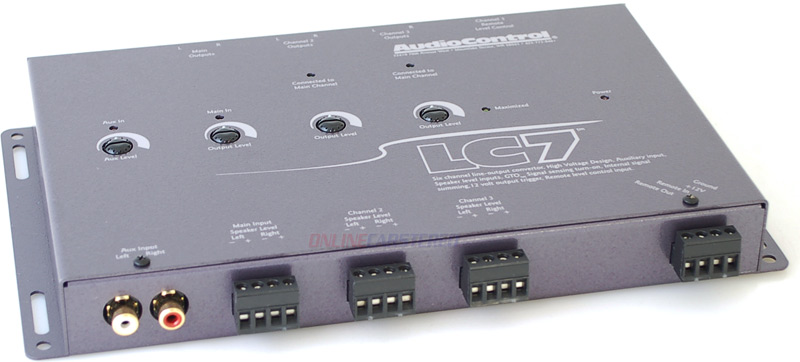

AudioControl LC7I

Item# 25231

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

6-Channel Concert Series Line Output Converter with Auxiliary Input

MSRP:$229.99
Regular Price:$219.99
Savings Of:$105.04 (45%)
Your Price $124.95

FREE Shipping in US 48!

Related Video:


What's Included:


  • LC7i
  • Speaker and Power connectors
  • Manual

Product Highlights:


  • Optional ACR-1 Remote allows for user control of the subwoofer level
  • Six channels of active speaker level inputs – accepts up to 400 watts per channel
  • Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
  • Patent Pending AccuBASS circuitry
  • GTO (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
  • Output level control
  • Compact chassis allowing for ease of installation

The LC7i features a 6-Ch Line Output Converter & Internal Summing & AccuBASS. The LC7i delivers Two channel active speaker level input. It features the AccuBASS with variable threshold and gain. It also includes Dual Outputs (one fixed, one variable). The 6 channel LC7i provides 400 watts per channel power handling capability. It includes GTO turn-on circuit with remote out. Output level controls are also available. The LC7i includes Power connectors and a Manual. AudioControl's AccuBASS Bass Compensation circuit adjusts the distortion that occurs at high volume levels. The LC7i is capable of internally summing together multiple (4 or 6) input channels from it’s original source unit into 2 channels. The LC7i features a 12-volt trigger that will switch on devices like the LC7i and external amplifiers. AutoMode inputs take the Channel 2 signal and automatically give it to the Channel 3 outputs which will make the LC7i accept two input channels and give you four output channels. The LC7i has a high-current 12-volt output that provides a signal to remote devices such as amplifiers which enables them available. An Optional Dash Mount ACR-1 Level Control is sold separately. The Dimensions are as follows: 7.5”W x 4.7”D x 1.2”H. It has a weight of 1.5 lbs (0.7 kg).

Specifications
Maximum Output Level: 8.5Vrms
Output Gain: 12dB
Dimensions: 7.5”W x 4.7”D x 1.2”H
Speaker Level Inputs: 3 (6 channels)
Total Harmonic Distortion: 0.01%
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Preamp Outputs: 3 (6 channels)
Output Impedance: 150
Weight: 1.5 lbs (0.7 kg)
Recommended Fuse Rating: 2A
Remote In 12VDC Remote Out (always active when unit is on)
Maximum Input (speaker level): 400W per channel at 4
Input Impedance: 20k
Frequency Response: 10Hz-22kHz
  • UPC: 855814005228
  • Weight: 4
*Warranty: 1 Year Onlinecarstereo.com warranty.
