Pioneer :: TS-D1702R :: $73.43

Pioneer TS-D1702R

Item# 25587

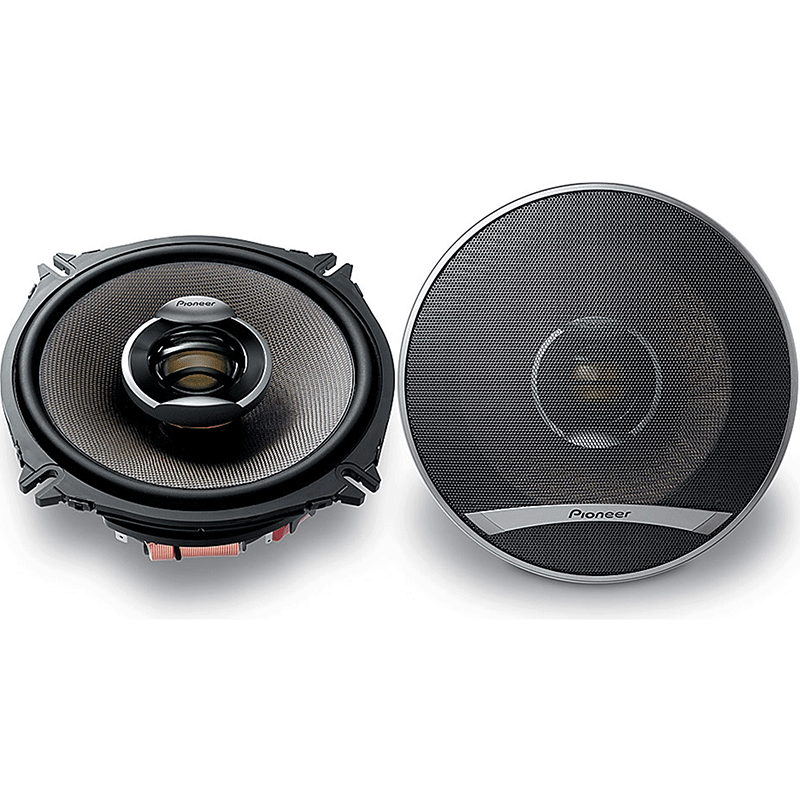

6-3/4" 2-Way D 280W Series Car Speakers

Sorry, this product is no longer available.

Highly Recommended Alternatives

Related Video:

What's Included:

  • 2 Grilles
  • 8 Speed-clips
  • Owner's Manual
  • 8 Mounting screws (4mm x 10mm)
  • Two 11" wire-ties
  • 2 Self-adhesive foam gaskets

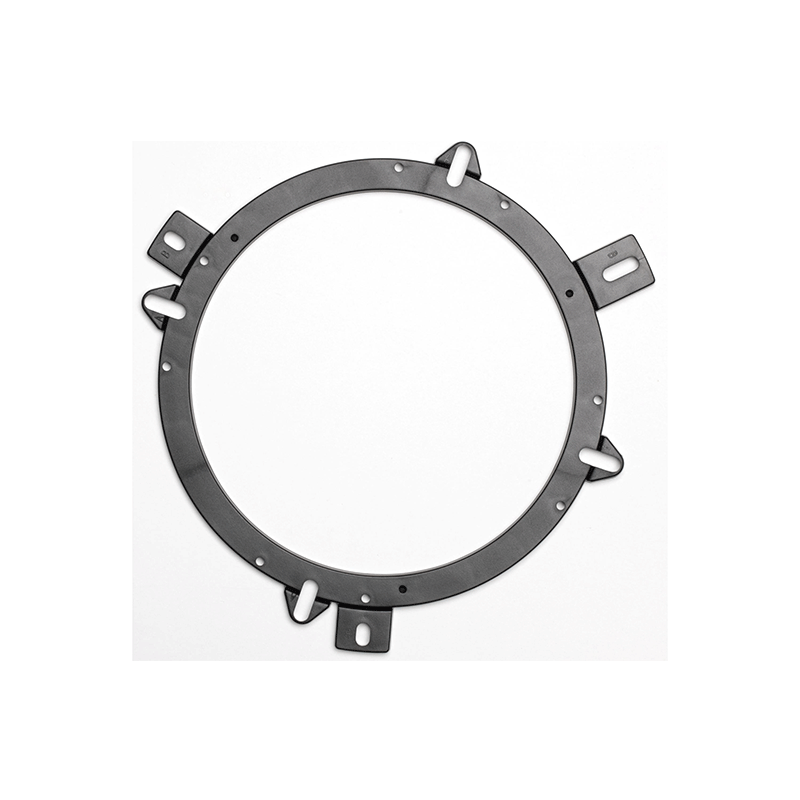

  • 2 Mounting rings
  • 2 Two-way 6.75" speakers
  • Two 14" lengths of speaker (with female quick-slides on one end and bare wire on other end)
  • 8 Self-tapping screws (4mm x 25mm)
  • Template

Product Highlights:

  • peak power handling: 280 watts
  • recommended power range: 2-60 watts RMS
  • 2-way car speakers for 6-3/4" locations (pair)
  • Aramid/basalt fiber composite woofer with rubber surround

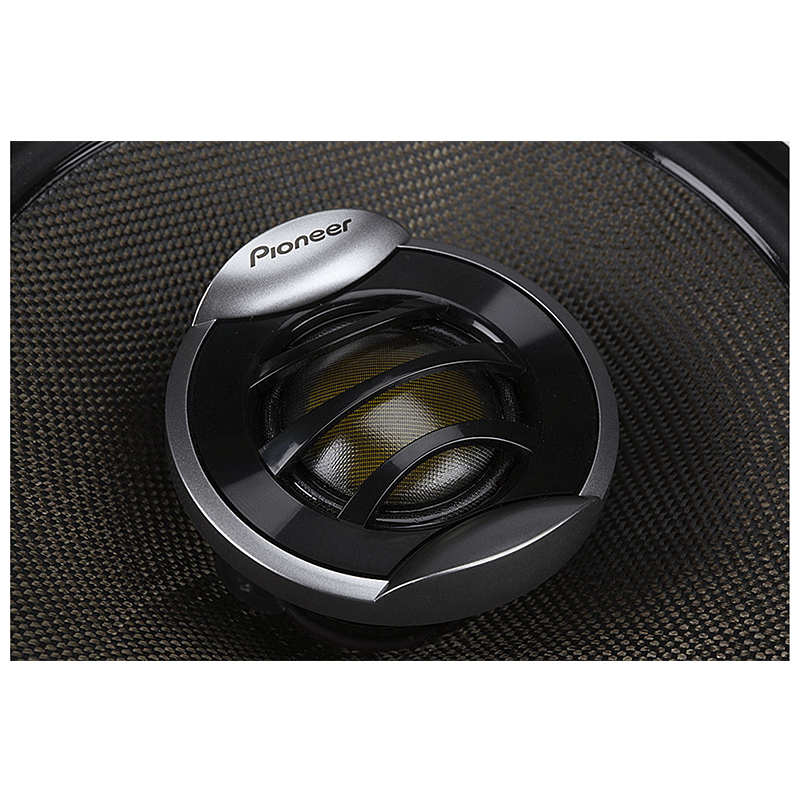

  • 1-1/8" soft dome tweeter

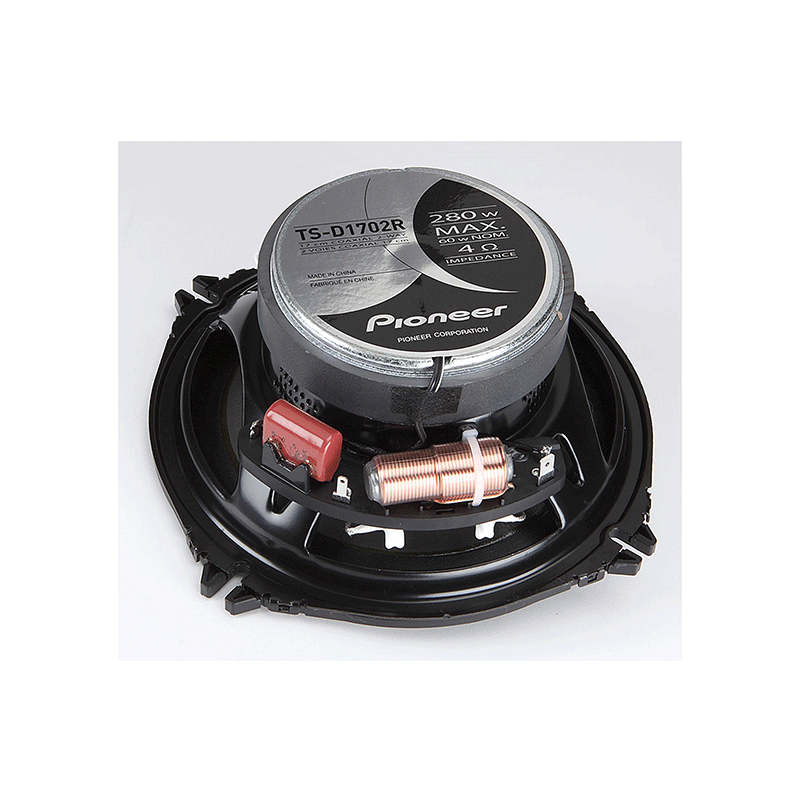

  • built-in 2-way crossover
  • frequency response: 30-32,000 Hz
  • sensitivity: 88 dB
  • top-mount depth: 2-9/16"

Pioneer D-Series speakers are available in 2-way component packages or 2-way coaxial designs in multiple sizes that fit most vehicles. The built-in HPF (-12 dB/oct.) and LPF (-6 dB/oct.) crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Also, The speakers come with black steel mesh grilles with silver heat-proof resin frames.


Design 2-way
Woofer Surround Butyl Rubber
Cutout Diameter or Length (inches) 5 1/2
Frequency Response 30 - 32k Hz
Bottom-mount Depth (Inches) 2 3/4
Woofer Composition IMPP/Aramid/Basalt
Tweeter Composition Polyester
Sensitivity 88 dB at 1 watt
RMS Power Range (Watts) 2-60
Peak Power Handling (Watts) 280
Impedance (Ohms) 4

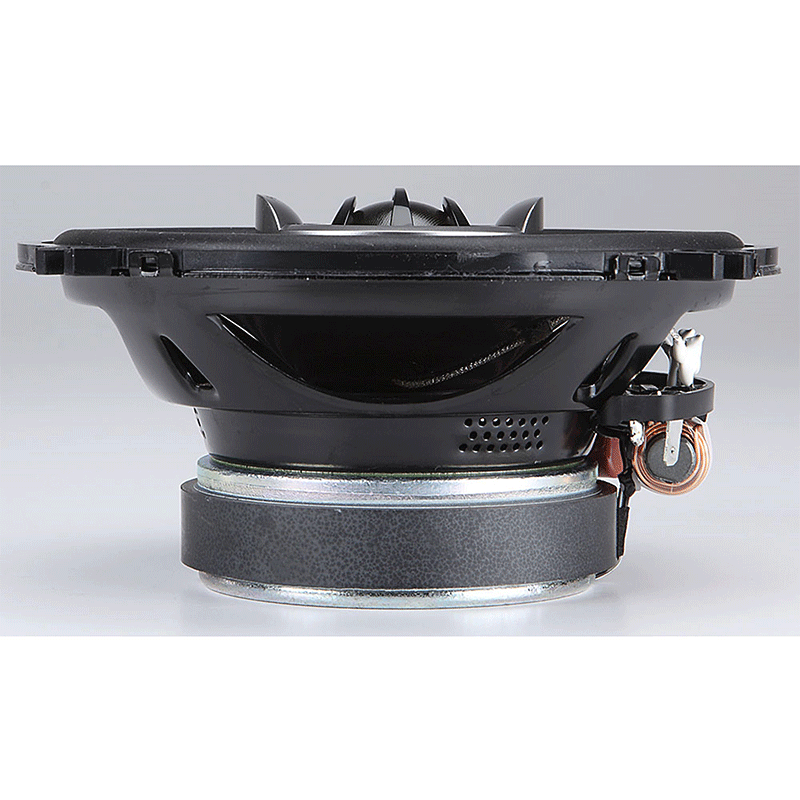

Top-mount Depth (Inches) 2 9/16
Tweeter Design 1.125" Soft-dome
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 884938107471
  • Weight: 42
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
