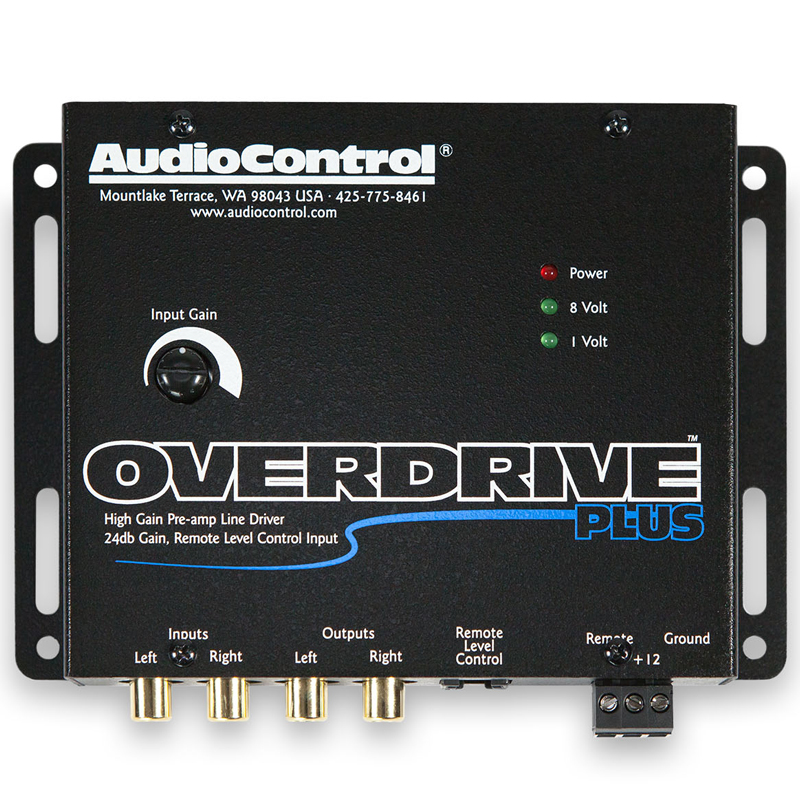

The OVERDRIVE PLUS is a 2 channel line driver with optional level control. The unit provides Ultra-quiet operation and Ultra-low distortion. The unit has 2 input and output channels. The Line Driver has 24dB of signal gain. It also features 13 volts peak output. Assignable inputs and outputs allow for signal routing (ie. two input channels drive six output channels). The Line Driver also features Signal voltage indicator LED’s that always keep the user informed of its status. Also included is a High headroom PWM power supply. Balanced differential inputs are also included. The Selectable ground isolation makes the 2 channel line driver very adjustable. The Line Driver also features Low impedance outputs for multiple loads. An Optional dash mounted ACR-1 remote level control is sold separately. The OVERDRIVE PLUS includes Power connectors and a Manual. The Input Gain is 24dB. The OVERDRIVE PLUS has an input impedance of 20k Ohms. It has a Maximum Output Level of 9.5Vrms. The Output Gain is -12dB to +24dB. Also the Output Impedance is 45 Ohms. The Total Harmonic Distortion is 0.005%. The Frequency Response registers 10Hz-100kHz. It has a current draw of 150mA. The recommended Fuse Rating is 1A.
Audio Control Overdrive Plus Manual| Specifications | |
|---|---|
| Output Impedance: | 45OHM |
| Preamp Outputs: | 4 (8 channels) |
| Preamp Inputs: | 1 (2 channels) |
| Signal to Noise: | >110dB |
| Frequency Response: | 10Hz-100kHz 1dB |
| Total Harmonic Distortion: | 0.005% |
| Current Draw: | 150mA |
| Dimensions: | 5W x 4.25D x 1.25H |
| Remote In | Power Supply: Transformer Isolated PWM |
| Input Gain: | 24dB |
| Input Impedance: | 20kOHM |
| Maximum Output Level: | 9.5Vrms |
| Recommended Fuse Rating: | 1A |
| Weight: | 2.0lbs (0.91kg) |
The OVERDRIVE PLUS is a 2 channel line driver with optional level control. The unit provides Ultra-quiet operation and Ultra-low distortion. The unit has 2 input and output channels. The Line Driver has 24dB of signal gain. It also features 13 volts peak output. Assignable inputs and outputs allow for signal routing (ie. two input channels drive six output channels). The Line Driver also features Signal voltage indicator LED’s that always keep the user informed of its status. Also included is a High headroom PWM power supply. Balanced differential inputs are also included. The Selectable ground isolation makes the 2 channel line driver very adjustable. The Line Driver also features Low impedance outputs for multiple loads. An Optional dash mounted ACR-1 remote level control is sold separately. The OVERDRIVE PLUS includes Power connectors and a Manual. The Input Gain is 24dB. The OVERDRIVE PLUS has an input impedance of 20k Ohms. It has a Maximum Output Level of 9.5Vrms. The Output Gain is -12dB to +24dB. Also the Output Impedance is 45 Ohms. The Total Harmonic Distortion is 0.005%. The Frequency Response registers 10Hz-100kHz. It has a current draw of 150mA. The recommended Fuse Rating is 1A.
