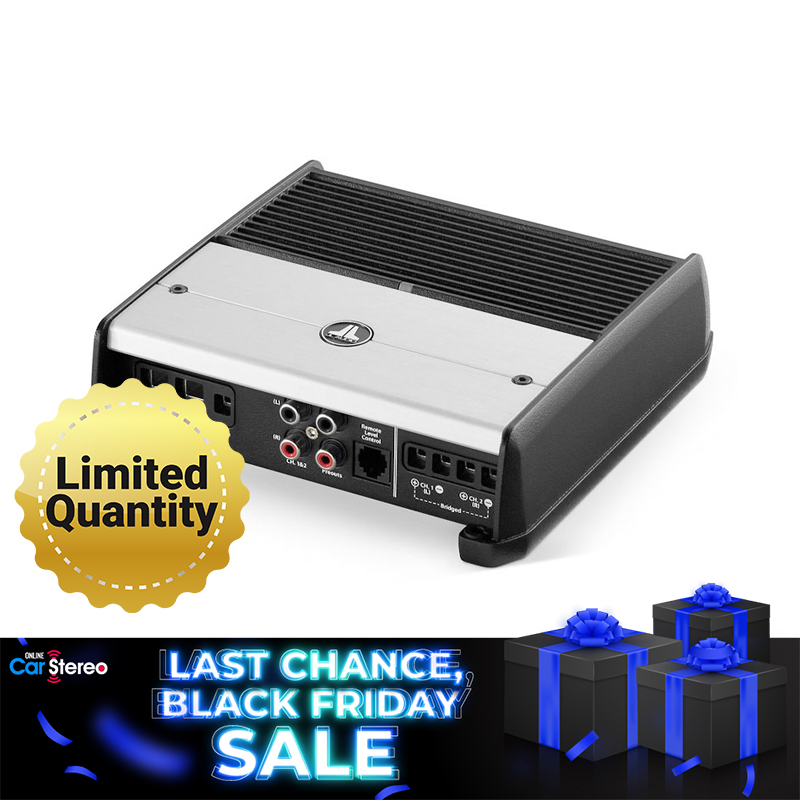

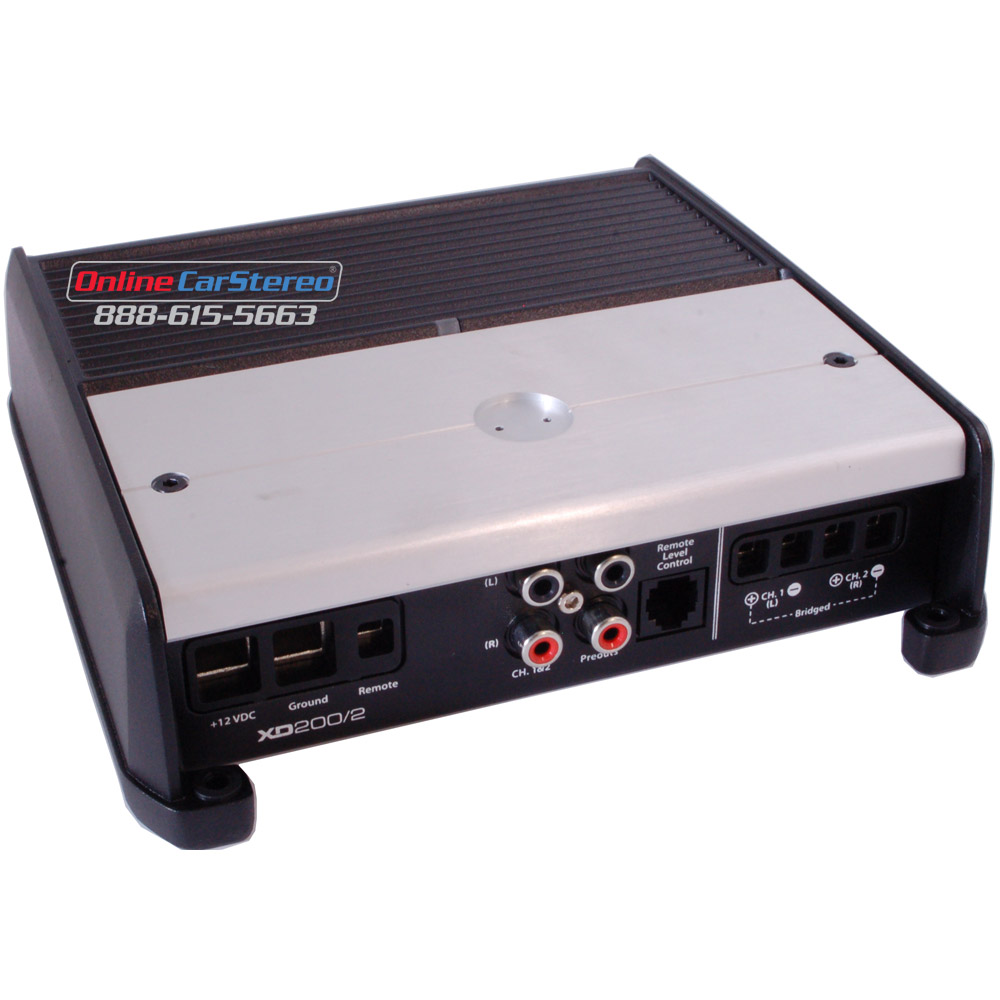

JL Audio  XD200/2-DUPLICATE

200W 2-Channel Class D XD Series Full-Range Car Audio Amplifier

Item #30573

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 200 Watts
  • Number of Channels : 2
  • Frequency Response : 12-22000 Hz
  • Amplifier Class : D

FEATURES


Power Handling:

  • 60W RMS x 2 @ 4 Ohms
  • 90W RMS x 2 @ 2 Ohms
  • 150W RMS x 1 @ 8 Ohms Bridged
  • 200W RMS x 1 @ 4 Ohms Bridged

General Features:

  • Unregulated MOSFET switching type power supply
  • NexD Ultra-High Speed Class D topology
  • Wired JL Audio HD-RLC remote level control sold separately
  • LED power (green) and protect (red/yellow) indicators
  • Independent input sensitivity controls
  • State-of-the-art microelectronic components
  • 2/1 channel operation
  • Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
  • Studio-grade signal processing with fully variable crossover filters
  • Extruded aluminum alloy system setting security cover
  • Total amplifier efficiencies exceeding 80%
  • Noise-killing, highly flexible differential-balanced inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
    • Input sensitivity:
  • Level: 100mV-4V
  • Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
  • Damping factor: >150 @ 4 ohms per chan./ 50Hz
  • Frequency response: 12-22,000 Hz
  • UPC: 699440982603
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
