What's Included:
Product Highlights:
- Variable Crossovers
- Small Footprint
- Maximum Input Signal: 5V
- Subsonic Filter: 10Hz to 50Hz, 12dB/Oct, Variable
- Recommended StreetWires Amp Kit: ZN3K-04 or ZN3KI-04
- Height: 2 1/8" (5.4 cm)
- Crossover: Variable Low @ 40Hz to 220Hz, 12dB/Oct
- Length: 7 1/4" (18.42 cm)
- Width: 5 1/2" (13.97 cm)
- Frequency Response: 10Hz to 220Hz
- 300W x 1 @ 4-Ohms
- 500W x 1 @ 2-Ohms
- Extruded Aluminum Heat Sink
- Surface Mount PCB Design
- Bass Boost: 0, 6, 12dB Switchable
- Topology: Class D
- Maximum Sensitivity: 200mV
- Number of Channels : 1
- Frequency Response : 10-220 Hz
- Built In Crossovers : Yes
- RMS Power Range : 300-500 Watts
- Amplifier Class : D

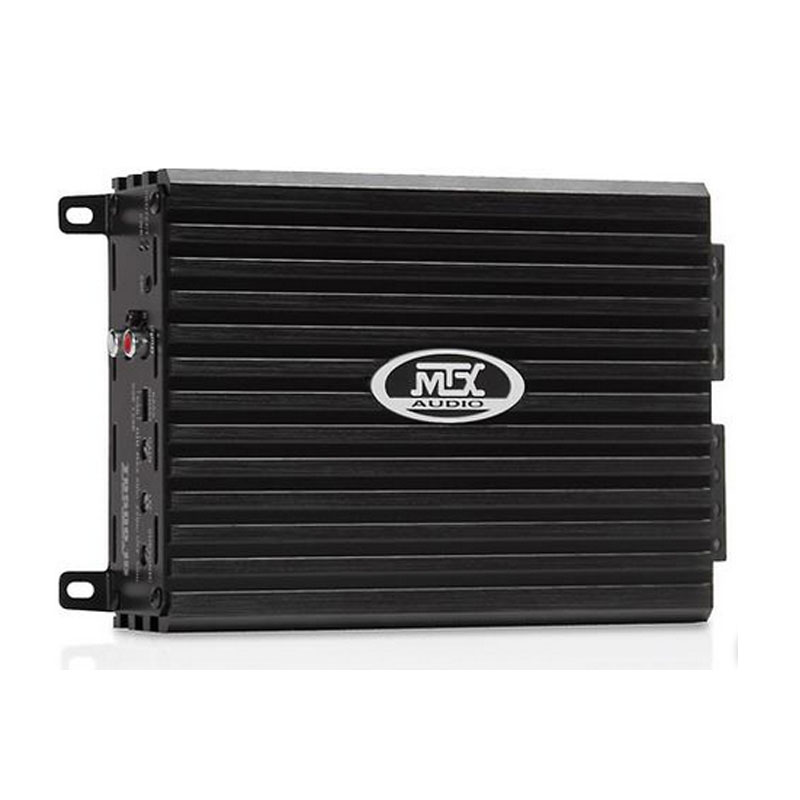

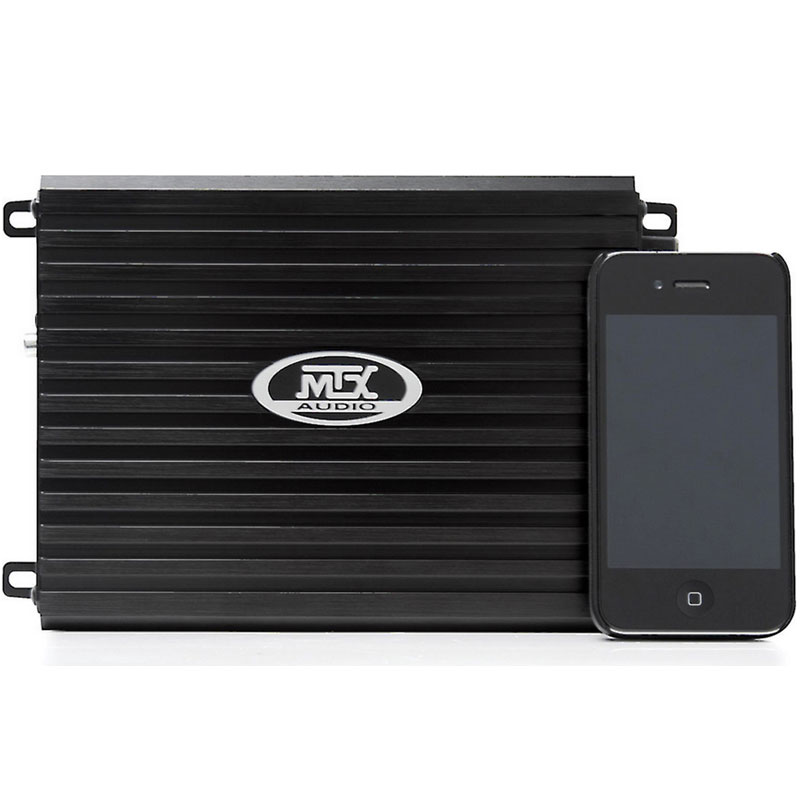

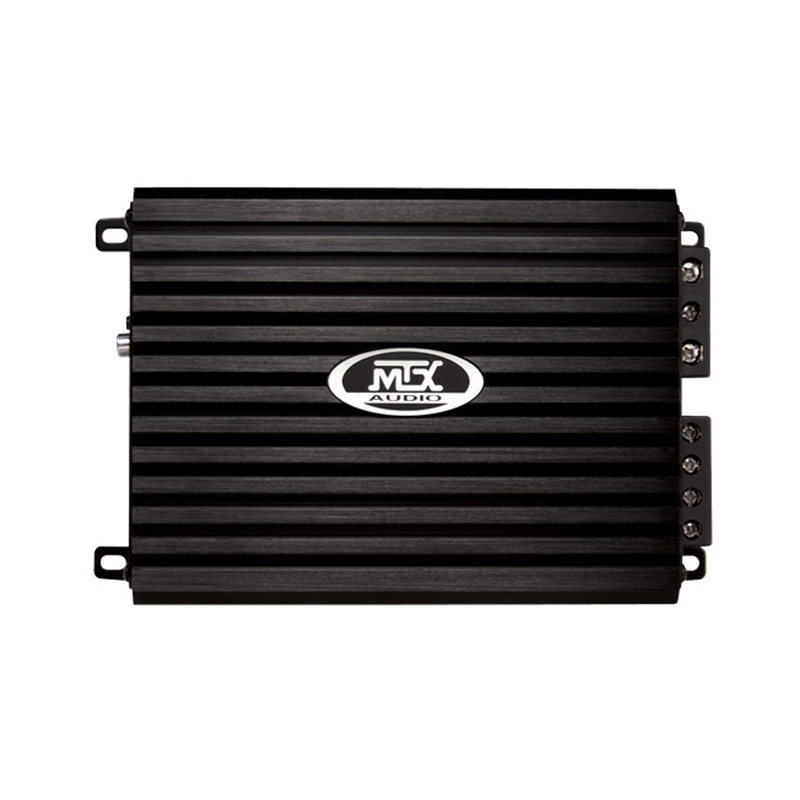

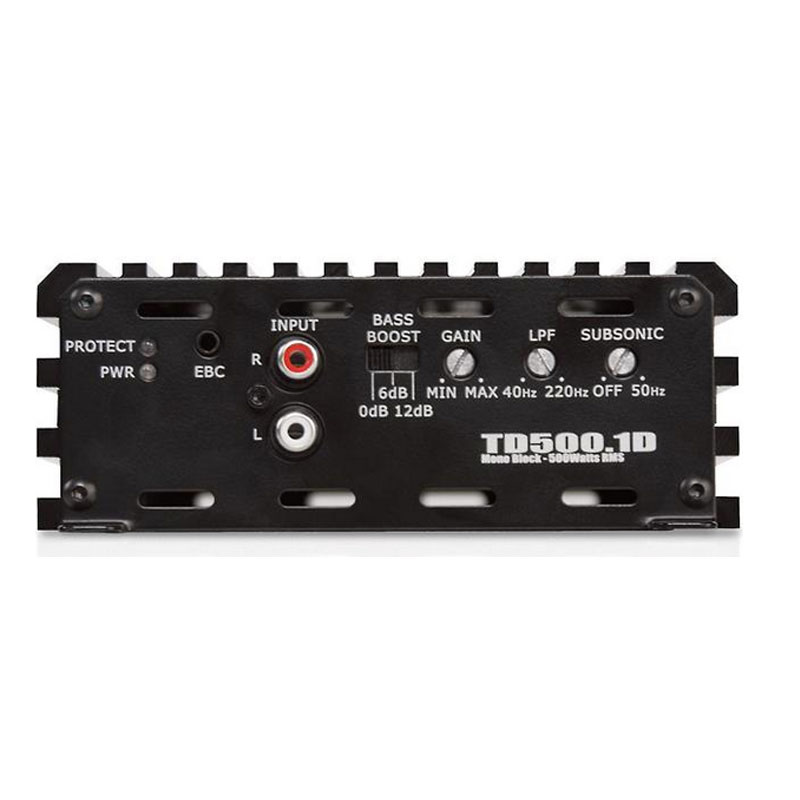

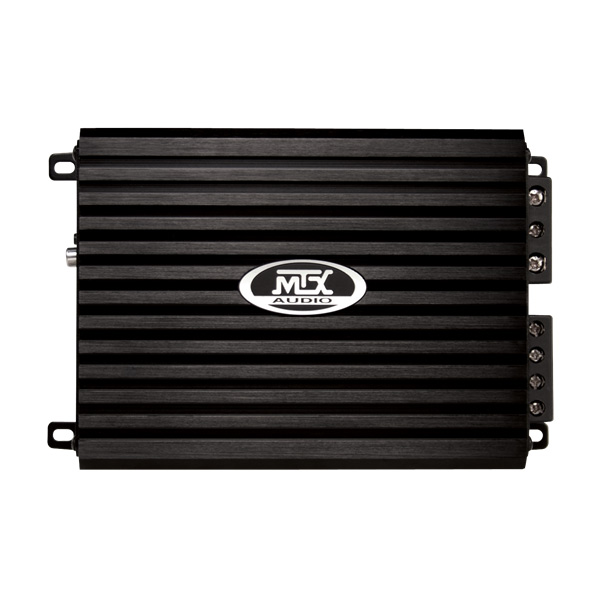

The TD series amplifiers are designed to bring big power in a small footprint. Available in two size mono blocks and a single 4 channel, TD series amplifiers offer excellent system flexibility at a great price. Featuring surface mount design that resists vibration and an extruded aluminum heat sink that dissipates heat effectively, these amps have everything you need to make your system bang.
Specifications |
Height: |
2 1/8" (5.4 cm) |
Width: |
5 1/2" (13.97 cm) |
Maximum Sensitivity: |
200mV |
RMS: |
300W x 1 @ 4-Ohms, 500W x 1 @ 2-Ohms |
Crossover: |
Variable Low @ 40Hz to 220Hz, 12dB/Oct |
Topology: |
Class D |
Length: |
7 1/4" (18.42 cm) |
Subsonic Filter: |
10Hz to 50Hz, 12dB/Oct, Variable |
Frequency Response: |
10Hz to 220Hz |
Bass Boost: |
0, 6, 12dB Switchable |
Maximum Input Signal: |
5V |
Recommended StreetWires Amp Kit: |
ZN3K-04 or ZN3KI-04 |
- UPC: 715442241637
- Weight: 10
- Authorized Internet Dealer
Warranty: 90 Days Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
