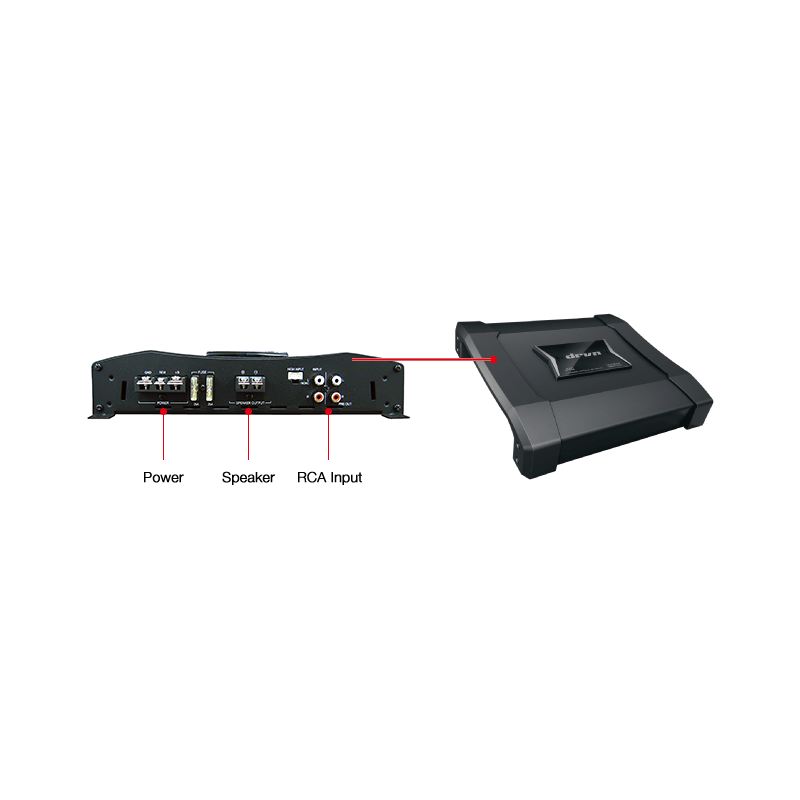

- Monoblock DRVN Series Class D Car Amplifier
- RMS Power Rating:
- 4 ohms: 300 watts x 1 chan.
- 2 ohms: 500 watts x 1 chan.
- Max power output: 1000 watts x 1 chan.
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
- Soft start turn-on
- Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Variable low-pass filter (50-200 Hz, 24 dB/octave)
- Subsonic filter (24 dB at 15 Hz)
- CEA-2006 compliant amplifier
- Frequency response: 20-20000 Hz
- 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 10-1/4"W x 11-13/16"D x 2-3/8"H
- Weight: 10
- Sku: KSAX5101D
- Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
