Item# 32654
JL Audio JX500/1D - $299.99
Please roll over the image to zoom in. Click on the image to see larger image.

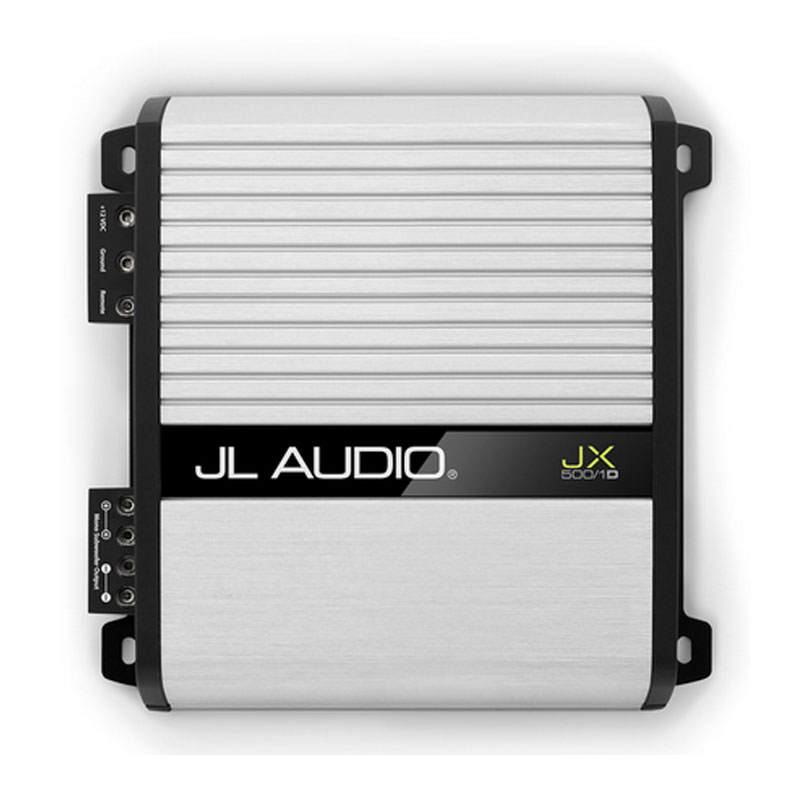

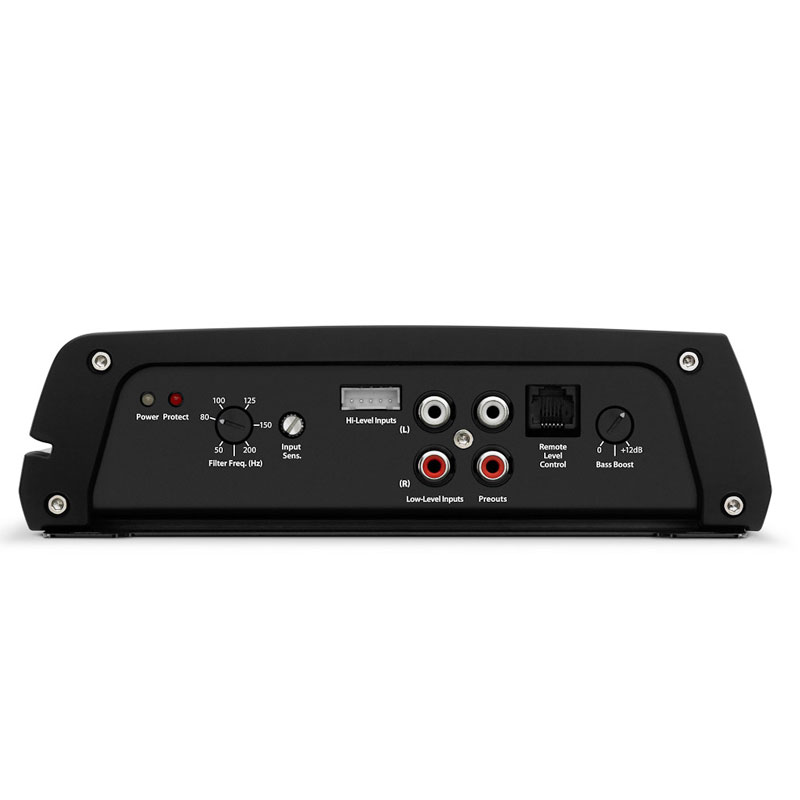

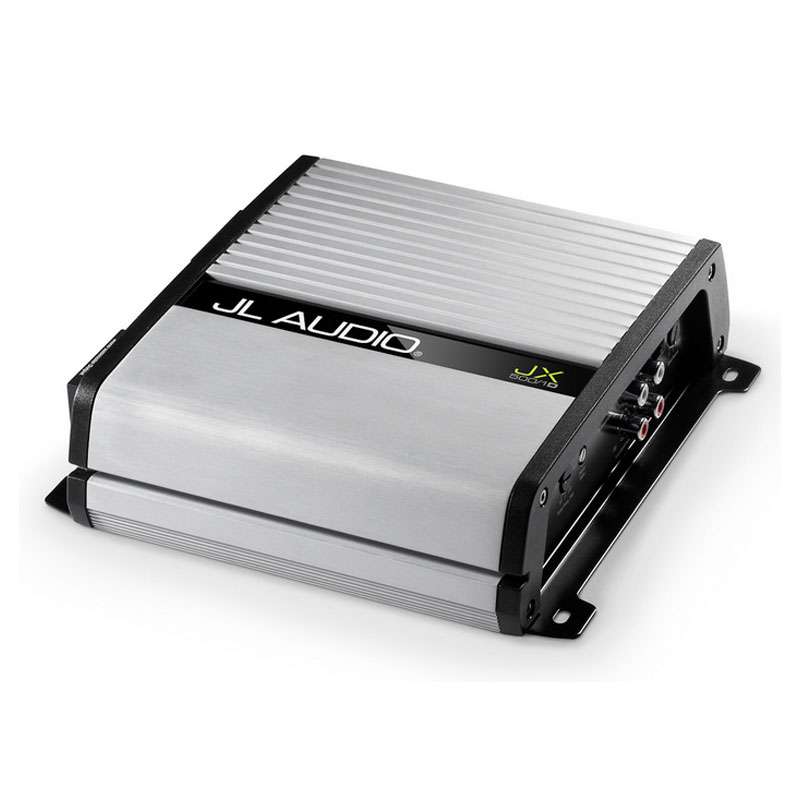

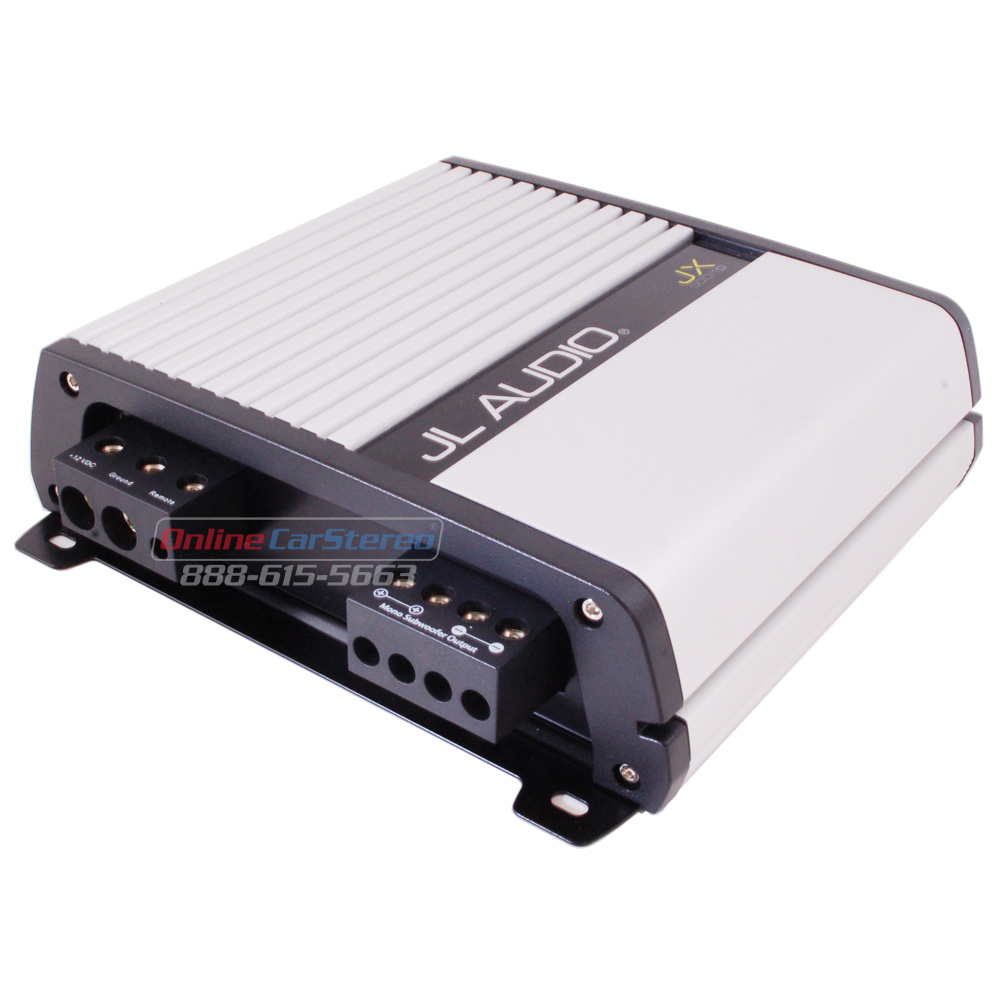

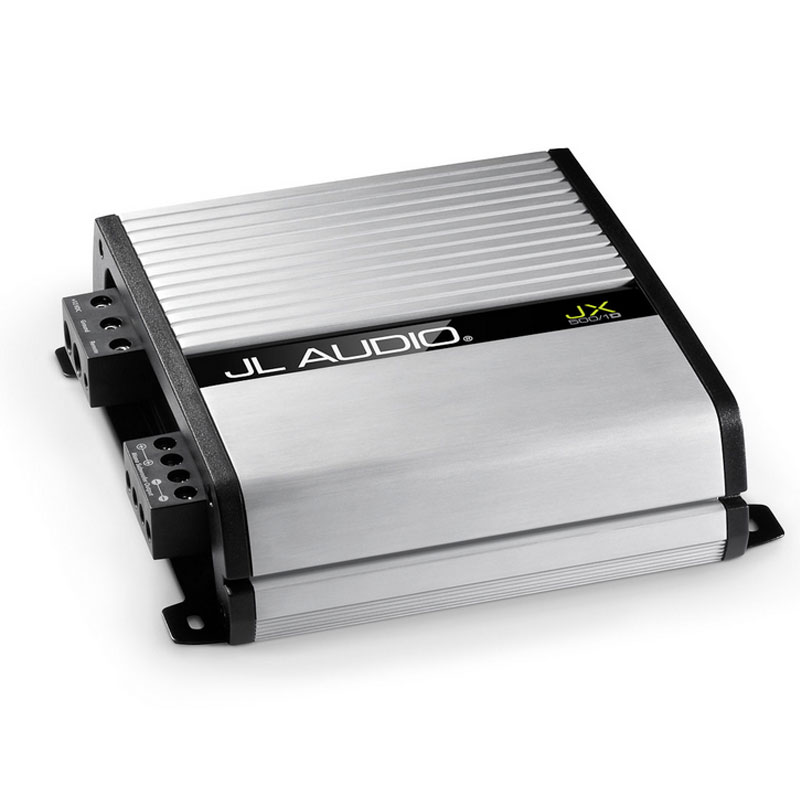

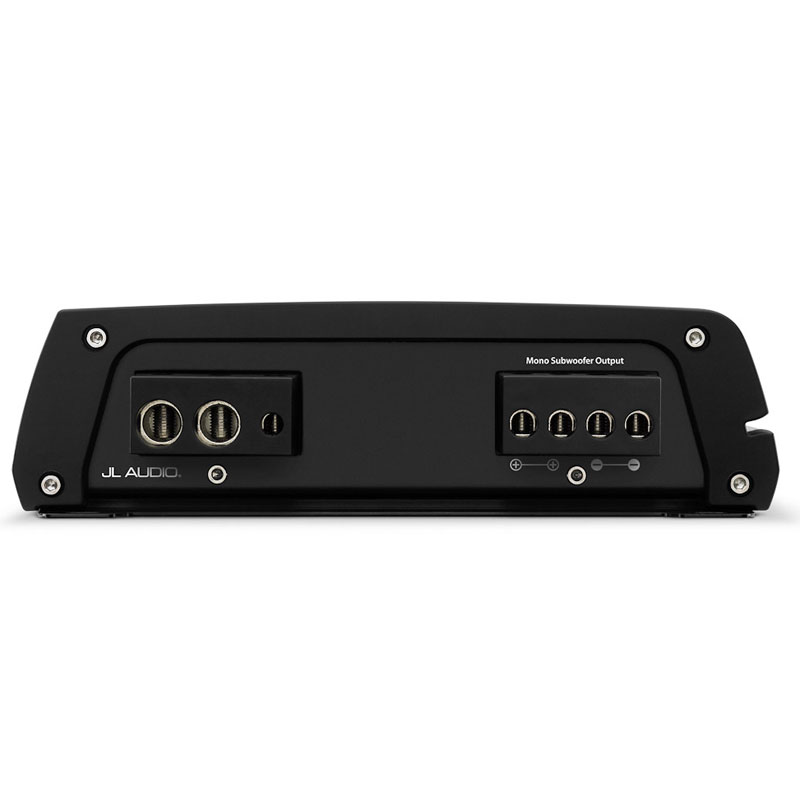

JL Audio JX500/1D (99400)

Item# 32654

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Mono Subwoofer Car Amplifier 500 watts RMS x 1 at 2 ohms

Savings Of:
Your Price $299.99

FREE Shipping in US 48!

vehicle fit guide

This rugged and reliable Class D monoblock uses a robust MOSFET power supply design that delivers rock-solid bass performance at a very affordable price.

Targeted specifically for subwoofer applications, the JX500/1D includes a low-pass filter with continuously variable cutoff frequency selection from 50-200 Hz. It also features a variable bass boost at 45 Hz. with up to 12 dB of boost and an optional remote boost control. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

GENERAL FEATURES:

  • JX Series Monoblock Class D Subwoofer Amplifier
  • RMS Power Rating (14.4V):
  • 4 ohms: 300 watts x 1 chan.
  • 3 ohms: 400 watts x 1 chan.
  • 2 ohms: 500 watts x 1 chan.
  • RMS Power Rating (12.5V):
  • 4 ohms: 235 watts x 1 chan.
  • 3 ohms: 300 watts x 1 chan.
  • 2 ohms: 410 watts x 1 chan.
  • Low level input: 200mV - 4V
  • High level input: 2.0mV - 10.0V
  • Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
  • Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
  • Frequency Response: 10 - 150 Hz ± 1 dB
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >62 dB
  • Damping Factor @ 4 ohms: >1000 @ 4 ohms
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Unregulated PWM switching type power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on prevent clicking and popping when system turns on
  • Speaker-level (high-level) inputs with included harness
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for effective heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Remote bass level input (JL Audio RBC-1 sold separately)
  • Input sensitivity:
  • Low level input: 200mV - 4V
  • High level input: 2.0mV - 10.0V
  • Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
  • Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
  • Frequency Response: 10 - 150 Hz ± 1 dB
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >62 dB
  • Damping Factor @ 4 ohms: >1000 @ 4 ohms
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • mono subwoofer amplifier
  • 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
  • Class D amplifier design
  • MOSFET switching power supply
  • frequency response: 10 Hz - 150 Hz
  • variable low-pass filter (50-200 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • optional wired remote level control
  • preamp inputs and outputs
  • speaker-level inputs
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 7-7/8"W x 2-1/8"H x 7-11/16"D
  • UPC: 699440994002
  • Weight: 6
  • Sku: 99400
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   Robert From Tennessee

This little powerhouse has really impressed me and don't let the size fool you.  It will push anything you throw at it in the 500 watt rms range. I have it hooked up to a JL AUDIO 10 inch W3 preloaded box in a 02 bmw 325i and it shakes my rear view mirror pretty bad which is a good bad. Highly recommended for anyone looking for nice deep bass without the overkill and headaches


   Kris From Frankfort ky
I have this amp on 2 10" JL W1's and it sounds great. Awesome amp for the price.

   Al From Fontana, CA

Maybe not the slash series, but still alittle monstrer. Had this amp for a couple of months just to see how it would hold up. It's still goin. Hooked it up to 1 12" audiobahnn, 2 JL Audio 12"W1s, 3 audiobahnn 10", 2 12"s and it did great. When running the 1 12 most people couldn't believe it was just 1 12. Don't forget to use a Boss BX15 or Epicenter to shape the sound before it gets to your bass amp.
