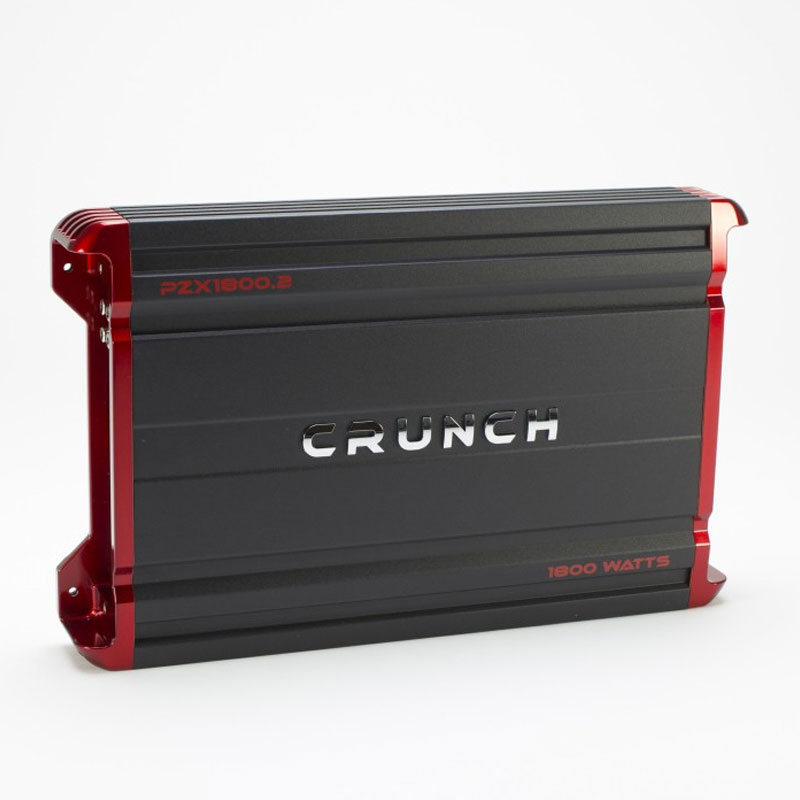

The engineers at Crunch aim to make every system the best it can be. That means lots of options for installation configuration and lots of power. The Crunch POWERZONE amplifiers are designed to deliver big music and be very reliable.
Crunch is considered a common name among car audio gearheads. Their products are manufactured to high end specifications to provide excellent sound experience. Onlinecarstereo has been a long time partner of Crunch so you can be sure you get authentic products with warranties stright from the warehouse.
- Maximum Power : 1800 Watts
- Number of Channels : 2
- Built In Crossovers : Yes
- RMS Power Range : 900 Watts
- Amplifier Class : A/B
Specifications
- CLASS
Class A/B
- VARIABLE VOLTAGE
0.2V - 5.0V
- SIGNAL TO NOISE
>90dB
- FREQUENCY RESPONSE
10Hz-45kHz
- CROSSOVER TYPE:
Electronic Switch FULL / LPF / HPF
- HIGH PASS CROSSOVER:
12DB PER OCTAVE:
60Hz-1.2kHz
- LOW PASS CROSSOVER:
12DB PER OCTAVE:
30Hz-250Hz
- TONE CONTROL
Built-in bass control
- BASS BOOST
0 ~ 9dB
- POWER OUTPUT @ 2 OHMS:
900 x 2
- POWER OUTPUT @ 4 OHMS:
450 x 2
- MONO BRIDGED @ 4-OHMS:
1800 x 1
- TOTAL CHANNELS
2

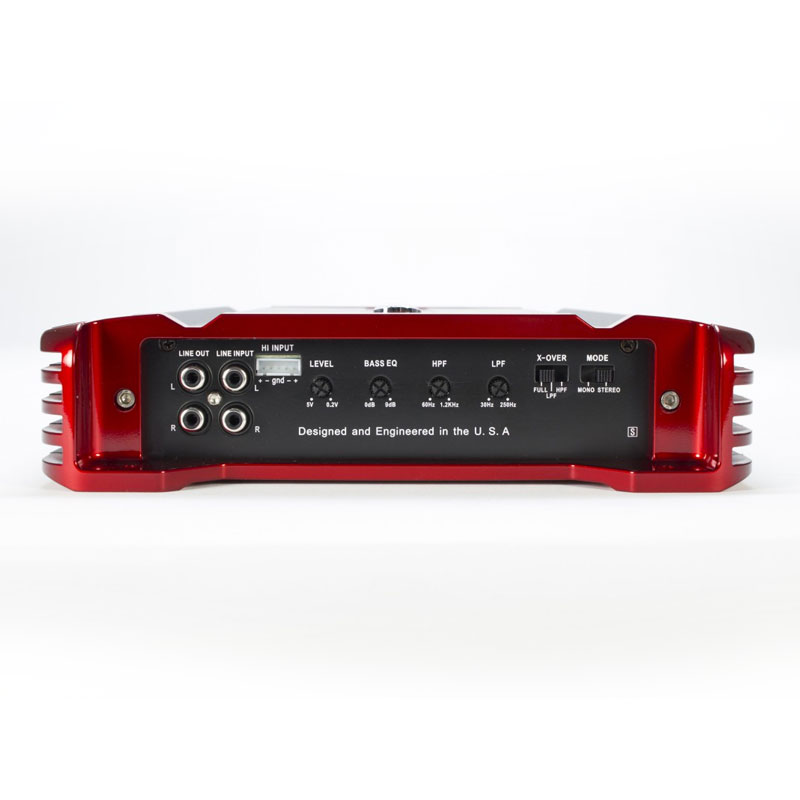

- AUDIO INPUT CONNECTOR:
Unbalanced Inputs (RCA)
- AUDIO OUTPUTS:
Line Output (RCA)

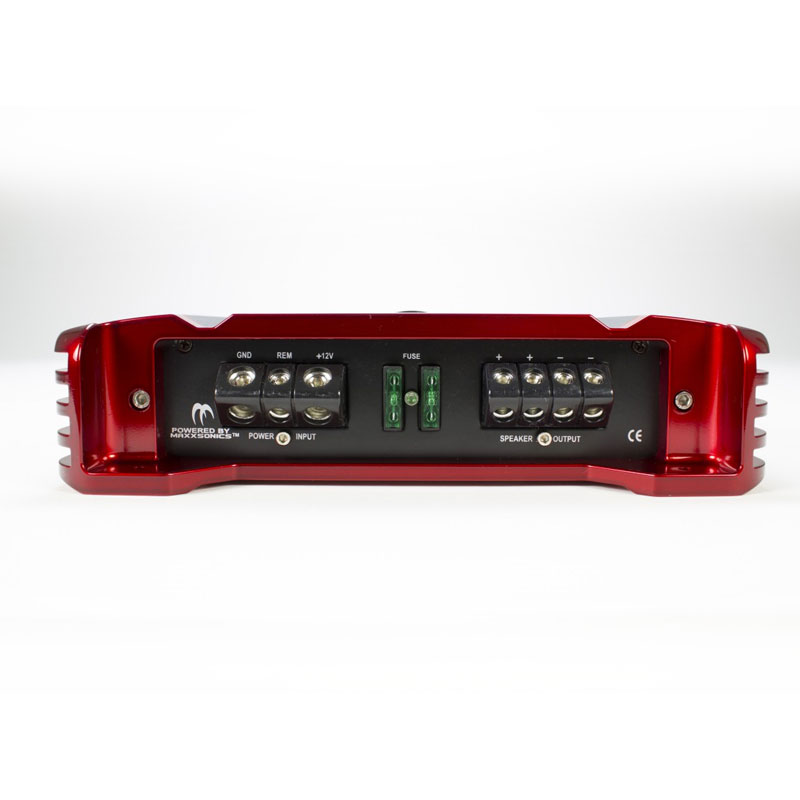

- POWER TERMINAL:
12V/GND
4 ga
- SPEAKER TERMINAL WIRE GAUGE
12 ga
- DIMENSIONS
18.5 x 11.5 x 3.88 in
46.9 x 29.2 x 9.8 cm
- WEIGHT
9.1 lbs (4.1 kg)
Features & Benefits
- INPUTS Low Noise PreAmplifier
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
- HI LEVEL INPUTS Low Level RCA Inputs and Outputs
Highest sound quality connection
- OPERATION MODE Two channel and bridged mono operation
Flexible installation allows this amplifier to run in two channel or bridged mono mode.
- CROSSOVER / SIGNAL SHAPING Versa-Cross Electronic Crossover
No
- DUAL AMP FADER
Fully Adjustable 12dB Crossovers
- CLASS / TOPOLOGY Class A/B
Designed to be high sound quality with minimal distortion
- OUTPUT DEVICES TECHNOLOGY MOSFET
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
- HEAT SINK Aluminum
Maximum heat dissipation which minimizes distortion
- POWER SUPPLY Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system
- OUTPUT CONNECTIONS Nickel Plated
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
- CONNECTIONS TYPE Allen Key Connectors
Angled connection for easy access for hand tool allowing a quick and secure connection
- SIGNAL PASS THROUGH YES - Full Range
Allows additional amplifiers to be run from the "output" RCA connections which will minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
- DIAGNOSTICS Yes
Amp Protection with System Diagnostics LED’s to Protect Against: Current / Amperage Overload, Short Circuits, Thermal Overload, DC Offset
- UPC: 806576223054
- Weight: 9
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
