Kenwood KAC-8406 - $139.04
 Item# 37152 / Condition:  Brand New

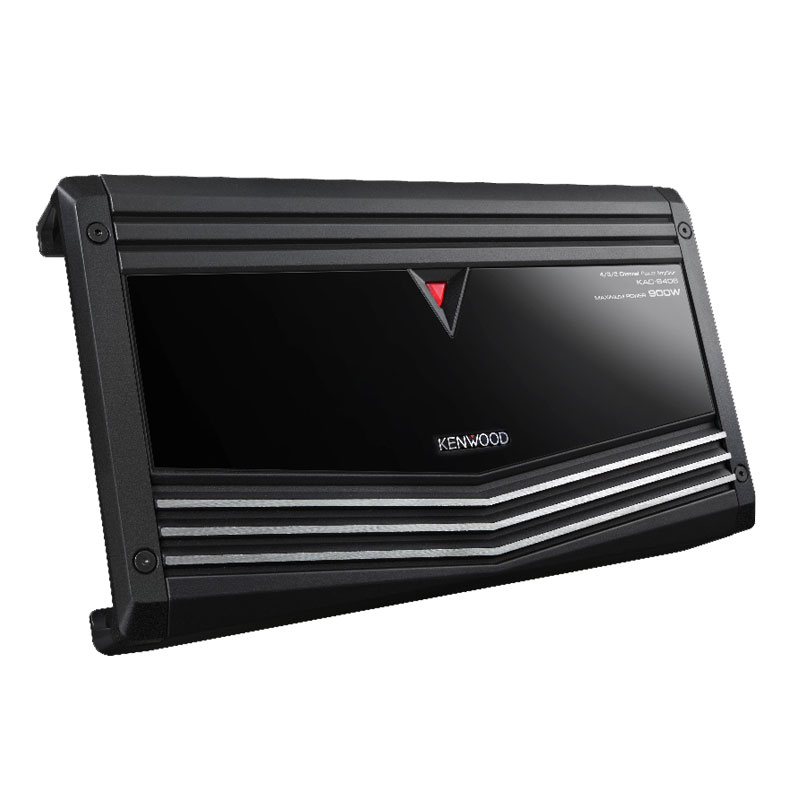

Kenwood KAC-8406

4/3/2 Channel Power Amplifier with Variable LPF/HPF, 900W Max Power

FREE Shipping in US 48!

Regular Price:$230.00
Savings Of:$140.96
Add Extended Warranty
  • comments
  • email
  • Facebook
  • Twitter
  • Print

What's Included:

  • Two 25 amp ATO fuses (installed)
  • 7" Speaker-level input harness
  • Four 5/8" Self-tapping screws
  • 4-Channel amplifier
  • 2 Terminal covers (installed)
  • 2.5mm Allen wrench
  • Instruction manual (English/ French/ Spanish)
  • Warranty information

Product Highlights:

  • 13-3/16"W x 2-1/4"H x 7-5/8"D
  • fuse rating: 25A x 2
  • 4-channel car amplifier
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 70 watts RMS x 4 at 4 ohms (100 watts x 4 at 2 ohms)
  • switchable bass boost (0, 18 dB at 40 Hz)
  • preamp inputs
  • CEA-2006 compliant
  • 200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
  • variable high- and low-pass filters (50-200 Hz, 12 dB per octave)
  • Class AB design and MOSFET power supply
  • speaker-level inputs with signal sensing turn-on

The KAC-8406 4-channel amp delivers 70 watts RMS per channel to your full-range speakers. This amp can support a 2-ohm load in stereo; the 2-ohm power output is 100 watts RMS x 4 channels. Also provides and utilizes a cast aluminum heat sink design to ensure the amplifier stays cool. The four-channel amp is separated into two halves, labeled A and B. The A channel and B channel crossovers have independent controls:


Other Specifications
Low-Pass Slope (dB/octave) 12 dB/octave
Amplifier Class AB
Width (inches) 13-3/16
Fan Cooled Yes
Preamp Outputs No
Minimum Impedance Bridged 4
High-Pass Crossover Frequency 50-200 Hz
Power at 2 Ohms (Watts x Channels) 100 x 4
Bridged Power (Watts x Channels) 200 x 2
Minimum Impedance Unbridged 2
Low-Pass Crossover Frequency 50-200 Hz
Peak Power Output (Watts x Channels) 450 x 2
RMS Power Output (Watts x Channels) 70 x 4
Fuse Rating 50
Depth (inches) 7-5/8
Bass Boost 0, 18 dB
High-Pass Slope (dB/octave) 12 dB/octave
Bass Boost Frequency 40 Hz
Speaker Level Inputs Harness
Height (inches) 2-1/4
Best Frequency Response 5-50k Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 80 dB
Input Voltage 14.4v
  • UPC: 0019048206152
  • Weight: 7
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
