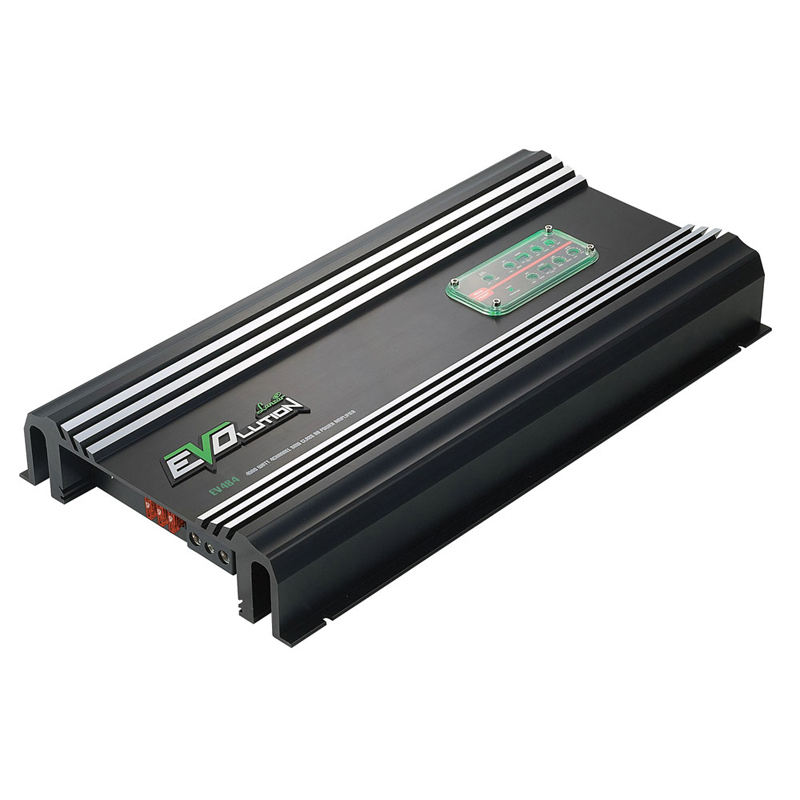

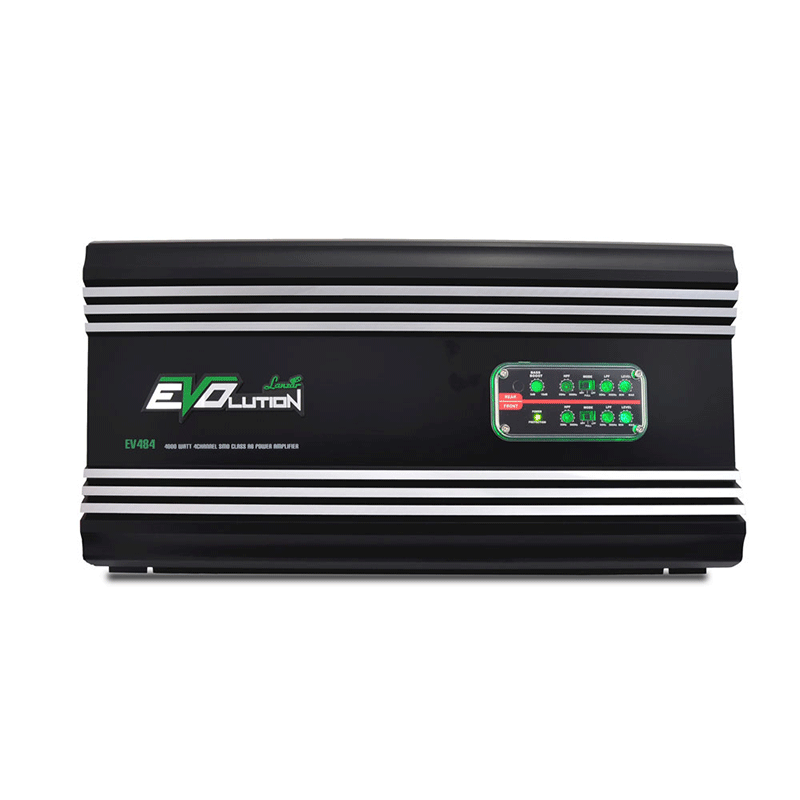

Lanzar's New Evolution Series Amplifiers provide high-performance sound reinforcement for all of your mobile audio equipment. The versatility enables compatibility with optional equalizers, frequency dividing crossover networks and other audio processors to improve virtually any vehicle's customized system configuration. Select model Amplifier features include variable high and low pass filters, hi-tech SMD circuitry, nickel-plated RCA inputs, double-sided epoxy PCB circuit boards, bass boost variability, and plenty more features to evolve your audio.
| Specifications | |
|---|---|
| Channel Separation : | >60dB |
| Protection | Thermal, Over load & Speaker Short Protection |
| RCA Inputs | Nickel Plated |
| Input Sensitivity: | Low: 200mV-6V, High: 400mV~12V |
| at 4 Ohms | 4 x 500 Watts RMS Power |
| Frequency Response : | 15Hz - 40KHz |
| Variable High Pass Filter : | 50Hz - 500Hz |
| Variable Bass Boost : | 0 - 18dB@60Hz FIX |
| at 4 Ohm Bridged | 2 x 1,000 Watts RMS Power |
| @ 2 Ohm | Stereo Stable |
| at 4 Ohms | Bridgeable |
| THD : | <0.05% |

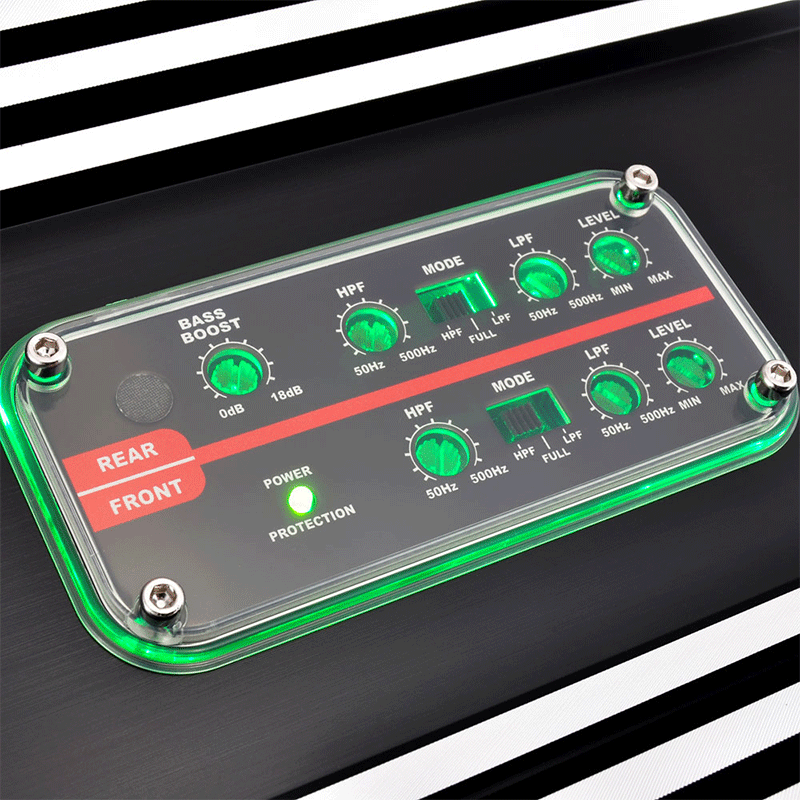

| Top Control PANNEL | GREEN Illumination |
| Controls | Low/High Pass Filter Controls |
| Line Outs | For Left and Right Channels |
| Network | Electronic Crossover |
| Epoxy PCB Circuit Board | Double Side |
| LED Indicator | Power & Protection LED Indicator |
| at 4 Ohms | 4 x 1,000 Watts Peak Power |
| at 4 Ohm Bridged | 2 x 2,000 Watts Peak Power |
| Variable Low Pass Filter : | 50Hz - 500Hz |
| S/N Ratio : | >100dB |
| Fuse Rating: | 40A x 3 |
| Dimensions: | 8.97''(W) x 2.41''(H) x 17.16''(L) |
| Sold as: | Unit |
