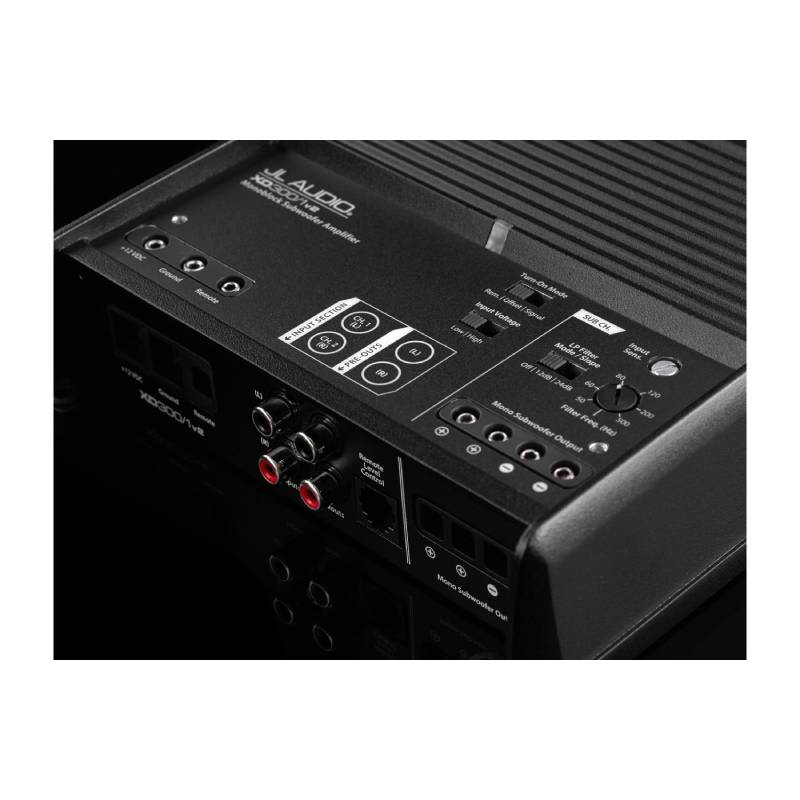

JL Audio XD300/1v2 (98601)

XD300/1v2
Mono Car Subwoofer Amplifier 300W RMS x 1 at 2 ohms Review this product
$305.99

FREE Shipping in US 48!

MSRP:$359.99
Regular Price:$499.99
Savings Of:15% Discount
Add Extended Warranty
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

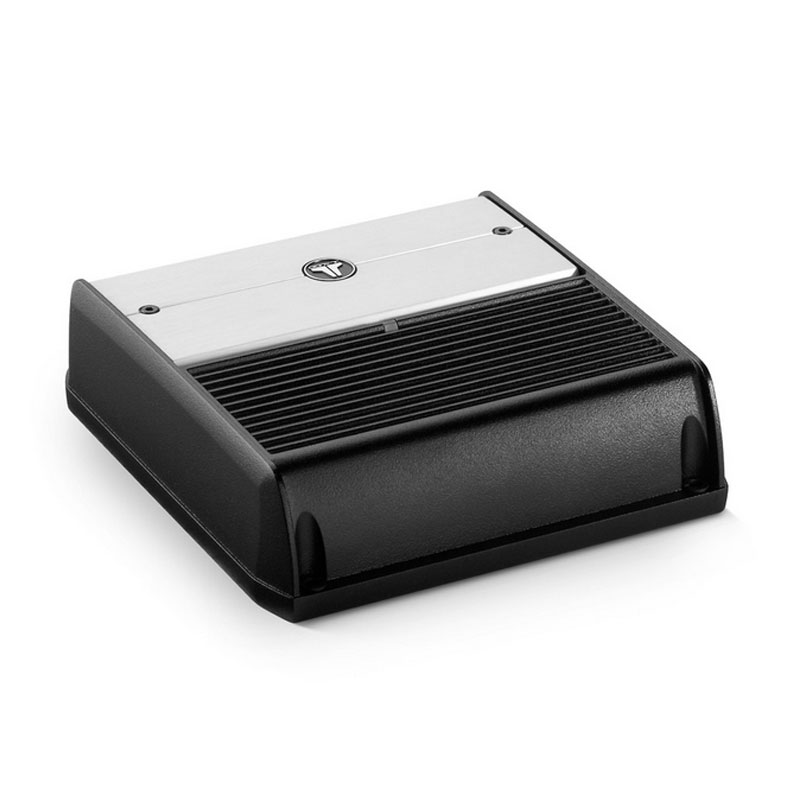

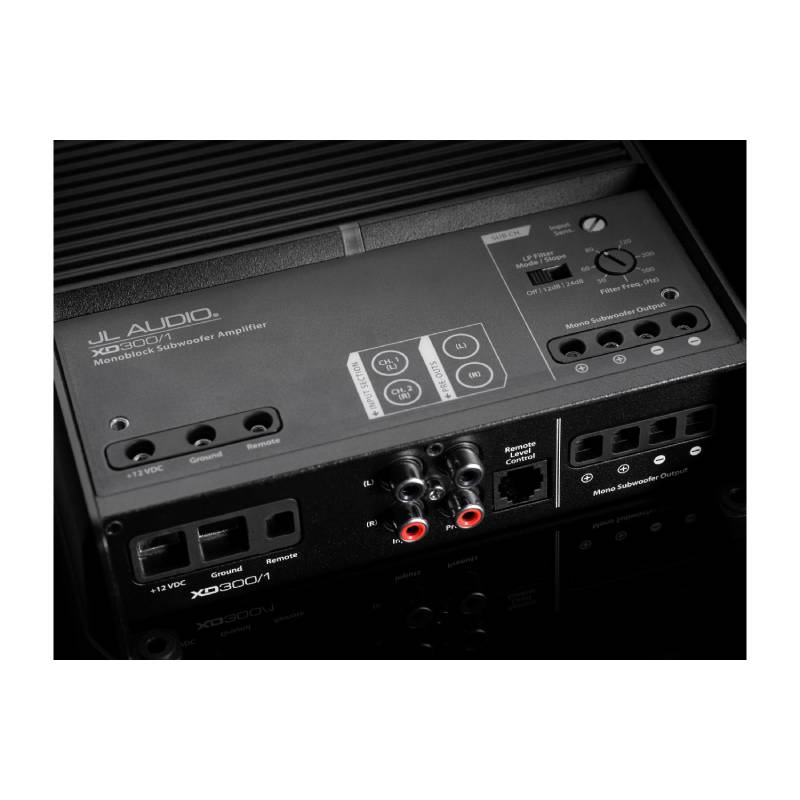

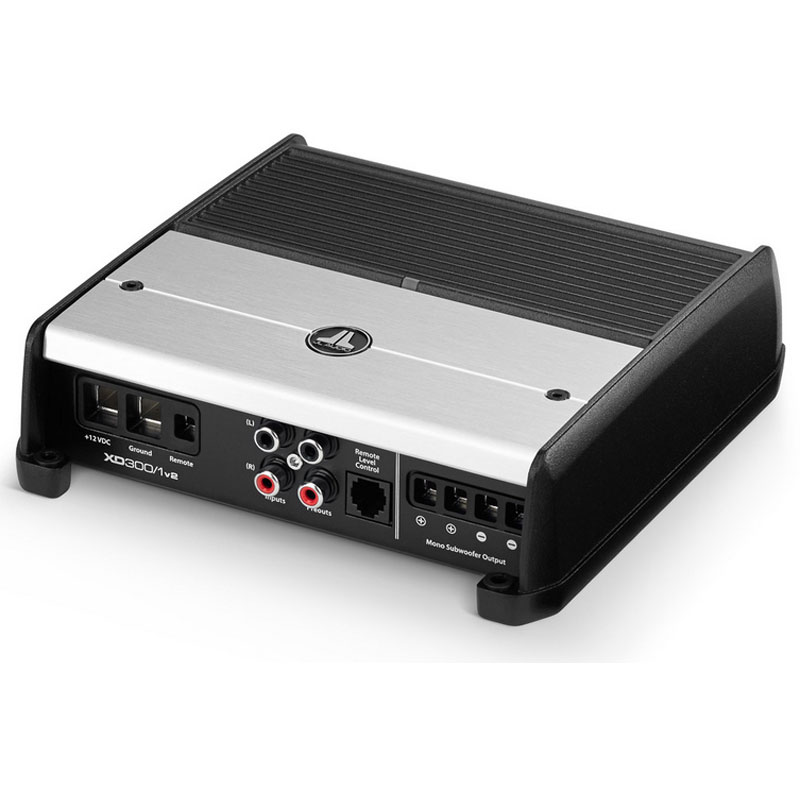

This ultra-compact monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in the tightest space applications, including motorcycles and ATV’s (in a weather-tight compartment).

Targeted specifically for subwoofer applications, the XD300/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.

The XD300/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

General Features:

  • XDv2 Series Class D Monoblock Amplifier
  • RMS Power Rating @14.4V:
  • 4 ohms: 200 watts x 1 chan.
  • 3 ohms: 250 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
  • 1 ohm: N/A
  • RMS Power Rating @12.5V:
  • 4 ohms: 160 watts x 1 chan.
  • 3 ohms: 210 watts x 1 chan.
  • 2 ohms: 270 watts x 1 chan.
  • 1 ohm: N/A
  • Input sensitivity:
  • Low level: 800mV - 8V
  • High level: 200mV - 2V
  • Frequency Response: 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >100 dB ref. to rated power
  • Signal to Noise Ratio: >80 dB ref. to 1W
  • Damping Factor @4ohms: >120 / 50 Hz
  • Damping Factor @2ohms: >60/ 50 Hz
  • Selectable Low-Pass Filter Slope: 12 dB or 24 dB
  • Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
  • Fuse Rating: 30A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 3.80 lb
  • Dimensions: 6.85"W x 7.09"L x 2.05"H™ High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Dual-Range Differential Balanced Input Section
  • Buffered pass-through preamp RCA outputs
  • Selectable turn-on modes: REM / Offset / Signal
  • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
  • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
  • Signal-Sensing:
  • On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Dual speaker terminals simplify the hookup of multiple speakers

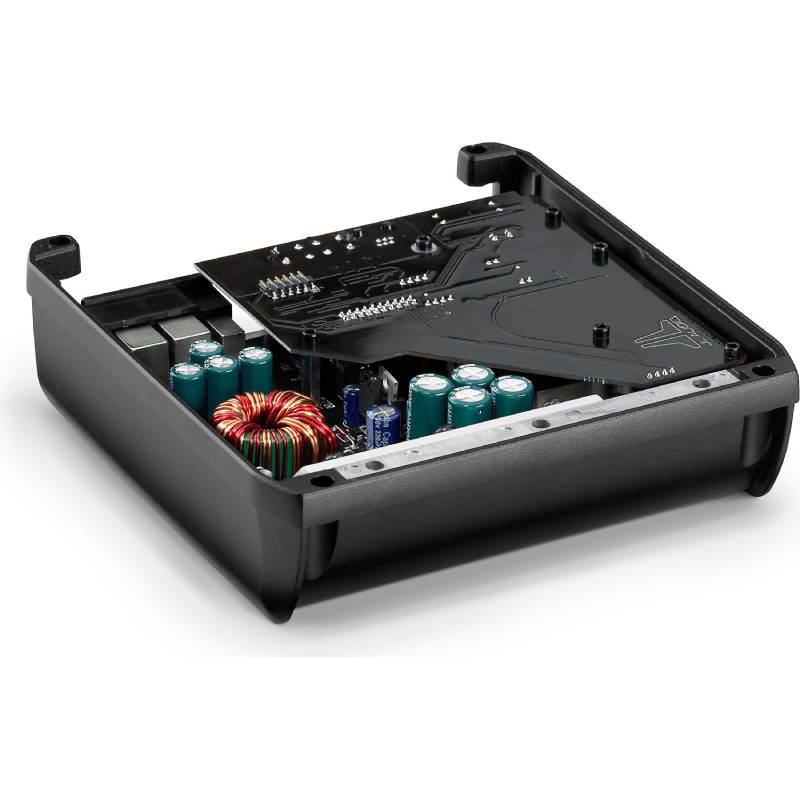

  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

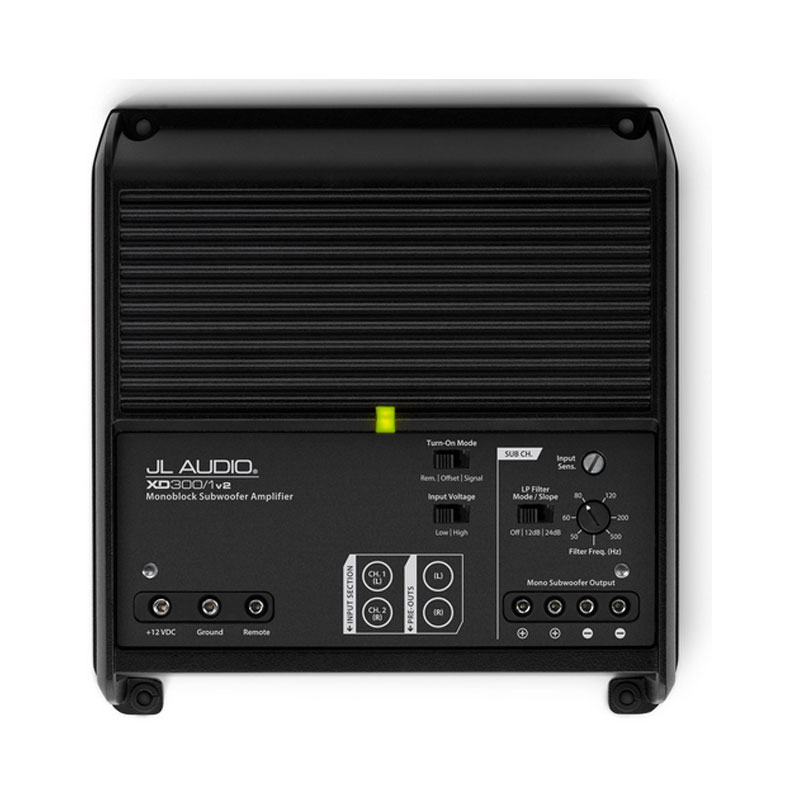

  • Detented, Calibrated Filter Freq. Potentiometer
  • 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover

Product Highlights:

  • mono subwoofer amplifer
  • 200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
  • variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
  • optional wired remote level controller
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Advanced Rollback Protection System prevents thermal shut-down

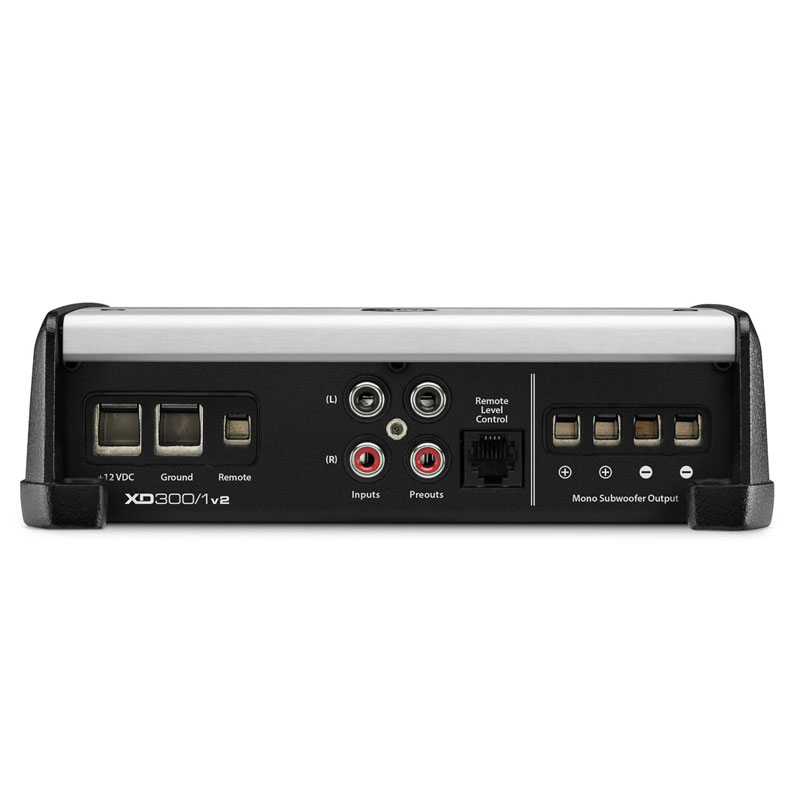

Connection Features:

  • preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 8 volts RMS (about 16 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • preamp outputs
  • 8-gauge power and ground leads and a 30-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 30-amp in-line fuse between the distribution block and the amplifier is recommended
  • 6-7/8"
  • UPC: 699440986014
  • Weight: 4
  • Sku: 98601
