What's Included:
- 2 Removal tools
- CR2025 3V lithium-battery (installed in remote)
- Sleeve (installed)
- Trim ring (attached)
- Wireless remote control (RC-406)
- CD receiver (10A fuse)
- Wiring harness
- Instruction Manual (En/Fr/Sp)
Product Highlights:
- Multi language(English, Spanish)
- Drive Change
- Maximum Output Power : 50W x 4 (MOSFET Power IC)
- Kenwood sound reconstruction, restores musical to compressed music
- MP3/WMA/WAV/FLAC Files Playback with ID-3 Tag Display
- CD receiver with AM/FM tuner
- built-in MOSFET amplifier (22 watts RMS/50 peak x 4 channels)
- plays CDs, CD-Rs and CD-RWs, including discs loaded with MP3 and WMA files
- plays USB drives with MP3, WMA, WAV, and FLAC files
- 13-digit variable-color display
- Smartphone Features:
- built-in control and charging of select Android devices using the USB connection
- supports Android music playback using the Kenwood Music Play app
- Pandora and iHeartRadio control with iPhone
- built-in iPod, iPhone, and iPad control
- Audio Features:
- 3-band equalizer with 8 preset EQ curves
- low-pass filter (sub preamp output)
- Bass Boost and loudness controls
- Expandability:
- compatible with SiriusXM satellite radio tuner (not included)
- Drive Change lets you select audio from multiple flash drives or memory cards in a connected USB hub or memory card reader
- inputs: front panel auxiliary and USB inputs
- outputs: 4-channel preamp outputs (2.5-volt front, rear/sub)
- Other Info:
- compatible with most factory steering wheel audio controls (adapter required)
Kenwood has been a long time partner of Onlinecarstereo and we make sure you get your products on time. We source our supplies straight from the manufacturer / dealer so you can be sure you're getting an authentic and original Kenwood product.
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : No
- Remote Control : No
- Detachable Face : No
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : No
- Built-in EQ : Yes
- Changer Control : No
- DIN : 2
- Preamp Voltage : 2.5 volts
- Bluetooth : No
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 4
- SD Card Slot : No
- RDS - Radio Data System : No

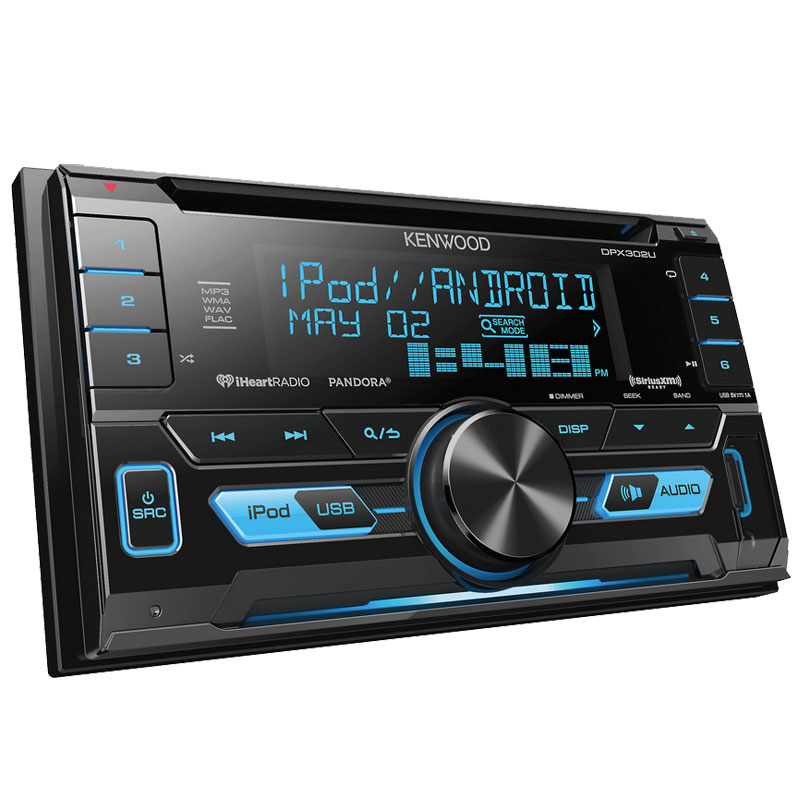

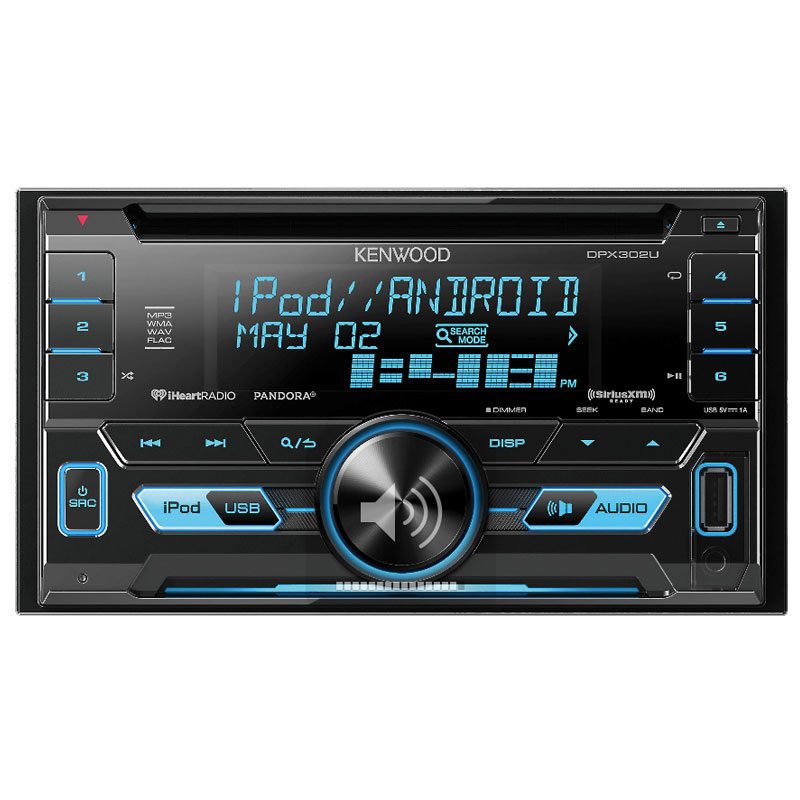

Kenwood's DPX302U CD receiver offers up plenty of music options, including the ability to connect your iPhone® and Android™ to its USB port. You have the option of adding SiriusXM satellite radio, and you can check out Internet radio using your iPhone. This 4" tall car stereo features a big variable color display that'll look great in your dash. Also, supports MP3, WMA, WAV, and FLAC music files on a thumb drive.
| Specifications |
| Dynamic Range |
90dB |
| Receiver Size |
Double DIN |
| Steering Wheel Control Compatible |
Yes |
| AAC Decode |
- |
| AM/FM Tuner |
Yes |
| WMA Decode |
Compliant with Windows Media Audio |
| AAC Decode |
- |
| Input Maximum Voltage |
1000mV |
| Display Color |
Variable Colors |
| Spindle Speed |
500-200rpm(CLV) |
| MP3 Playback |
Yes |
| WMA Playback |
Yes |
| File System |
FAT12 / 16 / 32 |
| WMA Decode |
Compliant with WINDOWS MEDIA AUDIO |
| FM Presets |
18 |
| CD-R/RW Playback |
Yes |
| Hi-Res Audio Compatible |
Yes |
| AM Presets |
6 |
| Input Impedance |
30K |
| Digital Filter(D/A) |
8 Times OverSampling |
| Total Harmonic Distortion |
0.01%(1kHz) |
| S/N Ratio (dB) |
105dB(1kHz) |
| Satellite Radio Optional |
- SiriusXM (Accessory required and sold separately) |
| WAV Decode |
- |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| Radio Data System (RDS) |
Yes |
| Bluetooth Connectivity |
No |
| Peak Power Output |
50 watts x 4 channels |
| RMS Power Output |
22 watts x 4 channels |
| Preamp RCA Outputs |
2 Pairs (Front and Switchable Rear/Subwoofer) |
| Preamp Voltage |
2.5 volts |
| Built-In Equalizer |
3-band graphic equalizer |
| Laser Diode |
GaAlAs |
| Wow & Flutter |
Below Measurable Limit |
| Frequency Response |
20-20kHz(±1dB) |
| Channel Separation |
85dB |
| USB |
USB 1.1 / 2.0 full speed |
| Maximum Supply current |
DC5V(DC logo) 1A |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WAV Decode |
Linear-PCM |
| FLAC Decode |
FLAC file (Up to 48kHz/16bit) |
| Frequency Response |
20Hz-20KHz ±3dB |
- UPC: 0019048214515
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
