Crunch  PD1000.4

Class AB 4-channel Pro Power Bridgeable Amplifier

Item #46257

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Crunch Banner

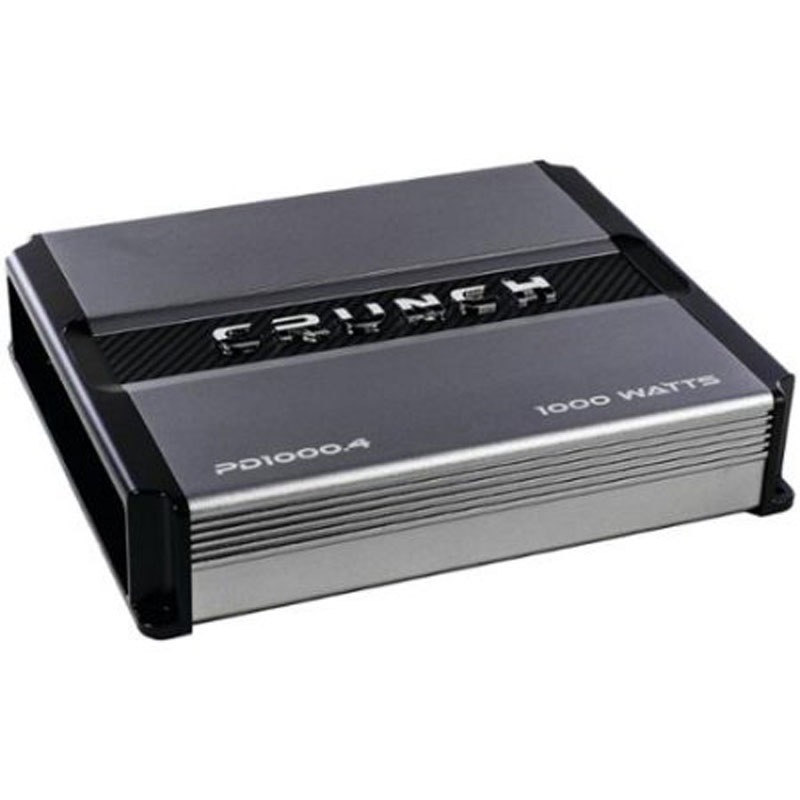

Crunch PD1000.4

Crunch POWER DRIVE with QTD Technology delivers huge power in a cool running efficient heatsink. Features include built-in electronic crossovers and high-level inputs. 1000 watt four channel car audio amplifier.

Crunch PD1000.4

General Features:

  • TYPE: Four channel Pro Power car audio amplifier
  • CATEGORY: Power Drive
  • CLASS: Class A/B
  • TOTAL CHANNELS: 4
  • FREQUENCY RESPONSE: 20Hz-20kHz
  • POWER : 1000 watts
  • FUSING: 40A x 2
Crunch PD1000.4


SPECIFICATIONS


  • Maximum Power : 4000 Watts
  • Number of Channels : 4
  • Amplifier Class : A/B

FEATURES


Specifications

  • CLASS
    Class A/B
  • VARIABLE VOLTAGE
    .2 to 5V
  • SIGNAL TO NOISE
    >98dB
  • FREQUENCY RESPONSE
    20Hz - 20KHz
  • CROSSOVER TYPE
    Variable Electronic 12dB Per Octave
  • LOW PASS CROSSOVER:
    12DB PER OCTAVE:
    50Hz-250Hz
  • CROSSOVER FREQUENCY RANGE
    CH1 & CH2
    60Hz-1200Hz
  • CROSSOVER FREQUENCY RANGE
    CH3 & CH4
    30Hz-250Hz
  • TONE CONTROL
    Built-in bass control
  • BASS BOOST
    0 ~ 9dB
  • SUBSONIC FILTER
    N/A
  • POWER OUTPUT @ 1 OHM:
  • POWER OUTPUT @ 2 OHMS:
    4 x 250W
  • POWER OUTPUT @ 4 OHMS
    4 x 125W
  • MONO BRIDGED @ 4-OHMS
    2 x 500W
  • TOTAL CHANNELS
    4
  • AUDIO INPUTS:
    Unbalanced Inputs (RCA)
  • AUDIO OUTPUTS:
    Line Output (RCA)
  • POWER TERMINAL:
    12V/GND
    8 ga
  • SPEAKER TERMINAL WIRE GAUGE
    12 ga
  • FUSING
    40A x 2
  • DIMENSIONS
    14.2 x 11.5 x 3.8 in
    36.0 x 29.2 x 9.6 cm
  • WEIGHT
    6.25 lbs (2.84 kg)

Features & Benefits

  • PRE-AMP CIRCUITRY Low Noise PreAmplifier
    Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
  • INPUTS Low voltage RCA Inputs
    Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path
  • HIGH LEVEL INPUTS Yes
    Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power
  • OPERATION MODE 4
    Four Channel Stereo, Dual Stereo Bridged, Stereo + Bridged Mono, Dual Bridged Mono
  • CROSSOVER / SIGNAL SHAPING Versa-Cross Electronic Crossover
    Fully Adjustable 12dB Crossovers
  • EQUALIZER Electronic
    Fully Adjustable 12dB Crossovers
  • CLASS / TOPOLOGY Class A/B
    High sound quality circuit that allows POWER DRIVE to develop high levels of power with minimal distortion
  • OUTPUT DEVICES TECHNOLOGY SPEED-FET
    Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
  • HEAT SINK QTD Technology Aluminum
    Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
  • POWER SUPPLY PWM Power Supply
    High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system
  • OUTPUT CONNECTIONS Nickel Plated
    Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
  • CONNECTIONS TYPE Screw Down Connectors
    Easy access for hand tool allowing a quick and secure connection
  • SIGNAL PASS THROUGH YES - Full Range
    Allows additional amplifiers to be run from the "output" RCA connections which will minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
  • DIAGNOSTICS LED System Protection Circuitry
    Monitor overload and speaker short protection with lighted indicators on the amplifier end panel
  • UPC: 806576225065
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
