Item# 46701

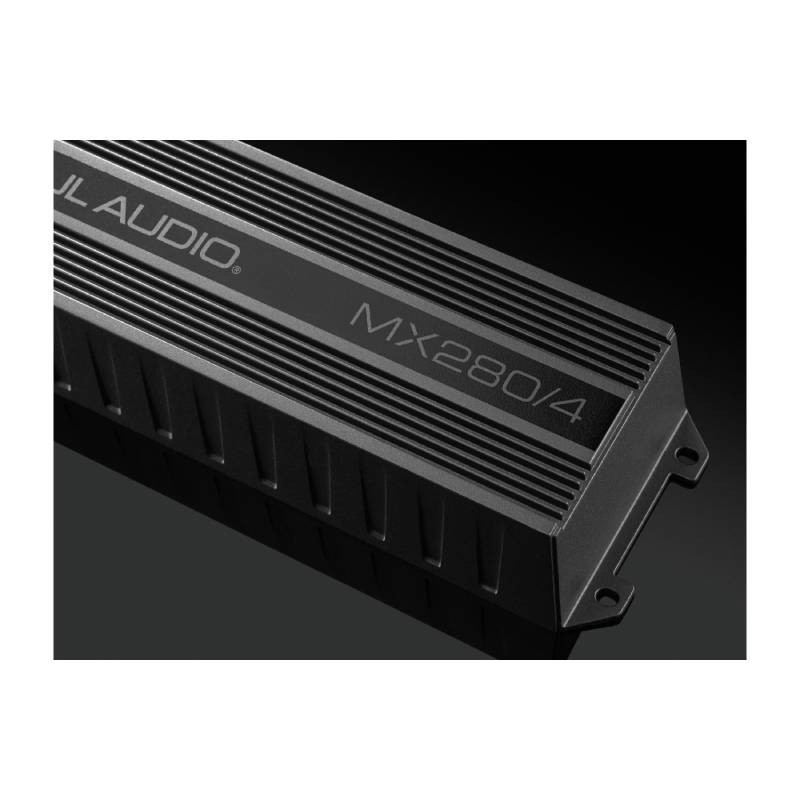

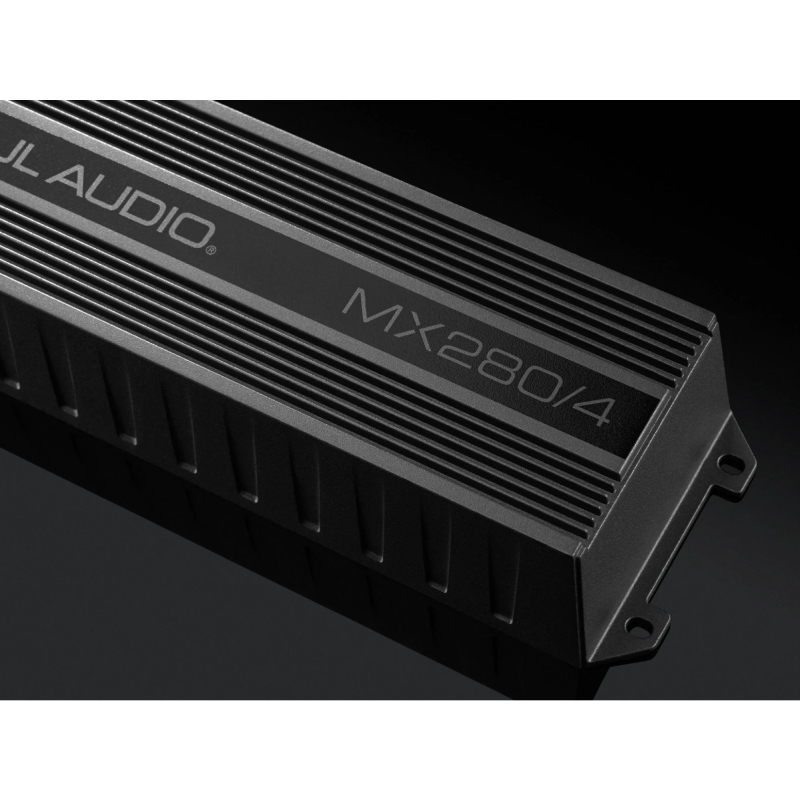

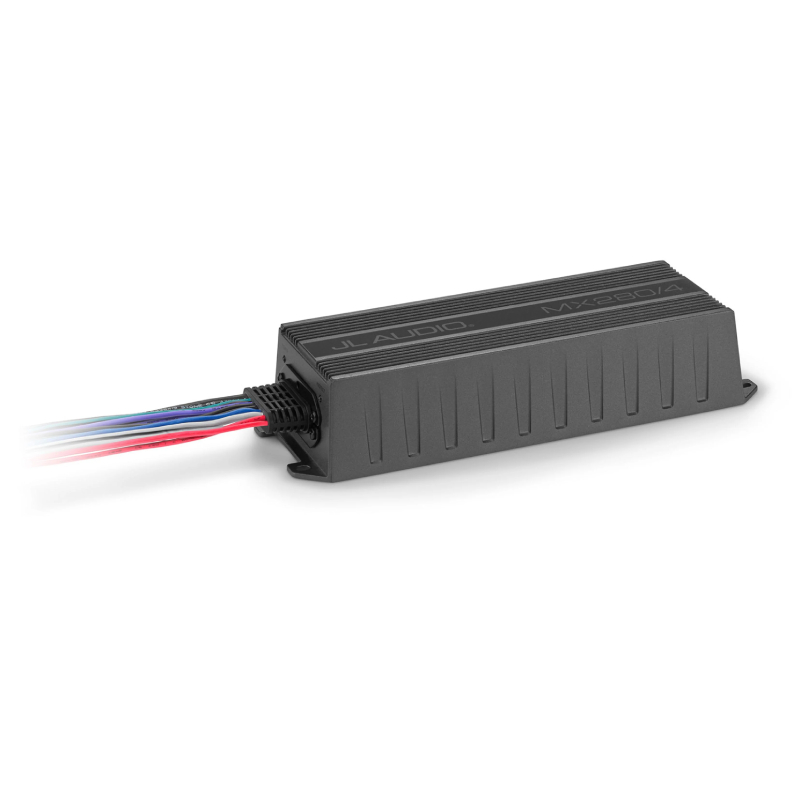

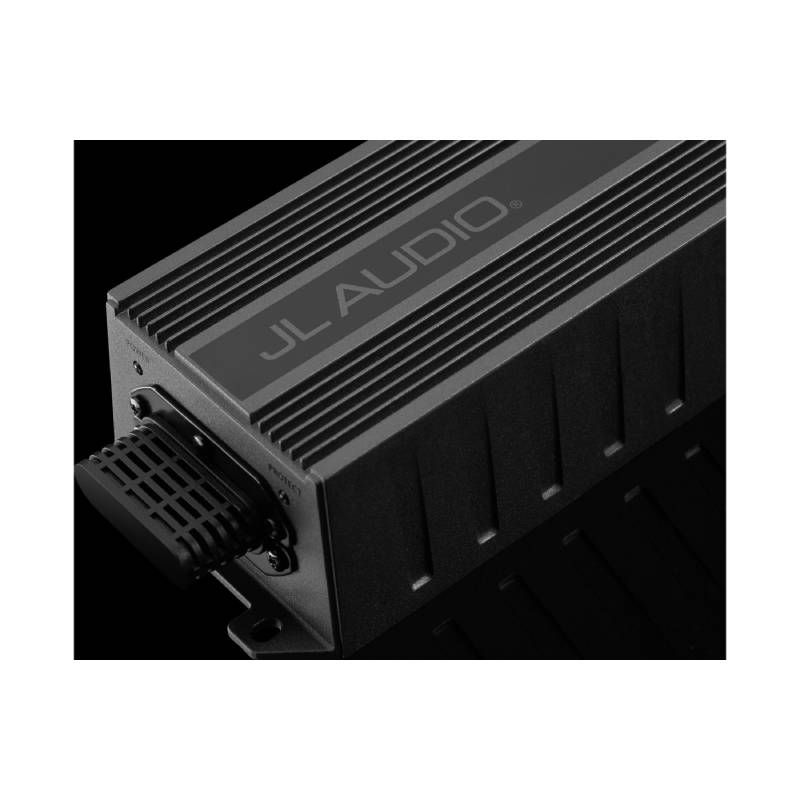

JL Audio MX280/4 - $249.99
Please roll over the image to zoom in. Click on the image to see larger image.

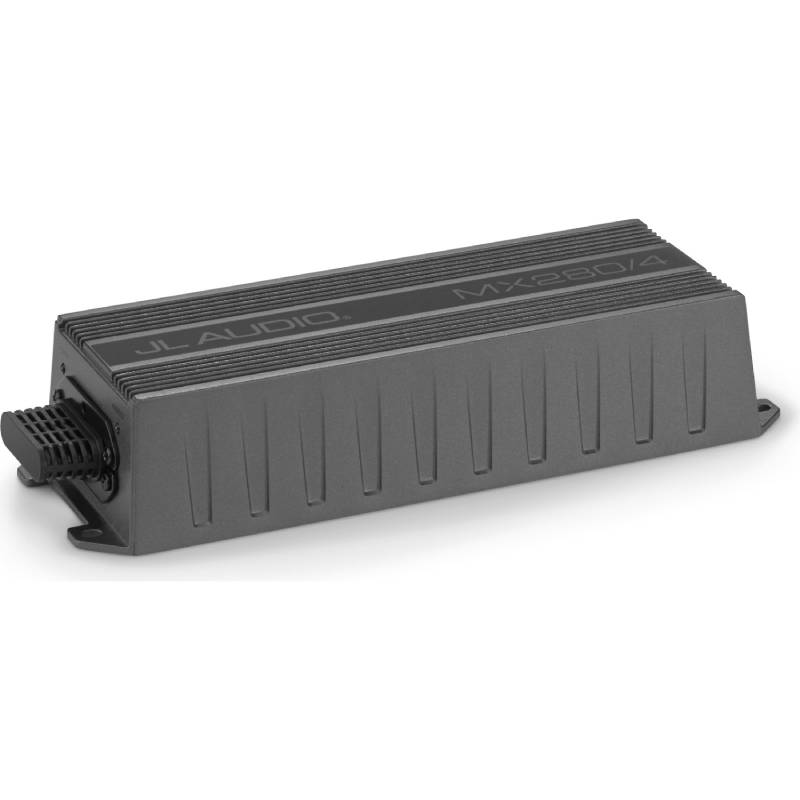

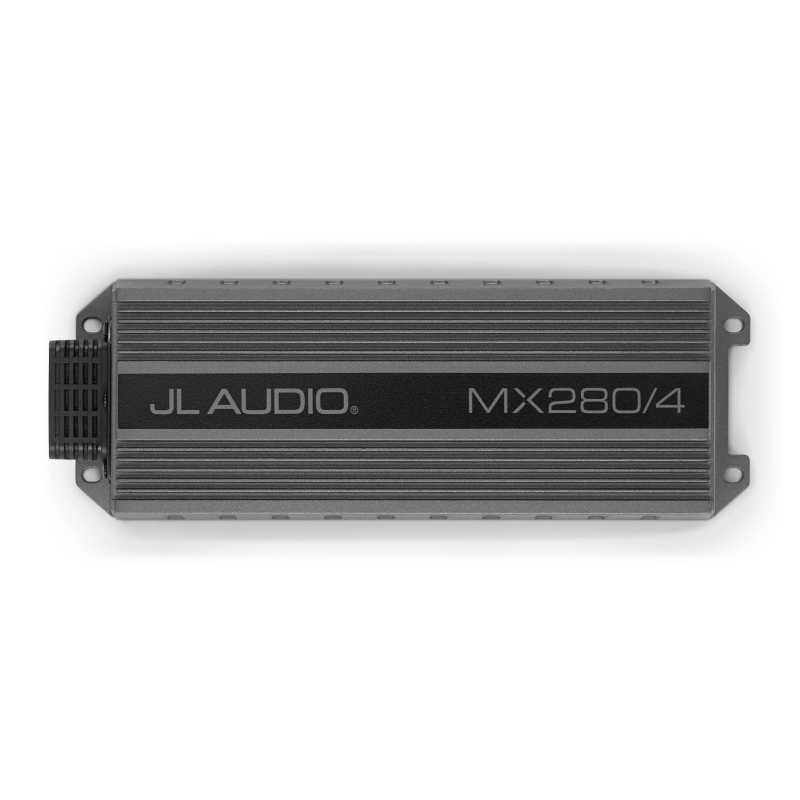

JL Audio MX280/4

Item# 46701

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

4-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 O / 50 W x 4 @ 4 O - 14.4V

Savings Of:
Your Price $249.99

FREE Shipping in US 48!

vehicle fit guide

What's Included:


  • 4 Self-tapping screws (1" length)

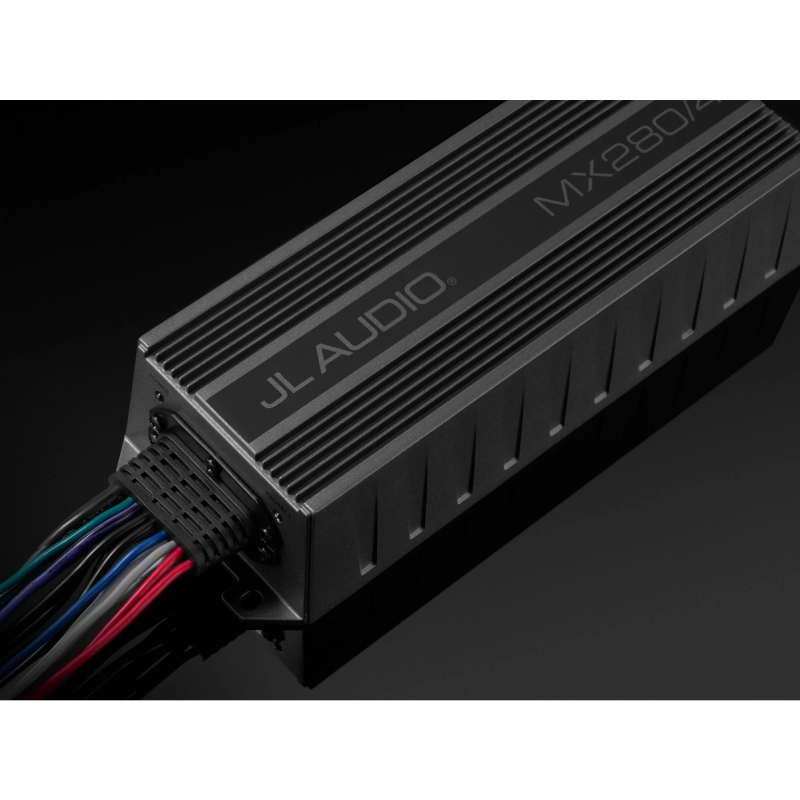

  • 4-Channel marine amplifier with 12" power/signal pigtails (with in-line fuse holder and 35A ATO fuse installed)
  • Spare 35A ATO fuse
  • Owner's Manual

Product Highlights:


  • preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • 50 watts RMS x 4 at 4 ohms (70 watts RMS x 4 at 2 ohms)
  • Class D amplifier design with NextD™ switching amp technology
  • 140 watts RMS x 2 bridged at 4 ohms (4-ohm stable bridged)
  • 8-11/16"W x 1-13/16"H x 3-1/8"D
  • IPX6 water-resistance rating
  • 4-channel amplifier
  • variable low- and high-pass filters (35-300 Hz, 12 dB/octave)
  • corrosion-resistant cast aluminum chassis
  • fuse rating: 35A x 1
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier

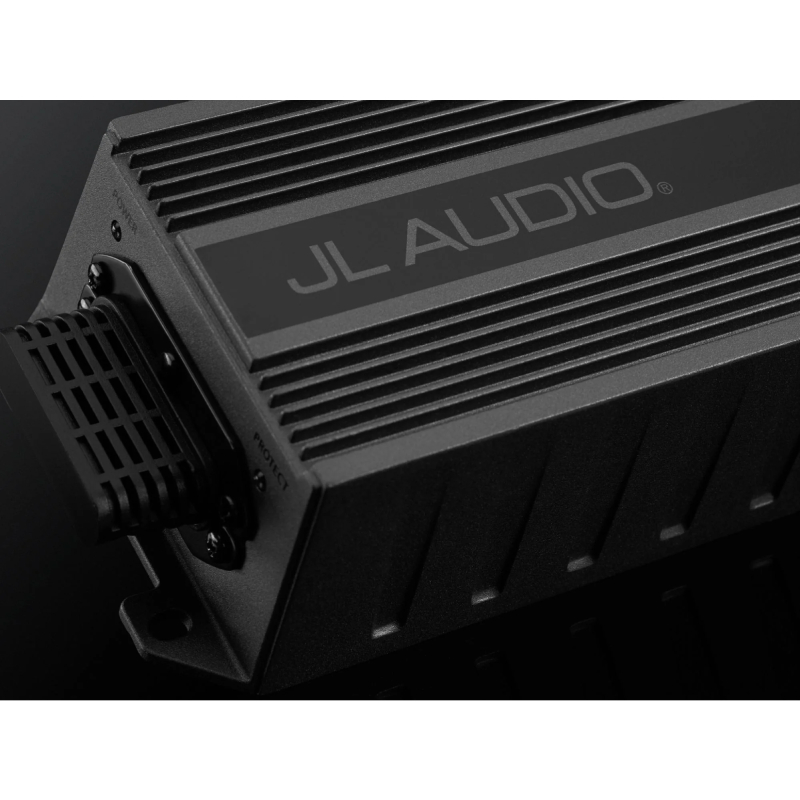

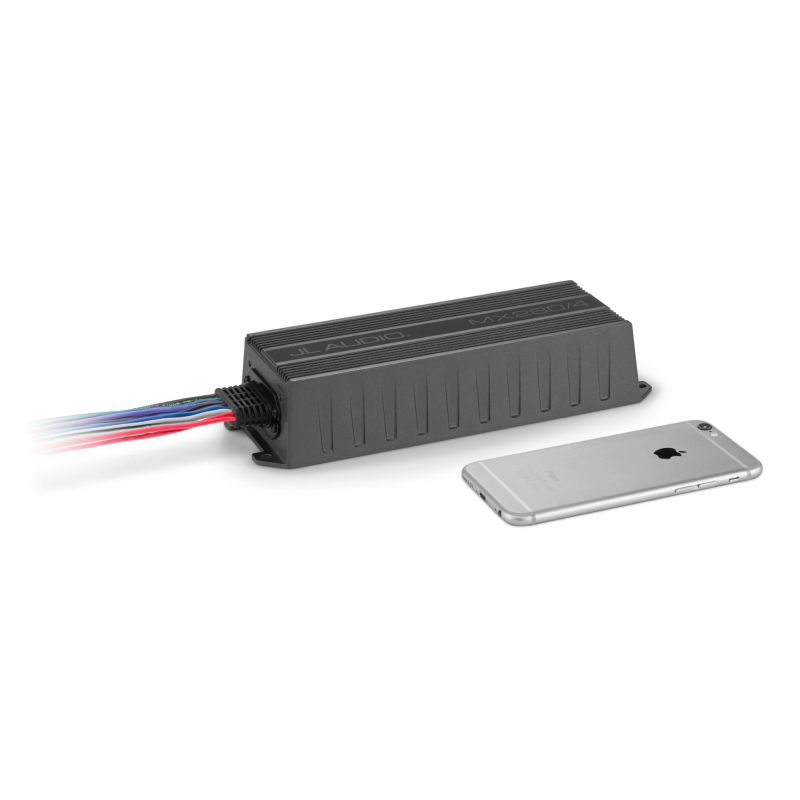

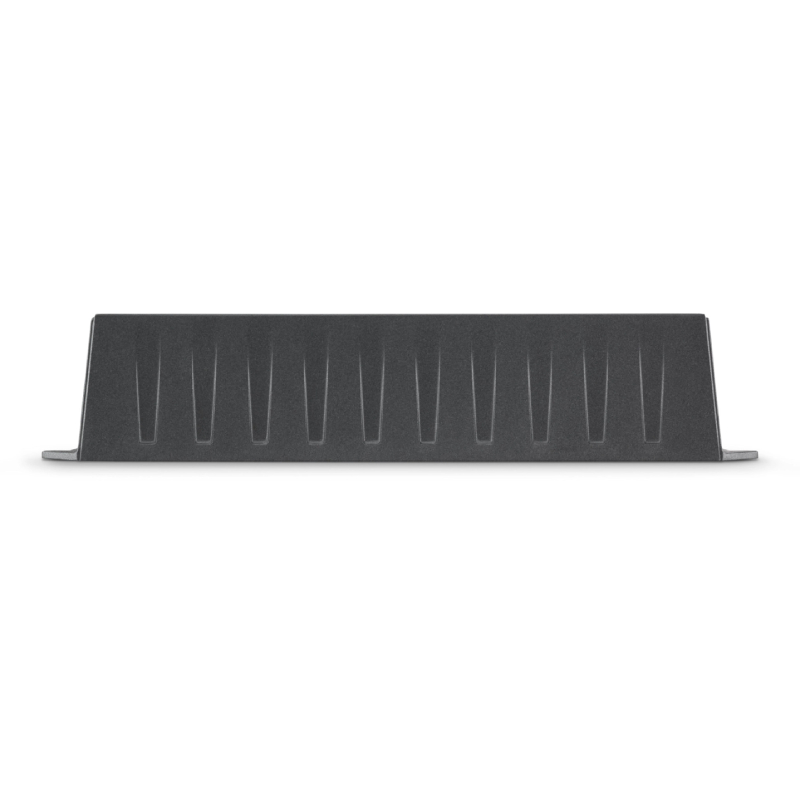

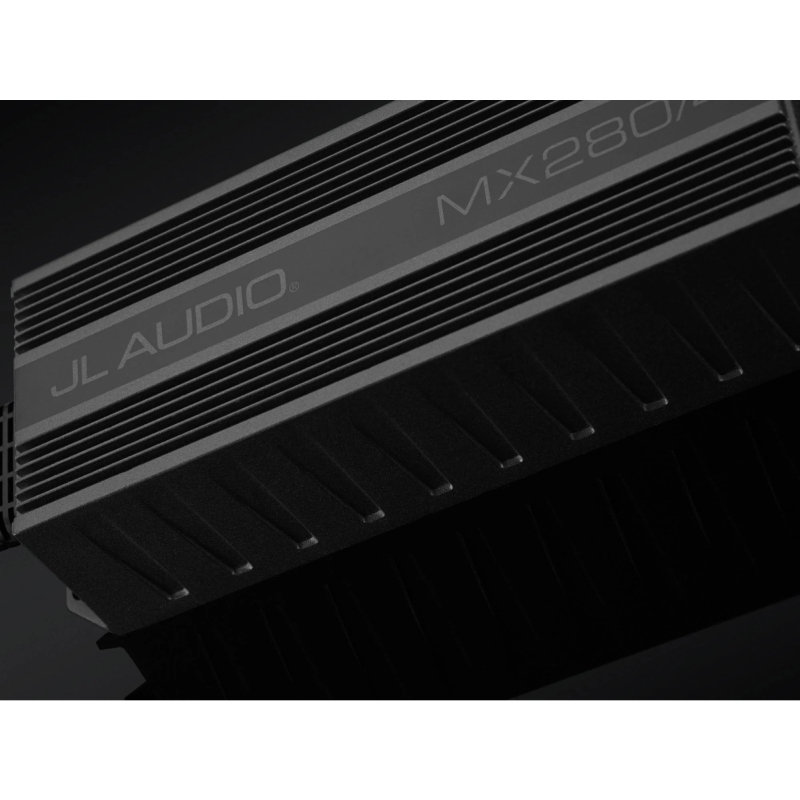

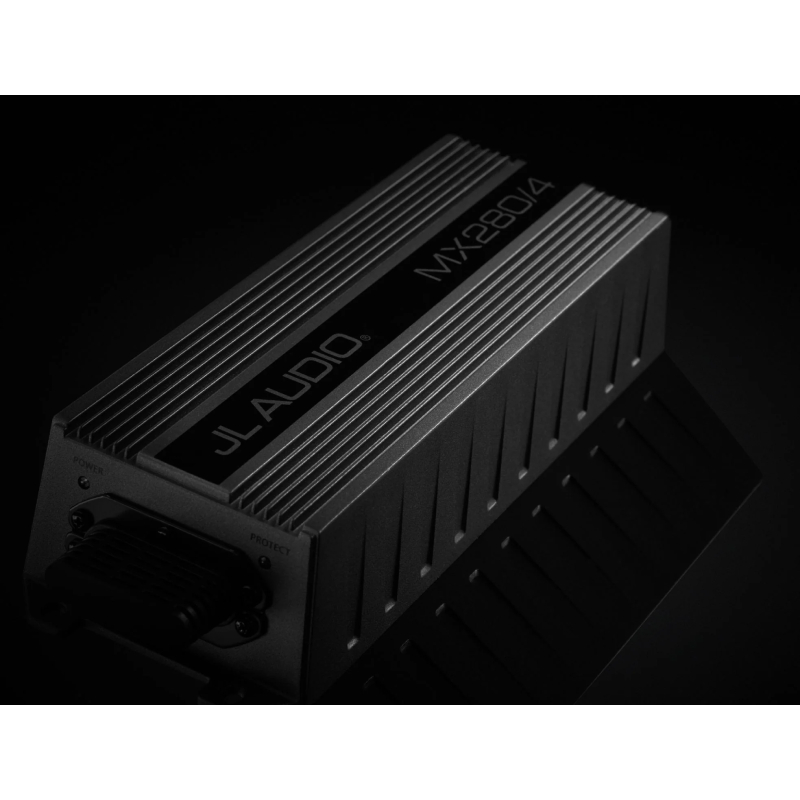

Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.

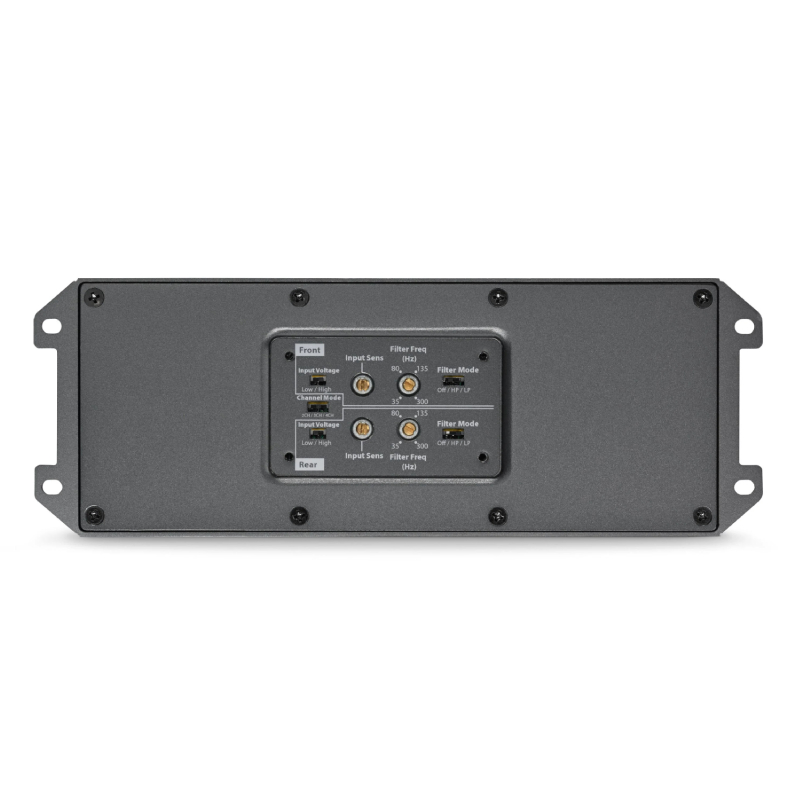

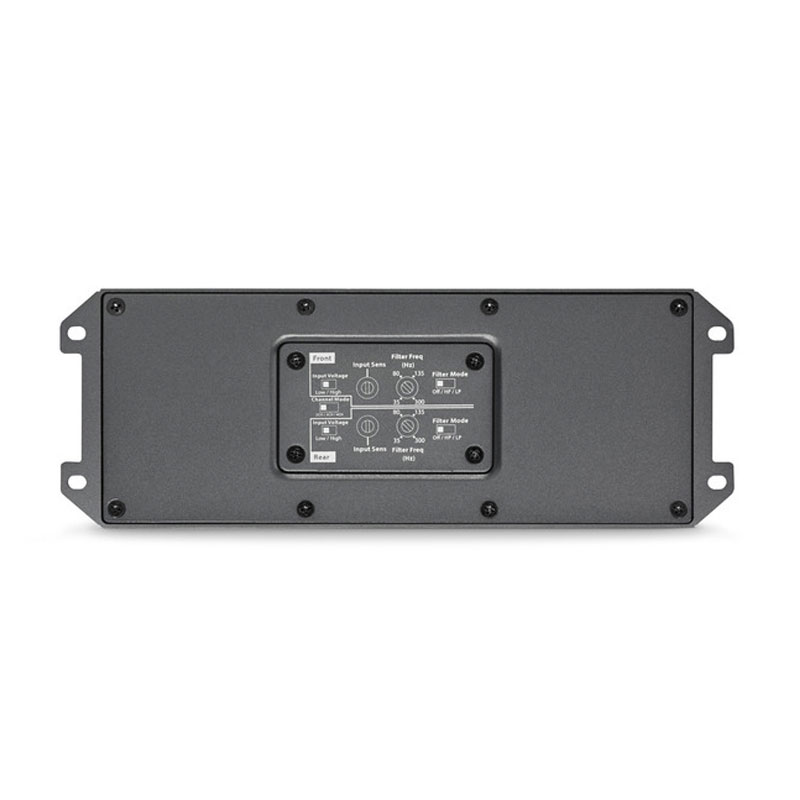

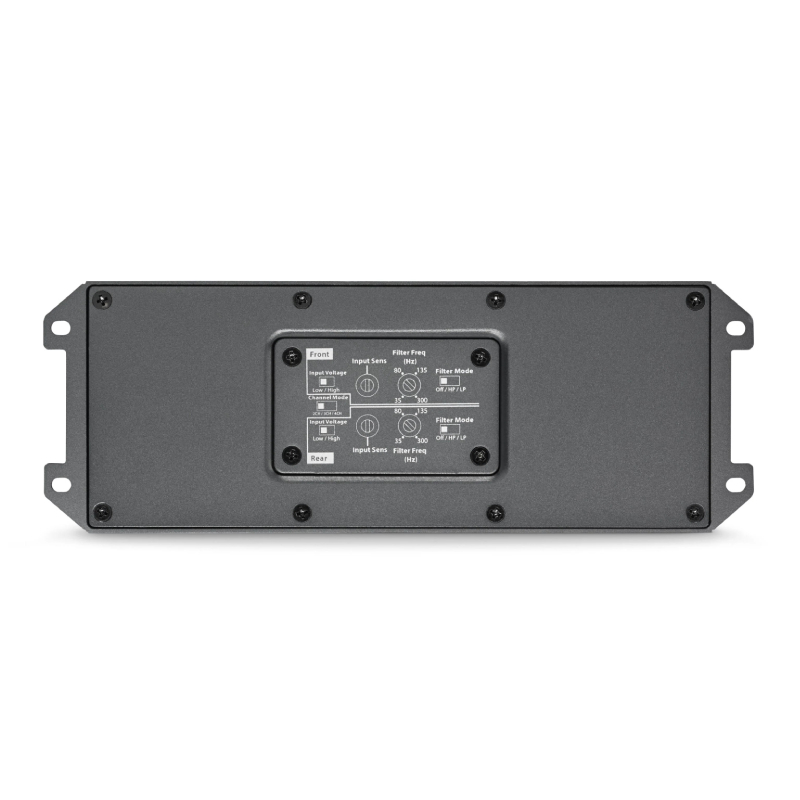

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

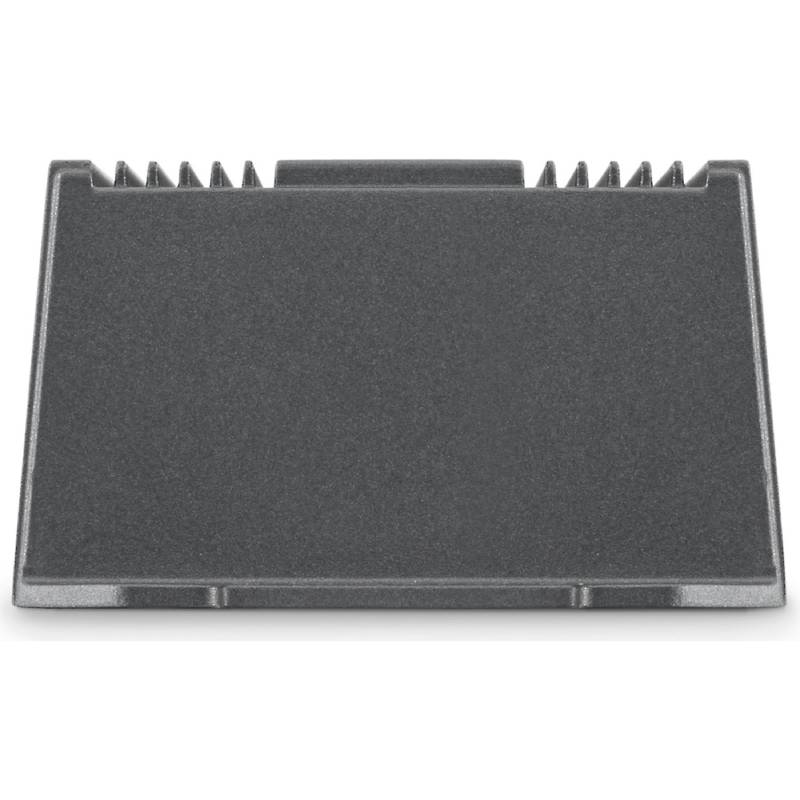

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Features:

  • JL Audio MX280/4 Weatherproof Amplifier
  • Class-D Full Range 4-Channel Amplifier
  • RMS Power Rating:
  • 4 ohms: 50 watts x 4 chan.
  • 2 ohms: 70 watts x 4 chan.
  • 1 ohm: N/A
  • Bridged, 4 ohms: 140 watts x 2 chan.
  • Total power output: 280 watts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: >68 dB
  • Variable high-pass filter: 35 - 300 Hz, 12 dB/octave
  • Variable low-pass filter: 35 - 300 Hz, 12 dB/octave
  • Fuse Rating: 35 A x 1
  • 8 gauge power and ground wiring is recommended for installation.
  • Dimensions: 8.66"W x 3.09"D x 1.77"H
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included

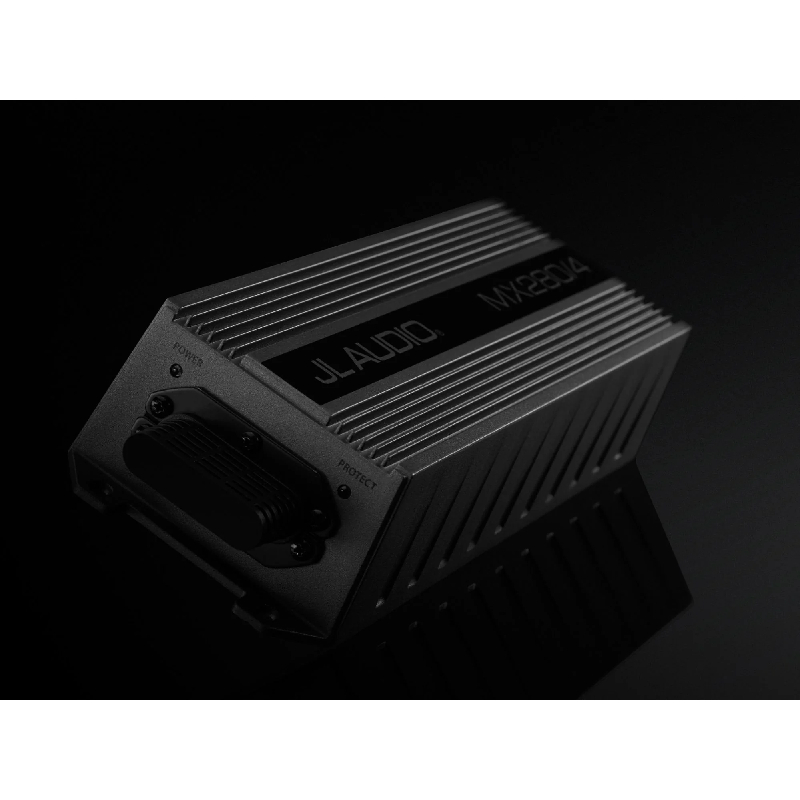

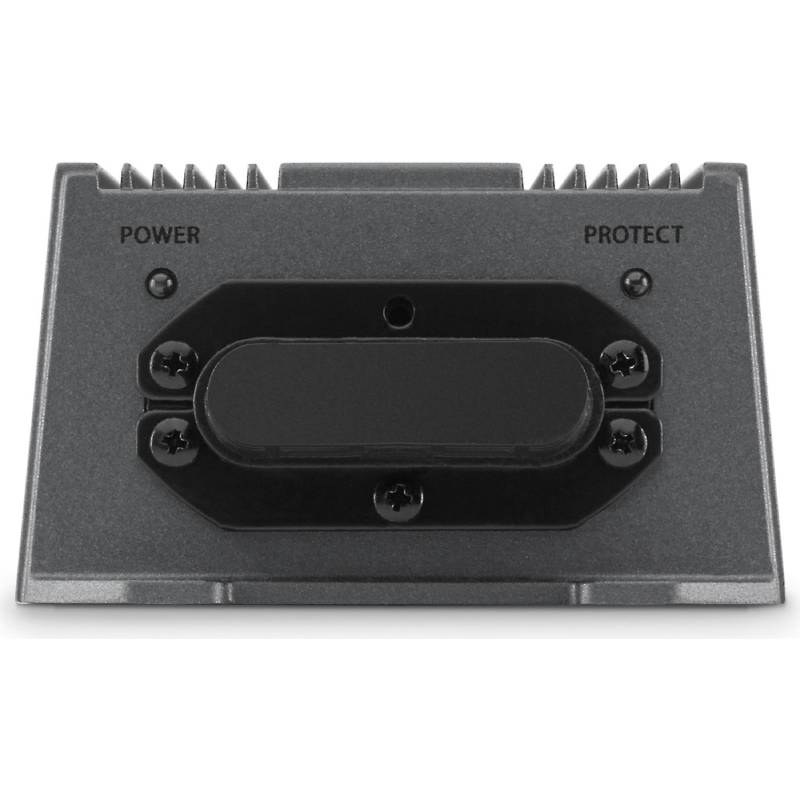

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • IPX6 water resistant rating
  • 4/3/2 or Mono channel operation
  • Black powder coat finish
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
  • Low level: 250mV - 4V
  • High level: 750mV - 15V
  • UPC: 699440984058
  • Weight: 3
