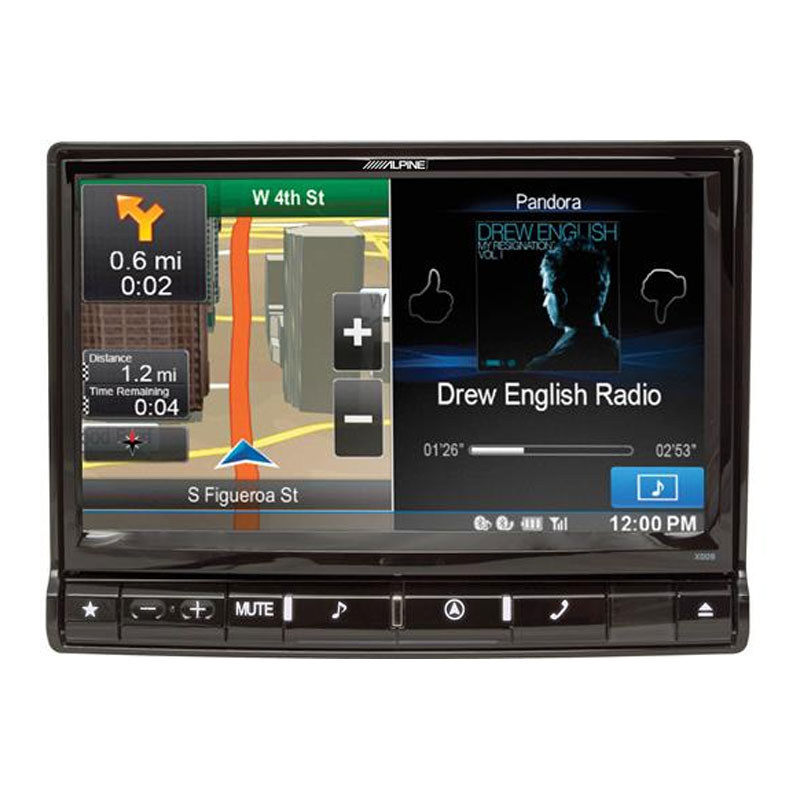

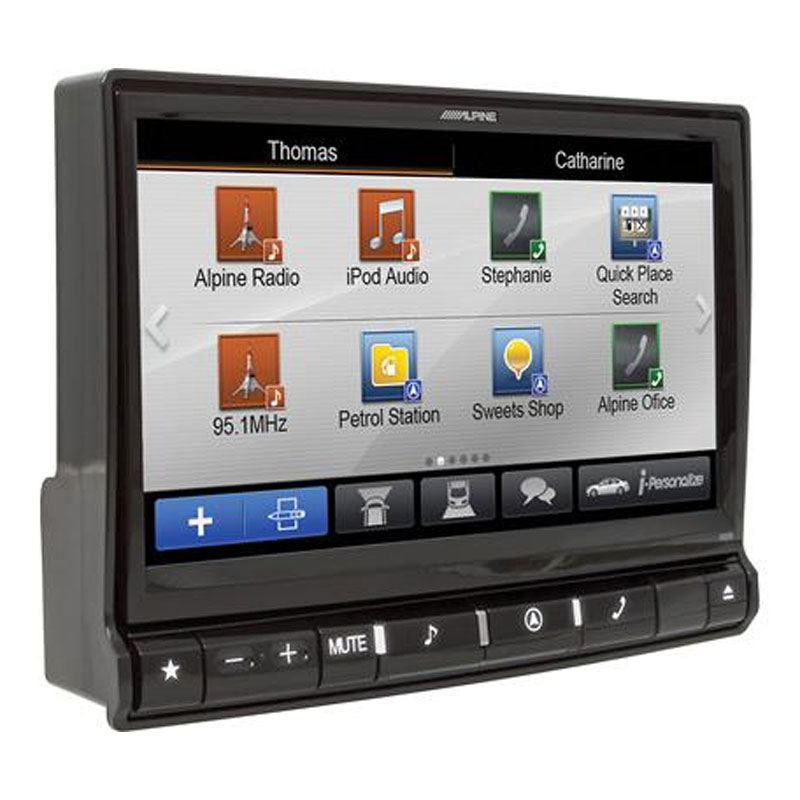

Alpine  X009U

• Satellite Radio Ready : Yes
• Remote Control : Yes
• DIN : 2
• Display Size : 9 Inch
• Audio/Video Inputs : 1
• Bluetooth : Yes
• Aux Input : Yes
• MP3 Playback : Yes
• WMA Playback : Yes
• HD Radio : Yes
• Color : Black
• Rear View Camera Input : Yes

Features and Specification

SPECIFICATIONS

Screen

• Screen Size: 9 inch WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Effective Number of Picture Elements: 99.99%
• Illumination System: White LED Backlighting
• Colour System: NTSC, PAL

GPS

• GPS Antenna Type: Micro-strip Planar Aerial
• Reception Frequency: 1575.42 ±1 MHz
• Reception Sensitivity: -130 dB Maximum
• Reception Method: Parallel 12 Channels

CEA-2006 Power Ratings

• CEA-2006 Power Rating: 4 Ω @14.4V Ƈ%THD+N, S/N 80dBA (ref.1W into 4 Ω), 18W x 4

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.7 - 107.9 MHz
• Mono Usable Sensitivity: 9.3 dBf (0.8 µV / 75 ohms)
• 50dB Quieting Sensitivity: 13.5 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise (S/N) Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

AM Tuner

• Tuning Range: 530 - 1,710 kHz
• Usable Sensitivity (IEC Standard): 22.5 µV / 27 dBf

Bluetooth®

• Bluetooth Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• HSP: HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)

Disc Player

• Frequency Response: 5 -20k Hz ±1 dB
• Channel Separation (at 1kHz): 85 dB
• Dynamic Range (at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.008%
• Wow & Flutter (%WRMS): B.M.L.
• Horizontal Resolution: 500 lines or greater
• Video Ouput Level: 1 Vp-p (75 ohms)
• Signal-to-Noise Ratio (video): 100 dB
• Signal-to-Noise Ratio: DVD: 60 dB

Connection for USB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 12/16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC Format ''.m4a'' File
• DivX Decoding: ''.divx'', ''.avi'' File
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate.
• Total Harmonic Distortion (at 1kHz): 0.008%
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2 k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -7 to +7
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Application Volume Level: -14 to +14
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• High Pass Filter (Gain): -12 to 0 dB
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• Low Pass Filter (Gain): -12 to 0 dB

Dimensions

• Din Size: 2DIN
• Chassis Size (W x H x D) mm: 178 x 100 x 164 mm
• Nose Piece Size (W x H x D) mm: 189.5x 120x 10.25 mm

General

• Power Requirement: 14.4 V.DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• AUX Audio Output Level: 1.2 V / 10k ohms
• Maximum Mounting Angle: 30°
• Weight: 2.9 kg

FEATURES

Navigation Function

• 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
• Direct Phone Call from POI data:
• Tunnel Mode:
• Highway Mode:
• Drive Lane Suggestion:
• 3D Motorway Junction View: Junction View with Sign Post
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D maps with elevation model:
• 3D City Mode: 3D Building/Icon Display
• Advanced TMC Mode:
• 7 Alternative Route Recommendation:
• Advanced Route Planning:
• Post Code Search:
• Free Form Search:
• Partial Name Search Smart Search:
• Advanced POI Functions:
• Eco Route Search:
• Smart Routes using historic traffic patterns:
• Advanced Address Search:
• Voice Guidance Language: 3 Languages,
• Menu Language: 24 Languages
• Map Coverage: USA and Canada (including Alaska, Hawaii, Puerto Rico, Virgin islands )

Map & Database

• Map Database Update (Method): Online Map Update

Tuner

• Memory Presets: FM:12 / AM:6
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

HD Radio®

• HD Radio®: HD Radio Tuner Built-In
• Status Indicator: Digital Reception Indicator
• Signal Switching: Automatic Digital/Analog Switching
• Multi-Casting: Multi-Cast HD1, HD2, HD3
• iTunes® Tagging: iTunes Tagging Supported

Bluetooth®

• Bluetooth Module Built-In:
• Hands Free Calling: HFP (Hands Free Profile) Compatible
• Music Streaming: A2DP (Advanced Audio Distribution Profile) Compatible
• Music Streaming Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
• Connection: SSP (Simple Secure Pairing) Supported
• Phone Book: Phone Book Synchronization
• Shortcut Dialing: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Auto Answer:
• Redial Function:
• Call History: Dialed Call / Received Call / Missed Call
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• Phone Battery Level Indicator:
• Firmware Update:
• Microphone: Microphone Included
• Advanced BLUETOOTH® Technology:
• Device Name Display:
• DTMF (Touch-Tone) Function:
• Signal Strength Indicator:
• Menu Language Selection: 24 Languages
• Individual Profile Connection: Hands Free Phone and Music Streaming

Connection for iPod®

• Compatibility for iPod®/iPhone®: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone5S,iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
• Connection: KCU-461iV Required (Sold separately)
• Music & Video Playback Compatibility:
• Artwork Display:
• Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
• Alphabet Search:
• Direct Up/Dn: Playlist/Artist/Album/Podcast/Genre/Composer
• M.I.X. (Shuffle) Capability: Song, Albums, All
• Repeat:
• Battery Charging:

Connection for USB

• USB Connection: USB Extension Cable Included
• Music File Playback: MP3/WMA/AAC Playback
• Music & Video Playback Compatible:
• Video File Playback: DivX Playback
• File/Folder Name Search:
• Tag Info Search:
• Folder Up/Down:
• M.I.X. Random Play:
• Repeat:

Satellite Radio

• SiriusXm Ready: SVX-200 Required
• Connection: Simple Plug'N Play Compatible
• Preset Memory: 18 Preset Memory
• My Game / My Music Alert: My Game / My Music Alert Compatible
• Instant Replay: Instant Replay Compatible
• iTunes® Tagging: iTunes Tagging Compatible

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
• DVD Direct Menu Control:
• CD Text Display:
• CD Text Search:
• M.I.X. Random Play:
• Repeat:
• DAC: 24 Bit DAC
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX

Sound Tuning

• Bass Engine Pro:
• Subwoofer Level Adjustment:
• Subwoofer Phase Select:
• BASS ENGINE SQ:
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop,  Easy Listening, Country, Classical
• 9-band Parametric Equalizer:
• MediaXpander:
• Time Correction: 6-Channel Digital Time Correction
• Crossover: Digital Crossover Setting
• Application Volume Level Setting:
• Sound Setting Data Download:
• Easy, Step-by-Step Sound Customization:
• Alpine TuneIt App Ready :

General

• Power Output: 4 x 50 W High Power Amplifier
• Display: 9 inch WVGA High Resolution Display
• Display Backlighting System: White LED Backlighting System
• Control Type: Touch
• Automatic Setting Change: 2 Users
• High Grade Audiophile Design:
• Display Color Selection: 5 Background Colors (Blue/Red/Amber/Green/Black) Selectable
• AUX Input: 2 A/V AUX Inputs
• AUX Output: 1 A/V AUX Output
• PreOut: 3 PreOuts (4V, Front/Rear/Subwoofer)
• Steering Wheel Remote Control Ready:
• Remote Control Ready:
• VisualEQ:
• Live Contrast Adjustment:
• Menu Language: 24 Languages (for AV/Bluetooth), 29 Language (Navigation Menu and Voice Guidance)
• Clock:
• Auto Dimmer:
• Power Antenna Lead:
• Remote Turn-On:
• Firmware Updatable:
• 50/50 Split Screen:
• My Favorites Function:
• Optical Outputs:
• HDMI Input:
• Navigation Guidance Mix:
• Camera Connection & Built-in Controls for Multi-View Camers:
• Camera Guide Line Adjustment:
• Rearview Camera Display Automatic Boot-up:
• Simple Mode & Info Mode Display Selection:
• StartStop function (for idling stop):
• iDatalink :

PANDORA®

• Bluetooth Pandora: For Android
• Pandora: For iPhone

• UPC: 793276210524
• Weight: 6
