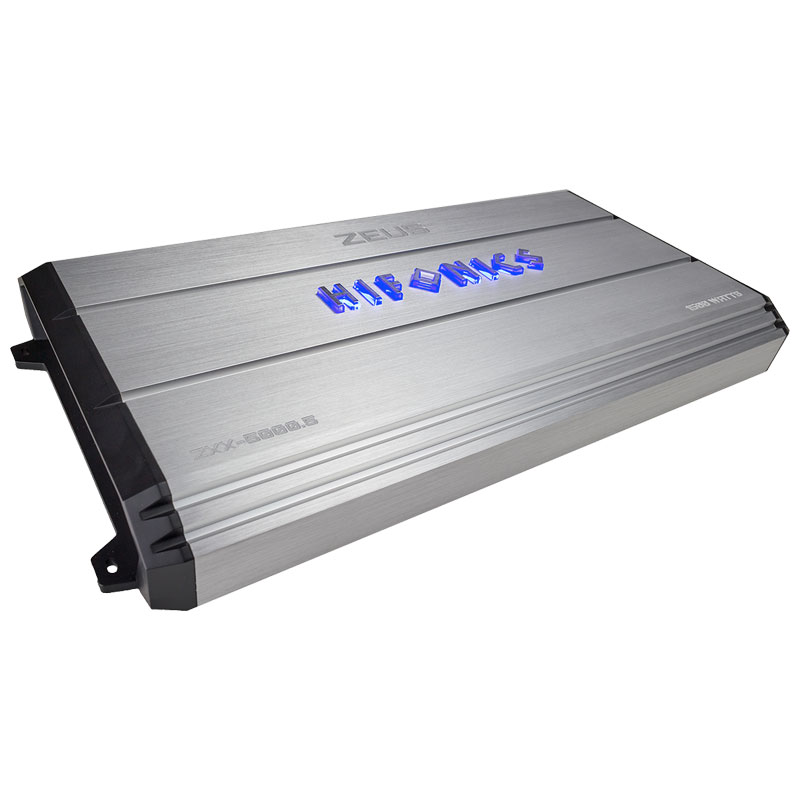

The ZEUS-ZXX.5 channel amplifier is the perfect solution to allow one POWER FROM THE GODS amplifier to power your entire system. Four full range channels, of high sound quality A/B Class circuit topology and a subwoofer channel (channel 5) with D-Class technology that can power the subwoofer system all the way down to 1 ohm. The ZXX-5000.5 has on board equalization and bass boost and includes a bass remote.
With Onlinecarstereo, you are always sure that you are getting authentic Hifonics products all the time with the necessary warranties to protect your investment. We always strive to provide 100% total customer satisfaction and after-market service.
- Maximum Power : 5000 Watts
- Number of Channels : 5
- Frequency Response : 20Hz-45KHz (1CH-4CH) 10Hz-150Hz (5CH) Hz
- Amplifier Class : A/B
Features & Benefits
- Low Noise Pre-Amp Circuitry:
Low voltage signal from the source unit comes into the amplifier pre-amplifier circuit with minimal distortion
- Inputs:
Nickel-Plated RCA jacks create best connection and resist corrosion
- Hi Level Inputs:
Hi level inputs with small connecting adapter for the highest sound quality connection
- Operation Mode:
Switched 2, 4 or 5 channel mode)
- Equalizer:
CH1/2 - Switched Full / High Pass Filter (HPF) 40Hz-500Hz
CH3/4 - Switched Full / High Pass Filter (HPF) 40Hz-500Hz
CH5 Low Pass Filter (LPF) 45Hz-160Hz
- Class / Topology:
Class A/B + Class D
- Output Devices Technology:
Pulse Width Modulated (PWM) MOSFET power supply provides stable power through the PC board with minimal heat generation
- Heat Sink:
Classic aluminum Hifonics design to minimize heat build up on the Pro-Fi™ output devices
- Power Supply:
Simpatico Coil Design The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
- Output Connections
Preamp RCA outputs to daisy chain multiple amps eliminate additional signal cables from the source unit
- Connections Type:
Molded / angled secure connection for all system wires for ease of access during installation
- Bass Remote:
Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look
- Full-Range RCA Outputs for Signal Pass Through
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
- LED System Protection Circuitry Diagnostics
3-way protection circuitry with LED power (green) and protect (red) indicators monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
- Bass Remote Included
Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look
- Phase Adjustment
CH5 Phase 0-180 Degrees
Bass drum attack, snap requires phase between deep frequency subwoofers and upper midbass speakers
Fat man/Skinny man, must arrive at your ear at the same time or bass sounds muddy
- Parametric / Signal Contouring
ParaQ Parametric Bass EQ with adjustments: Boost (0-10dB) Width (Narrow-Wide (On Center) Center Frequency (30Hz - 100Hz)
Specifications
- Class
A/B Class™ & D-Class™
- Variable Voltage
0.2V - 6V
- Signal to Noise
>90dB
- Frequency Response
20Hz-45KHz (1CH-4CH)
10Hz-150Hz (5CH)
- Crossover Type
Electronic
- High Pass Crossover: 12dB Per Octave
10Hz - 1.5KHz
- Low Pass Crossover: 12dB Per Octave
30Hz -500Hz (Channel 3,4,5)
- Crossover Frequency Range: CH1 & CH2
10Hz - 1.5KHz
- Crossover Frequency Range: CH3 & CH4
10Hz - 1.5KHz
- Crossover Frequency Range: CH 5
30Hz -500Hz
- Tone Control
Bass EQ
- Bass Boost
0~9dB@45Hz
- Power @ 1-Ohm
1 x 750 Watts (5th Channel Only)
- Power @ 2-Ohms
4 x 100 Watts + 1 x 500 Watts
- Power @ 4-Ohms
4 x 50 + 1 x 250
- Mono Bridged @ 4-Ohms
N/A
- Total Channels
5
- Audio Inputs
Yes
- Power Terminal: 12v/GND
4 AWG
- Speaker Terminal Wire Gauge
10 AWG
- Fusing
External
- Product Weight (lbs)
12
- UPC: 806576228455
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
