Hifonics  BXX1600.1D

BRUTUS Series 1600 Watt Mono 1-Ohm Stable 1-Channel Subwoofer Car Audio Amplifier

Item #51134

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Hifonics Banner

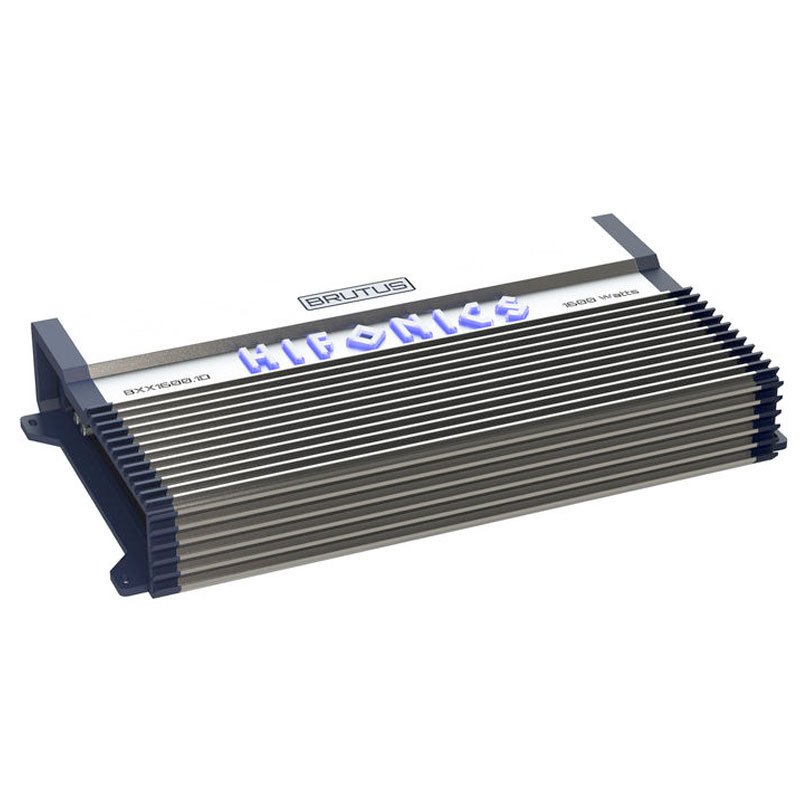

Hifonics BXX1600.1D

The BXX1600.1D is a 1600 watt mono amplifier featuring Super Class D™ technology with an NGSD digital chip to provide you with an extremely efficient, low temperature, high amplification system that others only dream about. The rock solid Ultra-Fi™ MOSFET outputs are selected for both balance and output power. This keeps power smooth even during demanding peak in the music. All Mono and five channel amplifiers include a bass remote to put the bass control at arm’s length. The amplifiers protection condition is also shown by blue illumination for normal operation and red for a short being present and requires the attention of an installer.

Hifonics BXX1600.1D

General Features:

  • TYPE: Mono 1-Ohm Stable Amplifier 1-Channel Subwoofer Car Audio Amp
  • CATEGORY: BRUTUS BXX
  • CLASS: Super D Class™
  • TOTAL CHANNELS: 1
  • POWER: 1600 Watts
  • FUSING: 2 x 70A
Hifonics BXX1600.1D


SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Number of Channels : 1
  • Frequency Response : 10-250 Hz
  • Amplifier Class : D

FEATURES


Features & Benefits

  • Low Noise Pre-Amplifier Circuitry
    Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
  • RCA Inputs
    Nickel-plated RCA jacks create the most effiecient audio connection and resist corrosion
  • Operation Mode
    Mono only
  • Crossover Type
    Variable electronic crossovers allow for complete control of the sound
  • Electronic Equalizer
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
    Check specifications for specific frequencies for this amplifier
  • Class / Topology
    Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs
  • Output Device Technology
    Pro-Fi™
  • Heat Sink
    Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices
  • Power Supply
    Simpatico Coil Design
    The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
  • Output Connections
    High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal
  • Connection Type
    Molded and Angled
    Secure connection for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile
  • LED System Protection Circuitry Diagnostics
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
  • Bass Remote Included
    Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
  • Phase Adjustment
    Phase 0-180°

Specifications

  • Class
    Super D Class™
  • Variable Voltage
    9V - 0.2V
  • Signal to Noise
    >95dB
  • Frequency Response
    10Hz - 250Hz
  • Crossover
    Electronic
  • Variable Low Pass Crossover 12dB per Octave
    30Hz - 250Hz
  • Bass Boost
    0 - 10dB
  • Subsonic Filter
    15Hz - 35Hz
  • Phase Shift
    0° - 180°
  • Power @ 1 Ohm
    1 x 1600 Watts
  • Power @ 2 Ohms
    1 x 800 Watts
  • Power @ 4 Ohms
    1 x 450 Watts
  • Mono Bridged @ 4 Ohms
    N/A
  • Total Channels
    1
  • Audio Inputs
    RCA
  • Audio Outputs
    RCA
  • Power Terminal 12v/GND
    2 AWG
  • Speaker Terminal Wire Gauge
    12 AWG
  • Fusing
    70Ax2
  • Total Harmonic Distortion (THD)
    <0.10%



  • UPC: 806576227946
  • Weight: 12
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
