What's Included:
- Kicker logo sticker
- Manual (English/ Spanish/ German/ French)
- Product Information Inside Box
- One 12" Dual 2-ohm voice coil subwoofer
- Template on box

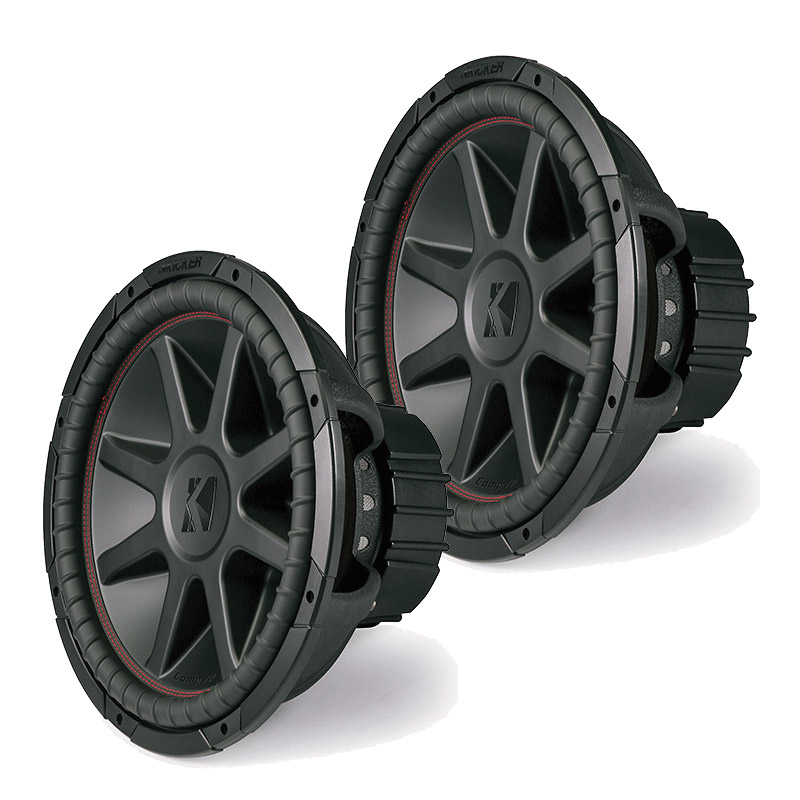

- 2 Units of 43CVR122
Product Highlights:
- frequency response: 25-500 Hz
- 800 watts peak power handling
- sealed box volume: 1.0-4.6 cu. ft.
- power handling: 50-400 watts RMS (200 watts per coil)
- ribbed Santoprene rubber surround
- 12" subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene cone
- sensitivity: 86.9 dB
- top-mount depth: 6-1/4"
- ported box volume: 1.75-2.25 cu. ft.
- Diameter : 12 Inch
- Maximum Power : 800 Watts
- Low Frequency Response : 25 Hz
- High Frequency Response : 500 Hz
- Sensitivity : 86.9 dB
- Impedance : 2 Ohm
- Frequency Response : 25 - 500 Hz
- RMS Power Range : 150-400 Watts
- Top Mount Depth : 6 5/16 Inches
- Number of Voice Coils : dual
- Suggested Sealed Box Volume : 1.0-4.6 Cubic ft.
- Suggested Ported Box Volume : 1.75-2.25 Cubic ft.
- Mounting Depth : 6-1/4, 15.9 Inches
The CompVR 12-Inch Subwoofer is a 2Ω dual voice coil design, built for easy wiring. This subwoofer uses a large-diameter, progressive-roll spider and a Santoprene surround for truly linear cone movement.
All this technology creates outstanding bass in a subwoofer built to make the mirrors shake. This will make heads turn and look twice as you blast your music. This sub roduces 400 watts of RMS/800 watts of Peak Power with a frequency response of 25 - 500 Hz
The CompVR 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
Specifications |
Free-Air |
No |
Surround Material |
Rubber |
Impedance |
2 ohms |
Peak Power Handling (Watts) |
800 |
Cutout Diameter or Length (inches) |
10 15/16 |
Ideal Sealed Box Volume (cubic feet) |
1.0-4.6 cu. ft. |
Vas (liters) |
65.294 |
Size |
12 -inch |
Qts |
0.648 |
Ideal Ported Box Volume (cubic feet) |
1.75-2.25 cu. ft. |
RMS Power Range (Watts) |
150-400 |
Xmax (millimeters) |
14 |
Dual Voice Coil |
Yes |
Cone Material |
Polypropylene |
Sensitivity |
86.9 dB at 1 watt |
Frequency Response |
25 - 500 Hz |
Top Mount Depth (inches) |
6 5/16 |
Fs (Hz) |
32.6 |
- UPC: 713034050063
- Weight: 31
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
