What's Included:
- Template on box
- Owner's Manual
- Manual (English/ Spanish/ German/ French)
- Kicker logo sticker
- One 10" Dual 4-ohm voice coil subwoofer
- Product Information Inside Box
- 2 Units of 43CVR104
Product Highlights:
- sensitivity: 83.6 dB
- injection-molded polypropylene cone
- sealed box volume: 0.8-3.0 cu. ft.
- top-mount depth: 5-1/2"
- 10" subwoofer with dual 4-ohm voice coils
- ribbed Santoprene rubber surround
- power handling: 50-400 watts RMS (200 watts per coil)
- 800 watts peak power handling
- frequency response: 25-500 Hz
- ported box volume: 1.25-1.75 cu. ft.
- Diameter : 10 Inch
- Maximum Power : 700 Watts
- Low Frequency Response : 30 Hz
- High Frequency Response : 500 Hz
- Sensitivity : 83.6 dB
- Impedance : 4 Ohm
- Frequency Response : 30 - 500 Hz
- Number of Voice Coils : dual
- Suggested Sealed Box Volume : 0.8-3.0 Cubic ft.
- Suggested Ported Box Volume : 1.25-1.75 Cubic ft.
- Mounting Depth : 5-1/2, 14 Inches

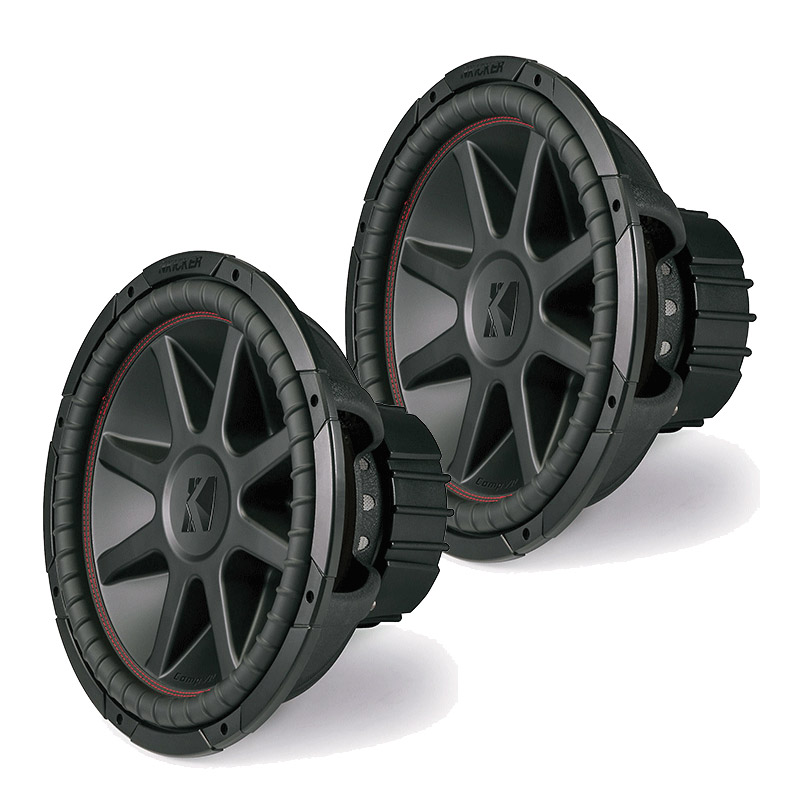

The CompVR 10-Inch Subwoofer is a 4Ω dual voice coil design, built to get the most out of your amp.
The dual voice coil design adds a new level of wiring flexibility, to get the most out of KX Series amplifier, no matter how many subs you add to your ride.
An amazing experience is provided by 350 watts of RMS/700 watts of Peak Power with a frequency response of 30 - 500 Hz.
The CompVR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
| Specifications |
| Ideal Sealed Box Volume (cubic feet) |
0.8-3.0 cu. ft. |
| Fs (Hz) |
43.8 |
| Surround Material |
Rubber |
| Frequency Response |
30 - 500 Hz |
| Cone Material |
Polypropylene |
| Top Mount Depth (inches) |
5 1/2 |
| RMS Power Range (Watts) |
100-350 |
| Vas (liters) |
16.159 |
| Size |
10 -inch |
| Peak Power Handling (Watts) |
700 |
| Cutout Diameter or Length (inches) |
9 1/8 |
| Free-Air |
No |
| Impedance |
4 ohms |
| Ideal Ported Box Volume (cubic feet) |
1.25-1.75 cu. ft. |
| Dual Voice Coil |
Yes |
| Sensitivity |
83.6 dB at 1 watt |
| Qts |
0.838 |
| Xmax (millimeters) |
14 |
- UPC: 713034050094
- Weight: 26
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
