Pioneer TS-A692F A-Series 6"x9" 90W RMS (450W Peak Power Handling) 4-Way Car Speaker System
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 4-way speakers

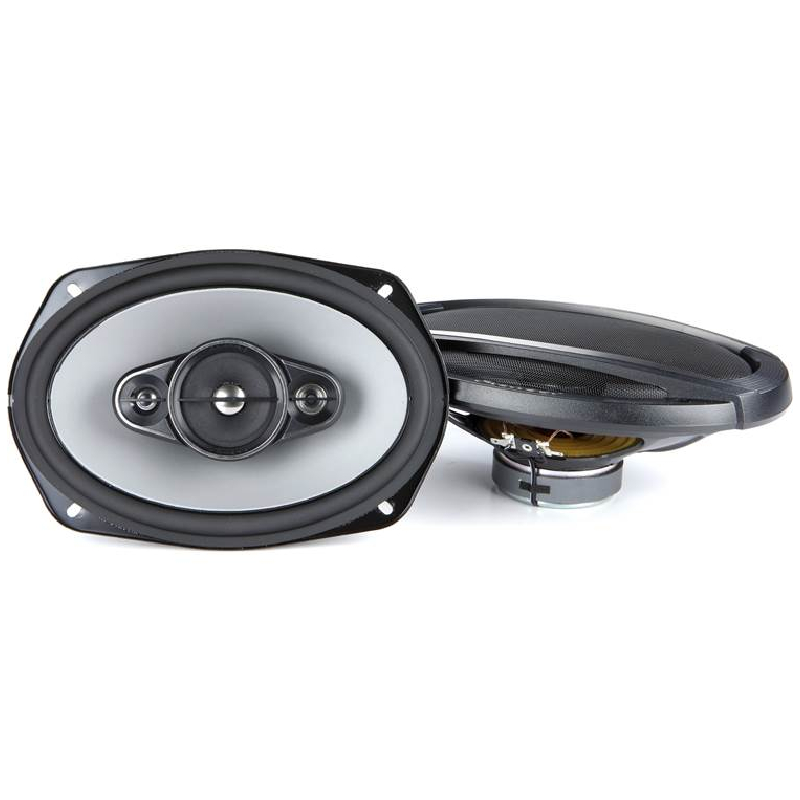

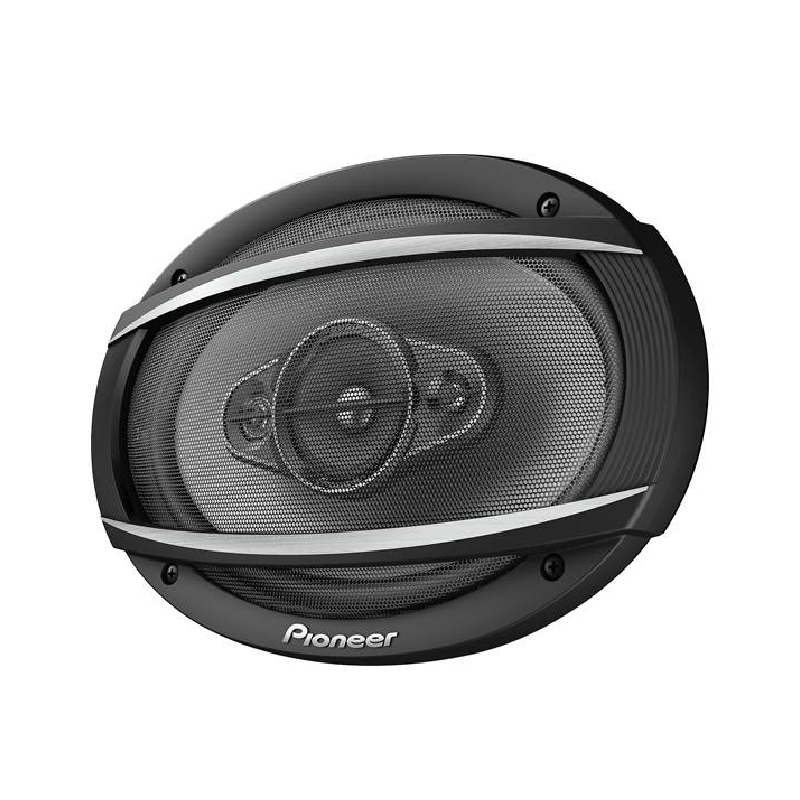

- • (2)Grilles

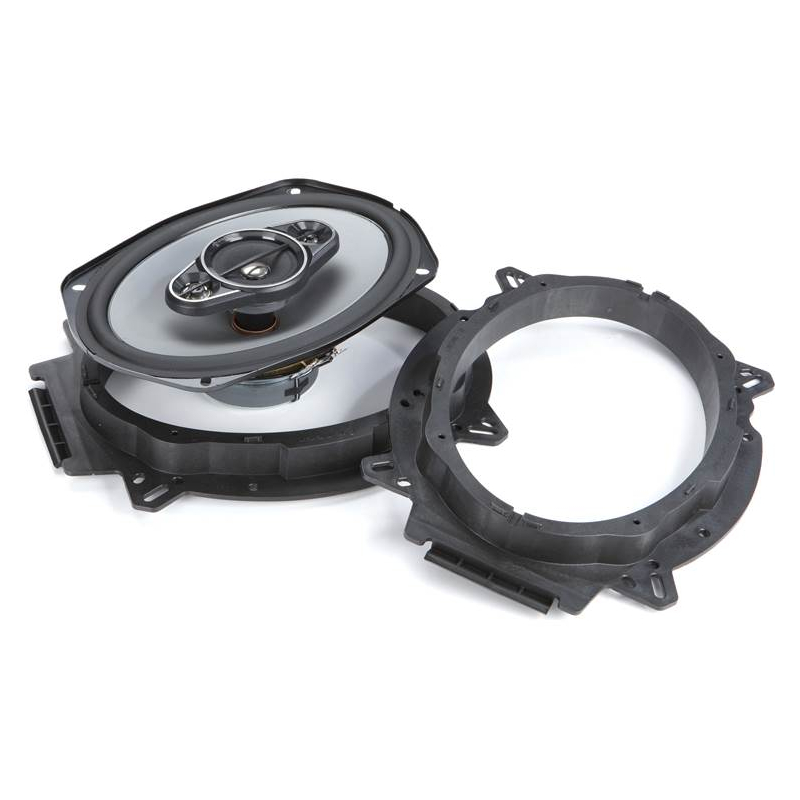

- • (2) Multi-application mounting brackets
- • (2) 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- • (8) 1-1/8" Screws
- • (8) 3/8" Screws
- • (1) Warranty information
- • (1) Specs and template on box
4-Way Speaker

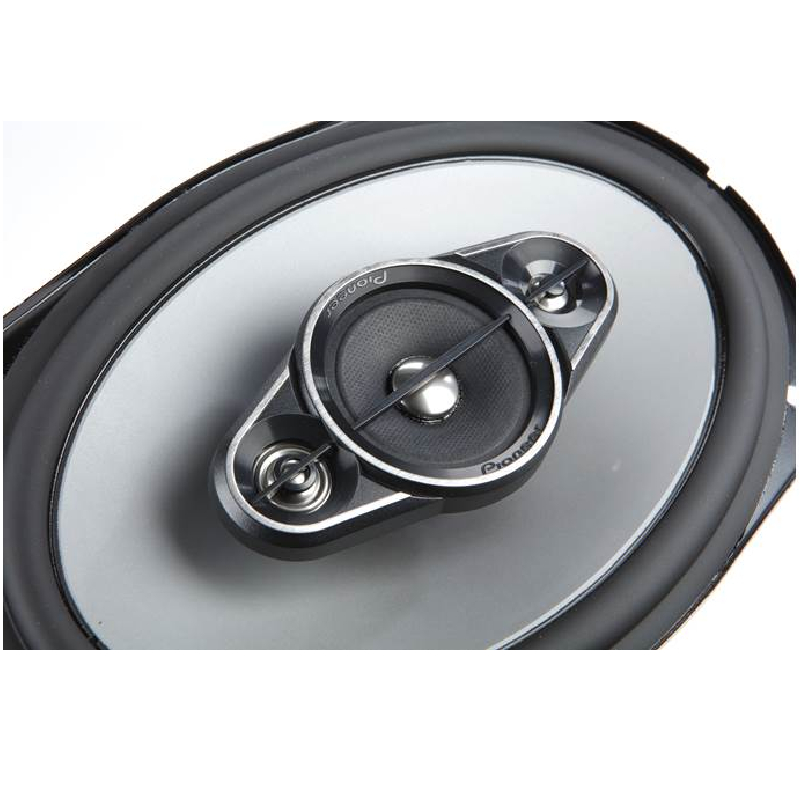

This 4-way speaker also comes with two PET (Polyethylene Terephthalate) tweeters with sizes of 3/4 and 3/8 inches, and both have a hard dome design. These tweeters can deliver a bright and clear high-frequency performance that you would surely love. Installation on your vehicle is very easy as it comes with multi-fit adapters that are perfect for different kinds of applications.

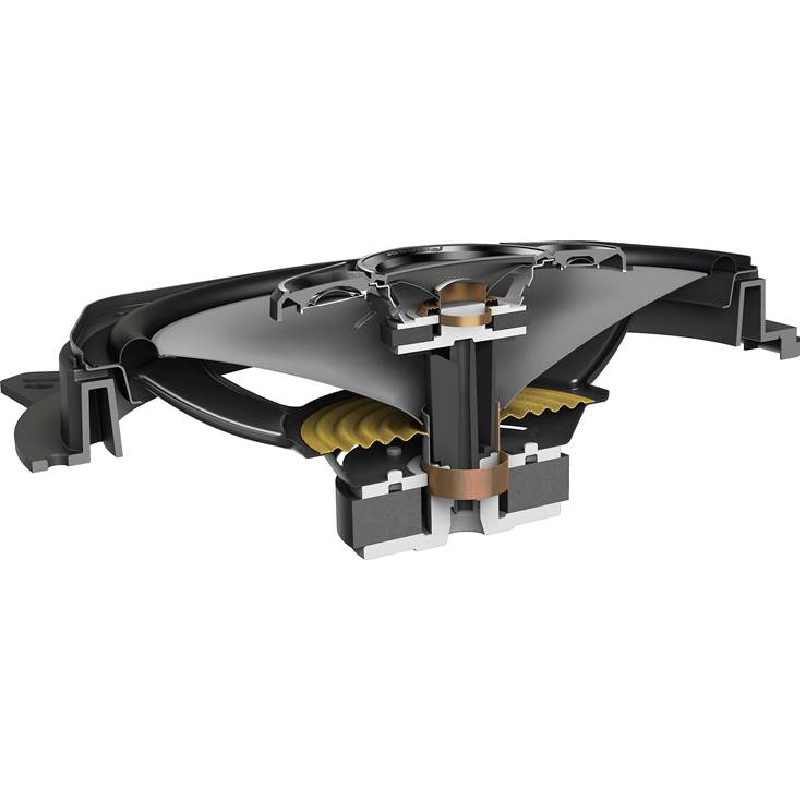

Carbon and Mica-reinforced polypropylene Cone
This speaker comes with a mix of carbon and mica-reinforced polypropylene for its cone material and an elastic polymer for its surround, giving it the ability to produce low and mid frequencies with accuracy, and it also provides more durability that is highly needed, especially if it is always used for long periods and at high volume levels
Power Handling
It can handle a power output of 45 Watts RMS at 4 ohms and can go up to 225 Watts of peak power. It has a frequency response of 35 Hz up to 24 kHz and a sensitivity rate of 89 dB, allowing the speaker to produce an extensive full-range frequency response, which is perfect for all audio applications. It won't have any problem cranking up its volume level, as it won't easily get distorted.
- Diameter : 6x9 Inch
- Sensitivity : 89 dB
- Impedance : 4 Ohm
- Frequency Response : 35-24000 Hz
- Peak Power Handling : 450 Watts
- Design : 4 Way
- Top Mount Depth : 2-7/8 Inches
- Woofer Composition : Elastic polymer
- Tweeter Composition : Polyethylene terephthalate (PET)
- RMS Power Handling : 90 Watts
Features:
- 450 Watts Max Power (90 Watts Nominal)
- 18mm Tweeter and 11mm Super Tweeter
- 2-1/4" cellulose fiber cone midrange
- 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Specifications:
SYSTEM
- System Type: 4-way Coaxial
- Sound Pressure Level (Sensitivity): 89 dB (+- 1.5dB)
- Frequency Range: 35 Hz to 24 kHz
- Continuous Power Handling (RMS): 90 Watts
- Maximum Peak Power Handling: 450 Watts
- Nominal Impedance: 4 ohms
WOOFER
- Diameter: 6 x 9"
- Cone Material: Carbon and mica reinforced IMPP in moonstone gray
- Surround Material: Elastic polymer
- Magnet Material: Ferrite
- Magnet Weight: 11.3 oz
- Mounting Depth: 2-7/8"
TWEETER
- Type: Polyethylene terephthalate (PET) dome tweeter (x2)
- Diameter: 11 mm and 18 mm
CROSSOVER NETWORK
- Crossover Frequency: 3,600 Hz
- UPC: 884938409834
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
