Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

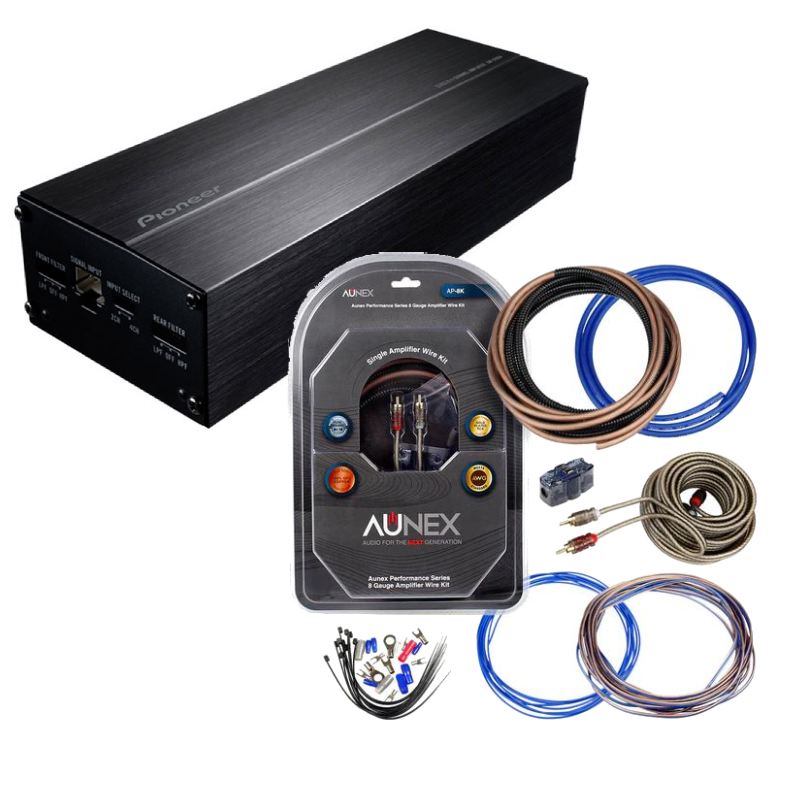

Pioneer GM-D1004-Bundle2 Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Pioneer GM-D1004
- •Aunex AP-8K
- •Owner's Manual

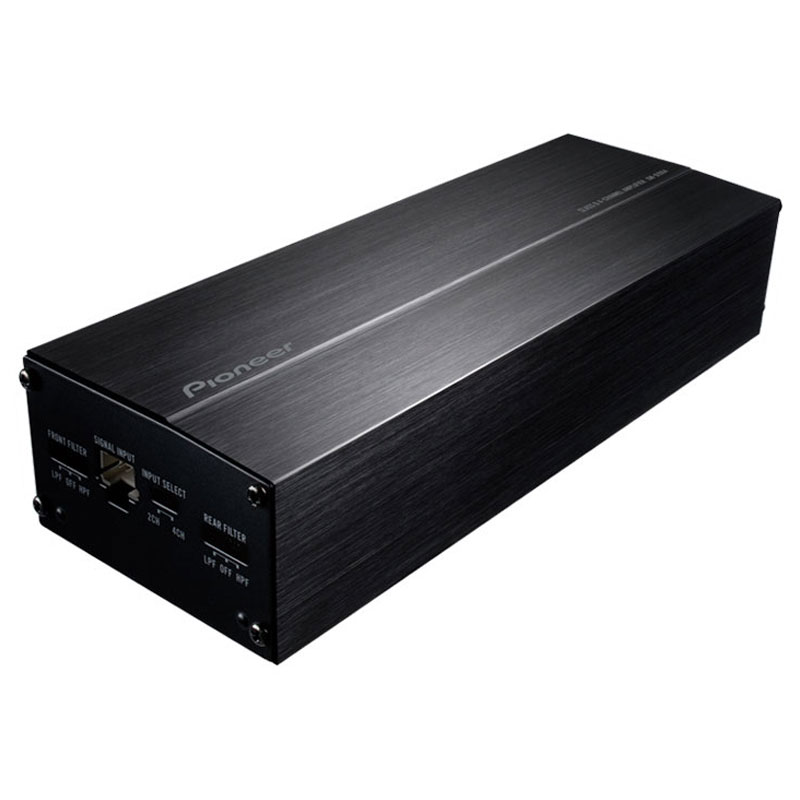

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
The Pioneer GM-D1004 is a compact and versatile amplifier that delivers powerful sound and easy installation. Designed for use in car audio systems, the GM-D1004 is a must-have for anyone looking to enhance their listening experience on the road. The GM-D1004 features a Class FD topology and can deliver up to 400 watts of maximum power. The amplifier is equipped with Pioneer's patented A/B channel architecture, which ensures high-fidelity sound reproduction and efficient power handling. Additionally, the GM-D1004 features a compact design that makes it easy to install in any car audio system

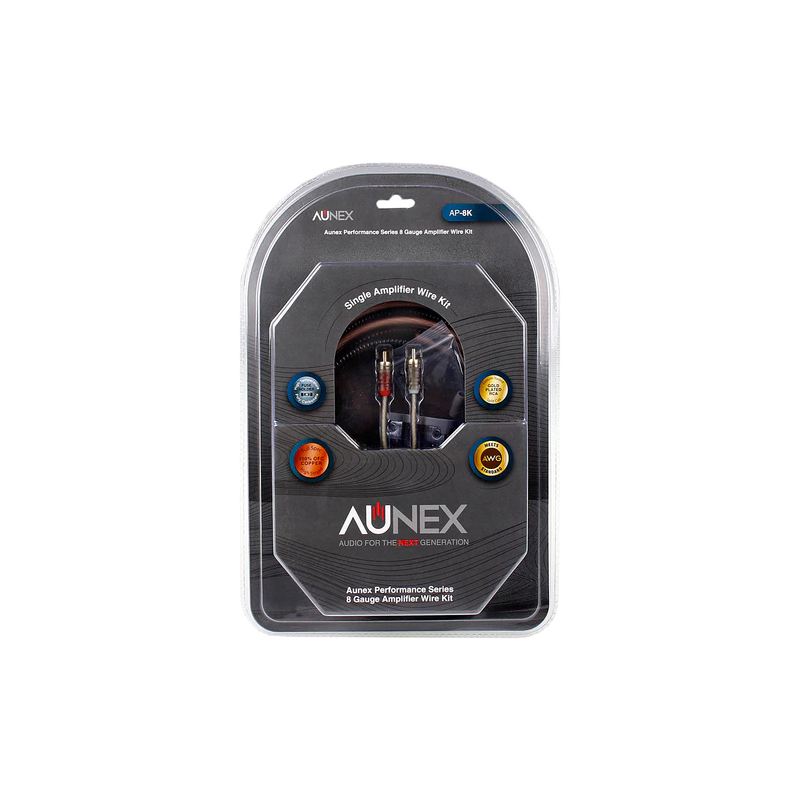

Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance. The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.
Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
Features:
- 400 Watts Max Power
- Variable High Pass and Low-Pass Filters
- Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
- CEA-2006 Compliant: Yes
PERFORMANCE:
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
- Bass Boost: 75 dB
- Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
- Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
- Crossover Network Channel Slope: -12db/oct (A/B Ch)
- Crossover Network Subwoofer Channel: 80 Hz
- Crossover Network Subwoofer Slope: -12 dB/octave
- Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
- Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
- Fuse Rating: 15 A
- Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
- RCA Input: 4-Channel
- Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD - Subwoofer: < 0.05% (1 kHz)
- THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch
AMPLIFIER FEATURES
- Bridgable: Yes
- Class: D
- Grounding System: Negative
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Terminal Type: Removable

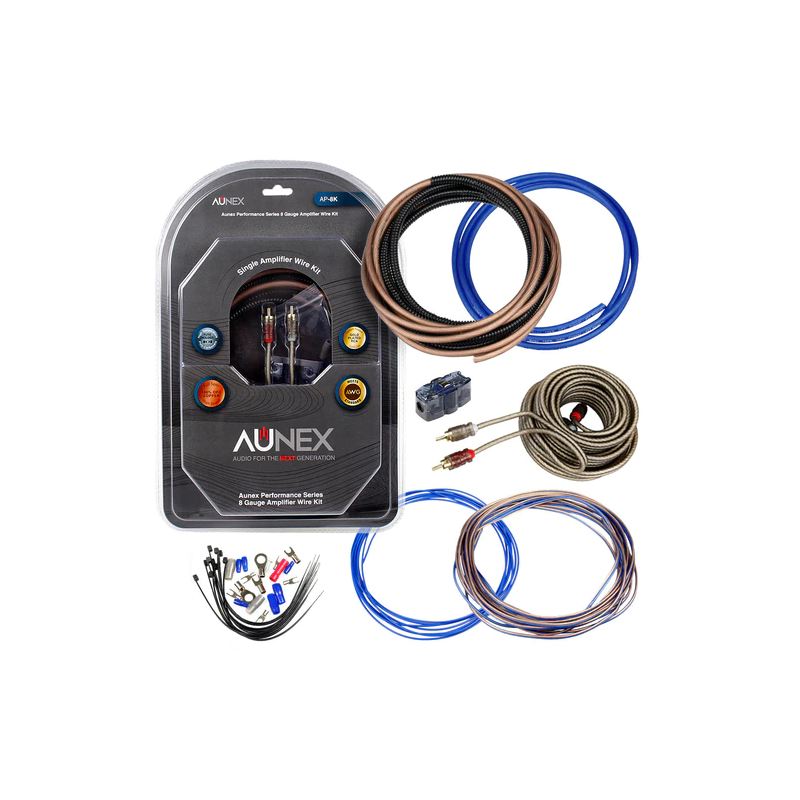

Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
Features:
- 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
- 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
- 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
- 17 Ft. 100% OFC Remote Cable — 74 Strands
- 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
- 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
- 4 - 8 Gauge Fuse Holder Rubber Adapter
- 10 - High-Temperature Wire Ties
- Firewall Grommet, Ring, Spade and Fork Terminals, and Self Tapping Screws Included
- UPC: 798418839809
- Weight: 29
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
