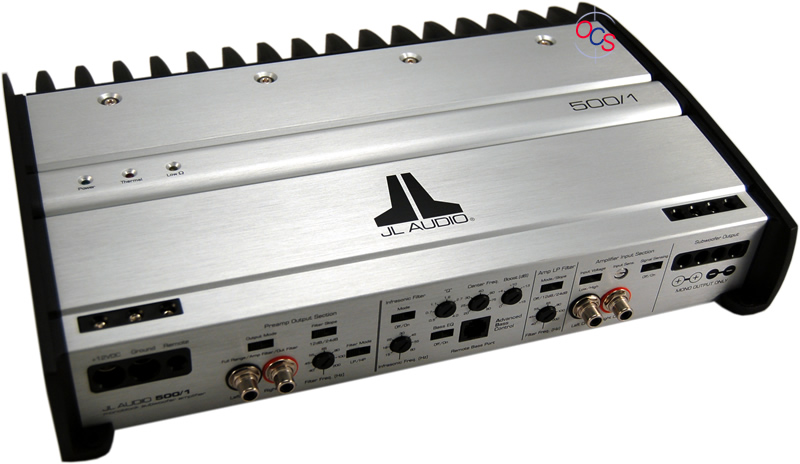

JL Audio :: 500-1 :: $349.00

JL Audio 500-1

Item# 11724

Class D Monoblock Subwoofer Amplifier


Sorry, this product is no longer available.
  • Rated Power: 500 W RMS @ 1.5 ohm-4 ohm (11V-14.5V)
  • THD at Rated Power: <0.05% @ 4 ohm
  • S/N Ratio*: >95dB below rated power
  • Frequency Response: 5 Hz - 500 Hz (+0, -1dB)
  • Damping Factor: >500 @ 4 ohm/50 Hz
  • Input Range: switchable from 200mV-2V RMS to 800mV-8V RMS
  • Dimensions: 13.4"L x 9.25"W x 2.36"H
  • Differential-Balanced Input Topology: (1 pair of inputs)
  • On-board Crossover: fully-variable (40-200 Hz), selectable-slope LP (12 or 24 dB per octave)
  • Preamp Output: 2-channel (independent active filter, parallel with amp filter or full-range)
  • Bass EQ: variable boost up to 15dB
  • Infrasonic Filter: Fully-Variable 24dB/octave from 15-60 Hz
  • Signal-Sensing Turn-On: permits operation without remote lead
  • Dual mono speaker output connections: accept up to 8ga. wire
  • +12V and Ground connections: accept up to 4ga. Wire
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
    What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

    Do you own this product?  Write a review

       shaun From north Carolina
    i got this amp jl audio 500/1 pushing my 12inch polk audio db1222 and man its crazy just hooked it up today i upgraded from a crunch 1000 watt amp bridged and they hit hard but they hit harder now not as hard as i thought but they hit really hard i would recommend to anyone its a reason why they are number 1 in car audio

       Jae From Los Angeles
    Spectacular amp, I'm using it to run a Kicker Solobaric L7 12" sub in a sealed enclosure and it is a huge improvement over my Rockford Fosgate amp that was bridged at 750rms. The bass hits much harder and cleaner, you absolutely cannot go wrong with JL Audio amps!

       juinorblue From Michigan
    i have this amp hooked up in a 92 lumina with a jl triple 12w1v2 8 ohm box wired in series with a final ohm load of 2.7 ohms (jl specs) and this thing makes things rattle real well. it pushes those twelve like you wouldn't believe. i almost bought the 1800d 2 channel but so, so glad i didn't. will never own anything else again. it'll never blow!
