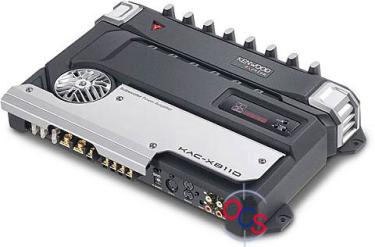

Kenwood Excelon  KAC-X811D

1600 Watts Class D Mono Power Amplifier

Item #14030

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Number of Channels : 1

FEATURES


  • Maximum Output Power: 1600 Watts x 1
  • Power Output at 1 Ohm, at 14.4V (100Hz, 1.0% THD): 1,000 Watts x 1
  • Power Output at 2 Ohms, at 12V (100Hz, 0.5% THD): 600 Watts x 1
  • Power Output at 2 Ohms, at 14.4V (1kHz, 0.5% THD): 800 Watts x 1
  • Power Output at 4 Ohms, at 12V (20Hz - 200Hz, 0.5% THD): 300 Watts x 1
  • Power Output at 4 Ohms, at 14.4V (20Hz - 200Hz, 0.5% THD): 400 Watts x 1
  • Power Output at 4 Ohms, at 14.4V (20Hz-20kHz, 0.05% THD): 400 Watts x 1
  • Dynamic Power: 566 Watts
  • Output Regulation: Under 0.2dB (4 ohms)
  • R.M.S. Power Output (1-Ohm/1-Channel): 1016 Watts (1.0% THD+N)
  • R.M.S. Power Output (2-Ohms/1-Channel): 919 Watts (1.0% THD+N)
  • R.M.S. Power Output (4-Ohms/1-Channel): 533 Watts (1.0% THD+N)
  • Signal-to-Noise Ratio: 74dB (4 ohms)
  • Signal-to-Noise Ratio (Bypass): 74dB (4 ohms)
  • 5-Line Input for A.M.S. Control (from Receiver)
  • A.M.S. Amplifier Management System
  • Balanced Isolation Circuit
  • Bass EQ Frequency Control: 60Hz/80Hz/100Hz/200Hz
  • Bass EQ Level Control: -15dB - +15dB
  • Bass Extension
  • Bass Q Factor Control: 1.00/1.25/1.50/2.00
  • Class D Operation
  • Phase Switch: 0 Degrees/180 Degrees, Selectable
  • Quiet Turn-On
  • RCA Audio Inputs: Gold-Plated
  • RCA Line Outputs: Gold-Plated
  • S-Video Input/Output for A.M.S. Control (Amp to Amp)
  • Selectable Infrasonic Filter: Off/15/25Hz, 24dB per Octave
  • Speaker Connectors: Gold-Plated, Large Screw-Type
  • Speaker Relay Protection
  • Variable Band Reject Filter: 40Hz - 200Hz, -6dB/-12dB (Selectable)
  • Variable Low-Pass Electronic Crossover: 50Hz - 200Hz, 24dB per Octave
  • LCD Display: Voltage/Current/Temp/Cooling Fan Speed/A.M.S. Adjustment Value
  • 1-Ohm Stable
  • Cooling Fan: 1 (2-Speed)
  • Copper-Shielded EE Core Transformer
  • Glass Epoxy Printed Circuit Board
  • Large Secondary Capacitors
  • Large Toroidal Noise Suppression Filter
  • Microprocessor-Controlled Operation
  • Power Input Terminals: Gold-Plated, Large Screw-Type
  • Power MOSFET Switching Power Supply
  • Power Supply Primary Stage Buss Bars
  • 15-3/16"W x 2-7/16"H x 10-7/16"D
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • This amp far exceeded my expectations when I hooked it up. Keeps the juice flowing and the music loud and clear. Has awesome features and the AMS is great. I have it hooked to three infinity kappa perfect 10's and the quality and value is amazing. Don't forget your capacitors for this one.

    Brad
    8/13/2004

  • amp sounds and looks cool. I like the amp a lot. i got two volfenhag 12 on it with a three fared cap. And it sounds great

    chris
    9/22/2004

  • This amp will give you about 1200 watts at 1 ohm it is underrated and sounds great, best amp I have had in a long time, and if you have a excelon deck you just instal the amp and run it with your deck.

    danny
    1/10/2005

  • wow,wow,wow...the best amp ever..even if you don't have a good speaker, buy this..the last amp you'll ever want

    Tom
    3/10/2005

  • This is by far the best amp i have ever had. I have 2, each one running 2 audiobahn 12 fameQ subs in my suburban. If you have 1 or more caps the lights wont dim. The kac x811d is very easy to use and is almost too powerfull. The subs i have are rated at 2200 max and i have four. They are POUNDING. The fans on the amp suck the hot air out rather than pushing air in which is much more effective than audiobahn amps which do the opposite/ All i have to say is dont turn it up too loud or you might set off car alarms.

    Bass Blaster Joe
    7/26/2005

  • I like the amp a lot exceeded my expectations it is underrated and sounds great I have 2 Premier 10" SPL 1500 And it sounds great

    Eric
    8/9/2005

  • im runnin 3 10" mtx 5500 on it,(each sub about 600 watts peak), and they pound! one of my buddies with 2 12" p3's told me my system was wayy too loud. i really like how the amp has the a.m.s. the red lcd display looks very good and clean. definately a good buy

    jon
    8/22/2005

  • great amp i realy like the fact that most of the opcions are managed with the lcd screen this is also bad cause everytime the amp looses current the settings go back to factory also it works great when you are runing it at 4 ohm i put in a third sub and hooked it up at 1 ohm and everything seemed great about a week later it fried , great amp but dont set it up with a 1 ohm load it will fry it gets extreamley hot so i tosed it and put in a real amp i put in a hifonics titan much much better amp

    jonathan
    9/2/2005

  • kenwood is the best brand in history, kenwood is what i got in my 2000 denali, i got it hooked up with a 13inch kenwood sub (kfc-xw1300dvc) all i got to say is if you want bass get KENWOOD

    ERIC
    9/3/2005

  • My Bother has 4 Kenwood KFC-W2509 @ 1 ohm in his truck and this amp makes his roof flex the display is awesome

    the man
    10/6/2005

  • I really like this amp a lot. I hooked it up to KDC-X889 head unit and the sub is one 12" Alpine SWR-1242D. The bass is TIGHT AND CLEAN! Sounds amazing!

    Noe
    10/18/2005

  • This is a sick amp. This is sweet package for the money. I have this amp pushing an Alpine 1ohm 12 inch sub rated at 1200 watts and its a real massage therapy session when i turn up the volume. Deals like this aren't often and i suspect it is because Kenwood just released its Anniversy Edition line.

    Andre
    10/31/2005

  • This is a very powerfl amp. I have it driving a 12" Kicker SoloBarak L7 (2ohm), and it is paired with a Kenwood KAC-X541 4ch amp for my Kicker SS series components and midbass drivers. This amp has some serious power, more than enough to make my L7 pound! I drive a 3G Eclipse, and with a good sub box, 1 sub is all you need. Only downfall is that it overheats, but I like that it shuts down before it fries. Awsome Deal!

    Ross
    11/25/2005

  • I have this amp pushing two 10" Kicker Solo L5's in a vented box at 2ohm's with about 2/3 gain and it hits hard! I was worried at first by the small size of the amp but it's powerful and stays cool all day.. Only thing I wish this had is there is no remote but oh well, also I'd definatly recommend a capacitor for this beast! If for some crazy reason u need more power u can also link up multiple amps to this beast as well.

    Scuba Steve
    12/15/2005
