Technical Specification |
|
|
Features |

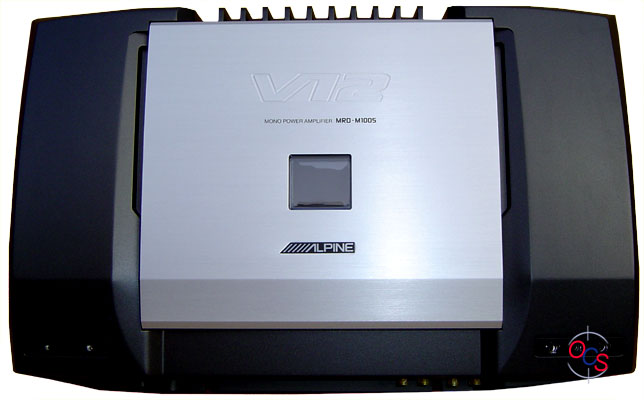

- Mono subwoofer car amplifier
- 500W x 1 RMS (4ohm, 12.0V, 1% THD+N)
- 700W x 1 RMS (2ohm, 12.0V, 1% THD+N)
- 700W x 1 RMS (4ohm, 14.4V, 1% THD+N)
- 1.000W x 1 RMS (2ohm, 14.4V, 1% THD+N)
- Max. 1.800W x 1
- S/N Ratio 90dBA
- Internal, variable-speed cooling fan
- Amp Link for single-cable hookup to compatible Alpine receivers
- STAR Topology for cleaner sound
- Bass Engine® features:
- Low-pass digital filter, 30-200 Hz, with a selectable 12 or 24 dB/octave slope
- Selectable subsonic filter (off, 15Hz, or 30 Hz)
- Parametric EQ variable from 30-160 Hz, ±12 dB
- Bass Compensator enhances low-end definition
- Top-mounted digital control center with cover
- CEA-2006 Compliant
- MOSFET power supply and output stages
- Preamp outputs
- Time correction 0-10 milliseconds in 0.1ms steps
- Phase adjustment 0-180
- Turn-on delay
- Requires 4-gauge power and ground leads and 80 amp fuse
- Extra-large terminals
- Fuse rating: 20A x 4
- Dimensions: 13"W x 2-5/16"H x 8-11/16"D
| Warranty: 1 Year Onlinecarstereo.com warranty. |
|
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
|
|
Customer Reviews - Alpine MRD-M1005 |
Deo From Guyana |
| This amp is a power house and it's a good buy |
|
Baldev From Long Island, New York |
| I have this amp hooked upto 2 12" type R's in a q logic ported box...the base quality is increddibleee never distorts always cleaan and smooth...besides the quality the bass is tremendous my amp was rated at 1942 max watts and i could here it from more than 5 blocks away GREAT AMP GREAT PRICE |
|
$anz From Bangalore ,India |
| It’s definitely great ampz, I bought 2 amps MRD-M1005 , one was rated at 1082 watts and the other was 1062 pushing 2 JBL GTi Series W15GTi subwoofer connected to 2ohms. Sounds clear & great with hip-hop , R& B. Alpine is simply the best money can buy.
|
|
