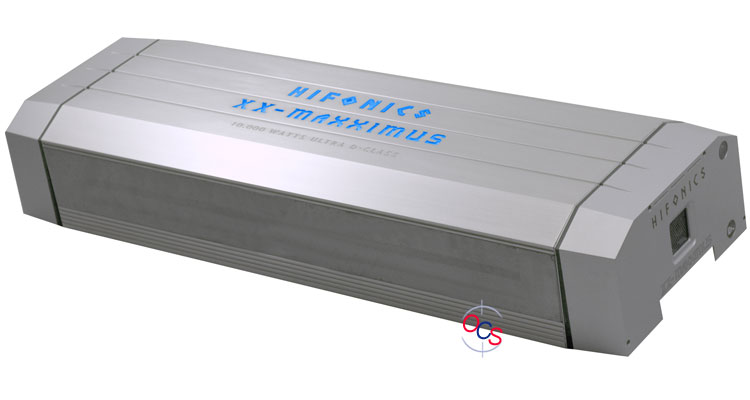

Hifonics  XX-Maxximus

10000 Watts RMS Dual Mono-Block Ultra D-Class Amplifier

Item #16720

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Number of Channels : 1

FEATURES


  • 10-kilo Watts /1 x 10,000-Watts RMS @ 2-Ohm
  • 2000 watts RMS x 2 channels into 4 Ohms (stereo)
  • 3500 watts RMS x 2 channels into 2 Ohms (stereo)
  • 5000 watts RMS x 2 channels into 1 Ohms (stereo)
  • 7000 watts RMS x 1 channel into 4 Ohms (bridged)
  • 10000 watts RMS x 1 channel into 2 Ohms (bridged)
  • Suggested In-Line Fuse Rating 1100 Amps
  • Frequency Response 2Hz - 70 K Hz (-3dB)
  • Damping >400
  • Signal to Noise Ratio >98 dB
  • THD + Noise 0.1%
  • Variable Input Level 0.2V - 9V (RCA/Unbalanced)
  • Variable Input Level 0.4V - 18V (Mini DIN Balanced)
  • Dimensions 11.20 W X 5.50" H X 28" L (Endcaps + 5.32")
  • 2/1-Ohm Speaker Impedance Capable with Quad Turbo Power Supply Torroids in a PWM MOSFET Power Supply Design.
  • Rock Stable Ultra-Fi™ MOSFET Outputs
  • Excessive Cone Excursions Controlled by Subsonic Filter
  • Wide Voltage Range Variable
  • Input Level Controls
  • Adjustable Crossovers For Better Subwoofer Control
  • High Damping Factor For Precise Transient Response
  • Phase Shift Correction For Asymmetrical Speaker to Ear Distances
  • Balanced Line Input, for Optional MMBLD-1 Balanced Line Driver
  • Highly Efficient Ultra D-Class™ Amplifier Topography
  • Low Impedance Stability
  • Mono-Block Capable for Subwoofer Operation
  • Versa-Cross™ Crossover Adjusts Low-Pass, Subsonic, Phase & Q
  • Blue Illuminated Logo
  • XXR-1 Remote Bass Control Included
  • High-Speed Ultra-Fi™ MOSFET Output Devices
  • RJ45 IN/Out Controls 2-Amps With One Remote Bass Control
  • RCA Line-Outs for Multiple Amplifier Systems
  • Soft Start Prevents Turn-on Thumps
  • Variable - 24dB Subsonic Filter (10Hz to 50Hz)
  • Adjustable Low-Pass (35Hz to 250Hz)
  • Variable Bass Boost (+ 18dB)
  • Bass EQ Variable 30Hz to 60Hz
  • Q-Control (Wide to Narrow Bandwidth)
  • Phase Shift Control Adjusts, 0 to 180
  • Balanced Line Input (Use optional MMBLD-1 Line Driver)
  • Protection System Diagnostics
  • Overload Protection
  • Thermal Over-Temp Protection
  • Speaker Short Circuit Protection
  • Amplifier Endcaps Included
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • i am so dissatisfied, i have this in one of my show car with the suggested power supply and was running 4 jl w7. the sound quality was so distorted and the amp production began to weaken. i returned this amp with rage... i will just stick with my JL.

    chris aleho
    9/17/2007

  • This amp is amazing. I don't know what this previous reviewer was running, but it probably wasn't right. PAS Mag did a review on this amp and it performed amazing. It not only was underrated for power, but its distortion was amazingly low. It requires big power, so be prepared to satisfy this beast.

    Tom
    9/26/2007

  • I agree with the reveiw below this, I don't personally have this amp but a buddy of mine has one in his blazer pushing 4 MA Audio HK15x2s. There is no distortion at all, this amp is amazing, I've heard that system at full tilt and it made my eyes water(not joking) I seriously had a ringing in my ears for a good 5 hours..

    Big Ben
    10/23/2007

  • I HAVE TWO OF THESE AMPS PUSHING 2 DDX15" 99SERIES IN A WALL, WITH 36 STINGER 2200BATT CAPS BATTEREYS, IN A 08 F250 CREWCAB PICKUP AND YOU TALKING ABOUT POWER, CANT WAIT UNTIL DB DRAG COMES AROUND BECAUSE I GOT SOMETHING FOR THEM LOL

    CHRIS
    8/27/2008

  • to the dissatisfied retard: JL doesnt make a 10000 RMS amp bud.. AND JL w7s are ment to be in sets of 3.. just so you know, you sound very ignorant.

    kl
    10/22/2008

  • I WENT TO A BASS COMPETITION AND I HEARD THIS ON 4 15'S RE AUDIO, I FORGET WHICH ONES. THIS IS CRAZY LOUD, IT HAD MY HEAD HURTIN FOR LIKE 8 HOURS AND I THINK MY NOSE STARTED TO BLEED

    JOSE
    11/3/2008

  • This is the TRUE King-Kong amp of all amps and I'm a JL Audio fan to the heart. If JL Audio made an amp this big and powerful they'll be the best. But until then Hifonics XX-Maxximus is and will be the true King-Kong of amps.

    melvin wright
    11/16/2008

  • To Chris you are ignorant this amp isnt stable at the ohm a jl w7 calls for... no wonder it didnt work. do your hw next time before you drp 3500 on an amp

    Tom
    11/29/2008

  • to the ignorant that replied to the other ignorant..... jl audio were not ment to be use in sets of 3 jl audio slash series amps cut off in loads under 1.5 ohms...... 3 jl audio depending on size of woofers (12 inch w7 run at 3 ohms and 13.5 run at 1.5 ohms) 3 12 w7 would give u a resistance load of .75 ohms which will cut off any jl audio amp unless u have seperate amps for each woofer which is a must for the w7 in order to get your bang for the buck

    East Chicago 187
    12/3/2008

  • i have two of these amps im my 87 suburban pushing 6 soundstream xxx 15" subs and let me tell ya, It Bumps its a comp car but this shit is LOUD. i hit 165.3 db, yea its no joke

    john bloom
    12/7/2008

  • i have this amp hooked up to two 15 in holeeS earthquake subs. At my last competition i hit 185.693. also burning out the subs almost directly after the 15 sec run time. This is no baby amp. dont buy this unless you go to comps.

    Will Ringfeild
    4/3/2009

  • This is a great amp. But I would like to state 2 facts here, 4 JL W7's won't wire up to this amp correctly. So no wonder that guy didn't do well. Also the no one has hit over a 184 dB. Its clear it wasn't on a Term-Lab the most accurate SPL meter in the world. If it was you would probably be surprise to what your actually hitting. The loudest dB read was by Pioneer Premier and it was a 183.7db

    Ryan
    5/14/2009

  • I Have 3 of these bad boys hooked up to 8 "15 L7's in my new suburban... WOW. Noone comes close to pushing as much bass as I do. And I bet noone on this site has anything close to mine. True Story

    Adam
    8/13/2009

  • i have this amp on 4-18's in my taho the subs are FI btl series rated at 2000 wats rms i'm running it at 2ohms and 2ch so each subs getting 2500watts each WOW it beats my subs so hard you cant breath in it the amp is awesome

    daddy pimp stick
    8/21/2009

  • i got 4 of these monsters on 8 re 18's. its in a 2004 civic it hit 220 dbs and blew all my windows out of my neighbors house... I mean come on guys lets lie some more....185 dbs lol

    big bass boy
    11/11/2009

  • bought 10 of these, hooked em up to 50 18" fi btl. hit like 940 db!!! no joke

    brent
    11/24/2009
