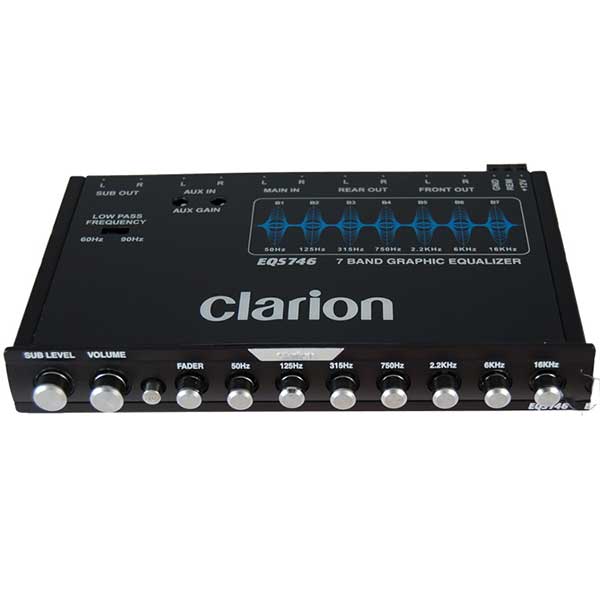

Clarion EQS746 Item# 16889
7-Band Rotary Equalizer
Clarion :: EQS746 :: $58.00
MSRP: $149.99
You Save: $91.99 (61%)
Our Price: $58.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: 4.5 Star Rating
Free Shipping On Items Over $99
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

  • 7-Band Rotary Equalizer
  • 12 dB Boost/Cut at 50 Hz, 125 Hz, 345 Hz, 750 Hz, 2.2 KHz, 6 KHz, and 16 kHz
  • Auxiliary Input with Source Select Switch
  • Adjustable Aux Input Sensitivity
  • Subwoofer Output Level Control
  • Gold-Plated Preamp Inputs and Outputs
  • Rotary Volume Control and Fader
  • 6-Channel RCA Outputs
  • Selectable 60/90 Hz Low-Pass Crossover
  • Crossover Slope: 12 dB/octave
  • Maximum Output Level: 7V RMS
  • Input Sensitivity: 50mV–4V RMS
  • Signal-To-Noise Ratio (S/N): 105 dB
  • Frequency Response: 10-50,000 Hz
  • Total Harmonic Distortion (THD): 0.005 %
  • Input Impedance: 10K Ohms
  • Output Impedance: 50K Ohms
  • Stereo Separation: 82 dB @ 1 kHz
  • Dimensions: 7" W x 1" H x 4" D
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.

    Customer Reviews

    4 Star Rating Den From Pennsylvania

    I've had this EQ for a while now, have had no quality issues with it. The knobs are kind of small, but then again, it's a 1/2 din sized EQ. I've run a few different setups, including Diamond Audio D6 components and subs, Alpine Type R coaxes, Alphasonik Components, an eclipse alum 12" sub, and as many as three seperate amplifiers. This really lets you"dial in" the music to your liking. It gives you WAY more flexiability than the typical 3 band parametric you get with most head units. The power plug is a little small, but manageable. The additional voltage and sub out adjustment makes a big difference for your gains on your amps. It's much easier to balance the levels and get much higher efficiency out of your amplifier(s). For the price, this is a really nice upgrade for any system. Plus the sub out 'kill' button is great if you don't need the bass (grandma, kids, etc...) in the car for the time being.


    4.5 Star Rating James From Pittsburgh

    This EQ is a must have for any bass head! Installation was a breeze. I am well impressed with the clarity in the mids and highs.... the sub control feature is awsome expecially when listening to different types of music IE..... RnB.... hiphop.... Dubstep... ex..... The only bad thing i can say about this device is.... Be very gental with the Power, Ground, and Remote ports..... Fresh out the box the screws didnt want to turn and i felt like they were about to snap off... but they didnt and all is well!


    3 Star Rating mike From mass

    save your money. not worth it
