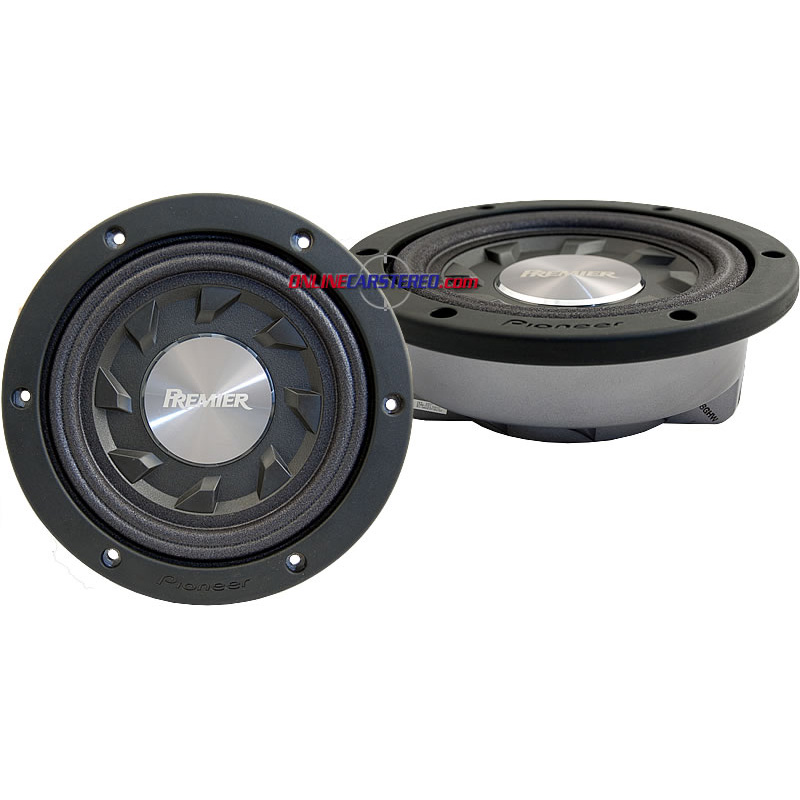

Pioneer  TS-SW841D

8" 500W 4-Ohm Shallow Mount Subwoofer

Item #18773

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 8 Inch
  • Low Frequency Response : 30 Hz
  • High Frequency Response : 1500 Hz
  • Sensitivity : 85 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 500 Watts

FEATURES


  • Woofer Cone Material IMPP Composite Cone
  • Surround 3-Layer Fiber Woven Radial
  • Voice Coil 4 Layer, Long Voice Coil
  • Voice Coil Bobbin Glass Cloth
  • Projected Pole Yoke with Vented Pole
  • Magnet Construction Strontium
  • Basket Design Cast Aluminum Basket with Fin-Shaped Design
  • Gasket Rubber
  • Wire Terminals Spring Compression
  • Recommended Enclosure: 0.15-0.5Cubic Feet
  • Priced per speaker
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • This was the only sub I could get to fit under the FRONT seat of my 07 Nissan Frontier. I'm running it in a .23cuft custom (polly stuffed) box and powering it with a 200 W profile amp. It add's ALLOT of depth to the low end of my (mostly accoustic, country and rock)music. Kettle/kick drums and base lines I didn't even hear before are now obvious and deciently clear. Well worth the $ and a great addition if your tight on space and limited on options. It's not a real thumper (although you can get a bit out of it.) but does get you bumping to certain tunes if you crank up the input. my only regret is that I wish I had room for the 10" version as it has flatter low end response. hth

    Dave
    6/23/2008

  • As subwoofers these an't that great but if used as midbass woofers much better2 in my doors(sealed/.30 cubic inche enclosures) and run them from 30HZ to 100HZ(4-OHM load) using 100-watts each and they do a good job of keeping the bass up front.OH!If you mount them like I did make sure you use lots of sound deaden materal on the doors or they will rattle.

    dale dribble
    11/8/2008

  • I wish I had room for a 10 or a deeper 8 but in my truck space is limited. I was surprised at this sub, it has great low end response. Balances everything out well.

    Zac
    11/15/2008

  • I have one of these in my Lexus SC300 to replace the factory 8" sub with a 5-channel Crunch amp and this sub REALLY bumps for its size. I installed it thinking that it wouldn't really bump that much, but it seriously shakes the hell out of my car! I have everything sound deadened so it sounds even better when this sub hits! Don't let this sub's 8" size fool you, its got some serious punch to it for it's little size.

    Jim
    4/23/2012

  • Great out of the Box. Tight truck shaker. Installed 2 ea 8 inch Subs with a alpine 5 channel AMP Sub out was 250 watts @ 4 ohms . should not have had a problem . 120 days later theys subs went down for the count. Think I stay away from Pioneer products.

    Rockhead
    7/14/2013

  • Worked nice for what it is but takes a lot if amperage to push small speaker to make it really get its true sounding potential

    Ken
    11/17/2014

  • Works great best value for the money!

    Sam
    11/19/2014
