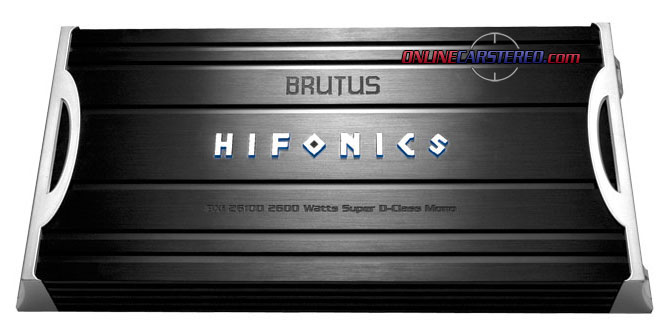

Brutus BXI amplifiers are recognized the world over as some of the best subwoofer amplifiers in
their class. For SPL, the Super D-Class® featured in Brutus amps is certain to satisfy.
Hifonics® has perfected Super D-Class digital chip-set technology to provide an extremely
efficient, low temperature, high amplification system that others only dream about. The result
is a smooth digital to analog conversion with low distortion, even at high listening levels.
- Low Frequency Response : 35 Hz
- High Frequency Response : 250 Hz
- Number of Channels : 1
- Built In Crossovers : Yes
- RMS Power Range : 800-2600 Watts
- RMS Power Output: 1 x 850 W @ 4 Ohms
- RMS Power Output: 1 x 1700 W @ 2 Ohms
- RMS Power Output: 1 x 2600 W @ 1 Ohm
- Slow Un-Mute Turn-On (soft start)
- Protection: DC, Speaker Short, Thermal, Overload
- Power Supply MOSFET
- Audio Output MOSFET
- Dampening Factor: >250
- Signal To Noise Ratio (A-weighted): >95dB
- Variable Input Level Control (unbalanced): 0.2V - 9V
- Input Level Control (balanced): 0.04V - 18V
- Input Impedance (un-balanced): 47k-Ohm
- Input Impedance (balanced): 20k-Ohm
- Power / Diagnostic L.E.D.
- Variable Low Pass Filter / 24dB: 35Hz - 250Hz
- Variable Subsonic Filter / 24dB: 15Hz - 35Hz
- Variable Bass EQ: 0dB - +10dB
- Phase Shift (0 - +180 degrees)
- Unbalanced Inputs (RCA)
- Balanced Inputs (DIN)
- Line Output (RCA)
- Speaker Terminals (molded): 12ga
- Power/Ground Terminals (molded): 0ga
- Remote Bass Module: HFR-3
- Parametric bass EQ with 45Hz bass boost and variable control from 0db to 10db
- Variable Low Pass, Subsonic Filter, Phase Shift and Level Control
- Balanced line input for MX accessories and line drivers
- Bass Remote included
- Built-In System Diagnostics protects from short circuits, over load, thermal overheat and
DC Offset.
- Link & Sync™ feature allows the mono amps to be strapped or bridged via master/slave
configuration
- Dimensions 17.72" x 2.52" x 9.45"
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
this amp is powerful I only have it pushing 1 subwoofer and the sub is 1600 watts rMS. the amp. dont get hot and it was running for 1 hour
-
I have one of these pushing 6 15" Soudstream PW-15s in my cadillac fleetwood and let me just say...WOW. It shakes everything!!! One of the best amps u can buy for the money. Doesnt get too hot, never clips, and is very compact for the power it produces. I recomend getting a second battery, though, as it draws a lot of power.
-
I got the 2610D pushing two kicker L-7 Man that amp has power. That bass is solid, Clear, Try it it's worth it.
-
Im hooked on this amp!!! I just bought another Cadi, a '07 DTS as my daily driver and i decided to throw 3 12 L7s (each dual 2ohms) with this amp and it powers them perfectly!!! It actually hits close to my 6 15 cvr's in the fleetwood!!!! Anybody looking for an inexpensive, yet quality and powerful amplifier, look no further. Hifonics is your best choice!!!!
-
i own one of these monster driving with two L7kickers it hit so hard my neighbour complain every thing in there house tremble
-
i bought this one and it turns off when i turn up the bass, and it doesnt even get loud. i have it connected to 2 12' pioneer premiers. Whats wrong? is it the way the speakers are connected (ohms), or could it be that i need a capacitor? Somebody help me
-
Excellent amp here it wont put out a true 2600 unless you have the voltage but it runs cool and the light look killer.
-
I have a brutus 2600 with the epic center and a farad cap, the subs were two cvr's in a eldorado but they cant know where near handle the amp so I sold the speakers and i'm looking for two better 15's to put on two brutus 2600's linked together, I just recently purchased my second one off of craigslist, they gone feel me coming. I'm thinking 2 15" CerwinVega Strokers or alphasonik 15's psw915 2500 w/rms, any suggestions. Putting them in my new tahoe. Bump, bump, I really like these amps
-
317deep, start with checkin all the fuses including the battery cable fuse. if those are good, take your speakers out and make sure they're wired right
-
Ymtg go with two fi btl's if you never heard of em look em up ficaraudio I have one on the 2600 I don't have words to describe it you have to see it to believe it YouTube " 15" fi btl fully loaded" check it out
-
Great amp...
-
this amp is a monster i got it slamming 2 Type R 15s in my saturn easy installation also since the battery is in the trunk only need 2 ft of 0 guage wiring a 5 farad capacitor and it SLAMS them 15s im not even turned up much on the settings on this thing neiter. It running at 1 0hm
-
This amp is a beast.g Gt it hoomed up to 4 pioneer 12" subs and that amp pounds. Cracked the face of two of the 12's. I have the music load for hours, ot never gets hot. Hifonics all the way. If you get this am,p your gonna need a high output alt and a battery
