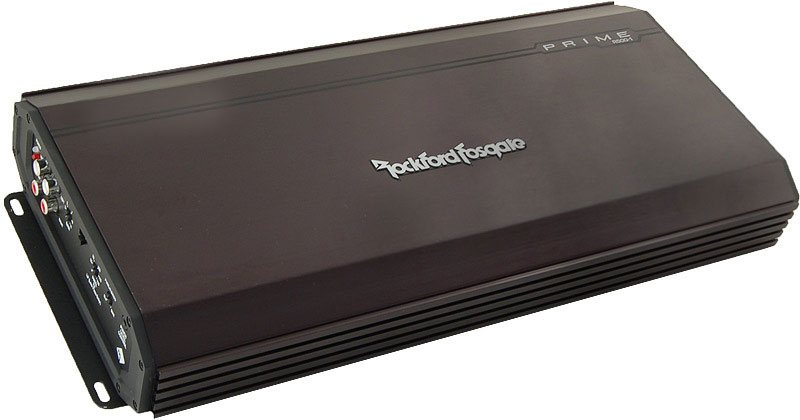

Rockford Fosgate R500-1 Item# 21398
500W RMS Mono Block Prime Series Car Amplifier
Rockford Fosgate :: R500-1 :: $139.00
MSRP: $269.99
Regular Price: $155.00
You Save: $130.99 (48%)    Hot Deal
Our Price: $139.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: 4 Star Rating
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

Power Output
  • 320 Watts RMS x 1 @ 4-Ohms
  • 500 Watts RMS x 1 @ 2-Ohms
General Specifications
  • Efficiency (average): 67% @ 4-Ohm
  • 58% @ 2-Ohm
  • Low Pass (LP): 40Hz-130Hz @ 12dB/octave Butterworth
  • Tone Controls - Punch Bass: 0dB to +12dB @ 45Hz
  • Signal Input - Low Level: 1 RCA pair
  • Signal Output - Low Level: 1 RCA pair
  • Power Input Connector: Screw terminal barrier strip
  • Power Wire Gauge: 4 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Speaker Wire Gauge: 8 AWG
  • Heat Sink Type: Extruded Aluminum
  • Cooling Convection
  • Remote Controls: Punch Level Control (when connected, is linked to "gain control" to provide remote output level)
  • Visual Indicators: Power/Protect
  • Circuit Topology Class: Class A/B
  • Frequency Response: 20Hz to 250Hz +/-1dB
  • Dimensions (HxWxL): 2.40 x 7.67 x 16.65
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.

    Customer Reviews

    3 Star Rating sam From stl

    Bought this amplifier and recieved it today. At 2 ohms for 10-15min it gets really warm and after 30min you can cook eggs on it and can barely touch it. good SQ and response though. Good thing it's installed in my house so i can put fans on it but besides that great price. disapointed in Rockford's Prime series though.


    5 Star Rating Sean Smith From Oscoda, MI

    I have one of these amps hooked up to 2 12" Rockford Fosgate subs in a ported box. It pounds like I spent a lot of money, but i didn't. Couldn't beat the price either. I recommend this amp to everyone. You don't need to turn the gain up very high, and the Hz frequency control is great too. So all in all I really enjoy this amp, and I think you will to.


    4.5 Star Rating Sean From Oscoda, MI

    I have one hooked up to 2 12" Rockford Fosgate 300 watt subs in a ported box. It sounds great. I recommend this amp for those who want great sound for cheap price.
