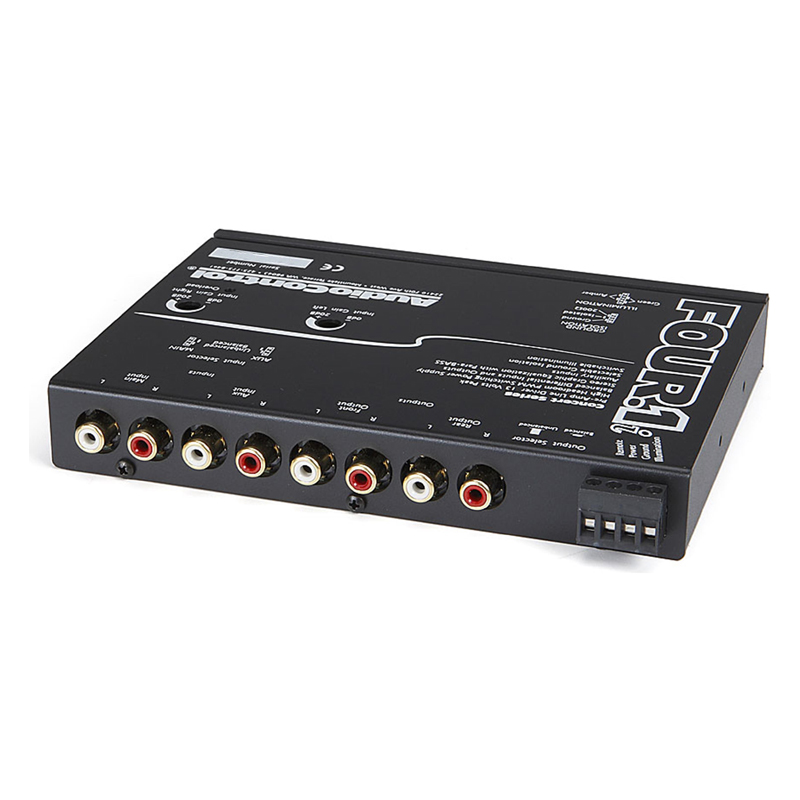

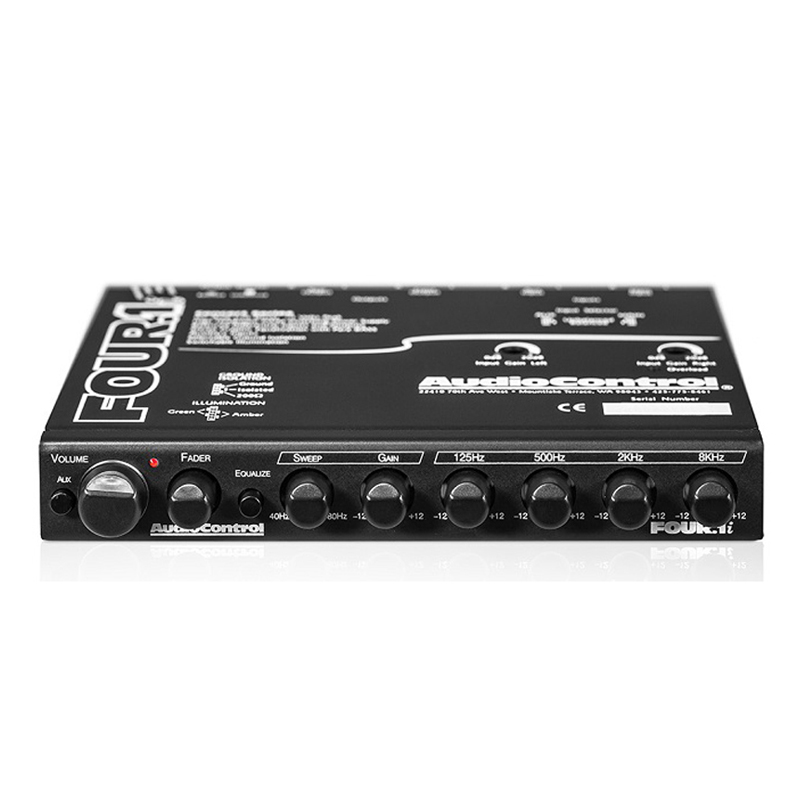

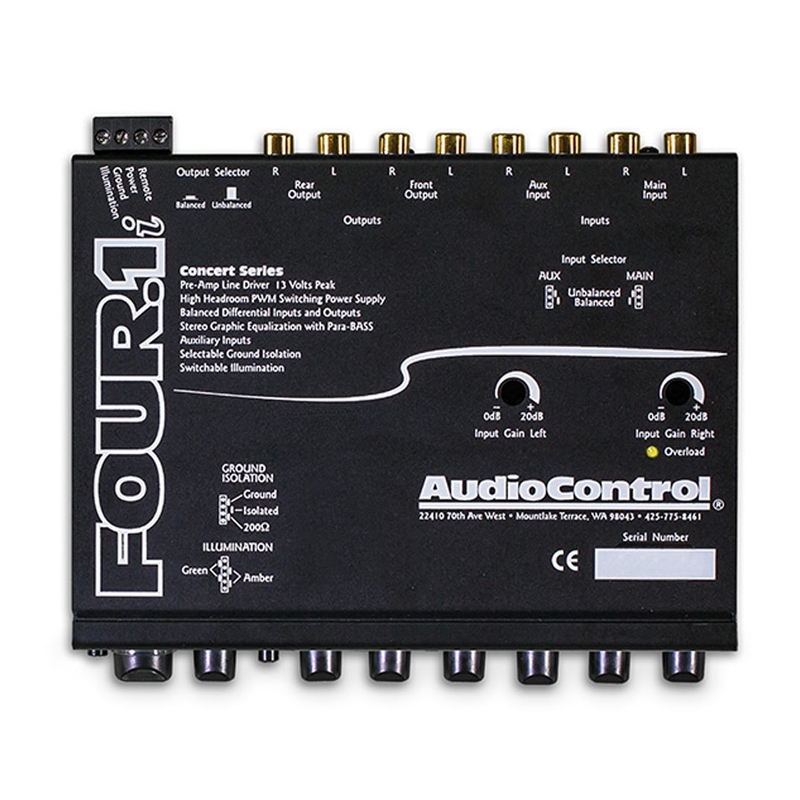

The FOUR.1i is an in-dash equalizer with aux inputs. It features a 4+1 band stereo equalizer with ParaBASS. A 13 volt peak preamp line driver provides a smooth performance. The two channel preamp input come built into this equalizer. It has an Independent front, rear and subwoofer out. The 2-way equalizer provides maximum performance. Front and rear panel auxiliary inputs provide adjustability. For more customization, choose between either blue or red illumination. The in-dash equalizer with aux inputs also includes a Master volume control. A Fader also comes standard. Level controls allow the user to find the right amount of customization. The equalizer fits 1/2 din chassis. Left/right input level controls are also included. PWM switching power supply is one of the many features on the in-dash equalizer The unit also Includes mounting brackets. An LED Voltage Indicator always keeps the user included in its current status. The equalizer has 1 Preamp Input. The equalizer has 2 Preamp Outputs. The input Gain is 0-20dB. It has an Input impedance of 20k Ohm. It has a Maximum Output Level of 9.5 Vrms. The Equalizer has an Output of 150 Ohms. The Total Harmonic Distortion is 0.01%. The Frequency Response registers 20 Hz - 20k Hz. It has a Signal to Noise ratio of 110dB. The equalizer has a Current Draw of 250mA. The Equalizer includes an Equalization Cut/Boost of 12dB. The equalizer has a Frequency that is 90Hz from factory which is user programmable. The recommended Fuse Rating is 1A.
Audio Control Four.1i Owner's Manual| Specifications | |
|---|---|
| Recommended | Fuse Rating: 1A |
| Output Impedance: | 150 OHM |
| Equalizer Frequencies: | 40Hz-80 Hz (parametric), 125Hz, 500Hz, 2kHz, 8kHz |
| Total Harmonic Distortion: | 0.01% |
| Input Gain: | 0-20dB |
| Dimensions: | 6.75W x 5D x 1H |
| Maximum Output Level: | 9.5Vrms |
| Weight: | 2.0lbs (0.9kg) |
| Preamp Inputs: | 1 (2 channels) |
| Aux Input: | 1 (2 channels) |
| Input Impedance: | 20k OHM |
| Preamp Outputs: | 2 (4 channels) |
| Frequency Response: | 20Hz-20kHz |
| Signal to Noise: | 110dB |
| Equalization Cut/Boost: | 12dB |
| Remote In | Power Supply: High Headroom PWM Switching |
| Current Draw: | 250mA |
The FOUR.1i is an in-dash equalizer with aux inputs. It features a 4+1 band stereo equalizer with ParaBASS. A 13 volt peak preamp line driver provides a smooth performance. The two channel preamp input come built into this equalizer. It has an Independent front, rear and subwoofer out. The 2-way equalizer provides maximum performance. Front and rear panel auxiliary inputs provide adjustability. For more customization, choose between either blue or red illumination. The in-dash equalizer with aux inputs also includes a Master volume control. A Fader also comes standard. Level controls allow the user to find the right amount of customization. The equalizer fits 1/2 din chassis. Left/right input level controls are also included. PWM switching power supply is one of the many features on the in-dash equalizer The unit also Includes mounting brackets. An LED Voltage Indicator always keeps the user included in its current status. The equalizer has 1 Preamp Input. The equalizer has 2 Preamp Outputs. The input Gain is 0-20dB. It has an Input impedance of 20k Ohm. It has a Maximum Output Level of 9.5 Vrms. The Equalizer has an Output of 150 Ohms. The Total Harmonic Distortion is 0.01%. The Frequency Response registers 20 Hz - 20k Hz. It has a Signal to Noise ratio of 110dB. The equalizer has a Current Draw of 250mA. The Equalizer includes an Equalization Cut/Boost of 12dB. The equalizer has a Frequency that is 90Hz from factory which is user programmable. The recommended Fuse Rating is 1A.
Audio Control Four.1i Owner's Manual
