Alpine :: PDX-F4 :: $499.95

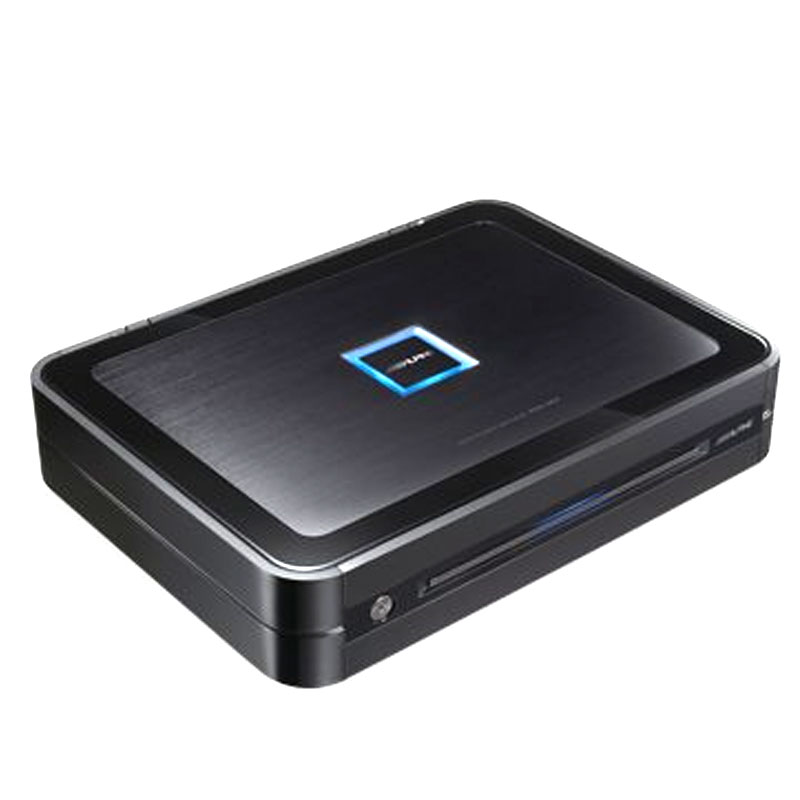

Alpine PDX-F4

Item# 26051

400W 4-Channel (3/2 Bridgabe) Power Density Series Digital Amplifier


click here to view our locations

The new Alpine PDX Series amplifiers are completely re-engineered for performance, sound quality, and reliability. The PDX series are for the true car audio enthusiast, all from a compact size. Consider the bar raised.

Onlinecarstereo has been a long time authorized retailer of Alpine products. We strive for excellent customer satisfaction and on-time delivery of your orders. As we are an authorized retailer, you are guaranteed you are receiving authentic Alpine products.

Features and Specification

SPECIFICATIONS

CEA-2006 Power Ratings

  • CEA-2006 Power Rating: (4/2 I?@14.4V ?%THD+N), S/N 98dBA (Ref. 1W into 4 I?): 100w x 4

RMS Power Ratings

  • Per channel into 4 Ohms: (@14.4V ?%THD+N) 100W x 4
  • Per channel into 2 Ohms: (@14.4V ?%THD+N) 100W x 4
  • Bridged 4 Ohms: Bridged into 4I? (?%THD+N) 200W x 2

Sound Tuning

  • Crossover Frequency (LPF): Variable, 30-400Hz (-12dB / oct ), Low-Pass/High-Pass /OFF Selectable

Dimensions

  • Heat Sink (WxHxD) mm: 257mm x 192mm x 50.8mm
  • Heat Sink (WxHxD) in: 10-1/8'' x 7-9/16'' x 2''

General

  • Power Requirements: 14.4V DC (11V to 16V)
  • Input Sensitivity (RCA Input): 0.2V to 4.0V (For Rated Power)
  • Cable size: 4 AWG (BATT and GND), 12 AWG (Remote), Up to 8 AWG (Speaker)
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 5 Hz - 100 kHz / 0dB ~ -3dB (Reference: 1 W into 4 ohms)
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 4 or 2 I?
  • Frequency Response (+0, -1dB: 1W into 4 Ohms) for CH-1/2/3/4: CEA 2006 S/N Ratio (IHF A Weighted, Reference: 1W into 4I?) 98 dBA

FEATURES

Install

  • Connectors: Quick Disonnect Terminals (Power Terminal and Speaker Terminals)
  • Terminal Layout: One-Sided
  • Mounting Design: Easy Stacking and Clean-look installation

General

  • Amplifier Type: Class-D (Digital)
  • Channel Design: 4/3/2 Channel
  • Thermal Protection:
  • Low-battery Protection:
  • Power Supply Design: DC-DC PWM Power Supply
  • Board Circuitry: STAR Ciruit
  • Current Protection: Auto Over-Current Protection
  • Power Indicator: Top Mounted Blue LED Power/Status Indicator
  • Crossover: Adjustable High Pass, Low Pass
  • Pre-Amp Stage: Discrete
  • Board Design: 6-Layer Glass Epoxy PC Board
  • Gain Control: Adjustable
  • UPC: 793276301048
  • Weight: 9
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   Kelly From dallas
I bought this amp through a different site and it sounded amazing until 2 channels went out. Not sure why but they did. My old cheap mtx works like a charm still so not sure what happen to this one. I'll try alpine 1 more time because they sound great for the price.

   Nathan From Calgary, AB Canada
This amp was the perfect addition to my car audio upgrade. Alpine class D really packs a punch. This amp also includes wire plugs for very quick, dependable and easy installation. This was my first purchase through Onlinecarstereo.com and it most certainly will not be by last. Excellent prices, great service, and very quick shipping. Next purchase = 2 sets of component speakers.

   tom From work

Hook up was extremely easy. The sound was very clean. Worth the money.
