Infinity :: REF-9633CF :: $93.40

Infinity REF-9633CF

Item# 30467

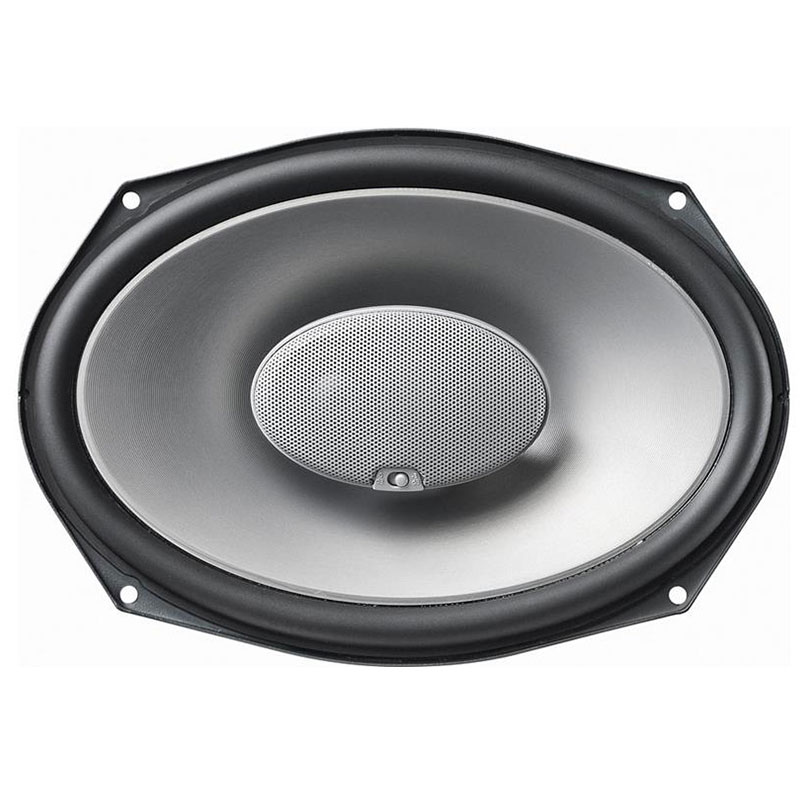

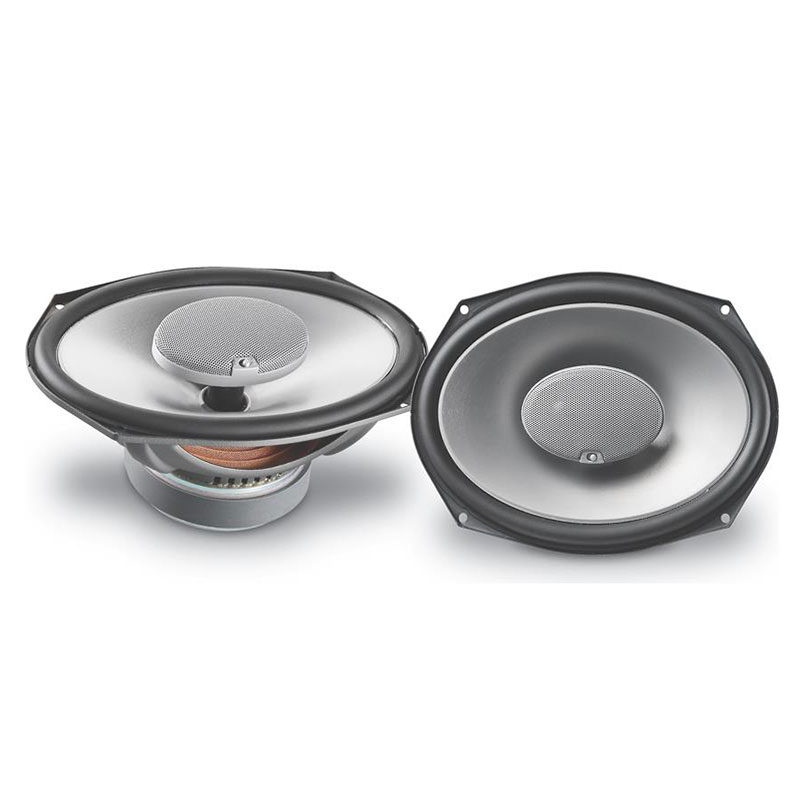

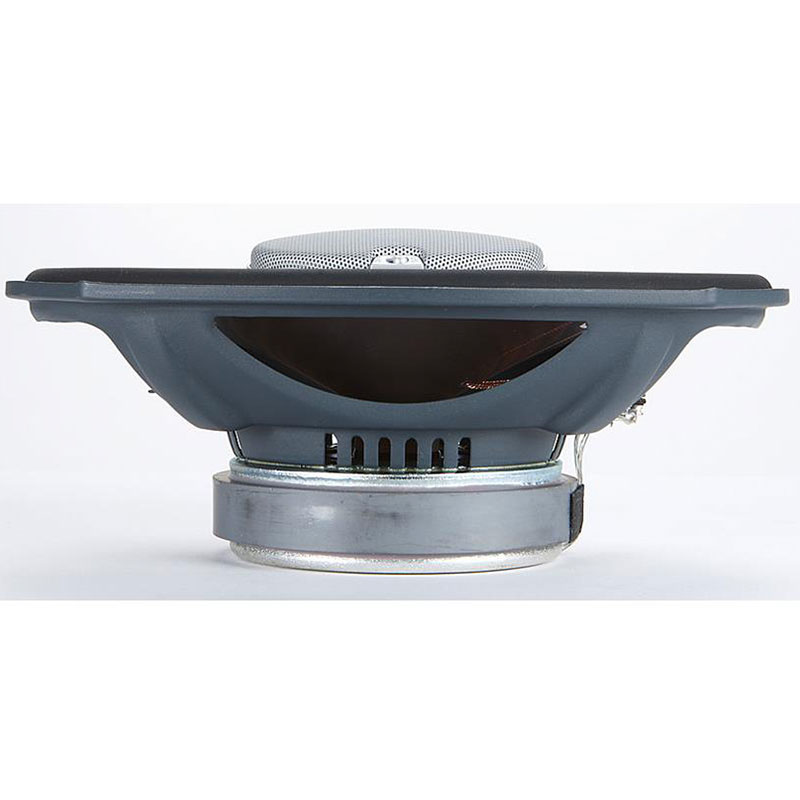

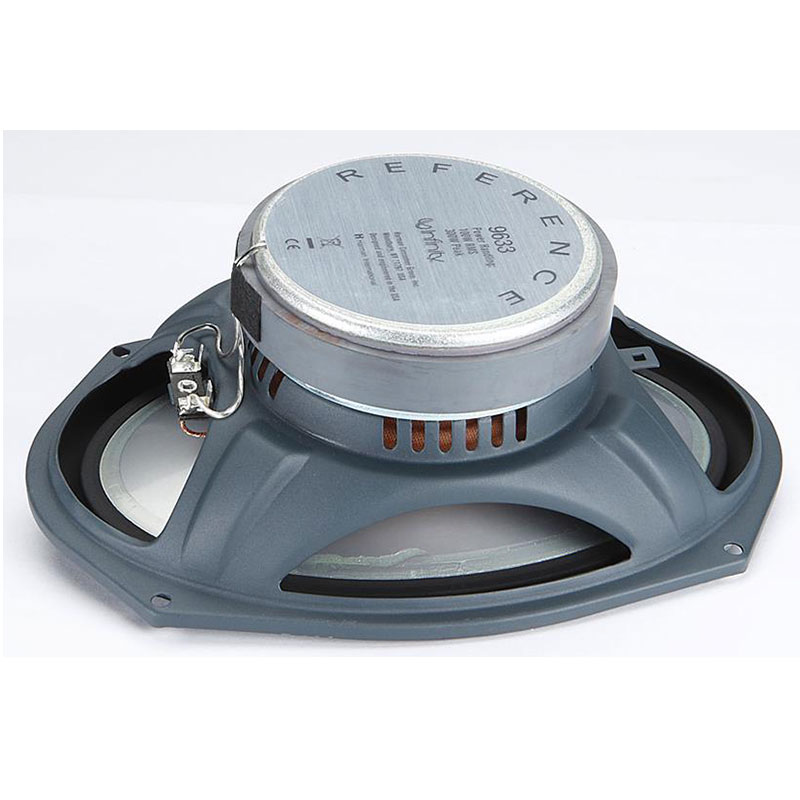

6" X 9" 300W 3-Way Reference Series Car Speakers

Sorry, this product is no longer available.

Highly Recommended Alternatives

Related Video:

What's Included:

  • Speaker Instructions
  • 2 Adhesive backed foam strips
  • Two Bottom-mount brackets
  • Two 6x9" 3-way speakers

Product Highlights:

  • Response Frequency: 46 - 30000 Hz
  • Polypropylene Woofer Cones
  • 0.75” Super Tweeters
  • UniPivot Technology
  • Hi-roll rubber surround
  • Metal Matrix Diaphragm Tweeter Design
  • 2-ohm impedance
  • Sensitivity: 94 dB

The Infinity Reference comes with 6”x9” 3-way car speakers. These speakers fall into the 3-way speaker category. The woofers are constructed out of Polypropylene. The speakers are light, but stiff Polypropylene woofer cones won't flex or distort. Also featured in these speakers are a Plus One+ woofer cone design. The Plus One+ design offers a larger surface area. Plus One+ Woofer Cones provide a significant improvement to overall quality performance. Oversized Plus One+ woofers yield an enhanced midrange sound as well as a wider area for peak bass output. The woofer cones also feature a Hi-roll rubber surround in the unique basket design. Hi-roll rubber surrounds allow a greater range of movement for the speakers. These speakers also include 0.75" Super Tweeters. Similar to many Infinity home speakers, Infinity uses the same Metal Matrix Diaphragm tweeter. This will provide minimal coloration or distortion. The dome tweeters also allow for better stereo imaging by providing pivoting capabilities. With the ability to pivot the tweeters, a more focused sound will heard. The speakers are capable of handling up to 300 Watts Peak Power and 2-100 Watts RMS. Also, possessing a response frequency of 46 - 30000 Hz, these speakers will deliver a quality performance. The impedance registers 2 Ohms while the Sensitivity pushes 94 dB. The speakers have a top-mount depth of 3”.


Peak Power Range 300 (Watts)
Sensitivity 94 dB
Design 3-way
Woofer Surround Hi-roll rubber
Woofer Construction IMPP
Response Frequency 46 - 30000 Hz
Tweeter Construction UHF
Tweeter Type 0.75” Super Tweeter
Speaker Size 6”x9”
RMS Power Range 2-100 (Watts)
Impedance 2 (Ohms)
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 050667110550
  • Weight: 10
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   Quentin From Detroit,Mi.

Greetings all car audiophiles! I'm old school and 59 years of age. I have had Infinity speakers in all of my automobiles from a 1974 Chevy Vega to my present car, a 2008 Hyundai Tiburon. Consistent quality,excellent world class sound and to top it all off Great price from OCS!! Thanks again OCS! I'm your customer for life!

   Chris Collins From Billings Mt

I installed these to upgrade factory speakers .The sound Quality is excellent . And the Great customer service from onlinecarstereo was the winning ticket for me

   Bryant From New Orleans
These speakers have nice clarity and some decent mid bass when needed. They are a great speaker for the price, and an excellent upgrade over factory speakers.
