What's Included:
- 2-Channel amplifier
- 7" Speaker-level input harness
- Four 5/8" Self-tapping screws
- Warranty information
- 25 amp ATO fuse (installed)
- Instruction manual (English/ French/ Spanish)
Product Highlights:
- fuse rating: 25A x 1
- 9-1/8"W x 2-1/8"H x 7-1/8"D
- switchable low-pass filter (80 Hz at 18 dB per octave)
- 10-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- 2-channel car amplifier
- 60 watts RMS x 2 at 4 ohms (75 watts x 2 at 2 ohms)
- 150 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)
- CEA-2006 compliant
- Class AB design and MOSFET power supply

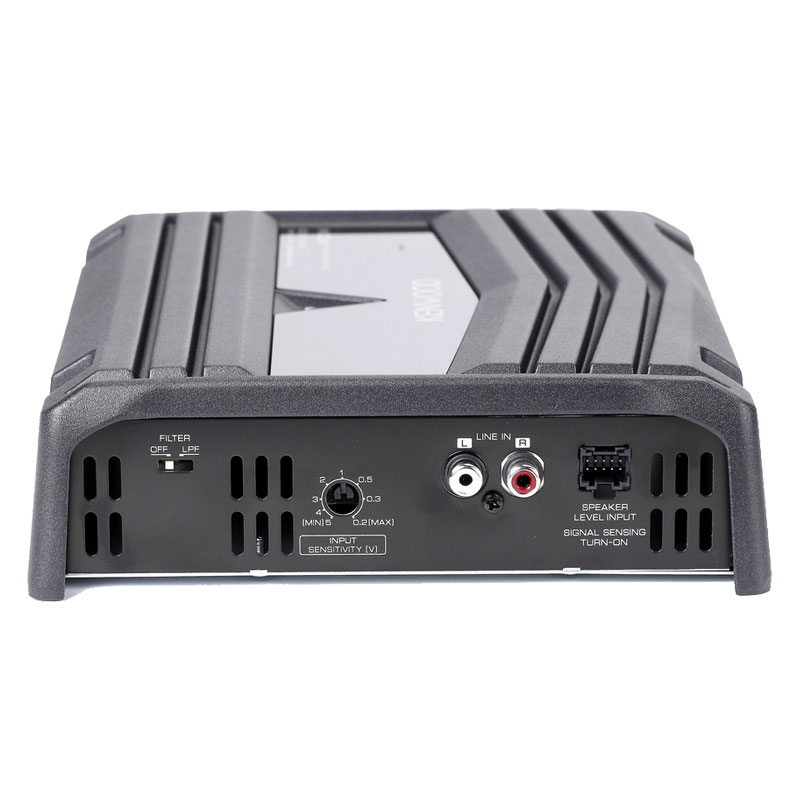

- preamp and speaker-level inputs
- signal sensing turn-on eliminates need for remote lead
- Maximum Power : 400 Watts
- Low Frequency Response : 5 Hz
- High Frequency Response : 50,000 Hz
- Number of Channels : 2
- Frequency Response : 5-50,000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 150 Watts
- Amplifier Class : A/B
- Fuse Rating : 25 A

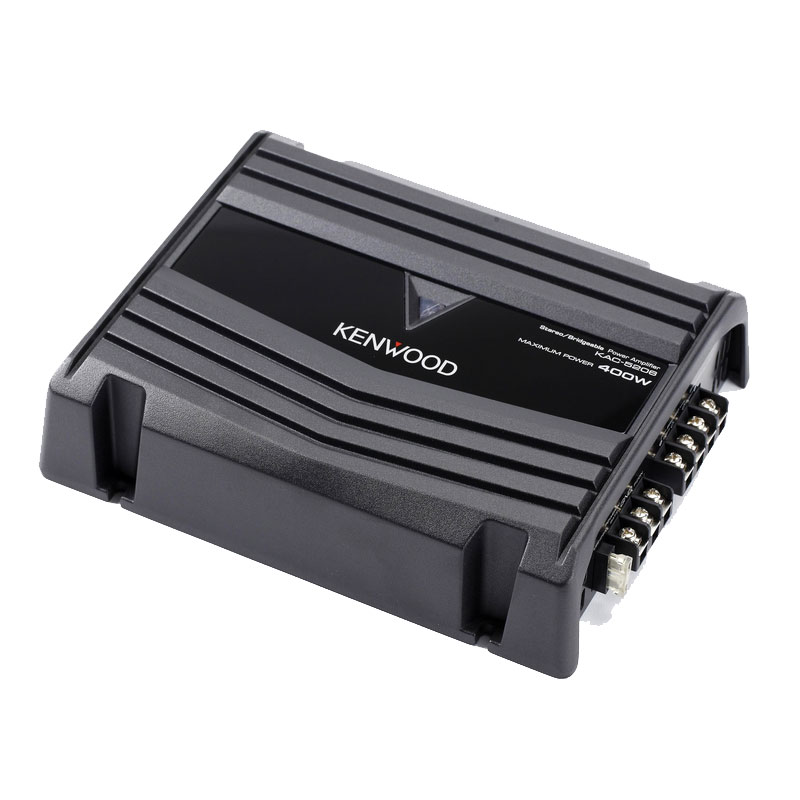

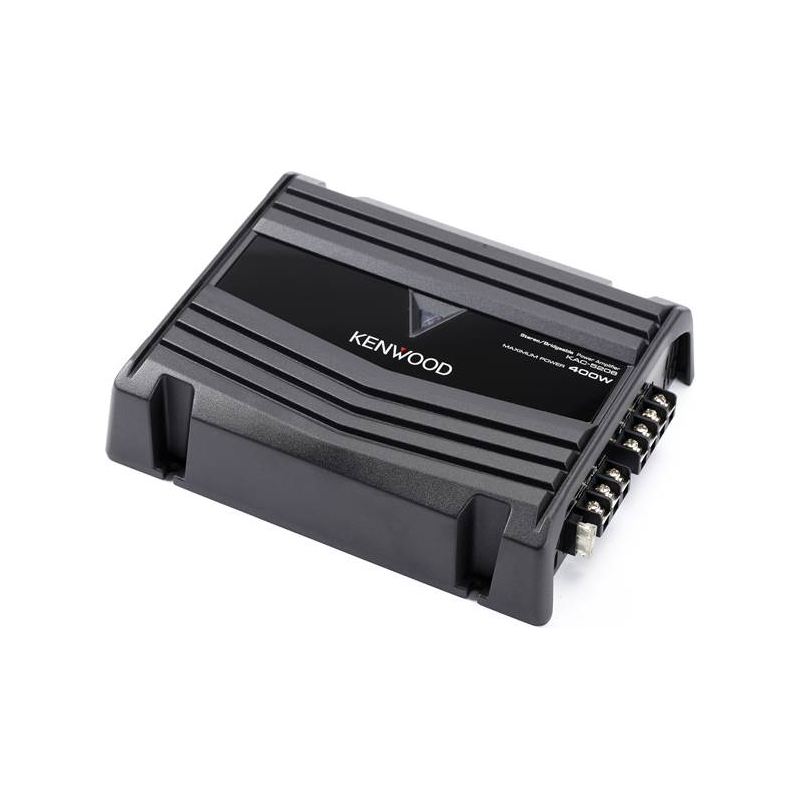

The compact KAC-5206 2-channel amp delivers 60 watts RMS per channel to your full-range speakers. The amplifier can support a 2-ohm load in stereo; the 2-ohm power output is 75 watts RMS x 2 channels and two-channel amplifier can be bridged to a 4-ohm mono load; the bridged output is 150 watts x 1 channel RMS. The amplifier has an 80Hz, -18dB/oct low-pass filter which can be turned On or Off.
| Other Specifications |
| Low-Pass Slope (dB/octave) |
18 dB/octave |
| Minimum Impedance Bridged |
4 |
| Fuse Rating |
25 |
| Best Frequency Response |
5-50k Hz |
| RMS Power Output (Watts x Channels) |
60 x 2 |
| Speaker Level Inputs |
Harness |
| High-Pass Slope (dB/octave) |
N/A |
| Minimum Impedance Unbridged |
2 |
| Preamp Outputs |
No |
| Fan Cooled |
No |
| Height (inches) |
2-1/8 |
| Amplifier Class |
AB |
| Bass Boost Frequency |
N/A |
| Signal to Noise Ratio |
80 dB |
| Input Voltage |
14.4v |
| Bridged Power (Watts x Channels) |
150 x 1 |
| Low-Pass Crossover Frequency |
80 Hz |
| High-Pass Crossover Frequency |
N/A |
| Bass Boost |
No |
| Width (inches) |
9-1/8 |
| Depth (inches) |
7-1/8 |
| Peak Power Output (Watts x Channels) |
400 x 1 |
| Power at 2 Ohms (Watts x Channels) |
75 x 2 |
| THD at Rated RMS Power |
1% |
- UPC: 0019048206183
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
