Item# 38407
JL Audio C3-100CT - $129.99
Please roll over the image to zoom in. Click on the image to see larger image.

JL Audio C3-100CT (99023)

Item# 38407

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

1" (25 mm) Component Tweeters 225W Peak Power

Savings Of:
Your Price $129.99

FREE Shipping in US 48!

vehicle fit guide

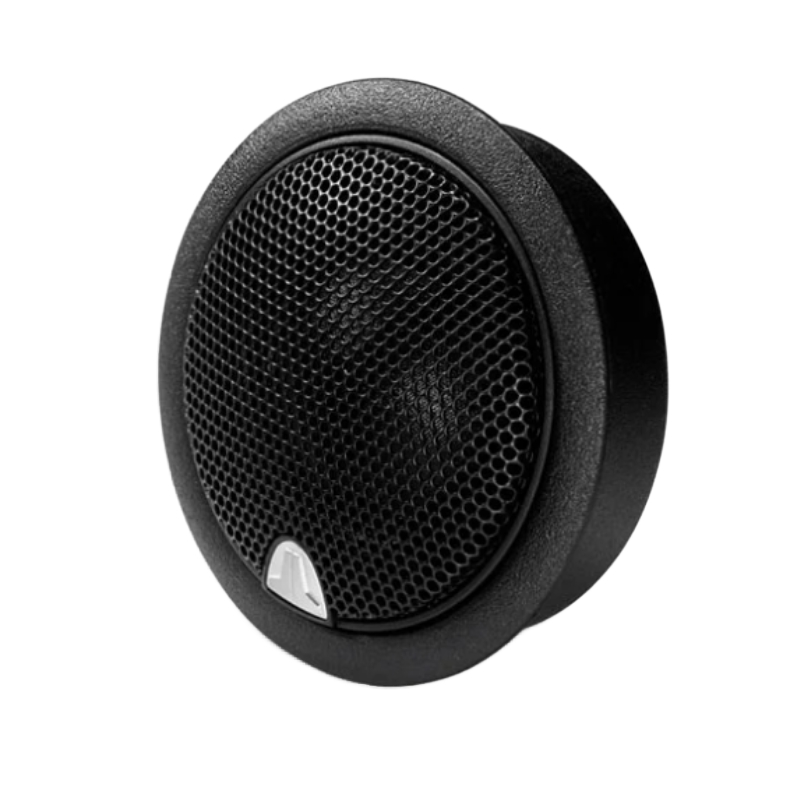

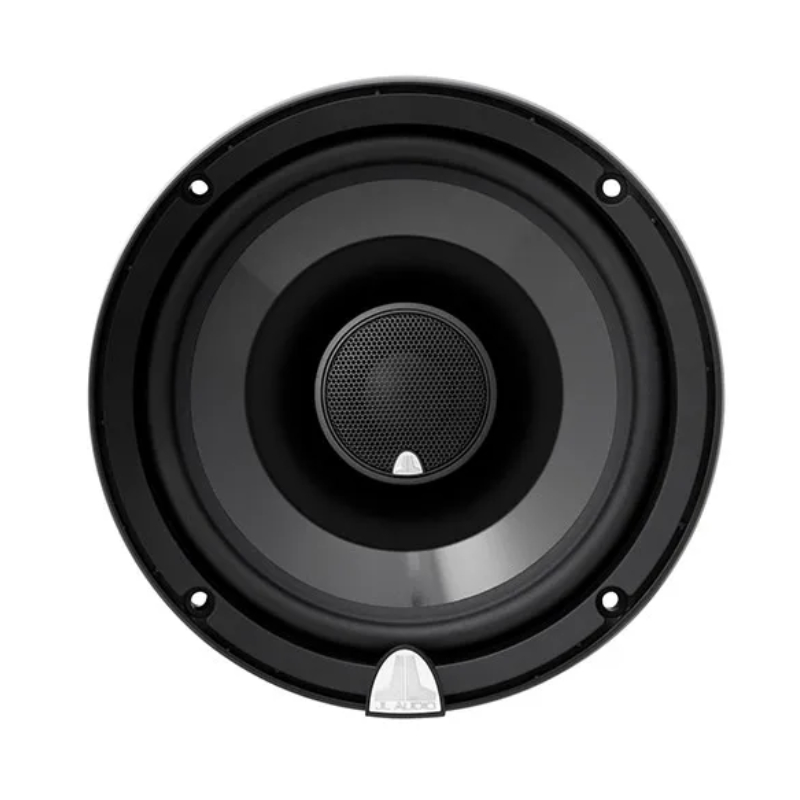

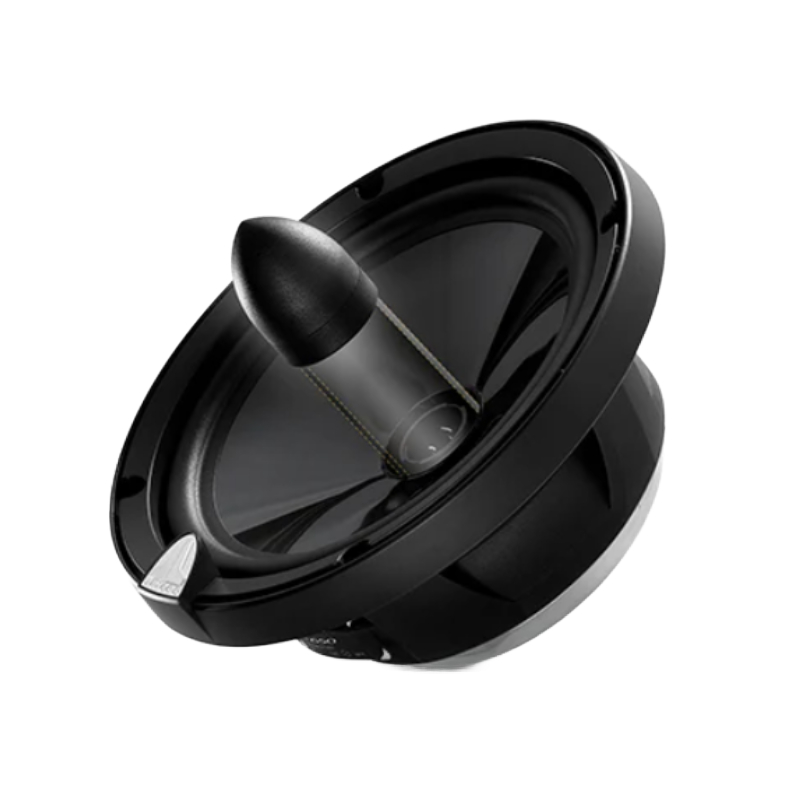

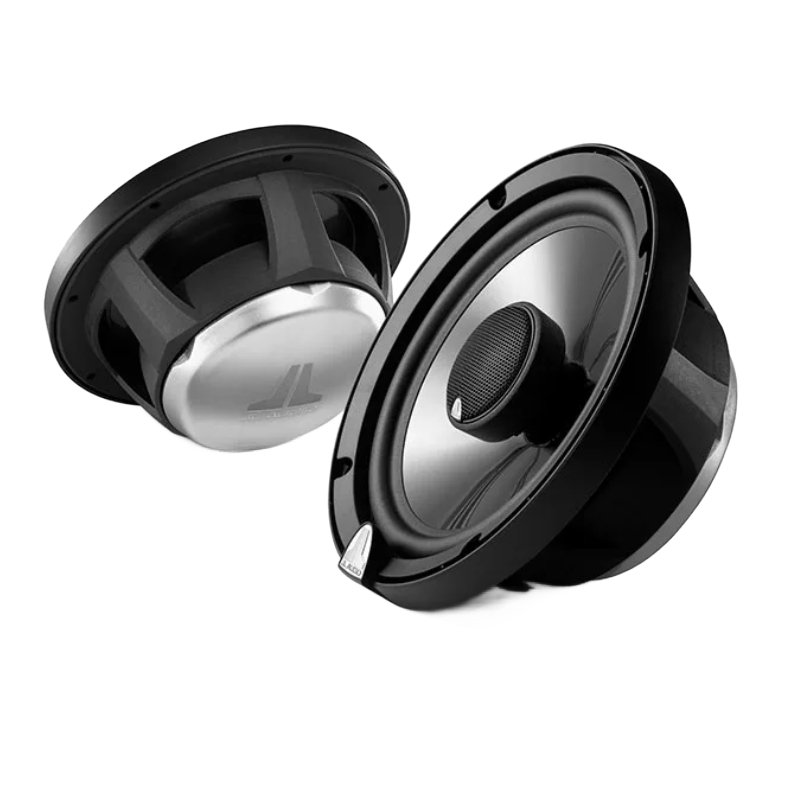

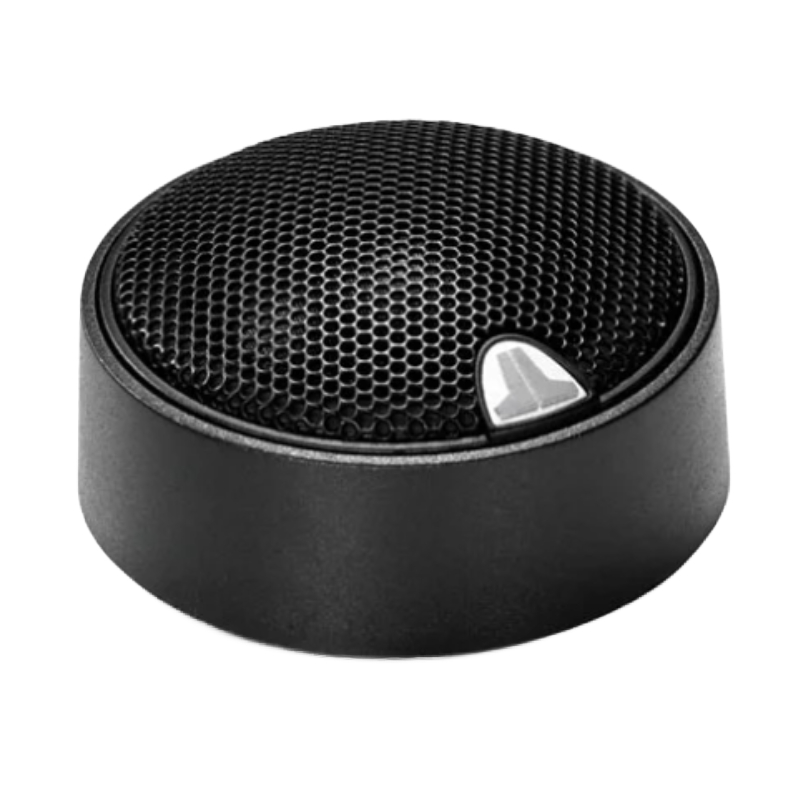

The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems. Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C5-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.



GENERAL FEATURES:

  • 1.0" Evolution C3 Series Component Tweeters
  • Power Handling:
  • Peak: 450 watts per pair / 225 watts each
  • RMS: 150 watts per pair / 75 watts each
  • Nominal Impedance: 4 ohm
  • Efficiency: 90.0 dB @ 1 watt / 1 meter
  • Frequency Response: 4 Hz - 25 KHz ± 3 dB
  • Recommended Power Range: 25 - 150 watts per channel
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
  • Fixed Angle Flush-Mount, Surface-Mount
  • Inline 12 dB / octave high-pass filters
  • Premium Mylar® Capacitors w/ Air-Core Inductors
  • ²Designed to operate above 4 kHz
  • Built-in black steel mesh grille with an electroformed JL Audio logo
  • Tweeter Dimensions: (Flush Mount)
  • Top-mount depth: 0.71"
  • Cutout Dimensions: 1.875"
  • Nominal Impedance: 4 ohm
  • Efficiency: 90.0 dB @ 1 watt / 1 meter
  • Frequency Response: 4 Hz - 25 KHz ± 3 dB
  • Product Highlights:
  • Continuous Power Handling (RMS) 75 W
  • Peak Music Power* 225 W
  • Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
  • System Efficiency 90.0 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 4 kHz - 25 KHz ± 3 dB
  • Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
  • Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
  • Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
  • Flush Mount Mounting Depth (C) 0.71 in / 18.0 mm
  • Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
  • Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm
  • UPC: 699440990233
  • Weight: 1
  • Sku: 99023
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
