Item# 39638

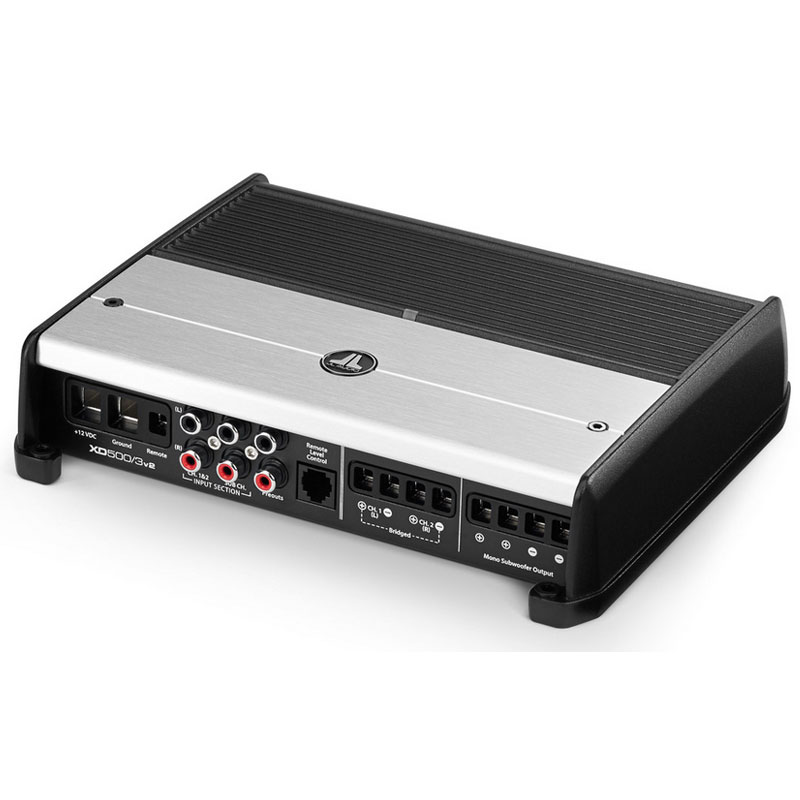

JL Audio XD500/3v2 - $339.00
Please roll over the image to zoom in. Click on the image to see larger image.

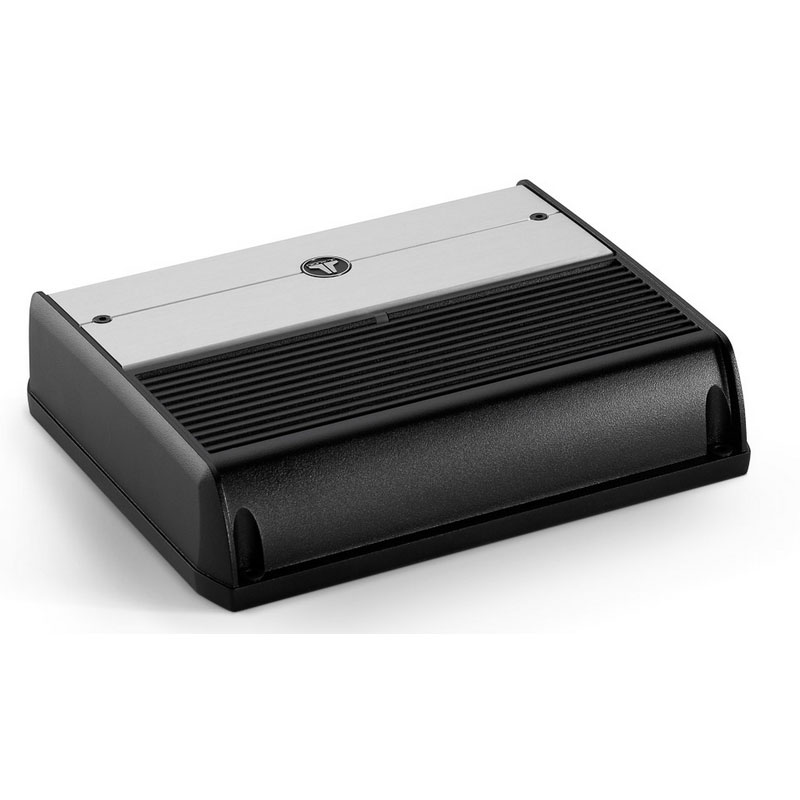

JL Audio XD500/3v2 (98603)

Item# 39638

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

3-channel car amplifier 75W RMS x 2 at 4 ohms + 300 watts RMS x 1 at 2 ohms

MSRP:$699.99
Regular Price:$409.99
Savings Of:$360.99
Your Price $339.00

FREE Shipping in US 48!

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.

The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

General Features:

  • XDv2 Series Class D 3-Channel Amplifier
  • RMS Power Rating @14.4V: Channel 1 - 2
  • 4 ohms: 75 watts x 2 chan.
  • 2 ohms: 100 watts x 2 chan.
  • Bridged 4 ohms: 200 watts x 1 chan.
  • RMS Power Rating @14.4V: Sub Channel
  • 4 ohms: 180 watts x 1 chan.
  • 3 ohms: 240 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
  • RMS Power Rating @12.5V: Channel 1 - 2
  • 4 ohms: 60 watts x 2 chan.
  • 2 ohms: 90 watts x 2 chan.
  • Bridged 4 ohms: 180 watts x 1 chan.
  • RMS Power Rating @12.5V: Sub Channel
  • 4 ohms: 180 watts x 1 chan.
  • 3 ohms: 240 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
  • Input sensitivity:
  • Low level: 800mV - 8V
  • High level: 200mV - 2V
  • Frequency Response (Main): 12 - 22,000 Hz
  • Frequency Response (SubW): 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Damping Factor @4 ohms: >120 / 50 Hz
  • Selectable Filter Mode (Main): Off / HP
  • Variable cutoff filter: 50 - 500 Hz
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • NexD™ High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Differential Balanced RCA Input
  • Pass-through preamp RCA outputs
  • Selectable turn-on modes: REM / Offset / Signal
  • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
  • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
  • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

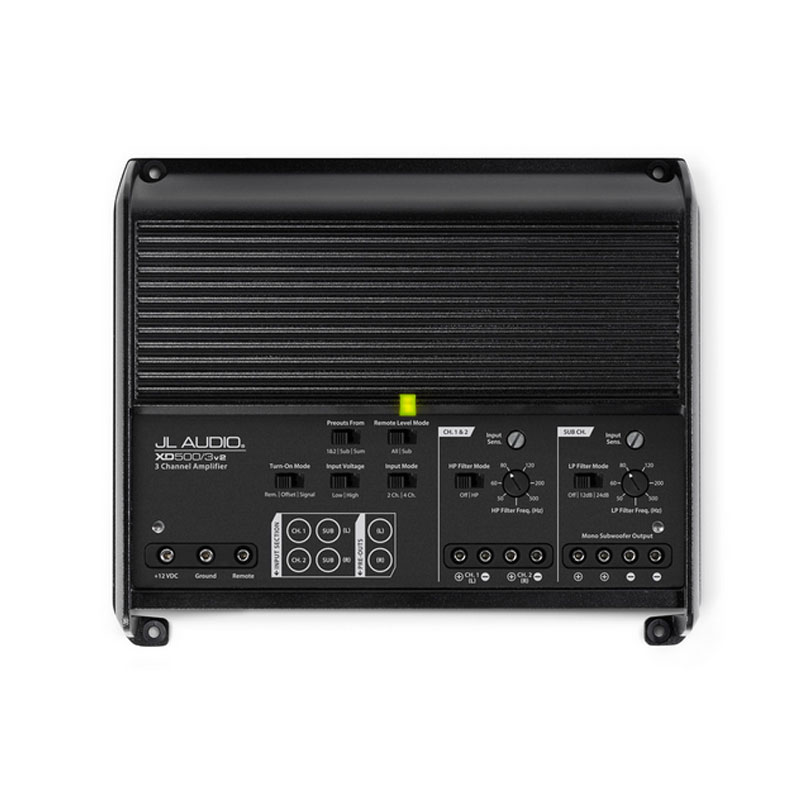

  • Detented, Calibrated Filter Freq. Potentiometer
  • Selectable input mode: 2 Ch. / 4 Ch.
  • Ch 1&2: 12dB/octave Butterworth High-Pass
  • Sub Ch: 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley
  • Product Highlights:
  • 3-channel car amplifer
  • 75 watts RMS x 2 + 180 watts RMS x 1 at 4 ohms
  • 100 watts RMS x 2 + 300 watts RMS x 1 at 2 ohms
  • 200 watts RMS x 1 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
  • front channels: variable high-pass filter (50-500 Hz, 12 dB/octave)
  • sub channel: variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
  • optional wired remote controls sub or system level
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Advanced Rollback Protection System prevents thermal shut-down

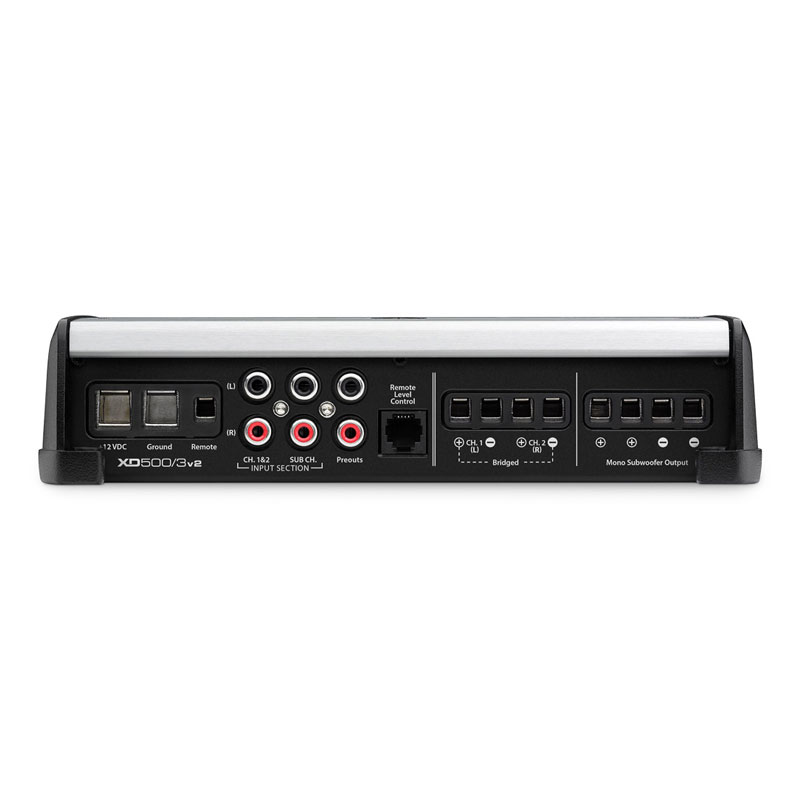

  • Connection Features:
  • preamp inputs and outputs
  • speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 8 volts RMS (about 16 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 8-9/16"W x 2"H x 7-1/8"D
  • UPC: 699440986038
  • Weight: 6
  • Sku: 98603
