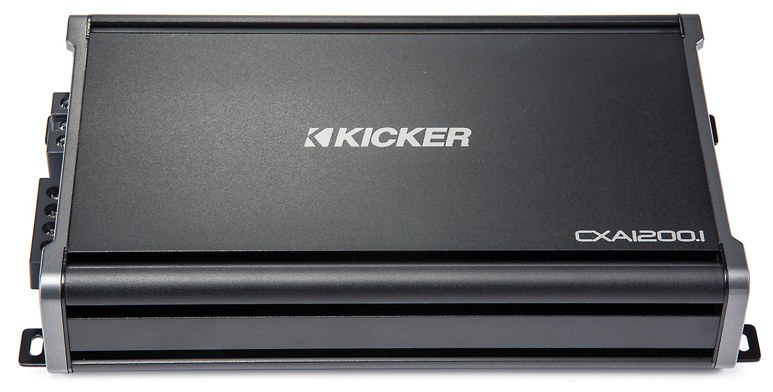

Kicker CX Amplifiers
CX Series amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components available. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
PASMAG Reviews the CXA1800.1
The Kicker CX series of amplifiers have been designed to provide not just the legendary power that Kicker is known for, but these amplifiers also offer several innovative and useful features that set them apart from the rest of the pack. This time, we’re going to have an in-depth look at the big dog in the line, the CXA1800.1 subwoofer amplifier.

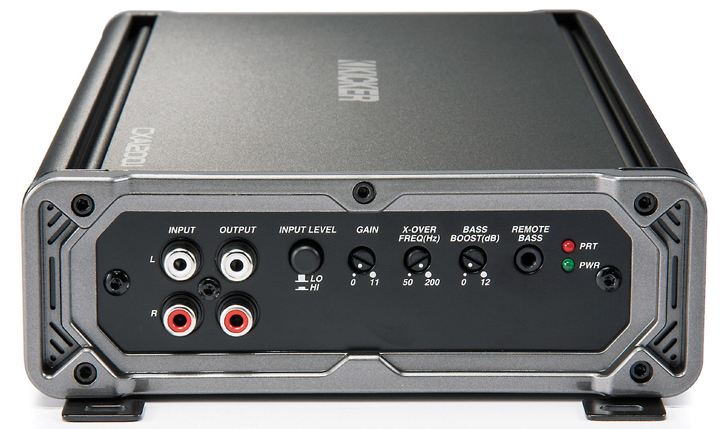

Control It
An analog 12dB crossover allows you to adjust the sonic response of your speakers, while a 24dB subsonic filter on mono amps controls your bass for an efficient, long-lasting subwoofer.
Flexible

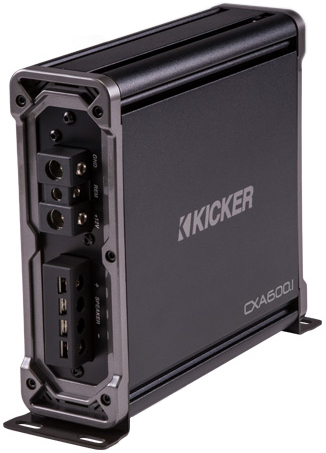

KICKER® amps are among the most flexible workhorses in the industry. Whether you connect them to a factory or aftermarket radio, CX amplifiers pump out the power. With the option to mount them vertically (hardware included) your mounting options are many.

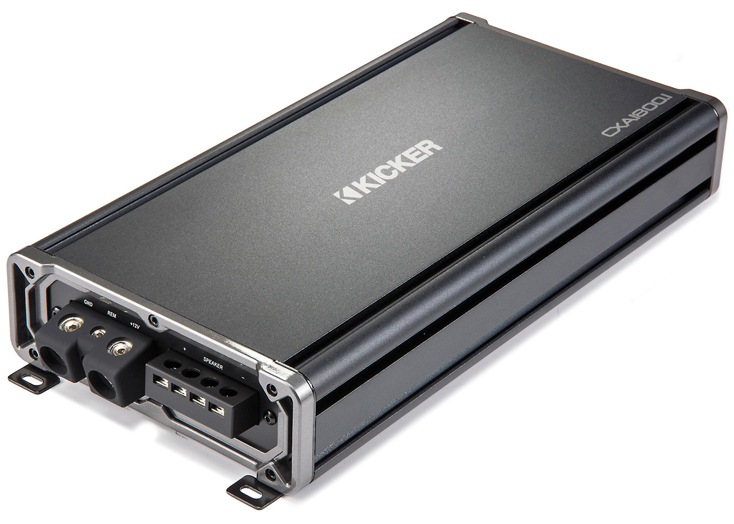

New, Huge Power
You asked for more – we listened! CX now features a massive 1800 watt amplifier, with all the features and fun you’ve come to expect from KICKER.

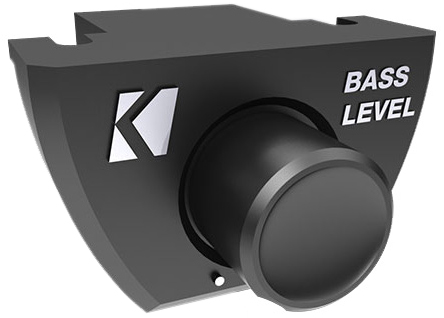

Remote Control
Your mono CX-Series amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!
- Maximum Power : 600 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 20k Hz
- Number of Channels : 4
- Frequency Response : 10 - 20,000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 40-75 Watts
- Amplifier Class : D
- Fuse Rating : 40 A

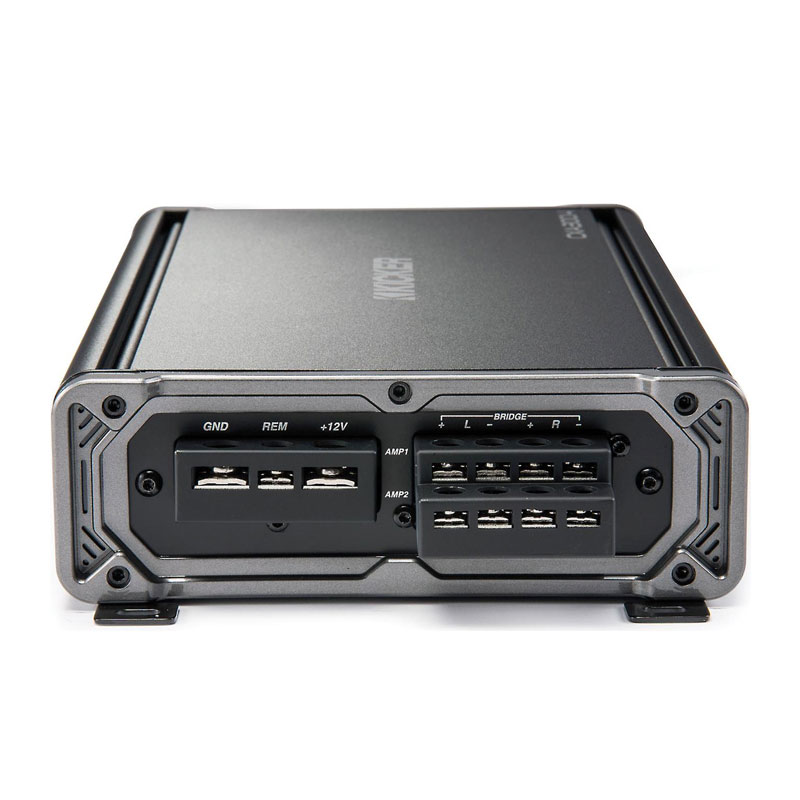

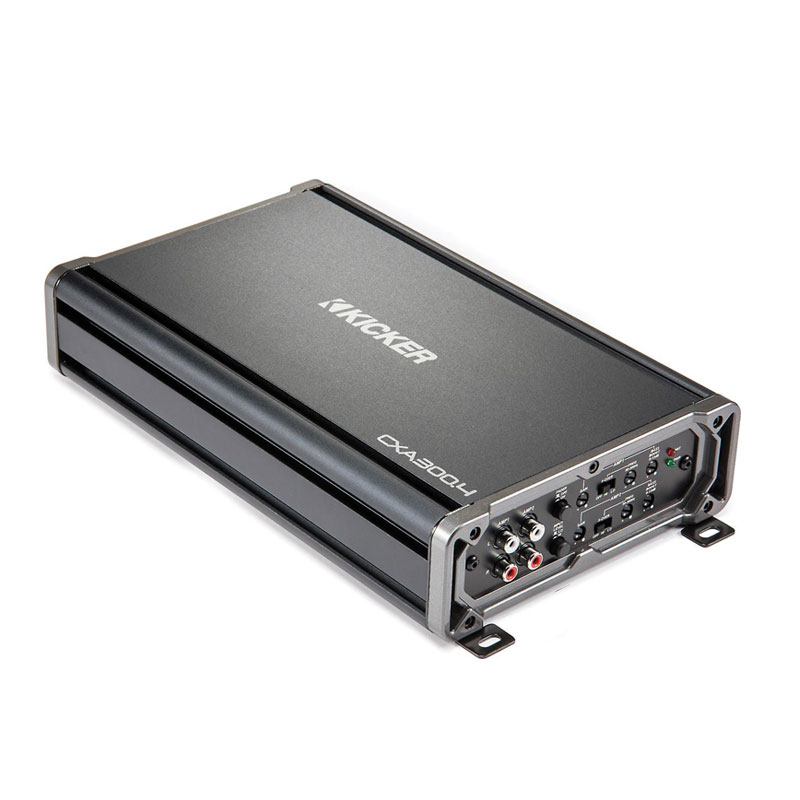

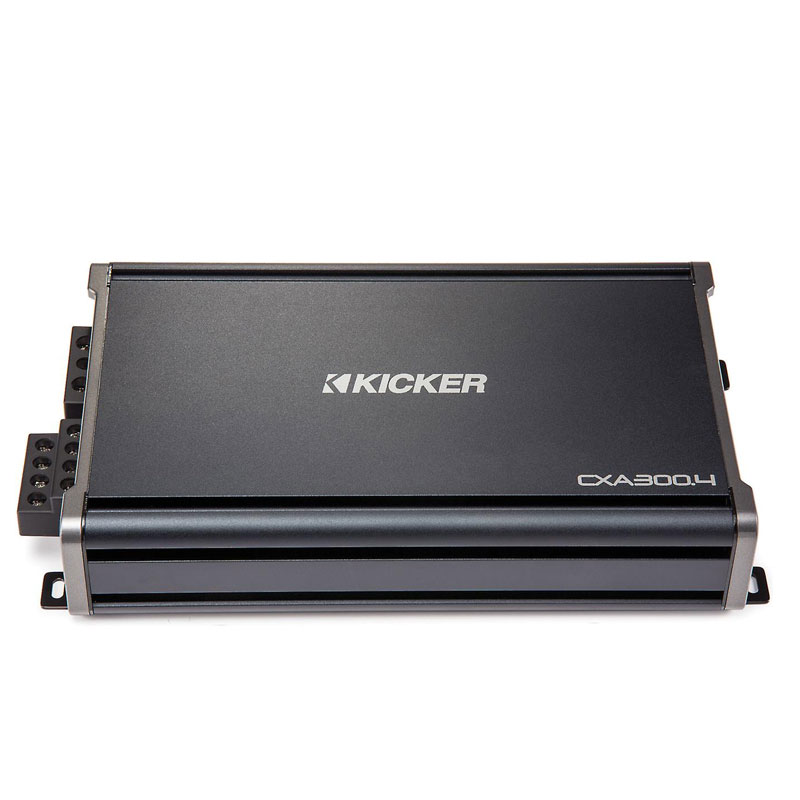

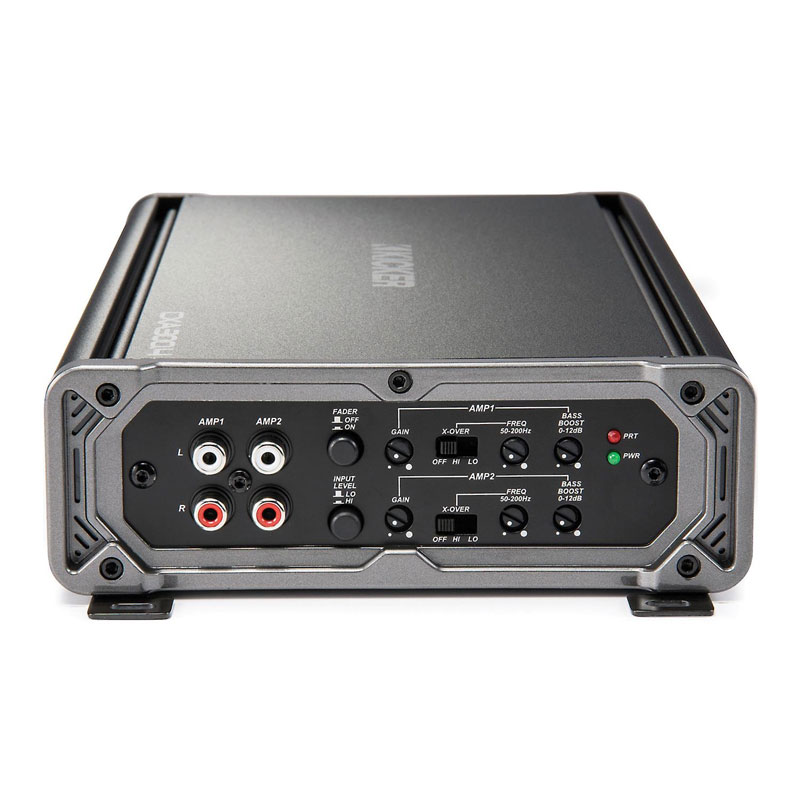

The CX 300.4 Four-Channel Amplifier is built to power all your door speakers in a small, powerful package.
This amp features a variable bass boost with KickEQ™, giving you as much as a 12dB of extra bump, A powerful 12dB crossover is included letting you quickly tune your system to perfection with out any hold ups.
Use the full range outputs to expand your system with a full range amp to complete your system to get the perfect sound you desire. This CX amplifier delivers as much as 75 watts per channel (4 channels driven), or 150 watts into two sets of bridged channels.
Amplifier produces 600 Watts of Peak Power (300 Watts RMS). Frequency Response 10 - 20,000Hz. See below for more details.
Specifications |
Input Voltage |
14.4v |
RMS Power Output (Watts x Channels) |
40 x 4 |
Low-Pass Crossover Frequency |
50-200 Hz |
Low-Pass Slope (dB/octave) |
12 dB/octave |
Bridged Power (Watts x Channels) |
150 x 2 |
Peak Power Output (Watts x Channels) |
150 x 4 |
Width (inches) |
12-3/8 |
Fan Cooled |
No |
Best Frequency Response |
10-20k Hz |
Fuse Rating |
40 |
Minimum Impedance Unbridged |
2 |
Amplifier Class |
D |
Power at 2 Ohms (Watts x Channels) |
75 x 4 |
Minimum Impedance Bridged |
4 |
THD at Rated RMS Power |
1% |
Signal to Noise Ratio |
95 dB |
High-Pass Crossover Frequency |
50-200 Hz |
High-Pass Slope (dB/octave) |
12 dB/octave |
Bass Boost |
0-12 dB |
Bass Boost Frequency |
40 Hz |
Speaker Level Inputs |
RCA |
Preamp Outputs |
No |
Height (inches) |
2-3/8 |
Depth (inches) |
6-3/4 |
What's Included:
- UPC: 713034075950
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
